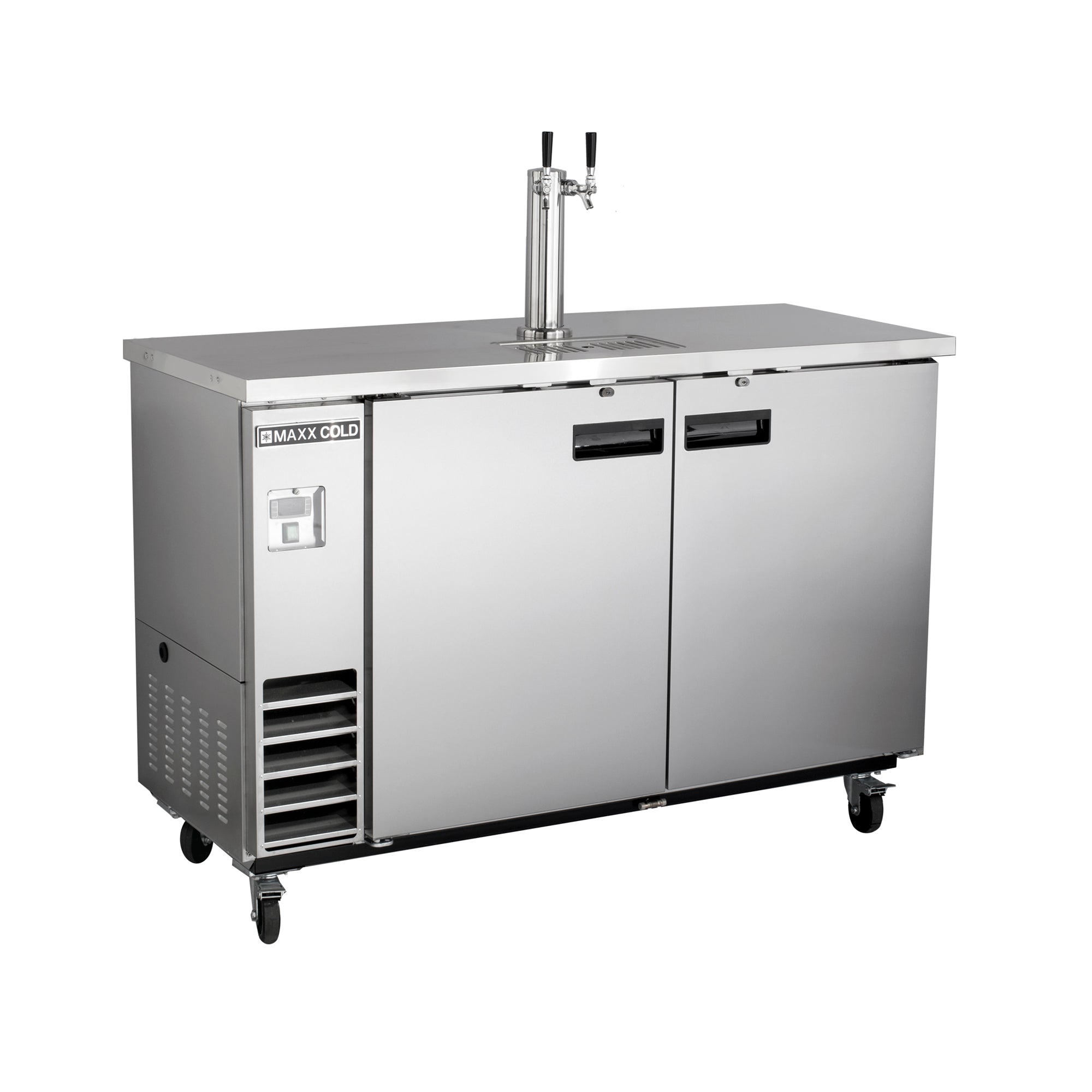

Maxx Cold Single Tower, 2 Tap Beer Dispenser, 47.5"W, 10.5 cu. ft., 2 Barrels/Kegs (297L) Storage Capacity, in Stainless Steel - MXBD48-1SHC
This 47.5 inch wide Maxx Cold X-Series Beer Tower Dispenser is engineered for durable usage, efficient performance, and easy cleaning. It accommodates 2 barrel/keg, providing up to 10.5 cubic feet (297L) of storage capacity. The single tower beer dispenser is ideal for pubs, bars, breweries, catering services, banquet halls or special events and parties requiring a draft brew. The exterior of the unit is constructed of durable stainless steel, while the interior of the cabinet is crafted in sanitary white coated steel paired with a stainless floorplate. This unit is fully insulated with 2” (50 mm) CFC-free polyurethane on both walls and doors. The standard 3-inch (77 mm) polished stainless-steel draft tower dispenser, which is mounted to the top center counter, is cooled by continuous cold air circulation to maintain tap temperature that reduces foam when dispensing and can easily fill pint beer glasses, frosted beer mugs and pitchers. Premium features on this model include a self-contained forced air refrigeration system which cools the base cabinet and tower to optimize temperature throughout your commercial operations. The solid-state digital control system is designed with LED temperature display. This beer tower dispenser is engineered to facilitate maintenance and maneuvering by the operator, with an easy to clean slide-out condensing unit, recessed drawer handles (with locks) and four (4) swivel casters (two of which come with brakes). The dispenser is equipped with integrated condensate evaporator, meaning no drain line connection is needed. Operation requires CO2 tank and regulator (not included).
Features
- Accommodates 2 barrels/kegs with storage capacity of 10.5 cubic feet (297L)
- One 3” (77mm) diameter polished stainless steel insulated beer tower dispenses two different liquids
- Interior is constructed of sanitary white coated steel with a stainless floorplate
- Exterior and top is constructed of stainless steel to prevent damage
- 2” (50mm) CFC-free polyurethane insulated walls and doors
- Self-contained forced air refrigeration system cools the base cabinet and tower
- Slide out condensing unit for easy maintenance
- Epoxy coated evaporator coils to resist corrosion
- Easy to grip recessed drawer handles with locks
- Adjustable heavy duty wire shelves (2 per section/door)
- Four 4” casters included, two (2) with brakes (Smaller casters available for ADA Compliance)
- Holding temperature of 34°F and 41°F (1⁰C to 5⁰C)
- Environmentally friendly R134A refrigerant
- Available in 120V/60Hz/1pH and International voltage options
Specifications
| Adjustable Shelves |
No |
| Adjustable Temperature Control |
Yes |
| Amperage |
3A |
| Assembled Dimensions (LxWxH) |
24.40" x 47.50" x 55.98" |
| Assembled Weight (lb) |
264.0 |
| Assembly Required |
Yes |
| Batteries Required |
No |
| Capacity |
2 Kegs |
| Caster Size |
4" |
| Casters |
Yes |
| Color |
Stainless Steel |
| Control Type |
Digital |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Automatic / Frost Free |
| Depth - Door Open 90° |
41.34" |
| Depth - Excluding Door |
29.90" |
| Depth - Excluding Handles |
29.90" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Stainless Steel |
| Door Material |
Stainless Steel |
| Door Swing Orientation |
French-Door |
| Electric |
Yes |
| First Zone Maximum Temperature |
41° |
| First Zone Minimum Temperature |
33° |
| Freezer Type |
No Freezer |
| Ice Maker Included |
No |
| Included Components |
Refrigerator, Instruction Manual, Casters |
| Installation Type |
Freestanding |
| Integrated Lock |
Yes |
| Material |
Stainless Steel |
| Number of Doors |
2.0 |
| Number of Items |
1.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Refrigerant Type |
R-290a |
| Size |
48" |
| Temperature Range |
33° - 41° |
| Temperature Zones |
1.0 |
| Undercounter |
No |
| Voltage |
120V |
| Volume Capacity |
297L |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
360W |
| Case Pack Dimensions |
56" x 40" x 31" |
| Case Pack Weight |
296.0 |
| Case Quantity |
1.0 |
| Country of Origin |
China |
What Our Experts Think
-
Premium Build – Stainless steel construction ensures durability and a sleek, professional look.
-
Generous Capacity – Holds two barrels/kegs (297L), perfect for high-demand settings.
-
Efficient Cooling – Maintains optimal beer temperature for crisp, refreshing pours.
-
Dual-Tap Convenience – Serve two different beers simultaneously for variety.
-
Compact & Practical – 47.5” width fits well in bars, restaurants, or home setups.
-
Reliable Performance – Designed for commercial use with a powerful cooling system.
Q&A
Q: What is the storage capacity of this beer dispenser?
A: It holds two barrels/kegs with a total storage capacity of 10.5 cu. ft. (297L).
Q: How many taps does this dispenser have?
A: It features a single tower with two taps for dual-beer dispensing.
Q: What are the dimensions?
A: The unit measures 47.5”W, making it ideal for bars, restaurants, or home use.
Q: Is it made of durable materials?
A: Yes, it's constructed with high-quality stainless steel for durability and easy cleaning.
Q: Does it include a refrigeration system?
A: Yes, it has a built-in, efficient refrigeration system to keep beer perfectly chilled.
Q: What type of kegs does it support?
A: It accommodates standard half-barrel and slim quarter-barrel kegs.
Q: Is it energy efficient?
A: Yes, it's designed for efficient cooling and minimal energy consumption.
Q: Where is this dispenser best suited for?
A: Perfect for bars, restaurants, breweries, and home entertainment spaces.
Maintenance Tips
-
Regular Cleaning – Clean beer lines weekly with a brewery-approved cleaner. Wipe down the stainless steel exterior with a mild detergent and soft cloth.
-
Temperature Check – Keep the internal temperature at 34-38°F for optimal beer storage. Monitor with a thermometer.
-
CO2 System Care – Check CO2 tank levels regularly and ensure proper pressure (10-14 PSI) to prevent foaming or flat beer.
-
Keg Handling – Store kegs upright and allow them to settle before tapping. Always use clean couplers.
-
Condenser Maintenance – Clean condenser coils monthly to ensure efficient cooling and longevity.
-
Seal & Gasket Inspection – Check door seals for wear and replace if necessary to maintain energy efficiency.
-
Drip Tray & Drain Cleaning – Empty and clean the drip tray daily to prevent buildup and clogging.
