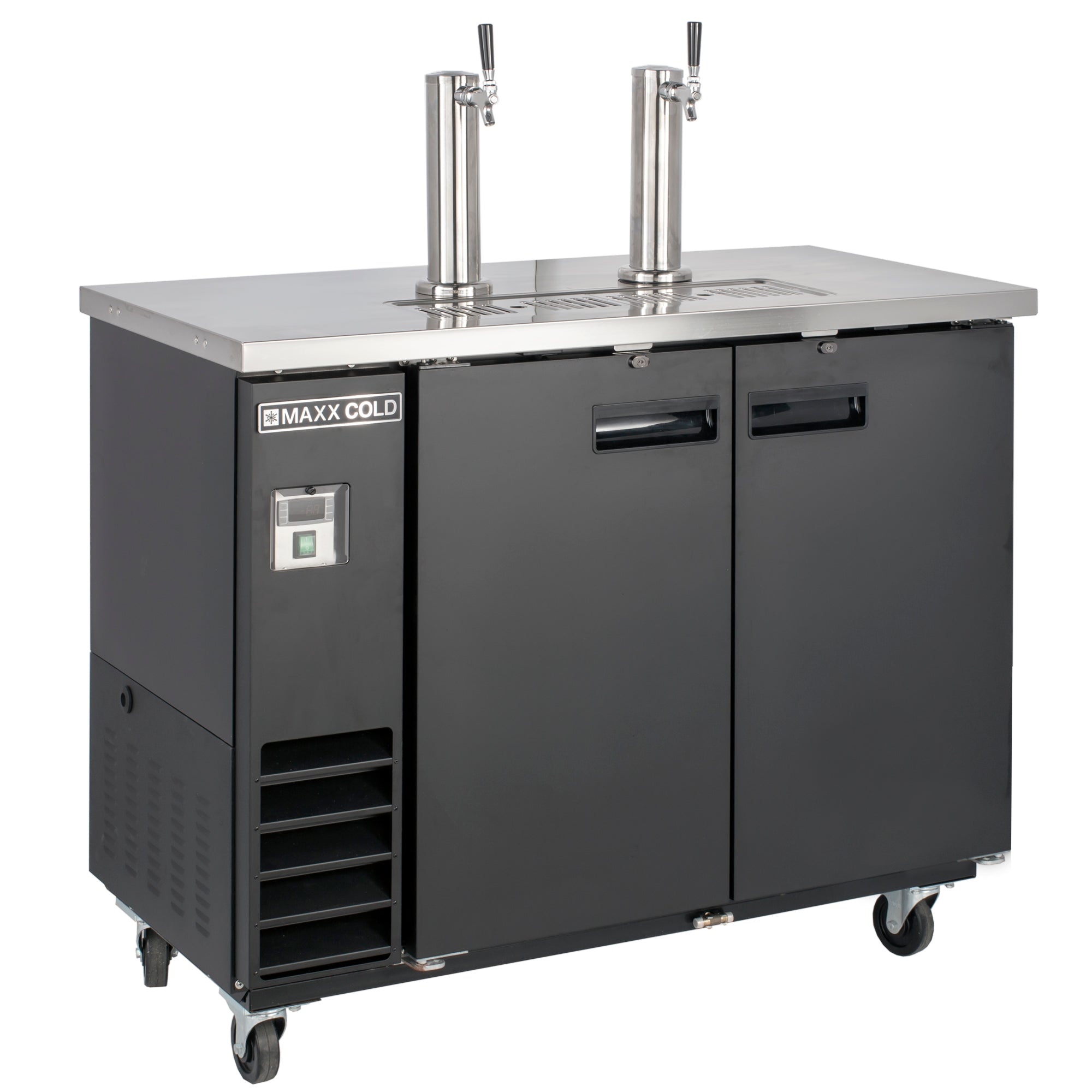

Maxx Cold Dual Tower Beer Dispenser, 47.5"W, 10.5 cu. ft., 2 Barrels/Kegs (297L) Storage Capacity, in Black with Stainless Steel Top - MXBD48-2BHC
This 47.5-inch-wide Maxx Cold X-Series Beer Tower Dispenser is engineered for durable usage, efficient performance, and easy cleaning. It accommodates 2 barrel/keg, providing up to 10.5 cubic feet (297L) of storage capacity. This beer tower is equipped with two 3” (77mm) diameter stainless steel insulated beer tower dispensers which can accommodate for two different liquids. This tower beer dispenser is ideal for pubs, bars, breweries, catering services, banquet halls or special events and parties requiring a draft brew. The exterior of the unit is constructed of black powder-coated steel topped with stainless-steel, while the interior of the cabinet is crafted in sanitary white coated steel paired with a stainless floorplate. This unit is fully insulated with 2” (50 mm) CFC-free polyurethane on both walls and doors. The standard 3-inch (77 mm) polished stainless-steel draft tower dispensers, which are mounted to the top center counter, are cooled by continuous cold air circulation to maintain tap temperature that reduces foam when dispensing and can easily fill pint beer glasses, frosted beer mugs and pitchers. Premium features on this model include a self-contained forced air refrigeration system which cools the base cabinet and tower to optimize temperature throughout your commercial operations. The solid-state digital control system is designed with LED temperature display. This beer tower dispenser is engineered to facilitate maintenance and maneuvering by the operator, with an easy to clean slide-out condensing unit, recessed drawer handles (with locks) and four (4) swivel casters (two of which come with brakes). The dispenser is equipped with integrated condensate evaporator, meaning no drain line connection is needed. Operation requires CO2 tank and regulator (not included).
Features
- Accommodates 2 barrel/kegs with storage capacity of 10.5 cubic feet (297L)
- Two 3” (77mm) diameter stainless steel insulated beer tower dispenses two different liquids
- Interior is constructed of sanitary white coated steel with a stainless floorplate
- Exterior is black coated steel with a stainless steel top
- 2” (50mm) CFC-free polyurethane insulated walls and doors
- Self-contained forced air refrigeration system cools the base cabinet and tower
- Slide out condensing unit for easy maintenance
- Epoxy coated evaporator coils to resist corrosion
- Easy to grip recessed drawer handles with locks
- Adjustable heavy duty wire shelves (2 per section/door)
- Four 4” casters included, two (2) with brakes (Smaller casters available for ADA Compliance)
- Holding temperature of 34°F and 41°F (1⁰C to 5⁰C)
- Available in 120V/60Hz/1pH and International voltage options
- Environmentally friendly R134A refrigerant
Specifications
| Adjustable Shelves |
No |
| Adjustable Temperature Control |
Yes |
| Amperage |
3A |
| Assembled Dimensions (LxWxH) |
24.40" x 47.50" x 55.98" |
| Assembled Weight (lb) |
267.0 |
| Assembly Required |
Yes |
| Batteries Required |
No |
| Capacity |
2 Kegs |
| Caster Size |
4" |
| Casters |
Yes |
| Color |
Black |
| Control Type |
Digital |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Automatic / Frost Free |
| Depth - Door Open 90° |
41.34" |
| Depth - Excluding Door |
29.90" |
| Depth - Excluding Handles |
29.90" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Black |
| Door Material |
Powder-Coated Steel |
| Door Swing Orientation |
French-Door |
| Electric |
Yes |
| First Zone Maximum Temperature |
41° |
| First Zone Minimum Temperature |
33° |
| Freezer Type |
No Freezer |
| Ice Maker Included |
No |
| Included Components |
Refrigerator, Instruction Manual, Casters |
| Installation Type |
Freestanding |
| Integrated Lock |
Yes |
| Material |
Powder-Coated Steel |
| Number of Doors |
2.0 |
| Number of Items |
1.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Refrigerant Type |
R-290a |
| Size |
48" |
| Temperature Range |
33° - 41° |
| Temperature Zones |
1.0 |
| Undercounter |
No |
| Voltage |
120V |
| Volume Capacity |
297L |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
360W |
| Case Pack Dimensions |
56" x 40" x 31" |
| Case Pack Weight |
296.0 |
| Case Quantity |
1.0 |
| Country of Origin |
China |
| Freight Class |
125.0 |
Manual
Spec Sheet
What Our Experts Think
-
10.5 cu. ft. Capacity – Designed to store up to 2 barrels/kegs (297L), offering ample storage for high-demand beer dispensing.
-
Dual Tower Design – Equipped with two towers for simultaneous dispensing of different beers, perfect for busy bars or restaurants.
-
Stainless Steel Top – The durable, sleek stainless steel top ensures a clean and professional look, while being easy to maintain.
-
High Capacity – Ideal for establishments with high foot traffic, ensuring you have enough supply on hand for constant beer service.
-
Black Finish – Stylish and modern, the black exterior seamlessly blends into any bar or service area décor.
-
Energy Efficient – Designed to maintain optimal cooling with minimal energy consumption, helping reduce operating costs.
-
Easy Maintenance – Built to be durable and low-maintenance, ensuring long-lasting reliability in commercial environments.
Q&A
Q: What are the main features of the Maxx Cold Dual Tower Beer Dispenser?
A: The Maxx Cold MXBD48-2BHC features a 47.5" width, 10.5 cu. ft. storage capacity, and can hold 2 barrels/kegs (297L). It has a sleek black exterior with a stainless steel top, designed for dispensing beer in commercial or home bar settings.
Q: How much keg storage does the Maxx Cold Beer Dispenser offer?
A: It can store up to 2 barrels/kegs, with a total capacity of 297L, making it ideal for moderate to high-volume beer dispensing.
Q: Is the Maxx Cold Beer Dispenser energy-efficient?
A: Yes, it operates efficiently to maintain optimal keg storage temperatures while minimizing energy consumption.
Q: Can the Maxx Cold Beer Dispenser be used in commercial settings?
A: Yes, its sturdy construction and large capacity make it suitable for bars, restaurants, or small commercial settings.
Q: Is the Maxx Cold Beer Dispenser easy to clean?
A: Yes, the stainless steel top and black exterior make it easy to clean and maintain, ensuring a hygienic beer dispensing environment.
Maintenance Tips
-
Clean beer lines regularly to prevent buildup of residue and ensure fresh-tasting beer.
-
Wipe down the exterior with a mild, non-abrasive cleaner to maintain a clean, polished appearance.
-
Clean the faucets regularly to prevent clogs and ensure smooth dispensing.
-
Inspect the seals around the doors to ensure they are intact and prevent cold air leakage.
-
Clean the condenser coils periodically to prevent dust buildup, ensuring efficient cooling.
-
Monitor the temperature to ensure the beer is dispensed at the optimal serving temperature.
-
Sanitize the beer dispenser system periodically to maintain hygiene and prevent contamination.
