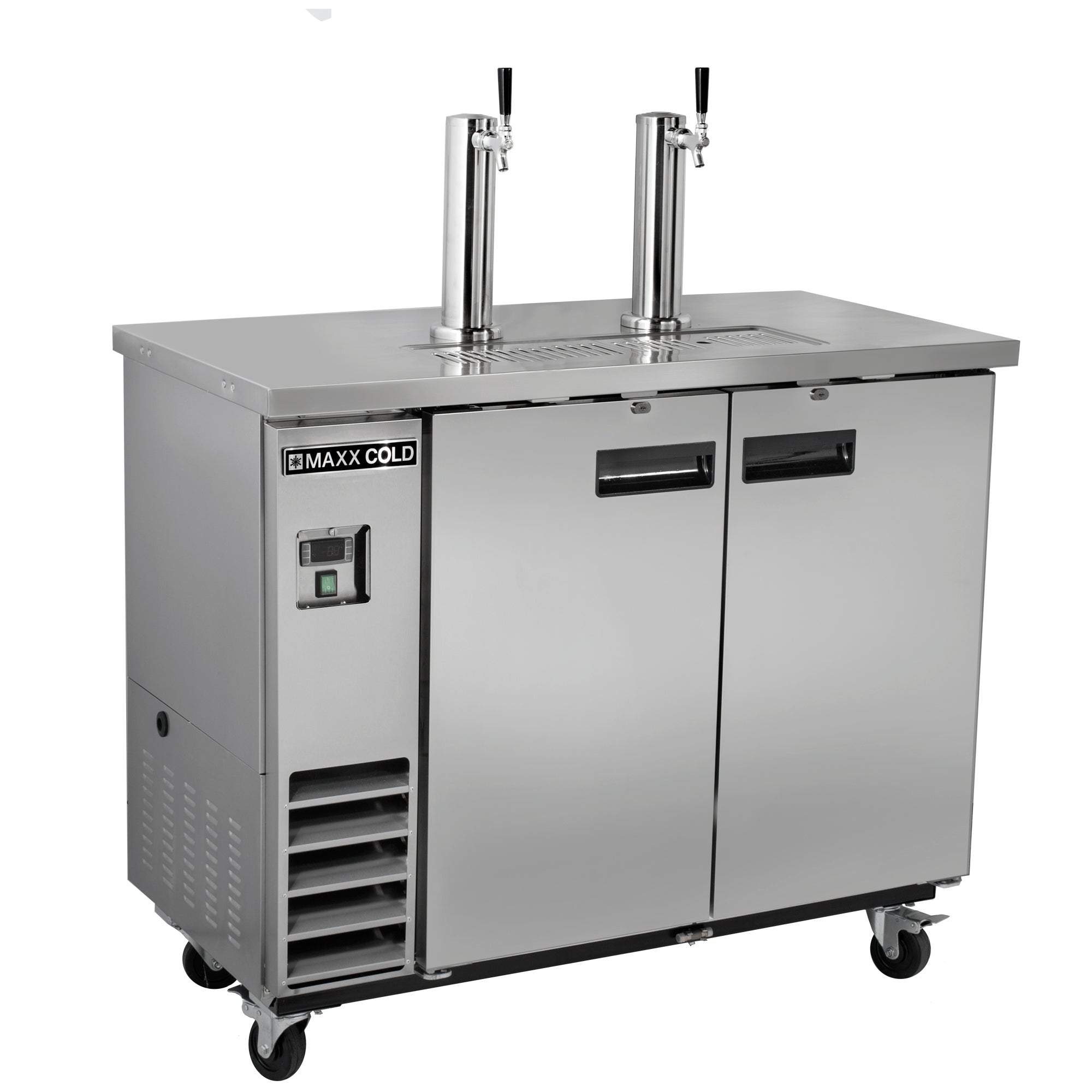

Maxx Cold Dual Tower Beer Dispenser, 47.5"W, 10.5 cu. ft., 2 Barrels/Kegs (297L) Storage Capacity, in Stainless Steel - MXBD48-2SHC
This 47.5 inch wide Maxx Cold X-Series Beer Tower Dispenser is engineered for durable usage, efficient performance, and easy cleaning. It accommodates 2 barrel/keg, providing up to 10.5 cubic feet (297L) of storage capacity. This beer tower is equipped with two 3” (77mm) diameter stainless steel insulated beer tower dispensers which can accommodate for two different liquids. This tower beer dispenser is ideal for pubs, bars, breweries, catering services, banquet halls or special events and parties requiring a draft brew. The exterior of the unit is constructed of durable and easy to clean stainless-steel, while the interior of the cabinet is crafted in sanitary white coated steel paired with a stainless floorplate. This unit is fully insulated with 2” (50 mm) CFC-free polyurethane on both walls and doors. The standard 3-inch (77 mm) polished stainless-steel draft tower dispensers, which are mounted to the top center counter, are cooled by continuous cold air circulation to maintain tap temperature that reduces foam when dispensing and can easily fill pint beer glasses, frosted beer mugs and pitchers. Premium features on this model include a self-contained forced air refrigeration system which cools the base cabinet and tower to optimize temperature throughout your commercial operations. The solid-state digital control system is designed with LED temperature display. This beer tower dispenser is engineered to facilitate maintenance and maneuvering by the operator, with an easy to clean slide-out condensing unit, recessed drawer handles (with locks) and four (4) swivel casters (two of which come with brakes). The dispenser is equipped with integrated condensate evaporator, meaning no drain line connection is needed. Operation requires CO2 tank and regulator (not included).
Features
- Accommodates 2 barrels/kegs with storage capacity of 10.5 cubic feet (297L)
- Two 3” (77mm) diameter polished stainless steel insulated beer tower dispenses two different liquids
- Interior is constructed of sanitary white coated steel with a stainless floorplate
- Exterior and top is constructed of stainless steel to prevent damage
- 2” (50mm) CFC-free polyurethane insulated walls and doors
- Self-contained forced air refrigeration system cools the base cabinet and tower
- Slide out condensing unit for easy maintenance
- Epoxy coated evaporator coils to resist corrosion
- Easy to grip recessed drawer handles with locks
- Adjustable heavy duty wire shelves (2 per section/door)
- Four 4” casters included, two (2) with brakes (Smaller casters available for ADA Compliance)
- Holding temperature of 34°F and 41°F (1⁰C to 5⁰C)
- Environmentally friendly R134A refrigerant
- Available in 120V/60Hz/1pH and International voltage options
Specifications
| Adjustable Shelves |
No |
| Adjustable Temperature Control |
Yes |
| Amperage |
3A |
| Assembled Dimensions (LxWxH) |
24.40" x 47.50" x 55.98" |
| Assembled Weight (lb) |
267.0 |
| Assembly Required |
Yes |
| Batteries Required |
No |
| Capacity |
2 Kegs |
| Caster Size |
4" |
| Casters |
Yes |
| Color |
Stainless Steel |
| Control Type |
Digital |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Automatic / Frost Free |
| Depth - Door Open 90° |
41.34" |
| Depth - Excluding Door |
29.90" |
| Depth - Excluding Handles |
29.90" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Stainless Steel |
| Door Material |
Stainless Steel |
| Door Swing Orientation |
French-Door |
| Electric |
Yes |
| First Zone Maximum Temperature |
41° |
| First Zone Minimum Temperature |
33° |
| Freezer Type |
No Freezer |
| Ice Maker Included |
No |
| Included Components |
Refrigerator, Instruction Manual, Casters |
| Installation Type |
Freestanding |
| Integrated Lock |
Yes |
| Material |
Stainless Steel |
| Number of Doors |
2.0 |
| Number of Items |
1.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Refrigerant Type |
R-290a |
| Size |
48" |
| Temperature Range |
33° - 41° |
| Temperature Zones |
1.0 |
| Undercounter |
No |
| Voltage |
120V |
| Volume Capacity |
297L |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
What Our Experts Think
-
10.5 cu. ft. Capacity – Provides ample space for two kegs, making it perfect for bars or restaurants with moderate beer dispensing needs.
-
Dual Tower Design – Allows for serving two different beers simultaneously, enhancing customer variety and improving service efficiency.
-
Stainless Steel Finish – Durable and sleek, easy to clean, and built to withstand high-use environments.
-
Efficient Cooling – Ensures the perfect temperature for beer, maintaining its freshness and optimal taste.
-
Compact and Space-Saving – Designed to fit into tight spaces while still offering high performance and storage capacity.
Q&A
Q: What are the main features of the Maxx Cold Dual Tower Beer Dispenser?
A: The Maxx Cold MXBD48-2SHC features a 47.5" width, 10.5 cu. ft. storage capacity, and can hold up to 2 barrels/kegs (297L). It has a stainless steel construction, designed for efficient and durable beer dispensing in commercial settings.
Q: How much keg storage does the Maxx Cold Beer Dispenser offer?
A: It can store up to 2 barrels/kegs with a total capacity of 297L, making it ideal for high-volume beer dispensing.
Q: Is the Maxx Cold Beer Dispenser energy-efficient?
A: Yes, it is designed to operate efficiently, helping reduce energy consumption while maintaining the right temperatures for beer storage and dispensing.
Q: Can the Maxx Cold Beer Dispenser be used in commercial environments?
A: Yes, its sturdy design and reliable performance make it perfect for bars, restaurants, or other high-traffic commercial settings.
Q: Is the Maxx Cold Beer Dispenser easy to clean?
A: Yes, the stainless steel construction makes it easy to clean and maintain, ensuring a hygienic environment for beer dispensing.
Maintenance Tips
-
Clean beer lines regularly to prevent residue buildup and ensure high-quality beer.
-
Wipe down the exterior with a mild, non-abrasive cleaner to maintain a clean and polished look.
-
Inspect and clean the faucets to prevent clogs and ensure smooth dispensing.
-
Check door seals to ensure they are intact and prevent cold air leakage.
-
Clean the condenser coils periodically to prevent dust buildup, ensuring efficient cooling.
-
Monitor the temperature to ensure the beer is dispensed at the ideal temperature for optimal taste.
