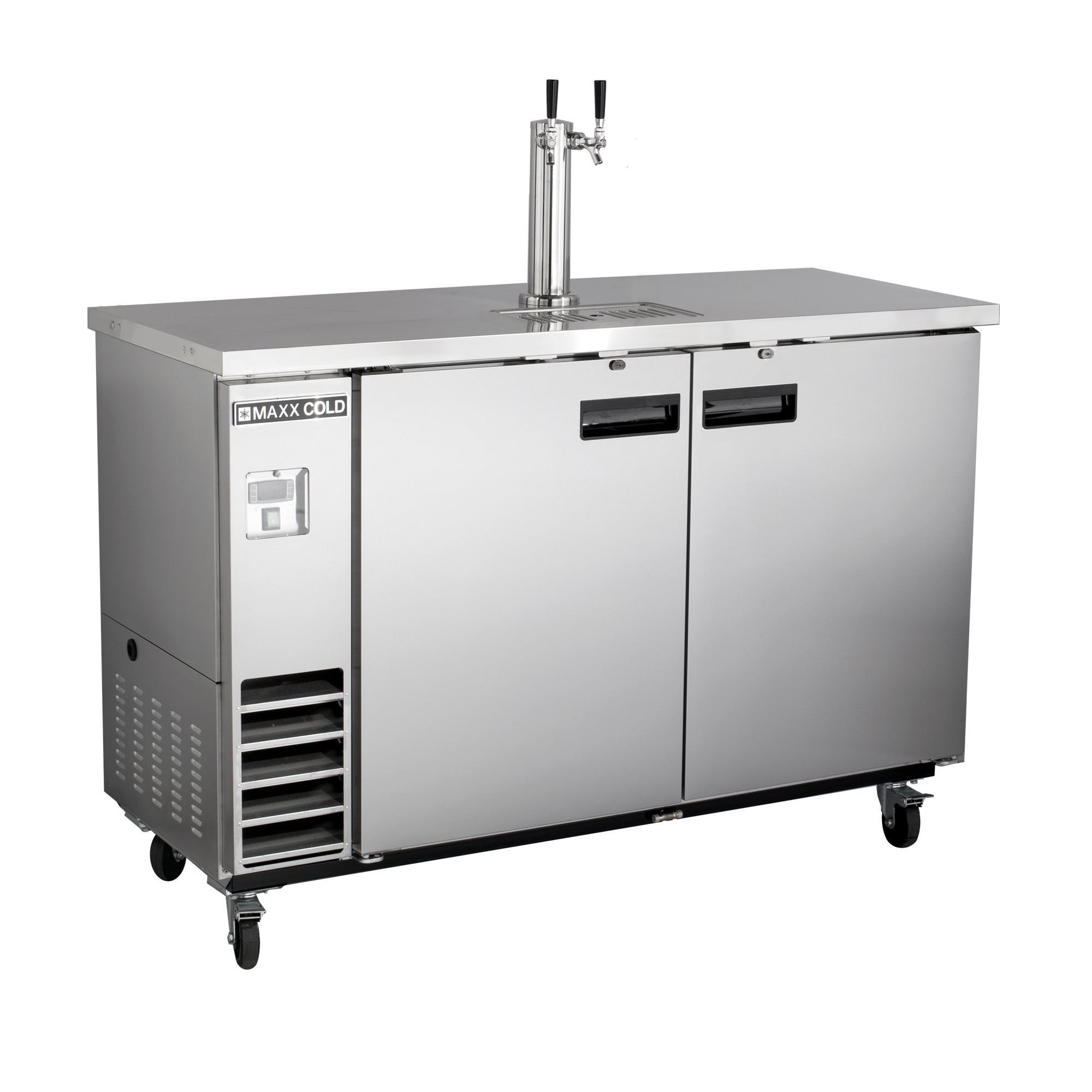

Maxx Cold Single Tower, 2 Tap Beer Dispenser, 61"W, 14.2 cu. ft., 2 Barrels/Kegs (402L) Storage Capacity, in Stainless Steel - MXBD60-1SHC
This 47.5-inch-wide Maxx Cold X-Series Beer Tower Dispenser is engineered for durable usage, efficient performance, and easy cleaning. It accommodates 2 barrel/keg, providing up to 14.2 cubic feet (402L) of storage capacity. This beer tower is equipped with two 3” (77mm) diameter stainless steel insulated beer tower dispensers which can accommodate for two different liquids. This tower beer dispenser is ideal for pubs, bars, breweries, catering services, banquet halls or special events and parties requiring a draft brew. The exterior of the unit is constructed of durable and easy to clean stainless-steel, while the interior of the cabinet is crafted in sanitary white coated steel paired with a stainless floorplate. This unit is fully insulated with 2” (50 mm) CFC-free polyurethane on both walls and doors. The standard 3-inch (77 mm) polished stainless-steel draft tower dispensers, which are mounted to the top center counter, are cooled by continuous cold air circulation to maintain tap temperature that reduces foam when dispensing and can easily fill pint beer glasses, frosted beer mugs and pitchers. Premium features on this model include a self-contained forced air refrigeration system which cools the base cabinet and tower to optimize temperature throughout your commercial operations. The solid-state digital control system is designed with LED temperature display. This beer tower dispenser is engineered to facilitate maintenance and maneuvering by the operator, with an easy to clean slide-out condensing unit, recessed drawer handles (with locks) and four (4) swivel casters (two of which come with brakes). The dispenser is equipped with integrated condensate evaporator, meaning no drain line connection is needed. Operation requires CO2 tank and regulator (not included).
Features
- Accommodates 2 barrels/kegs with storage capacity of 14.2 cubic feet (402L)
- One 3” (77mm) diameter polished stainless steel insulated beer tower dispenses two different liquids
- Interior is constructed of sanitary white coated steel with a stainless floorplate
- Exterior and top is constructed of stainless steel to prevent damage
- 2” (50mm) CFC-free polyurethane insulated walls and doors
- Self-contained forced air refrigeration system cools the base cabinet and tower
- Slide out condensing unit for easy maintenance
- Epoxy coated evaporator coils to resist corrosion
- Easy to grip recessed drawer handles with locks
- Adjustable heavy duty wire shelves (2 per section/door)
- Four 4” casters included, two (2) with brakes (Smaller casters available for ADA Compliance)
- Holding temperature of 34°F and 41°F (1⁰C to 5⁰C)
- Environmentally friendly R134A refrigerant
- Available in 120V/60Hz/1pH and International voltage options
Specifications
| Adjustable Shelves |
No |
| Adjustable Temperature Control |
Yes |
| Amperage |
3A |
| Assembled Dimensions (LxWxH) |
24.40" x 61.06" x 55.98" |
| Assembled Weight (lb) |
275.0 |
| Assembly Required |
Yes |
| Batteries Required |
No |
| Capacity |
2 Kegs |
| Caster Size |
4" |
| Casters |
Yes |
| Color |
Stainless Steel |
| Control Type |
Digital |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Automatic / Frost Free |
| Depth - Door Open 90° |
47.44" |
| Depth - Excluding Door |
29.90" |
| Depth - Excluding Handles |
29.90" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Stainless Steel |
| Door Material |
Stainless Steel |
| Door Swing Orientation |
French-Door |
| Electric |
Yes |
| First Zone Maximum Temperature |
41° |
| First Zone Minimum Temperature |
33° |
| Freezer Type |
No Freezer |
| Ice Maker Included |
No |
| Included Components |
Refrigerator, Instruction Manual, Casters |
| Installation Type |
Freestanding |
| Integrated Lock |
Yes |
| Material |
Stainless Steel |
| Number of Doors |
2.0 |
| Number of Items |
1.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Refrigerant Type |
R-290a |
| Size |
61" |
| Temperature Range |
33° - 41° |
| Temperature Zones |
1.0 |
| Undercounter |
No |
| Voltage |
120V |
| Volume Capacity |
402L |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
360W |
| Case Pack Dimensions |
62" x 40" x 31" |
| Case Pack Weight |
302.0 |
| Case Quantity |
1.0 |
| Country of Origin |
China |
| Freight Class |
125.0 |
Manual
Spec Sheet
What Our Experts Think
-
Spacious Storage – 14.2 cu. ft. holds two full-size kegs (402L).
-
Dual-Tap System – Serve two different beers at the perfect temperature.
-
Premium Stainless Steel Build – Durable, sleek, and easy to clean.
-
Reliable Cooling – Maintains optimal beer-serving conditions for fresh pours.
-
Ideal Size for Any Setup – 61” width fits well in bars, restaurants, or home bars.
-
Commercial-Grade Performance – Built for high-demand use with consistent efficiency.
Q&A
Q: What is the storage capacity of this beer dispenser?
A: It holds two barrels/kegs with a 14.2 cu. ft. (402L) storage capacity.
Q: How many taps does it have?
A: It features a single tower with two taps, allowing for dual-beer dispensing.
Q: What are the dimensions?
A: The unit measures 61”W, making it suitable for commercial and home use.
Q: What material is it made of?
A: Stainless steel construction ensures durability, a sleek look, and easy cleaning.
Q: Does it include a refrigeration system?
A: Yes, it has a built-in refrigeration system to keep beer at the perfect temperature.
Q: What type of kegs does it support?
A: It accommodates standard half-barrel and slim quarter-barrel kegs.
Q: Is it energy efficient?
A: Yes, it's designed for efficient cooling with minimal energy consumption.
Q: Where is it best suited for?
A: Perfect for bars, restaurants, breweries, and home entertainment spaces.
Maintenance Tips
-
Clean Beer Lines Weekly – Use a brewery-approved cleaner to prevent buildup and maintain beer quality.
-
Maintain Proper Temperature – Keep at 34-38°F for optimal beer storage; use a thermometer for accuracy.
-
Check CO2 System – Ensure CO2 pressure is 10-14 PSI to prevent foamy or flat beer.
-
Handle Kegs Properly – Store upright, allow to settle before tapping, and use clean couplers.
-
Clean Condenser Coils Monthly – Prevents overheating and maintains cooling efficiency.
-
Inspect Door Seals – Replace worn gaskets to maintain energy efficiency and proper cooling.
-
Empty & Clean Drip Tray Daily – Prevents clogs and odor buildup.
