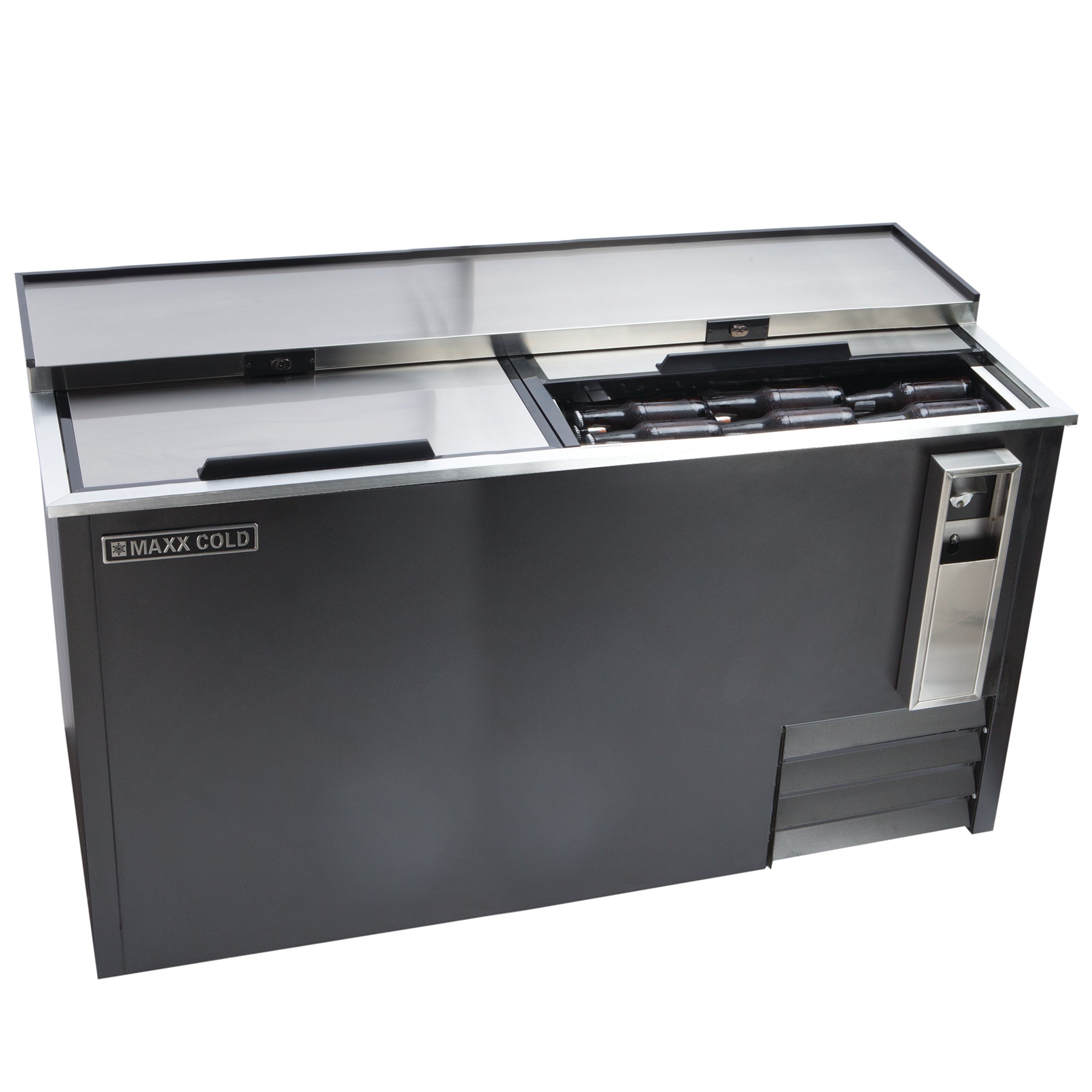

Maxx Cold Horizontal Bottle Cooler, 65"W, 17 cu. ft. Storage Capacity, in Black with Stainless Steel Top - MXCR65BHC
Maxx Cold Bottle Coolers with top access is ideal for keeping bottled or canned beverages cold and accessible. The spacious stainless steel interior houses a LED light to illuminate contents. The built-in bottle opener and bottle cap catcher make this unit efficient and functional for high volume operations. The durable black steel exterior compliments bars and other entertainment applications, while the rear shelf with marine edge provides additional prep counter space.
Features
- Exterior is constructed of painted black steel
- Interior and top is constructed of stainless steel
- Reinforced heavy-duty crossbar can support heavy loads and withstand harsh environments
- External built-in bottle opener and bottle cap catcher
- Two sliding top lids allow for easy access and service
- Rounded (coved) internal edges allow for easy maintenance
- Energy efficient LED lighting
- Forced air cooling provides consistent temperature control
- Uses an environmental friendly, high R-valve, efficient foam insulation
- Supplied with 1" sturdy rollers and two adjustable product dividers
- Storage capacity of 17 Cubic Ft. (481L)
- Holding temperature of 33°F and 41°F (1⁰C to 5⁰C)
- Available in 120V/60Hz/1pH and International voltage available
Specifications
| Adjustable Shelves |
No |
| Adjustable Temperature Control |
Yes |
| Amperage |
3A |
| Anti-Vibration Technology |
No |
| Assembled Dimensions (LxWxH) |
27" x 64.30" x 35" |
| Assembled Weight (lb) |
280.0 |
| Assembly Required |
No |
| Batteries Required |
No |
| Capacity |
768 Cans |
| Caster Size |
1.70" |
| Casters |
Yes |
| Color |
Black |
| Control Type |
Digital |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Automatic / Frost Free |
| Depth - Door Open 90° |
27" |
| Depth - Excluding Door |
27" |
| Depth - Excluding Handles |
27" |
| Height w/ Lid Open 90° |
35" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Stainless Steel |
| Door Material |
Stainless Steel |
| Door Swing Orientation |
Top-Load |
| Electric |
Yes |
| First Zone Bottle/Can Capacity |
768 Bottles |
| First Zone Maximum Temperature |
34° |
| First Zone Minimum Temperature |
51° |
| Freezer Type |
No Freezer |
| Fresh Food Capacity |
17 cu. ft. |
| Height - Excluding Top Hinge |
35" |
| Ice Maker Included |
No |
| Included Components |
Cooler, manual |
| Installation Type |
Freestanding |
| Integrated Lock |
No |
| Material |
Stainless Steel |
| Number of Doors |
2.0 |
| Number of Items |
1.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Quiet Operation |
Yes |
| Refrigerant Type |
R-290a |
| Size |
65" |
| Temperature Range |
33° - 41° |
| Temperature Zones |
1.0 |
| Undercounter |
No |
| Voltage |
120V |
| Volume Capacity |
17 cu. ft. |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
350W |
| Case Pack Dimensions |
87" x 40" x 46" |
| Case Pack Weight |
405.0 |
| Case Quantity |
1.0 |
| Country of Origin |
China |
| Freight Class |
150.0 |
Manual
Spec Sheet
What Our Experts Think
-
17 cu. ft. Capacity – Spacious design for storing a large number of bottles, perfect for bars and restaurants.
-
Black Finish with Stainless Steel Top – Stylish and durable, designed to withstand high-volume use.
-
Efficient Cooling – Keeps bottles at the ideal temperature to ensure quick, refreshing service.
-
Easy Access – Horizontal layout provides easy access to stored items for quick service.
-
Energy-Efficient – Optimized for energy savings without compromising on performance.
Q&A
Q: What is the Maxx Cold MXCR65BHC?
A: It is a horizontal bottle cooler with a 17 cu. ft. storage capacity, featuring a sleek black exterior and a stainless steel top, designed for cooling and storing bottles and cans.
Q: What is its storage capacity?
A: This cooler offers 17 cu. ft. of storage space, ideal for storing a large quantity of beverages in bars, restaurants, or convenience stores.
Q: Is it designed for high-volume use?
A: Yes, the cooler is built for high-volume use in commercial environments, providing easy access to chilled beverages.
Q: What is the temperature range?
A: The temperature range is 33°F to 41°F, keeping drinks at the optimal chilled temperature.
Q: Is it energy efficient?
A: Yes, it is designed to minimize energy consumption while maintaining consistent cooling.
Q: Where can it be used?
A: Perfect for bars, restaurants, convenience stores, or any establishment that requires efficient beverage storage and cooling.
Q: Does it come with a warranty?
A: Yes, it includes a manufacturer’s warranty for peace of mind and reliable performance.
Maintenance Tips
-
Clean the Condenser Coils – Clean the condenser coils every 1-2 months using a soft brush or vacuum to prevent dust and dirt buildup, which can impact cooling efficiency.
-
Inspect the Door Seals – Regularly check the door gaskets for any damage or wear. Clean them with warm soapy water to ensure a tight seal and prevent cold air loss.
-
Monitor Temperature – Keep the internal temperature between 36°F and 40°F for optimal cooling performance. Use a thermometer for accuracy.
-
Defrosting – If you notice excessive frost buildup, manually defrost the cooler. Too much ice can restrict airflow and decrease efficiency.
-
Clean the Interior – Wipe down the interior regularly with a non-abrasive cleaner. Remove spills or debris to keep the cooler sanitary and odor-free.
-
Maintain Drainage System – Ensure the drain lines are clear to prevent water buildup inside. Check periodically for blockages or leaks.
-
Check the Fan – Ensure the fan is running properly and not obstructed. An inefficient fan can lead to inconsistent temperatures and overworking the compressor.
-
Wipe Down the Exterior – Use a mild cleaner to wipe down the exterior, especially the stainless steel top, to prevent corrosion and maintain the unit’s appearance.
-
Avoid Overloading – Do not overcrowd the cooler. Proper airflow is essential for efficient cooling, and overcrowding can cause the unit to overheat or work inefficiently.
-
Inspect for Leaks and Unusual Noises – Listen for any abnormal sounds or signs of leaks. If either is detected, check the system or have a professional service the unit.
-
Professional Inspection – Schedule an annual service to ensure all components, including the compressor, refrigerant, and cooling system, are functioning optimally.
