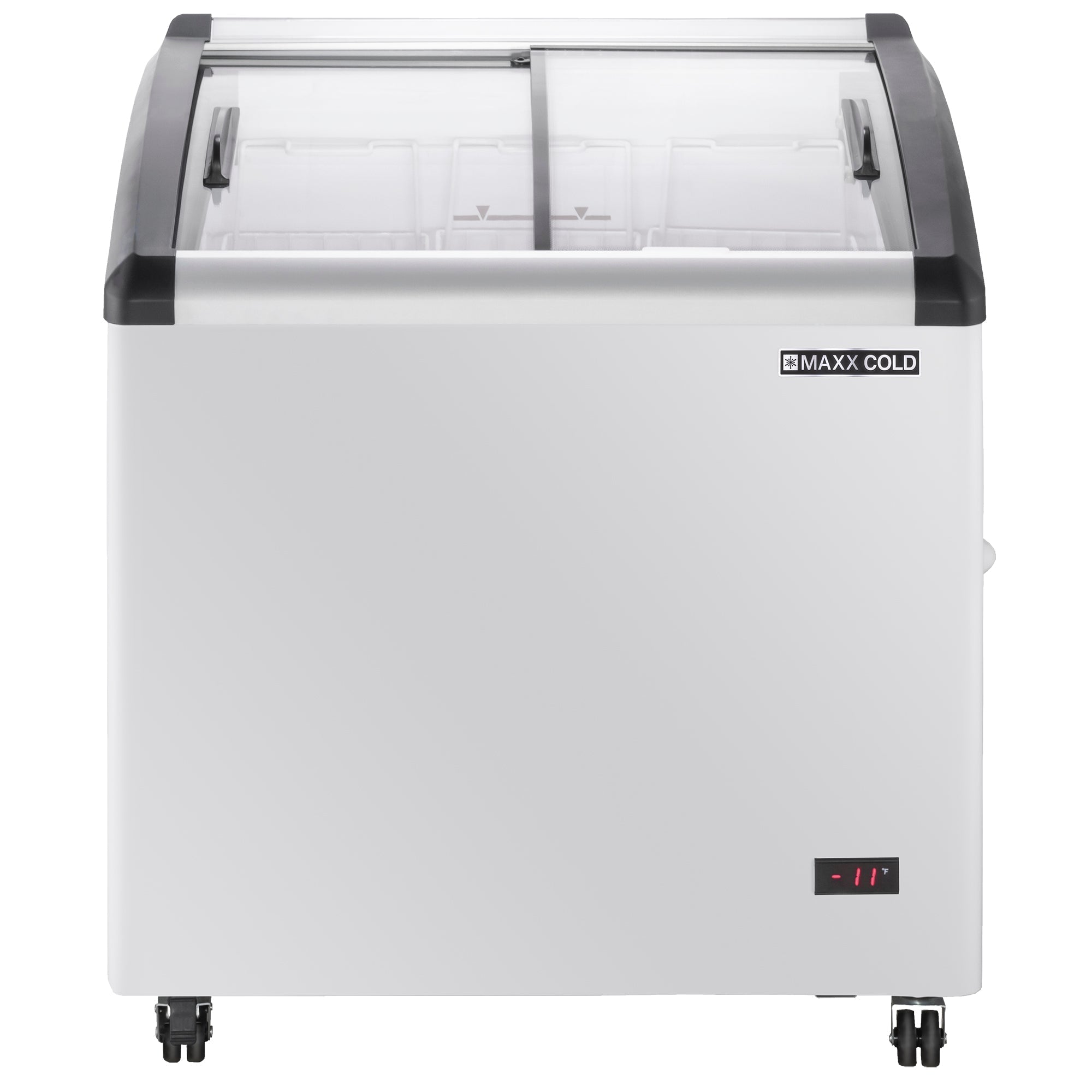

Maxx Cold Curved Glass Top Chest Freezer Display, 31.5"W, 4.87 cu. ft. Storage Capacity, Equipped with (3) Wire Baskets, in White - MXF32CHC-3
This Glass Display Freezer Merchandisers offers a spacious interior that provides up to 4.87 Cu Ft (138 L) of freezer storage space to store ice cream and any other frozen items in an elegant and convenient presentation. The clear, curved glass sliding lids are equipped with easy grip handles, and the unit contains 3 flat wire baskets with compartments. This chest freezer display is engineered with thick 2.5” foamed, in-place and environmentally friendly wall insulation (polyurethane), interior LED lighting making it easier to see selection and enhance product’s appearance, and a molded plastic lid frame that is heated to prevent frost and ice build-up. Furthermore, this curved glass top freezer display is equipped with an internal condensate evaporator pan, so no floor drain is needed. This Maxx Cold freezer is constructed of durable, white powder coated, baked on enamel steel and a white powder coated finish for easy cleaning.
Features
- Constructed of white zinc coated, baked, enamel steel exterior
- Interior is constructed of pained white powder coated steel
- Clear, curved sliding glass lids and easy grip handle with lock/key
- Interior LED lights makes it easier to see selection and enhance product’s appearance
- Molded plastic lid frame heated to prevent frost or ice build-up
- Internal condensate evaporator pan therefore a floor drain is not required
- Four (4) heavy-duty casters and removable rubber bumper guards, side grill
- Available in 120V/60Hz/1pH and International voltage available
- Storage capacity of 4.87 Cubic Ft. (138 L)
- 2.5" thick foamed in-place, environmentally friendly polyurethane insulation
- Adjustable temperature range -18°F to +10°F (-28°C to -12°C)
- Supplied with three (3) flat wired baskets
Specifications
| Adjustable Shelves |
No |
| Adjustable Temperature Control |
Yes |
| Amperage |
1.3A |
| Assembled Dimensions (LxWxH) |
27.50" x 31.50" x 33.50" |
| Assembled Weight (lb) |
115.0 |
| Assembly Required |
No |
| Batteries Required |
No |
| Capacity |
4.87 cu. ft. |
| Casters |
No |
| Color |
White |
| Control Type |
Electric |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Manual |
| Depth - Door Open 90° |
27.60" |
| Depth - Excluding Door |
27.50" |
| Depth - Excluding Handles |
27.50" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Glass |
| Door Material |
Glass |
| Door Swing Orientation |
Sliding |
| Electric |
Yes |
| First Zone Maximum Temperature |
10° |
| First Zone Minimum Temperature |
-18° |
| Freezer Capacity |
4.9 cu. ft. |
| Freezer Type |
Full Freezer |
| Height - Excluding Top Hinge |
33.50" |
| Ice Maker Included |
No |
| Included Components |
Freezer, wire baskets, manual, lock kit |
| Installation Type |
Freestanding |
| Integrated Lock |
Yes |
| Material |
Powder Coated Steel |
| Number of Doors |
1.0 |
| Number of Items |
1.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Refrigerant Type |
R-290a |
| Temperature Range |
-18° - 10° |
| Temperature Zones |
1.0 |
| Undercounter |
No |
| Use and Care Instructions |
Wash the inside with a damp warm cloth containing a water and baking soda solution |
| Voltage |
120V |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
156W |
| Case Pack Dimensions |
35" x 30" x 35" |
| Case Pack Weight |
145.0 |
| Case Quantity |
1.0 |
| Pallet Dimensions |
40" x 40" x 41' |
| Pallet Weight (lbs) |
176.0 |
| Pallet Ti/Hi |
1/1 |
| Pallet Quantity |
1.0 |
| Country of Origin |
China |
| Freight Class |
150.0 |
| Usually Ships In |
7-10 Days |
| Number of Boxes |
1.0 |
Manual
Spec Sheet
What Our Experts Think
-
Compact Yet Spacious – 4.87 cu. ft. capacity maximizes storage in a small footprint.
-
Curved Glass Top – Enhances product visibility for easy selection.
-
Includes 3 Wire Baskets – Organizes frozen goods for quick access.
-
Sleek & Durable Design – White exterior complements any retail or commercial space.
-
Energy Efficient Cooling – Maintains consistent freezing temperatures.
-
Perfect for Retail & Food Service – Ideal for showcasing ice cream, frozen foods, and more.
Q&A
Q: What is the storage capacity of this freezer?
A: It offers 4.87 cu. ft. of storage space, ideal for frozen food display.
Q: What are the dimensions?
A: The unit measures 31.5”W, making it compact yet spacious.
Q: What type of lid does it have?
A: It features a curved glass top for easy viewing and product access.
Q: How many baskets are included?
A: It comes with three wire baskets for organized storage.
Q: Is it energy efficient?
A: Yes, it's designed for efficient cooling and low energy consumption.
Q: What material is it made of?
A: It has a white exterior with a durable interior for long-lasting use.
Q: Where is it best suited for?
A: Perfect for convenience stores, supermarkets, ice cream shops, and cafés.
Maintenance Tips
-
Maintain Proper Temperature – Keep at -10°F to 0°F for optimal food preservation; use a thermometer.
-
Defrost When Needed – Prevent ice buildup by defrosting when frost exceeds ¼ inch thickness.
-
Clean Interior & Exterior – Wipe with mild detergent; avoid abrasive cleaners on glass and surfaces.
-
Inspect Door Seals – Ensure gaskets are intact to maintain efficiency; replace if worn.
-
Keep Vents & Coils Clean – Clean condenser coils every 3-6 months for efficient cooling.
-
Organize Storage – Use the provided wire baskets to maximize airflow and accessibility.
-
Avoid Overloading – Prevent blocked airflow by spacing out items properly.
