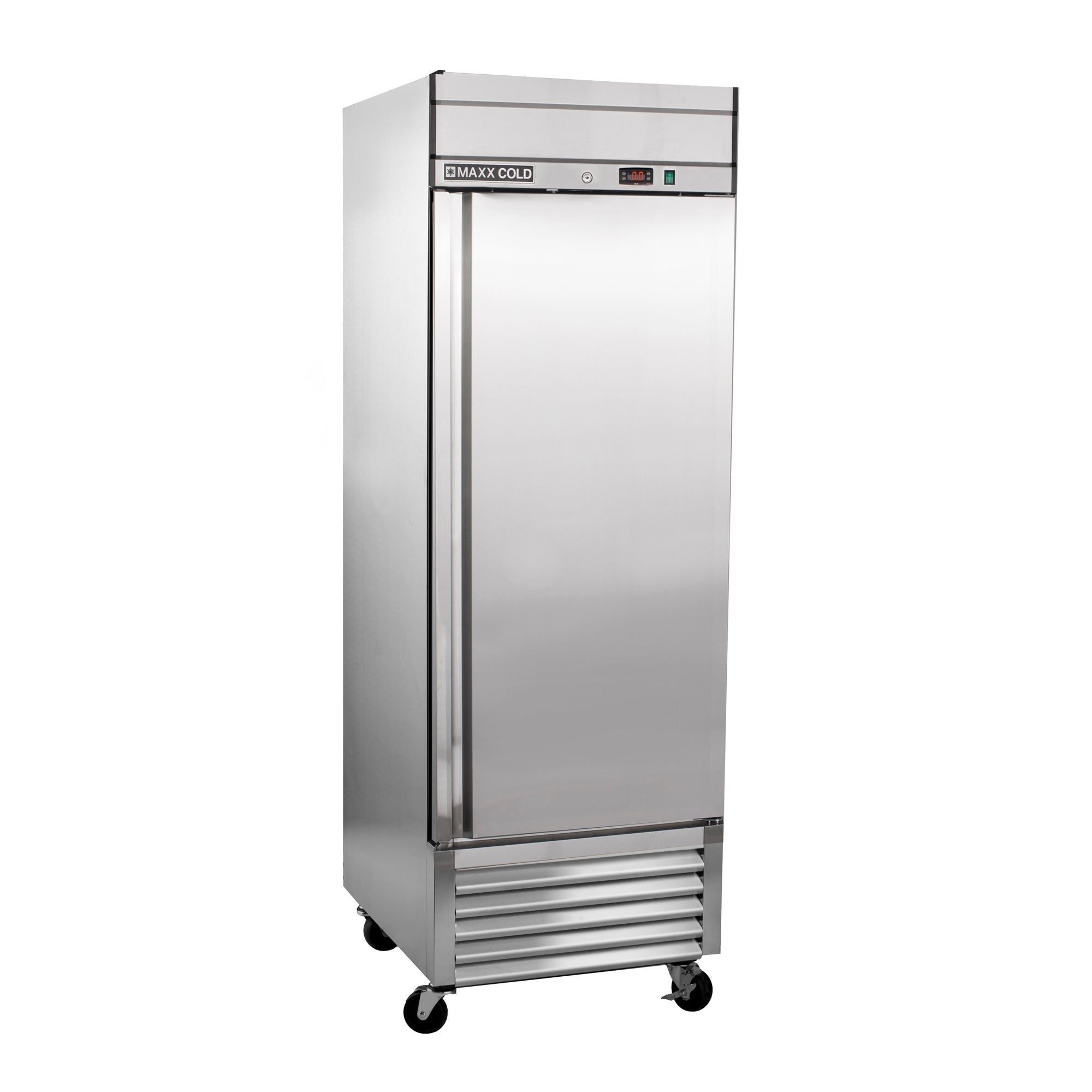

Maxx Cold Bottom Mount 1 Door Reach-In Freezer, 27" W, 19.3 Cu Ft, in Stainless Steel - MXSF-23FDHC
The Maxx Cold Bottom Mount 1 Door Reach-In Freezer is the perfect choice for your frozen storage needs in commercial kitchens. This durable reach-in freezer is constructed from stainless steel and has a heavy-duty self-closing door with a full-length handle. Optimal temperature control is provided by extra thick environmentally safe, CFC-free polyurethane foam insulation. An automatic on-off door switch controls the interior lighting and cooling air fans. This freezer has door locks and password protected solid state digital temperature controls to keep your contents secure. A programmable automatic defrost system prevents the evaporator from icing and keeps the unit at peak operating condition. Keep your food organized with 19.3 cubic feet of storage space plus three heavy-duty corrosion-resistant poly-coated shelves. Four swivel casters ensure easy maneuvering and mobility, while the bottom mount utility compartment delivers easy service access. The stainless steel freezer has a large, easy-to-read digital display that shows the internal temperature, which is maintained at -10°F to 10°F (-24°C to -12°C), in Fahrenheit or Celsius. You won’t have to worry about losing food because the open door alert beeps when the door has been left open or ajar. Choose the Maxx Cold Bottom Mount 1 Door Reach-In Freezer for your foodservice needs.
Features
- Stainless steel exterior and powder coated interior
- Extra thick environmentally safe, CFC-free polyurethane foam insulation for optimal temperature control
- Heavy-duty self-closing door with a full-length handle
- Door locks and password protected solid state digital temperature controls provide security
- Interior lighting and cooling air fans are controlled by an automatic on-off door switch
- Offers 19.3 cubic feet of storage
- Programmable automatic defrost system keeps the unit at peak operating condition and prevents the evaporator from icing
- Forced-air system delivers effective air circulation and rapid temperature recovery
- Includes 3 heavy-duty corrosion-resistant poly-coated shelves with adjustable mounting clips
- Bottom mount utility compartment delivers easy service access
- Maintains a temperature of -10°F to 10°F (-24°C to -12°C)
- Open door alert beeps when door has been left open or ajar
- Large, easy-to-read digital display shows the internal temperature in either Fahrenheit or Celsius
- Includes four 2.75" swivel casters (two with brakes) for easy maneuvering and mobility
Specifications
| Adjustable Shelves |
Yes |
| Adjustable Temperature Control |
Yes |
| Amperage |
3.5A |
| Assembled Dimensions (LxWxH) |
33.30" x 27" x 83.50" |
| Assembled Weight (lb) |
310.0 |
| Assembly Required |
No |
| Batteries Required |
No |
| Capacity |
23 cu. ft. |
| Caster Size |
2.75" |
| Casters |
Yes |
| Color |
Stainless Steel |
| Control Type |
Digital |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Automatic / Frost Free |
| Depth - Door Open 90° |
69" |
| Depth - Excluding Door |
32.50" |
| Depth - Excluding Handles |
33" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Stainless Steel |
| Door Material |
Metal |
| Door Swing Orientation |
Right |
| Electric |
Yes |
| First Zone Maximum Temperature |
10° |
| First Zone Minimum Temperature |
-10° |
| Freezer Capacity |
19.3 cu. ft. |
| Freezer Type |
Full Freezer |
| Height - Excluding Top Hinge |
79.70" |
| Ice Maker Included |
No |
| Included Components |
Freezer, Instruction Manual, Casters, PE Coated Shelves |
| Installation Type |
Freestanding |
| Integrated Lock |
Yes |
| Interior Depth |
26.80" |
| Interior Width |
22.30" |
| Interior Height |
55" |
| Material |
Stainless Steel |
| Number of Doors |
1.0 |
| Number of Items |
1.0 |
| Number of Shelves |
3.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Refrigerant Type |
R-290a |
| Size |
27" |
| Temperature Range |
-10° - 10° |
| Temperature Zones |
1.0 |
| Undercounter |
No |
| Voltage |
120V |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
403W |
| Case Pack Dimensions |
40" x 40" x 88" |
| Case Pack Weight |
350.0 |
| Case Quantity |
1.0 |
| Country of Origin |
China |
Manual
Spec Sheet
What Our Experts Think
-
19.3 cu. ft. Capacity – Offers efficient storage for a variety of frozen goods, ideal for smaller to medium-sized commercial kitchens.
-
Bottom-Mount Compressor – Ensures enhanced cooling efficiency and easier access for maintenance.
-
Stainless Steel Construction – Durable, easy to clean, and designed for high-use environments.
-
Consistent Freezing Performance – Maintains optimal temperature to ensure the freshness and safety of stored frozen items.
-
Energy-Efficient – Designed to minimize energy consumption while delivering reliable performance.
Q&A
Q: What are the main features of the Maxx Cold Bottom Mount 1 Door Reach-In Freezer?
A: The Maxx Cold MXSF-23FDHC features a 27" width, 19.3 cu. ft. storage capacity, and a bottom-mounted compressor for efficient cooling. It’s built with durable stainless steel for longevity.
Q: How much storage space does the Maxx Cold Freezer provide?
A: It offers 19.3 cu. ft. of storage, making it ideal for smaller to medium-sized commercial kitchens or foodservice operations.
Q: Is the Maxx Cold Freezer energy-efficient?
A: Yes, the bottom-mount compressor and advanced refrigeration system provide energy-efficient performance, helping reduce energy costs.
Q: Can the Maxx Cold Freezer handle heavy-duty use?
A: Yes, it is constructed with high-quality stainless steel, making it durable enough for demanding commercial environments.
Q: Is the Maxx Cold Freezer easy to clean?
A: Yes, the stainless steel design makes cleaning simple and efficient, ensuring a hygienic environment.
Maintenance Tips
-
Clean condenser coils frequently to prevent dust buildup and ensure efficient cooling.
-
Inspect door seals for wear and replace if damaged to avoid cold air leakage.
-
Defrost the freezer as needed to maintain proper temperature and avoid ice buildup.
-
Wipe down both the interior and exterior surfaces regularly with a mild cleaner to maintain cleanliness.
-
Ensure proper ventilation around the unit for optimal airflow and cooling efficiency.
-
Monitor temperature regularly to ensure the unit maintains the ideal storage conditions.
