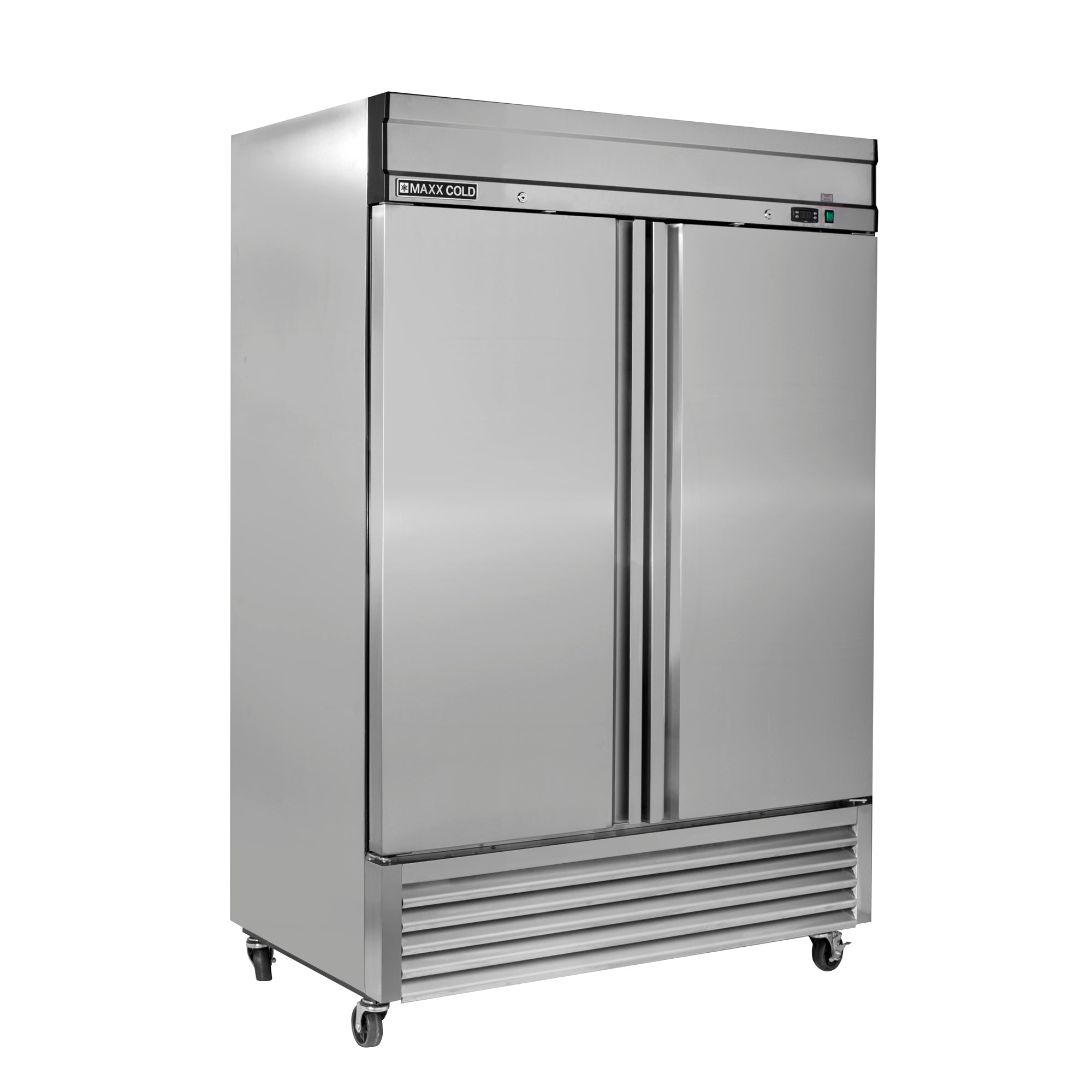

Maxx Cold Bottom Mount 2 Door Reach-In Freezer, 54" W, 42.9 Cu Ft, in Stainless Steel - MXSF-49FDHC
The Maxx Cold Bottom Mount 2 Door Reach-In Freezer is the perfect choice for your frozen storage needs in commercial kitchens. This durable reach-in freezer is constructed from stainless steel and has two heavy-duty self-closing doors with full-length handles. Optimal temperature control is provided by extra thick environmentally safe, CFC-free polyurethane foam insulation. An automatic on-off door switch controls the interior lighting and cooling air fans. This freezer has door locks and password protected solid state digital temperature controls to keep your contents secure. A programmable automatic defrost system prevents the evaporator from icing and keeps the unit at peak operating condition. Keep your food organized with 42.9 cubic feet of storage space plus six heavy-duty corrosion-resistant poly-coated shelves. Four swivel casters ensure easy maneuvering and mobility, while the bottom mount utility compartment delivers easy service access. The stainless steel freezer has a large, easy-to-read digital display that shows the internal temperature, which is maintained at -10°F to 10°F (-24°C to -12°C), in Fahrenheit or Celsius. You won’t have to worry about losing food because the open door alert beeps when the door has been left open or ajar. Choose the Maxx Cold Bottom Mount 2 Door Reach-In Freezer for your foodservice needs.
Features
- Stainless steel exterior and powder coated interior
- Extra thick environmentally safe, CFC-free polyurethane foam insulation for optimal temperature control
- Two heavy-duty self-closing doors with full-length handles
- Door locks and password protected solid state digital temperature controls provide security
- Interior lighting and cooling air fans are controlled by an automatic on-off door switch
- Offers 42.9 cubic feet of storage
- Programmable automatic defrost system keeps the unit at peak operating condition and prevents the evaporator from icing
- Forced-air system delivers effective air circulation and rapid temperature recovery
- Includes 3 heavy-duty corrosion-resistant poly-coated shelves with adjustable mounting clips per section
- Bottom mount utility compartment delivers easy service access
- Maintains a temperature of -10°F to 10°F (-24°C to -12°C)
- Open door alert beeps when door has been left open or ajar
- Large, easy-to-read digital display shows the internal temperature in either Fahrenheit or Celsius
- Includes four 2.75" swivel casters (two with brakes) for easy maneuvering and mobility
Specifications
| Adjustable Shelves |
Yes |
| Adjustable Temperature Control |
Yes |
| Amperage |
8.2A |
| Assembled Dimensions (LxWxH) |
33.30" x 54.10" x 83.50" |
| Assembled Weight (lb) |
470.0 |
| Assembly Required |
No |
| Batteries Required |
No |
| Capacity |
49 cu. ft. |
| Caster Size |
2.75" |
| Casters |
Yes |
| Color |
Stainless Steel |
| Control Type |
Digital |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Automatic / Frost Free |
| Depth - Door Open 90° |
67" |
| Depth - Excluding Door |
32.50" |
| Depth - Excluding Handles |
30" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Stainless Steel |
| Door Material |
Metal |
| Door Swing Orientation |
French-Door |
| Electric |
Yes |
| First Zone Maximum Temperature |
10° |
| First Zone Minimum Temperature |
-10° |
| Freezer Capacity |
42.9 cu. ft. |
| Freezer Type |
Full Freezer |
| Height - Excluding Top Hinge |
79.70" |
| Ice Maker Included |
No |
| Included Components |
Freezer, Instruction Manual, Casters, PE Coated Shelves |
| Installation Type |
Freestanding |
| Integrated Lock |
Yes |
| Interior Depth |
26.80" |
| Interior Width |
49.30" |
| Interior Height |
55" |
| Material |
Stainless Steel |
| Number of Doors |
2.0 |
| Number of Items |
1.0 |
| Number of Shelves |
6.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Refrigerant Type |
R-290a |
| Size |
54" |
| Temperature Range |
-10° - 10° |
| Temperature Zones |
1.0 |
| Undercounter |
No |
| Voltage |
120V |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
943W |
| Case Pack Dimensions |
56" x 40" x 81" |
| Case Pack Weight |
505.0 |
| Case Quantity |
1.0 |
| Country of Origin |
China |
| Freight Class |
250.0 |
Manual
Spec Sheet
What Our Experts Think
-
42.9 cu. ft. Capacity – Provides ample storage for large quantities of frozen goods, perfect for high-volume operations.
-
Bottom-Mount Compressor – Enhances efficiency and simplifies maintenance, keeping the unit running smoothly.
-
Durable Stainless Steel – Built to last with easy-to-clean surfaces, ideal for heavy-duty use in commercial kitchens.
-
Reliable Freezing Performance – Maintains optimal freezing temperatures to preserve food quality and safety.
-
Energy-Efficient – Designed to reduce energy usage, helping to lower operational costs over time.
Q&A
Q: What are the key features of the Maxx Cold Bottom Mount 2 Door Reach-In Freezer?
A: The Maxx Cold MXSF-49FDHC features a 54" width, 42.9 cu. ft. storage capacity, and durable stainless steel construction with a bottom-mounted compressor for efficient cooling.
Q: How much storage does the Maxx Cold Reach-In Freezer offer?
A: It provides 42.9 cu. ft. of storage, making it ideal for high-volume storage of frozen items in commercial kitchens.
Q: Is the Maxx Cold Reach-In Freezer energy-efficient?
A: Yes, the bottom-mount compressor and advanced refrigeration system offer energy-efficient performance, helping reduce operational costs.
Q: Can the Maxx Cold Freezer handle heavy use?
A: Yes, its robust stainless steel design is built to withstand heavy-duty use in commercial kitchens and foodservice environments.
Q: Is the Maxx Cold Freezer easy to clean?
A: Yes, the stainless steel finish and design make it easy to clean and maintain for a hygienic environment.
Maintenance Tips
-
Clean condenser coils regularly to avoid dust buildup, which can cause overheating and reduce efficiency.
-
Inspect door seals for wear and replace if necessary to prevent cold air loss and energy waste.
-
Defrost the freezer as needed to avoid ice buildup, ensuring consistent temperatures.
-
Wipe down both interior and exterior surfaces with a mild cleaning solution to maintain cleanliness and appearance.
-
Ensure proper ventilation around the unit to maintain effective airflow and cooling.
