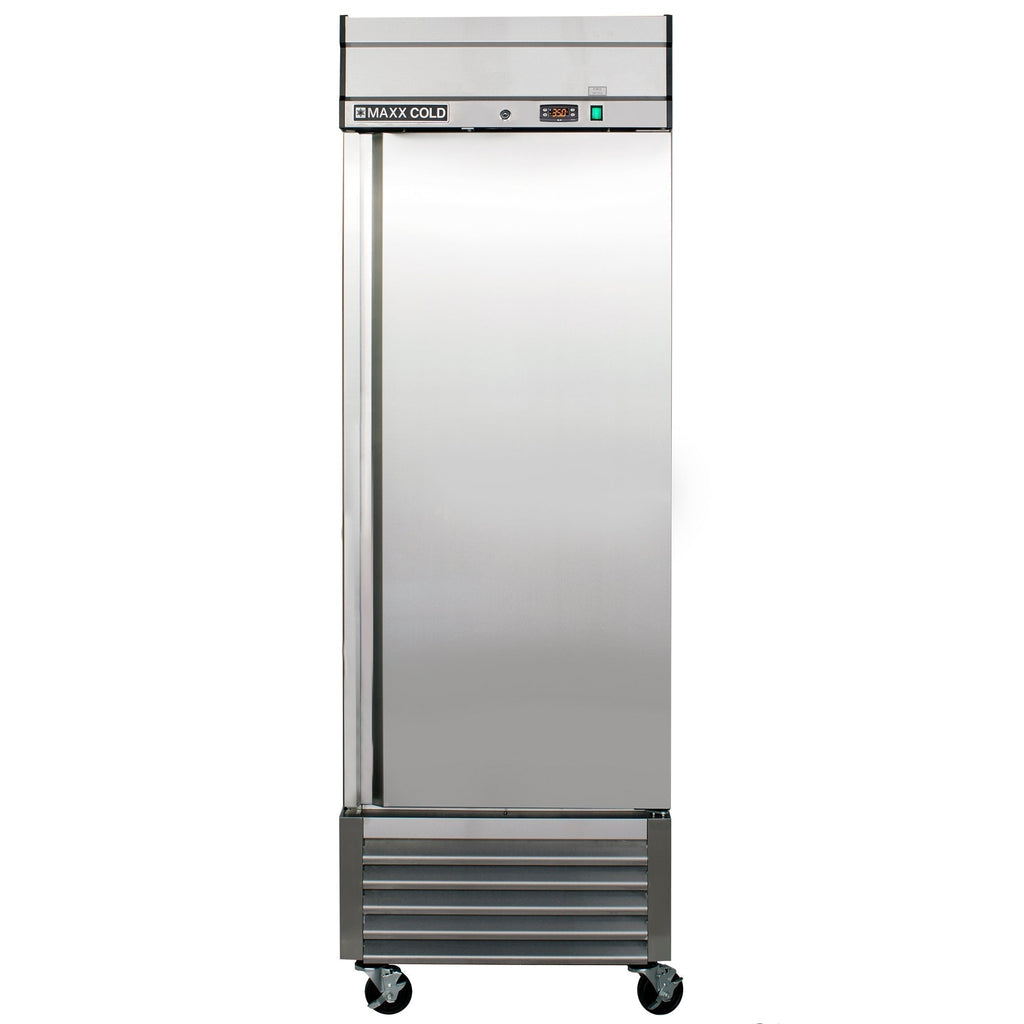

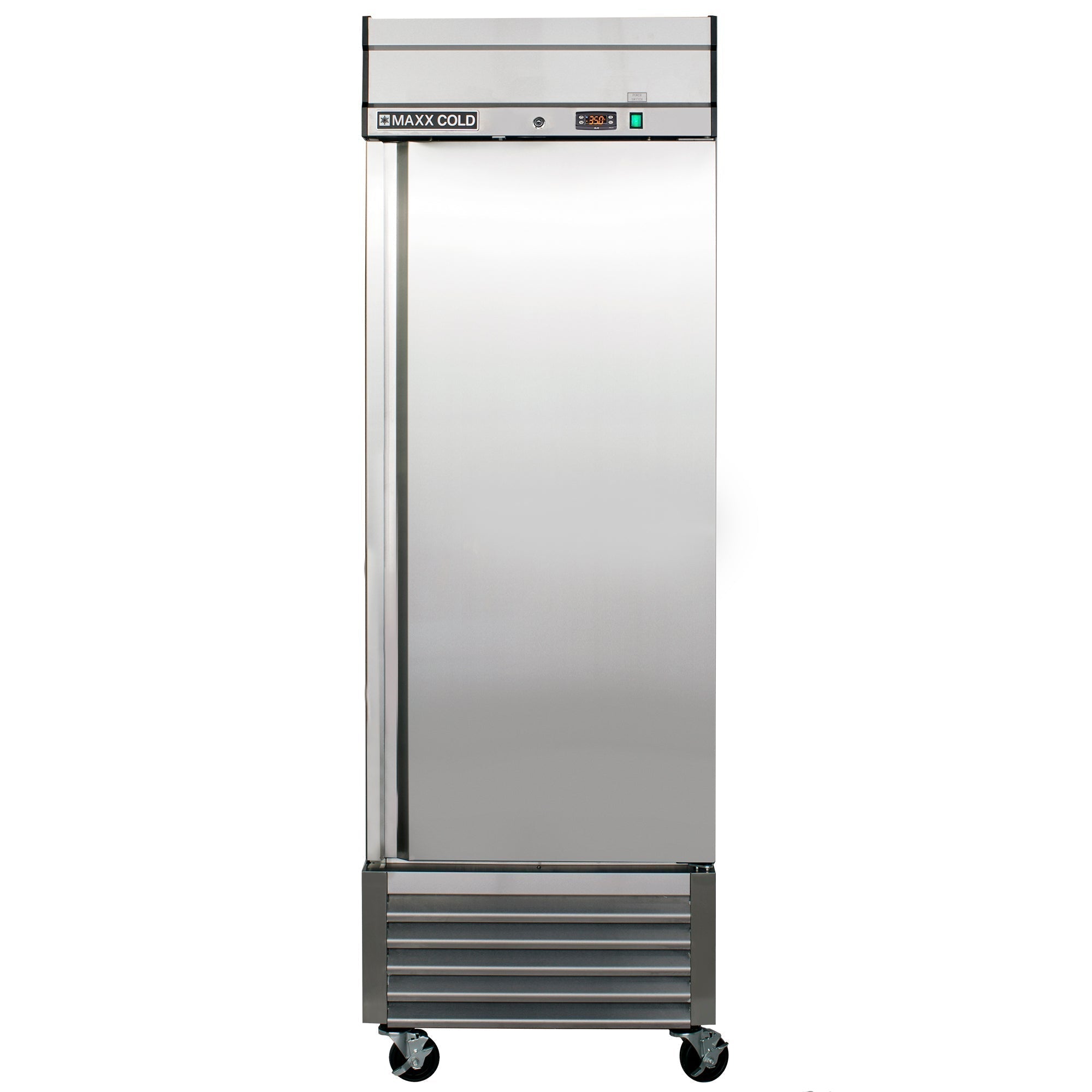

Maxx Cold Single Door Reach-In Refrigerator, Bottom Mount, 27"W, 23 cu. ft. Storage Capacity, in Stainless Steel - MXSR-23FDHC
The Maxx Cold Bottom Mount 1 Door Reach-In Refrigerator is the perfect choice for your cold food storage needs in commercial kitchens. This durable reach-in refrigerator is constructed from stainless steel and has a heavy-duty self-closing door with a full-length handle. Optimal temperature control is provided by extra thick environmentally safe, CFC-free polyurethane foam insulation. An automatic on-off door switch controls the interior lighting and cooling air fans. This refrigerator has door locks and password protected solid state digital temperature controls to keep your contents secure. A programmable automatic defrost system prevents the evaporator from icing and keeps the unit at peak operating condition. Keep your food organized with 19.3 cubic feet of storage space plus three heavy-duty corrosion-resistant poly-coated shelves. Four swivel casters ensure easy maneuvering and mobility, while the bottom mount utility compartment delivers easy service access. The stainless steel refrigerator has a large, easy-to-read digital display that shows the internal temperature, which is maintained at 33°F to 41°F (1°C to 5°C), in Fahrenheit or Celsius. You won’t have to worry about losing food because the open door alert beeps when the door has been left open or ajar. Choose the Maxx Cold Bottom Mount 1 Door Reach-In Refrigerator for your foodservice needs.
Features
- Stainless steel exterior and powder coated interior
- Extra thick environmentally safe, CFC-free polyurethane foam insulation for optimal temperature control
- Heavy-duty self-closing door with a full-length handle
- Door locks and password protected solid state digital temperature controls provide security
- Interior lighting and cooling air fans are controlled by an automatic on-off door switch
- Offers 19.3 cubic feet of storage
- Programmable automatic defrost system keeps the unit at peak operating condition and prevents the evaporator from icing
- Forced-air system delivers effective air circulation and rapid temperature recovery
- Includes 3 heavy-duty corrosion-resistant poly-coated shelves with adjustable mounting clips
- Bottom mount utility compartment delivers easy service access
- Maintains a temperature of 33°F to 41°F (1°C to 5°C)
- Open door alert beeps when door has been left open or ajar
- Large, easy-to-read digital display shows the internal temperature in either Fahrenheit or Celsius
- Includes four 2.75" swivel casters (two with brakes) for easy maneuvering and mobility
Specifications
| Adjustable Shelves |
Yes |
| Adjustable Temperature Control |
Yes |
| Amperage |
2.6A |
| Assembled Dimensions (LxWxH) |
32.50" x 27" x 79.70" |
| Assembled Weight (lb) |
300.0 |
| Assembly Required |
No |
| Batteries Required |
No |
| Capacity |
23 cu. ft. |
| Caster Size |
2.75" |
| Casters |
Yes |
| Color |
Stainless Steel |
| Control Type |
Digital |
| Cooling System |
Compressor |
| Cord Length |
72" |
| Cordless |
No |
| Defrost System Type |
Automatic / Frost Free |
| Depth - Door Open 90° |
59.50" |
| Depth - Excluding Door |
27" |
| Depth - Excluding Handles |
33" |
| Dishwasher Safe Components |
Yes |
| Door Color/Finish |
Stainless Steel |
| Door Material |
Metal |
| Door Swing Orientation |
Right |
| Electric |
Yes |
| First Zone Maximum Temperature |
41° |
| First Zone Minimum Temperature |
33° |
| Freezer Type |
No Freezer |
| Fresh Food Capacity |
23 cu. ft. |
| Height - Excluding Top Hinge |
79.70" |
| Ice Maker Included |
No |
| Included Components |
Refrigerator, Instruction Manual, Casters, PE Coated Shelves |
| Installation Type |
Freestanding |
| Integrated Lock |
Yes |
| Interior Depth |
26.80" |
| Interior Width |
22.30" |
| Interior Height |
55" |
| Material |
Stainless Steel |
| Number of Doors |
1.0 |
| Number of Items |
1.0 |
| Number of Shelves |
3.0 |
| Outdoor Use |
No |
| Plug Type |
NEMA 5-15P |
| Portable |
No |
| Refrigerant Type |
R-290a |
| Size |
27" |
| Temperature Range |
33° - 41° |
| Temperature Zones |
1.0 |
| Undercounter |
No |
| Voltage |
120V |
| Warranty |
1 Year Parts & Labor + 5 Year Compressor (Part Only) |
| Water Dispenser |
No |
| Wattage |
299W |
| Case Pack Dimensions |
40" x 40" x 89" |
| Case Pack Weight |
315.0 |
| Case Quantity |
1.0 |
Manual
Spec Sheet
What Our Experts Think
-
23 cu. ft. Capacity – Provides ample space for refrigerated items, ideal for smaller to medium-sized kitchens and foodservice operations.
-
Bottom-Mount Compressor – Enhances energy efficiency and simplifies maintenance by positioning the compressor at the bottom.
-
Stainless Steel Construction – Durable and easy to clean, designed for high-use commercial environments.
-
Reliable Cooling – Maintains optimal temperatures to preserve the freshness and safety of food.
-
Energy-Efficient – Meets Energy Star standards, reducing energy consumption and lowering operational costs.
Q&A
Q: What are the main features of the Maxx Cold Single Door Reach-In Refrigerator?
A: The Maxx Cold MXSR-23FDHC features a bottom-mounted compressor, 27" width, 23 cu. ft. storage capacity, and durable stainless steel construction, designed for efficient refrigeration in commercial kitchens.
Q: How much storage space does the Maxx Cold Reach-In Refrigerator offer?
A: It provides 23 cu. ft. of storage, ideal for storing refrigerated items in small to medium-sized commercial kitchens or foodservice operations.
Q: Is the Maxx Cold Refrigerator energy-efficient?
A: Yes, it is designed to operate efficiently, helping reduce energy costs while maintaining optimal refrigeration.
Q: Can the Maxx Cold Refrigerator handle heavy-duty use?
A: Yes, its stainless steel construction and bottom-mount compressor make it durable enough for continuous, high-demand use in commercial environments.
Q: Is the Maxx Cold Refrigerator easy to clean?
A: Yes, the stainless steel design makes it easy to clean and maintain for a hygienic environment.
Maintenance Tips
-
Clean the condenser coils regularly to prevent dust buildup, ensuring efficient cooling.
-
Inspect door seals for damage and replace them if necessary to prevent cold air leakage.
-
Defrost the refrigerator as needed to avoid ice buildup and maintain optimal temperatures.
-
Wipe down the interior and exterior with a mild cleaner to maintain hygiene and appearance.
-
Ensure proper airflow around the unit to optimize cooling efficiency and prevent overheating.
-
Monitor temperature settings to ensure the refrigerator maintains the ideal storage conditions.
