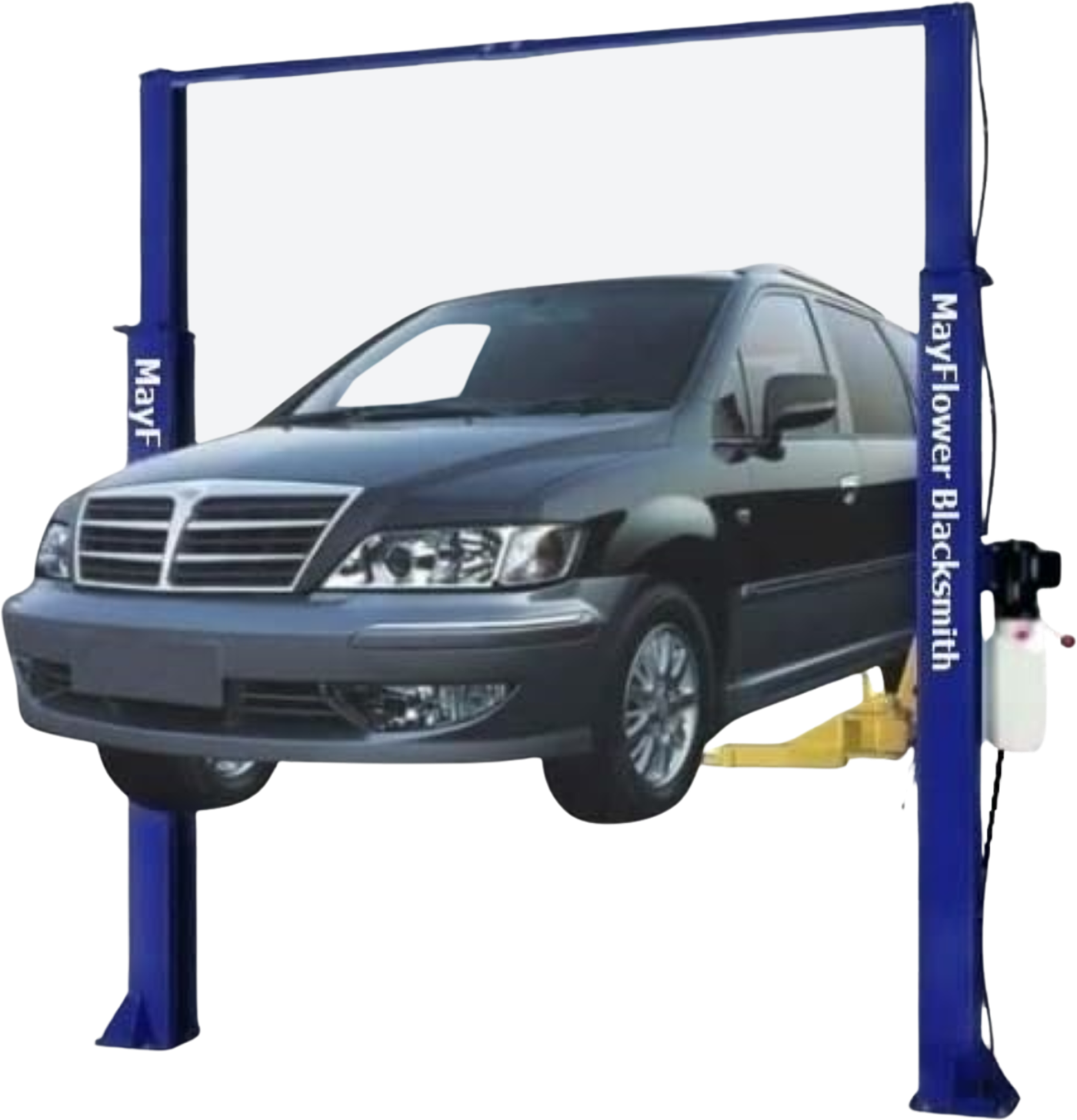

Mayflower Tools Blacksmith Two Post Car Lift Max Lift Height 71" New - CF9000
Features

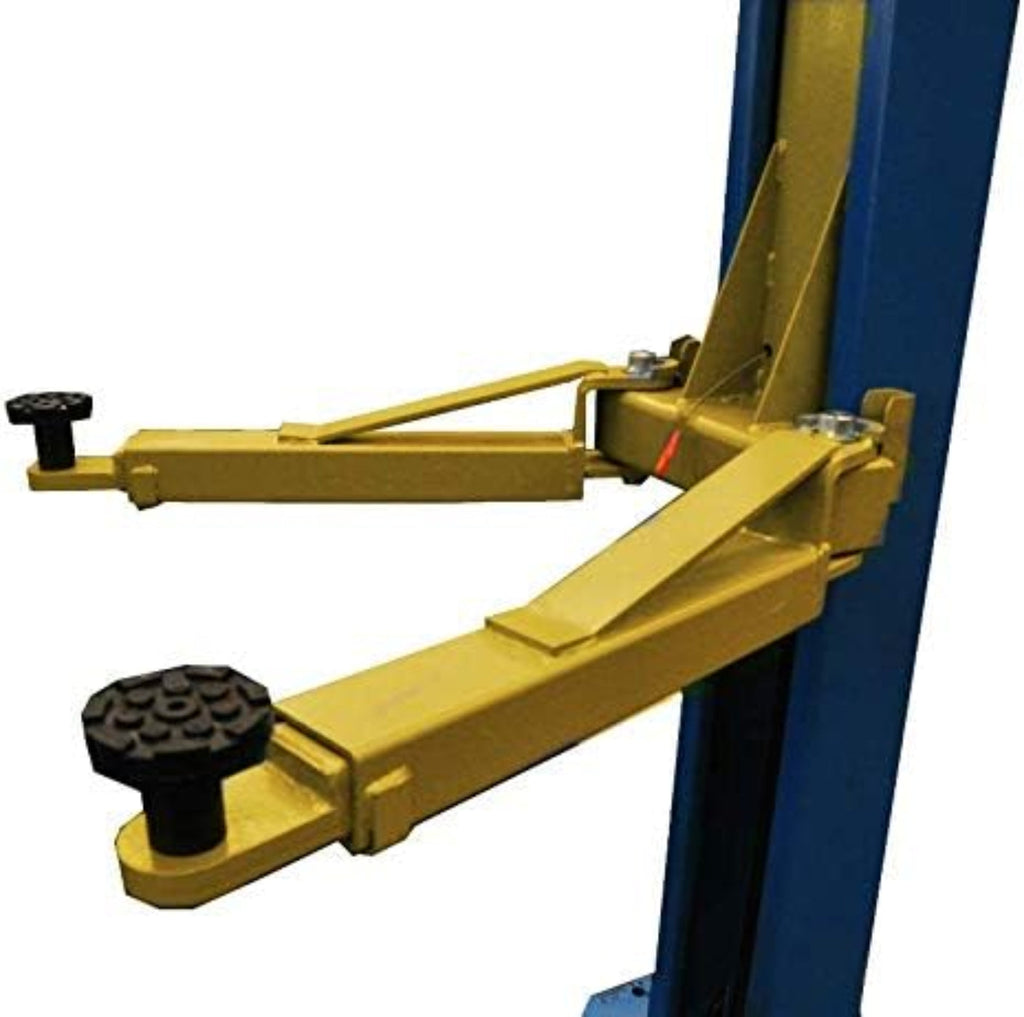

- Front Arm assembly 2 Stage reach from 28″ to 42″
- Rear Arm assembly 2 Stage reach from 32″ to 62″
- Double two point safety lock release with built-in 18 locking positions

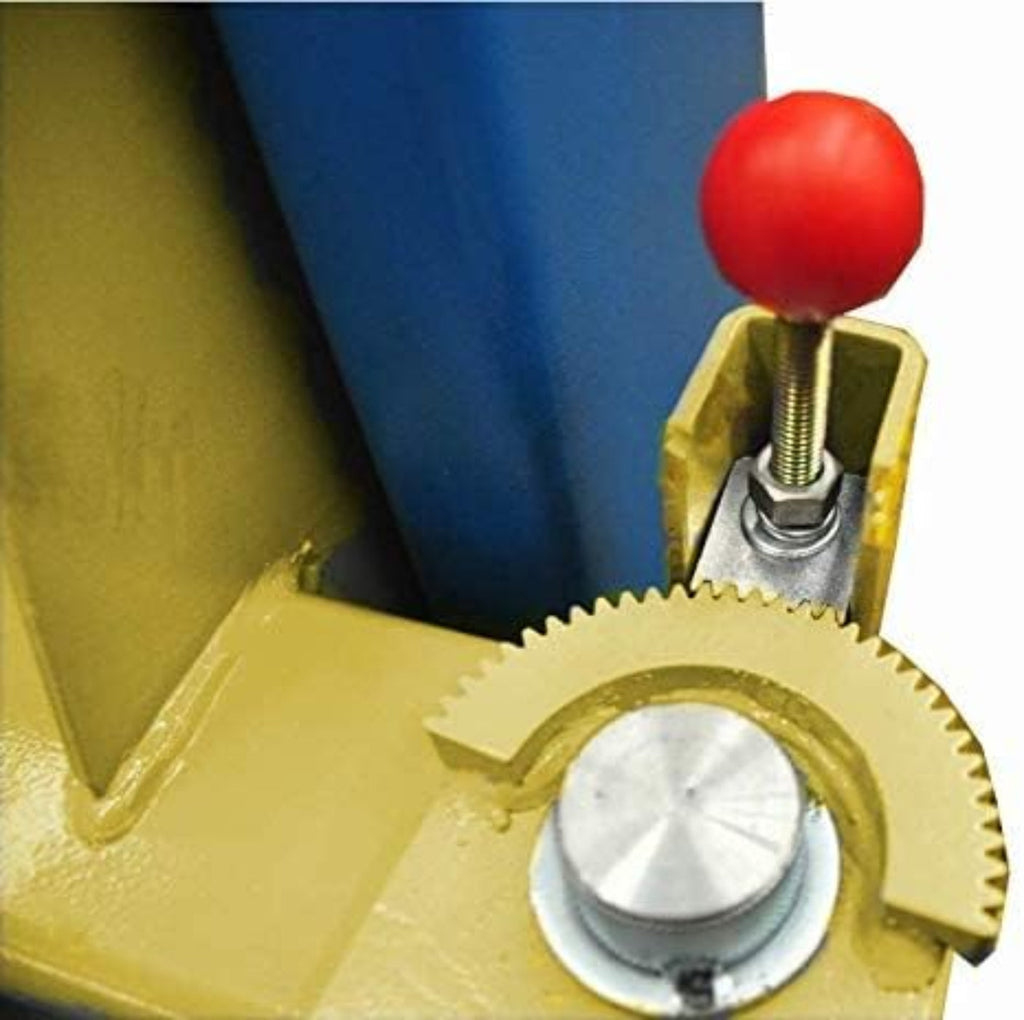

- Automatic arm lock restraints
- Drop-in type lifting pads and truck adapters included

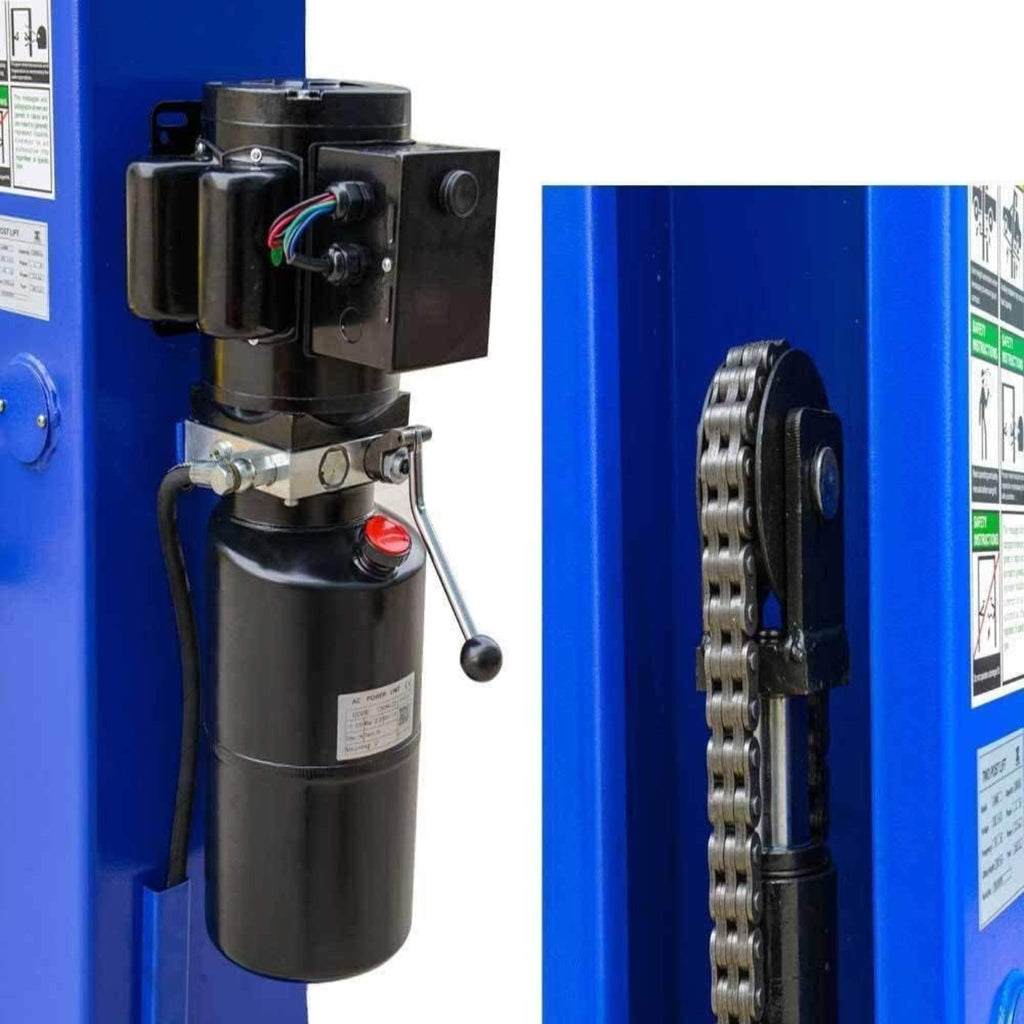

- Relief valve built in power pump to prevent overloading

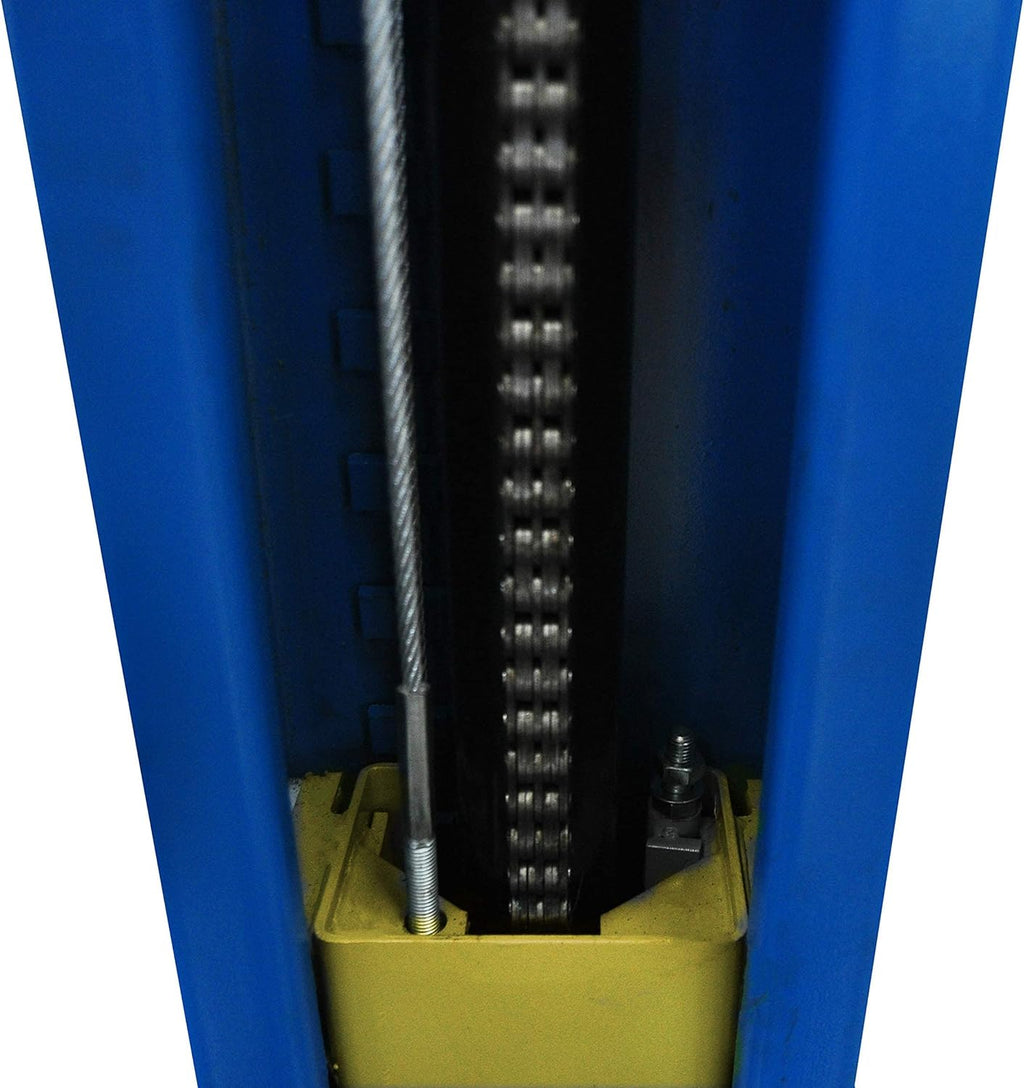

- Heavy duty 3/10″ diameter cable and 3 2/5″ pulley that reduce high stress on synchronization process and increase cable life
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
- Floor concrete requirement: 4″ Depth, 3000 PSI Rebar Reinforced
- Anchor bolts/mounting hardware included
- 1 set of 4” Truck adapters included
- Door guards protection rubber is optional
- Blue Powder coated finish provides superior resistance against corrosion.
Specifications
| Driving Mode |
Heavy Duty Two Hydraulic Cylinders, Chain Drive |
| Voltage |
220V |
| Lifting Weight Capacity |
9,000 lbs |
| Lifting Height (Max) |
71″ |
| Lifting Height (Max with Truck Adapter) |
75″ |
| Overall Height |
146″ |
| Overall Width |
135″ |
| Width Between Posts |
109″ |
| Drive-Thru Width |
92″ |
| Lifting Time |
40 sec – 50 sec |
| Motor |
220V 60Hz 1 Phase / 3 Horse Power |
What Our Experts Think
-
Solid Lifting Capacity – The CF9000 offers a 9,000 lbs lifting capacity, making it suitable for a range of vehicles, from cars to light trucks.
-
Max Lift Height of 71" – Features a 71" max lift height, providing ample room to work under vehicles for repairs and maintenance.
-
Two-Post Design – The two-post design ensures stability and easy access to the undercarriage while saving valuable floor space.
-
Durable Build – Constructed with high-strength materials, the CF9000 is built to withstand the demands of everyday use in professional garages.
-
Effortless Operation – Equipped with a hydraulic system, the lift is quick, efficient, and easy to operate, allowing for fast vehicle servicing.
Q&A
Q: What is the lifting capacity of the Mayflower Tools Blacksmith CF9000 Two-Post Car Lift?
A: The CF9000 has a lifting capacity of 9,000 lbs., making it ideal for a wide range of vehicles, including cars, trucks, and SUVs.
Q: What is the maximum lift height?
A: This lift can raise vehicles up to 71 inches, providing ample clearance for undercarriage work and maintenance.
Q: Is this lift designed for professional use?
A: Yes, it is built for heavy-duty, high-efficiency use in professional auto shops, service centers, and garages.
Q: What type of power supply is required?
A: The CF9000 operates on a 220V power supply, suitable for most professional workshop setups.
Q: Does it come with safety features?
A: Yes, it includes automatic safety locks, a durable cable system, and a reinforced structure for secure lifting.
Maintenance Tips
-
Daily Inspection: Check for any hydraulic fluid leaks, cable damage, and loose bolts. Ensure the lift arms and posts are aligned properly.
-
Lubrication: Grease moving parts, including arm pivots, pulleys, and hydraulic components, to reduce friction and wear.
-
Hydraulic Fluid: Monitor and maintain proper hydraulic fluid levels to ensure smooth lifting and lowering operations.
-
Cable Tension: Inspect cables for wear and adjust the tension if needed to maintain proper lifting performance.
-
Safety Lock Test: Regularly check safety locks to ensure they engage securely at all heights.
-
Platform Cleaning: Clean the lift platform and floor plate regularly to prevent oil buildup and debris, ensuring proper traction.
-
Monthly Load Test: Perform a full-cycle test with a load to confirm the lift operates smoothly under working conditions.
