The Ultimate Upgrade To A Luxurious Bathroom Is Here!

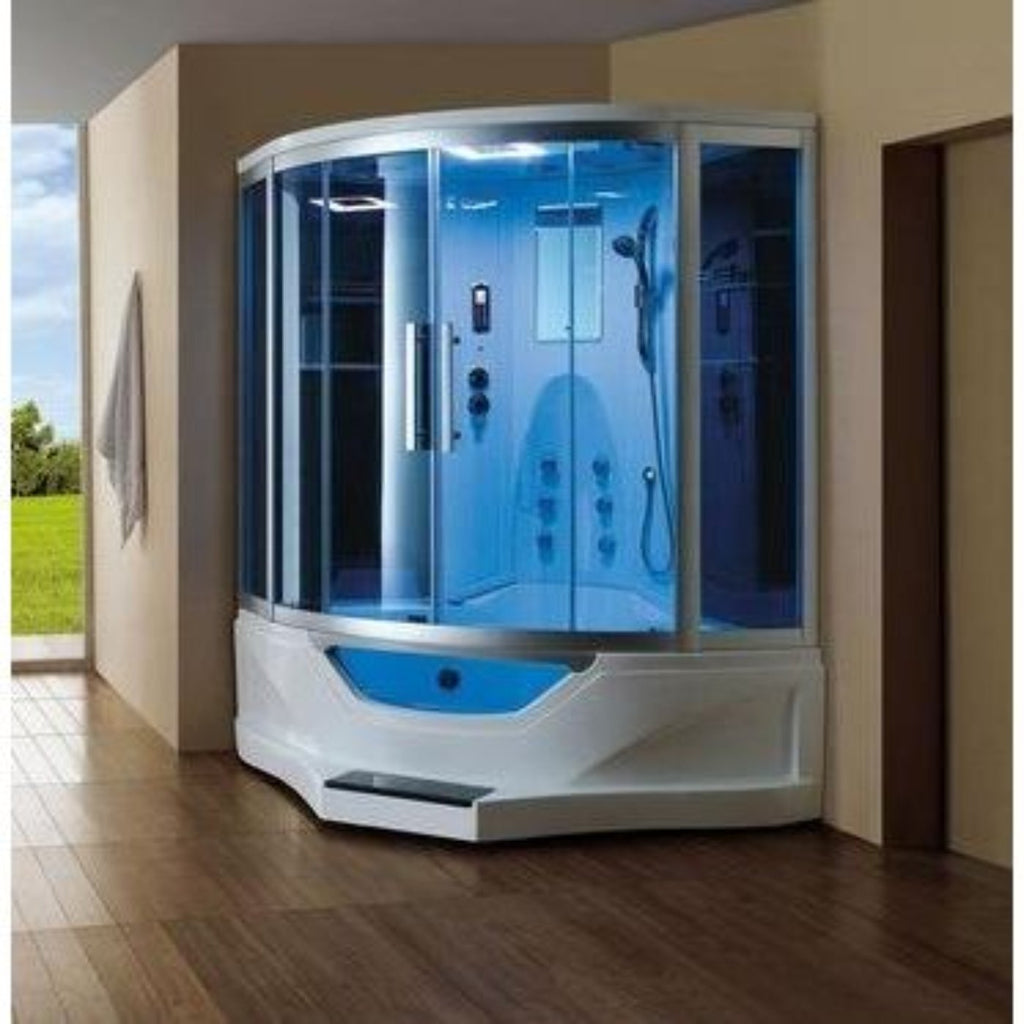

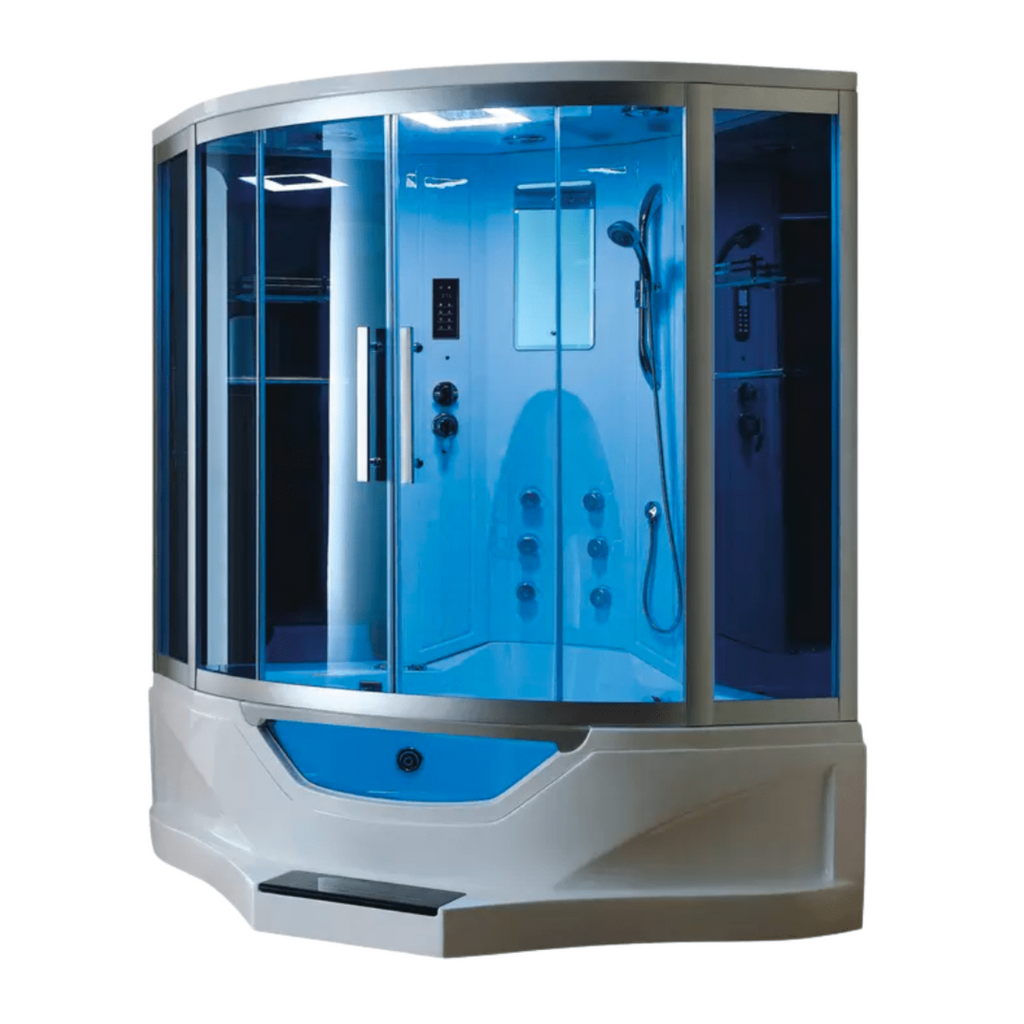

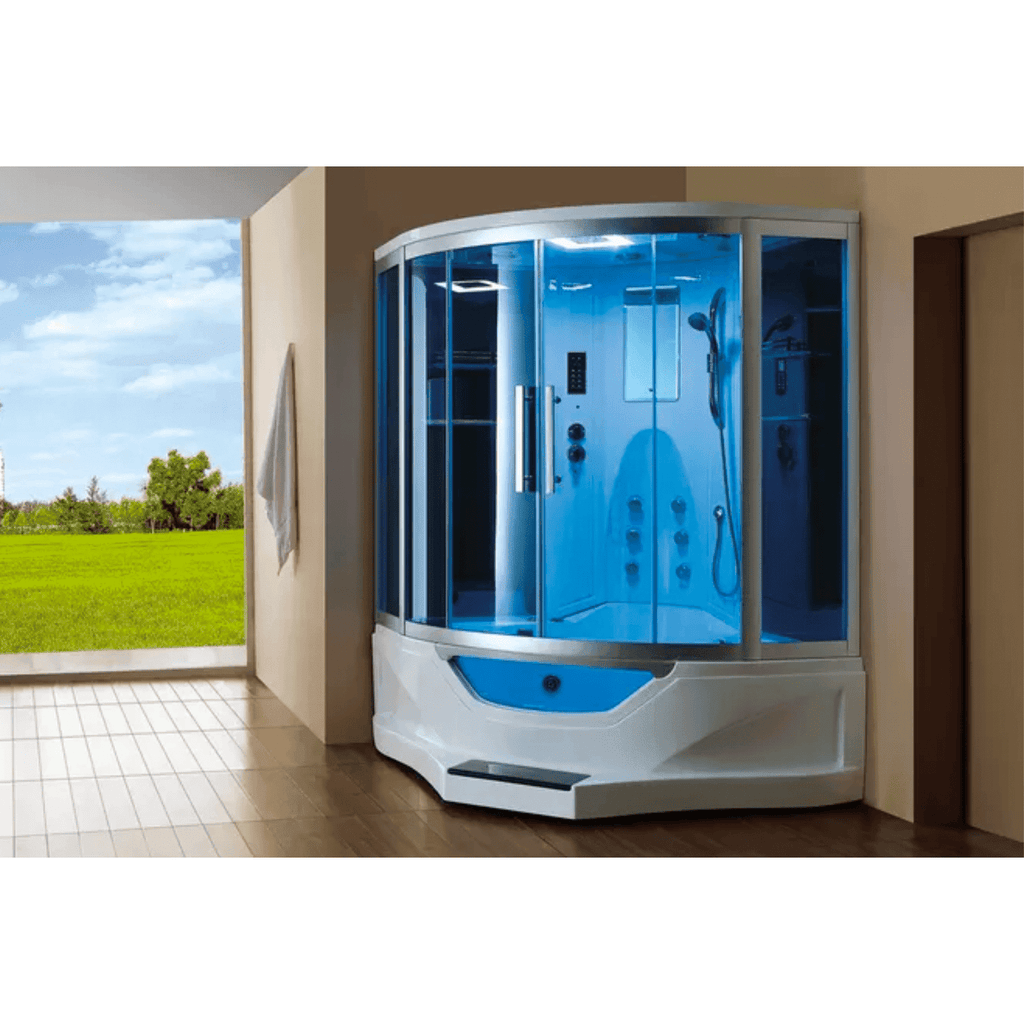

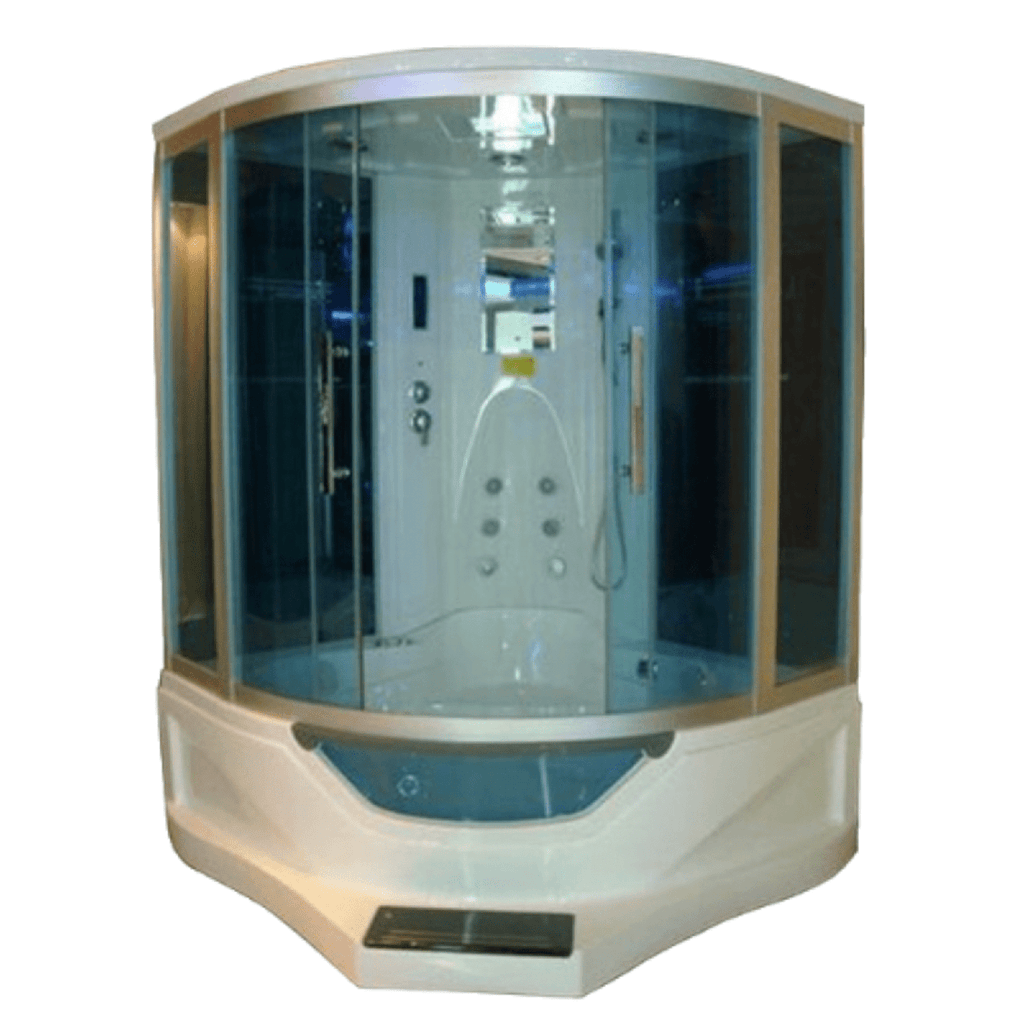

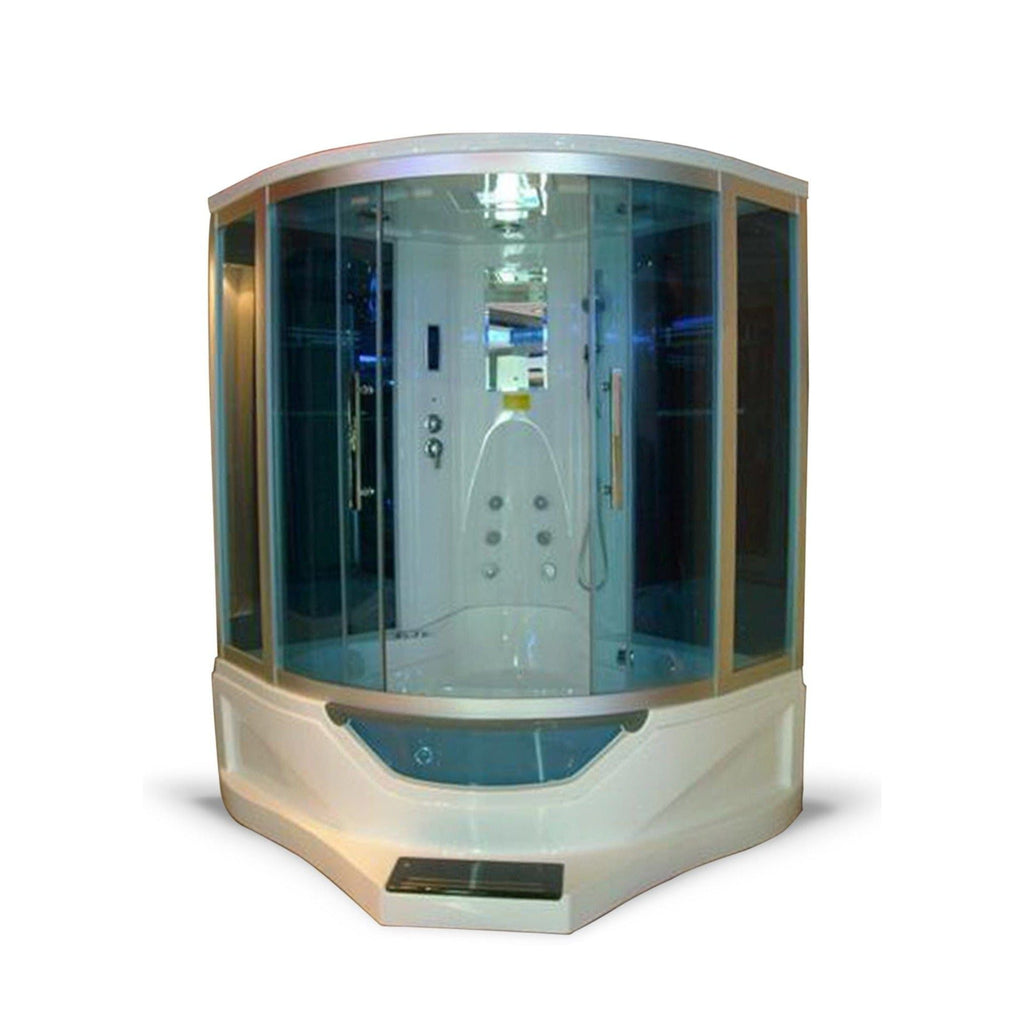

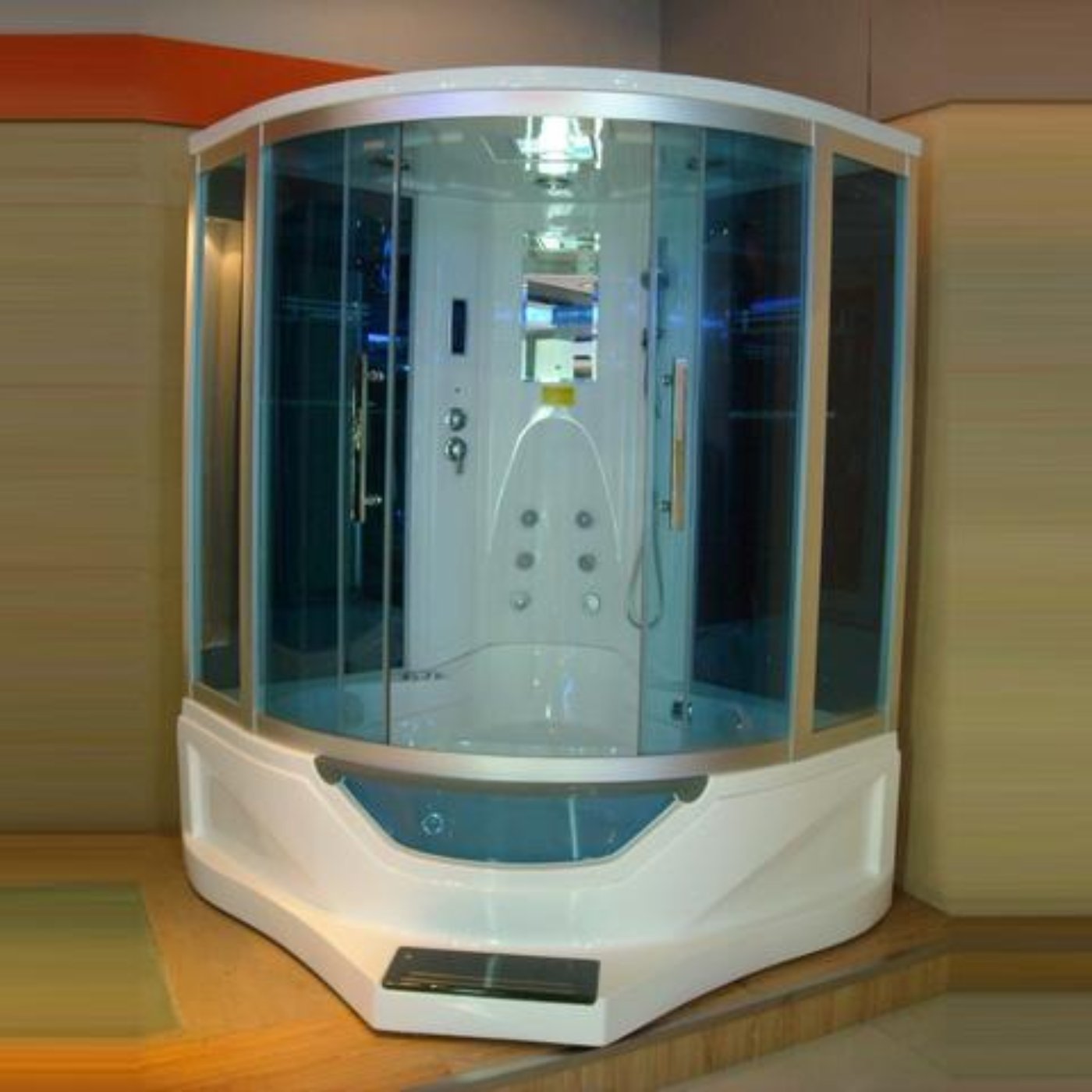

The Mesa 702A steam shower with jetted tub is made to replace a standard garden-style corner tub. Measuring 60.5" x 60.5", this combination steam shower with jetted tub features sliding glass doors, a 3KW high output steam engine, 6 acupuncture jets, and 6 whirlpool jets giving you an unmatched therapeutic sauna experience. You and a partner can indulge yourself in a state of complete relaxation and tranquility in this expansive jetted tub.
View the Mesa Steam Shower Tub Combo - 702A Features below:
-
61"L X 61"W X 89"H (add 2" for ventilation exhaust pipe onto of unit)
-
ETL Certified (220V)
-
Electrical requirements (1) 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.
-
Electrical requirements (1) 220v with a 20amp dual pole breaker GFCI Breaker for the heat pump
-
3KW High Output Steam Engine
-
The frame is aluminum and the tub is acrylic
-
Adjustable Temperature and Time Control
-
6 Acupuncture Massage
-
Advanced computerized LCD
-

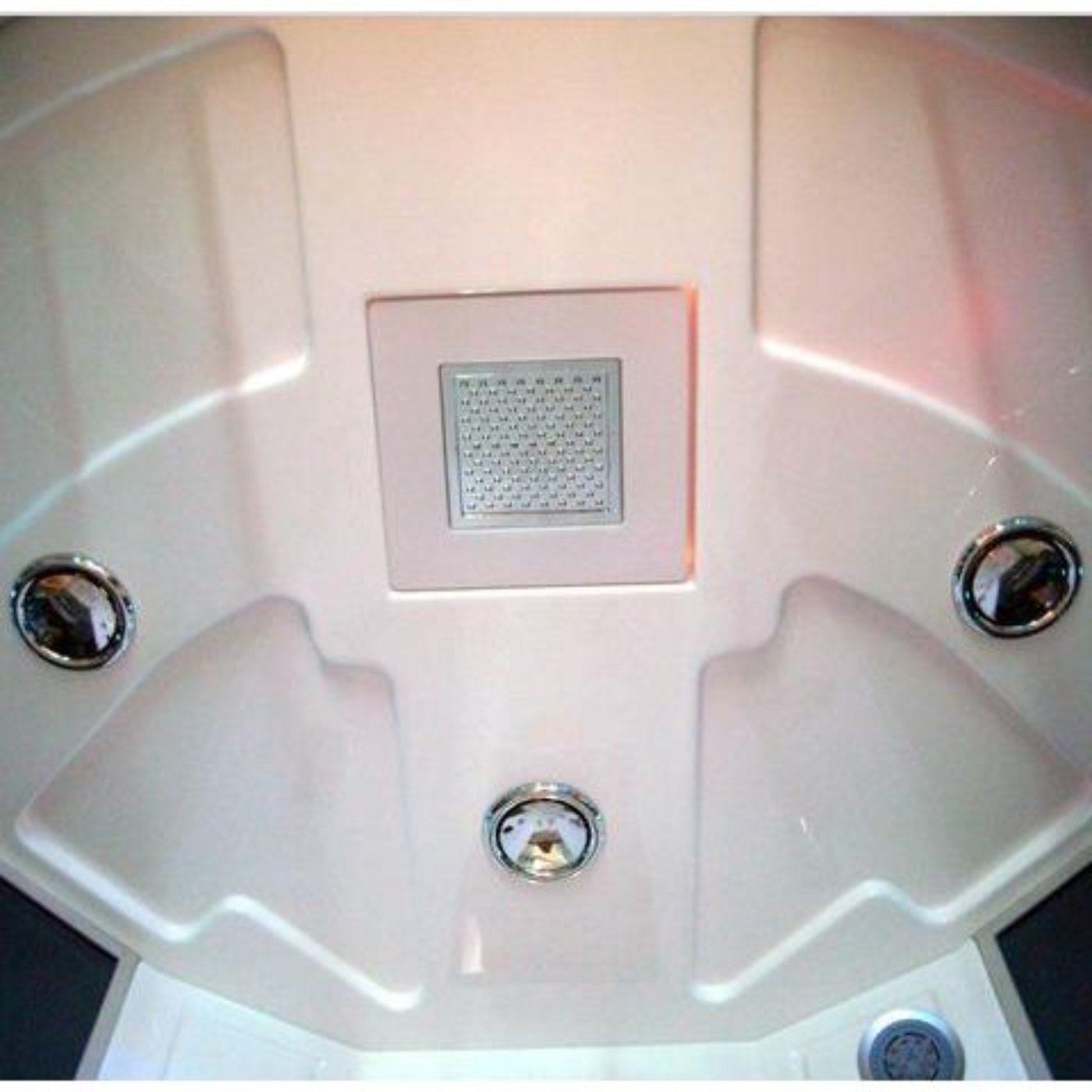

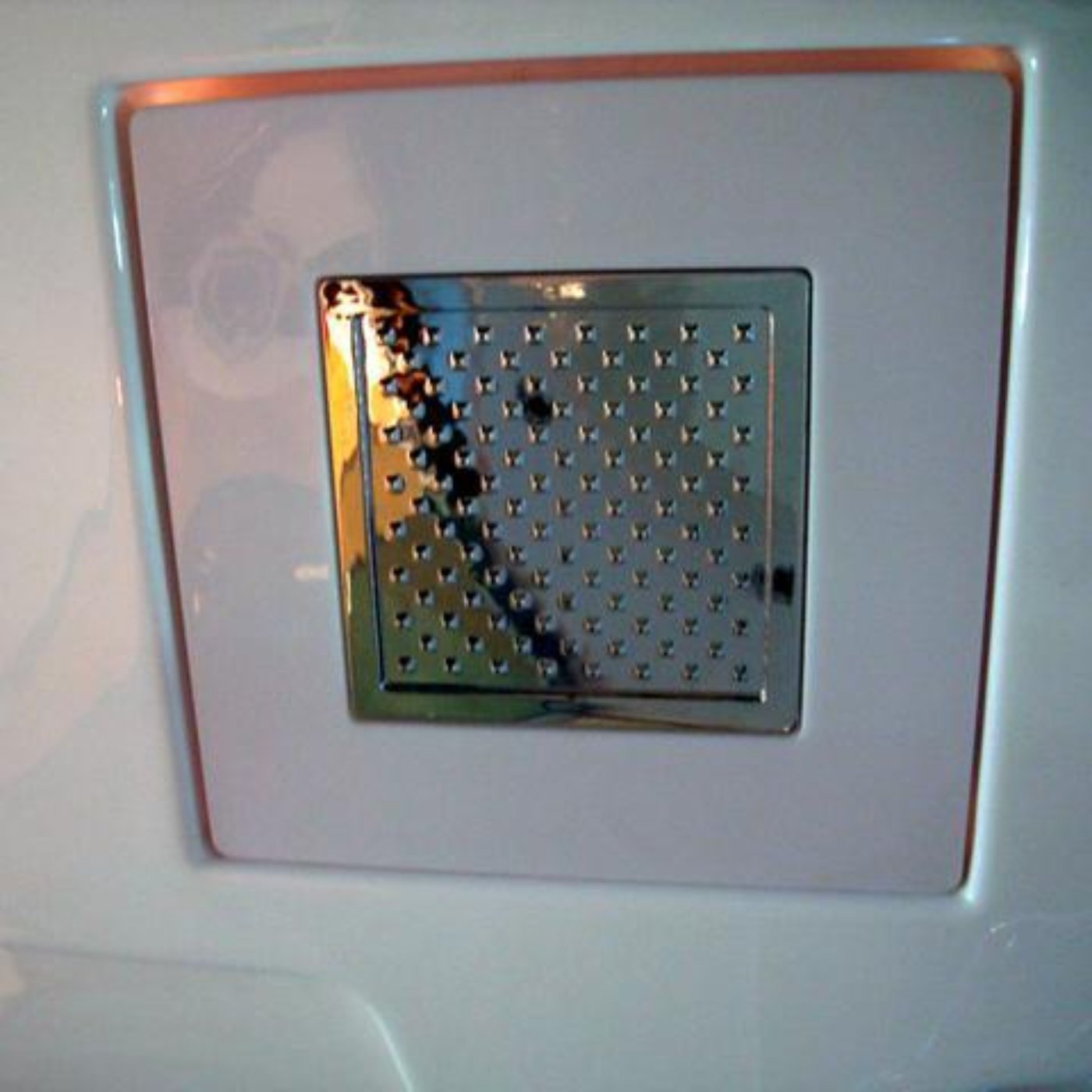

Oversized Rainfall Shower Head
-

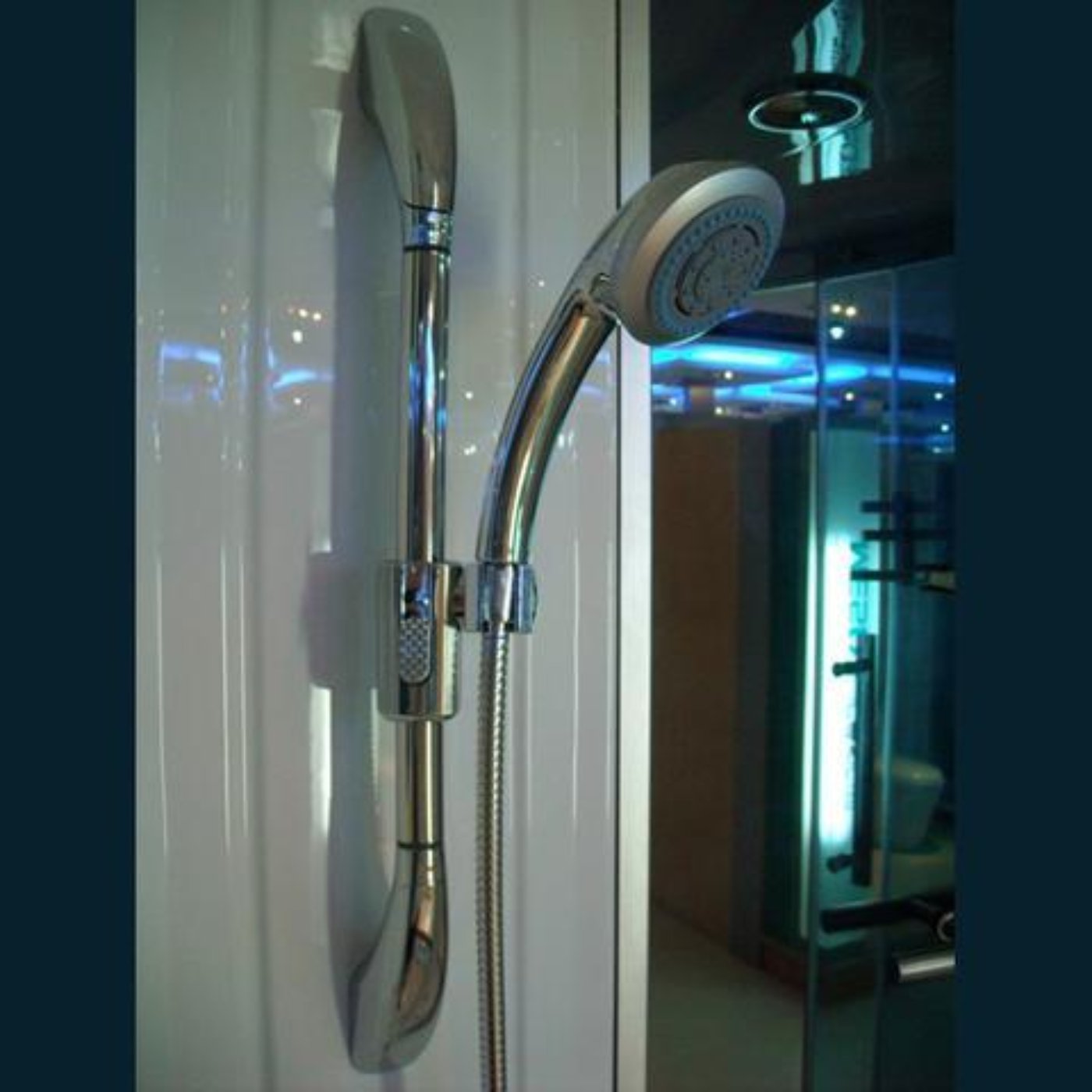

Adjustable Handheld Showerhead
-

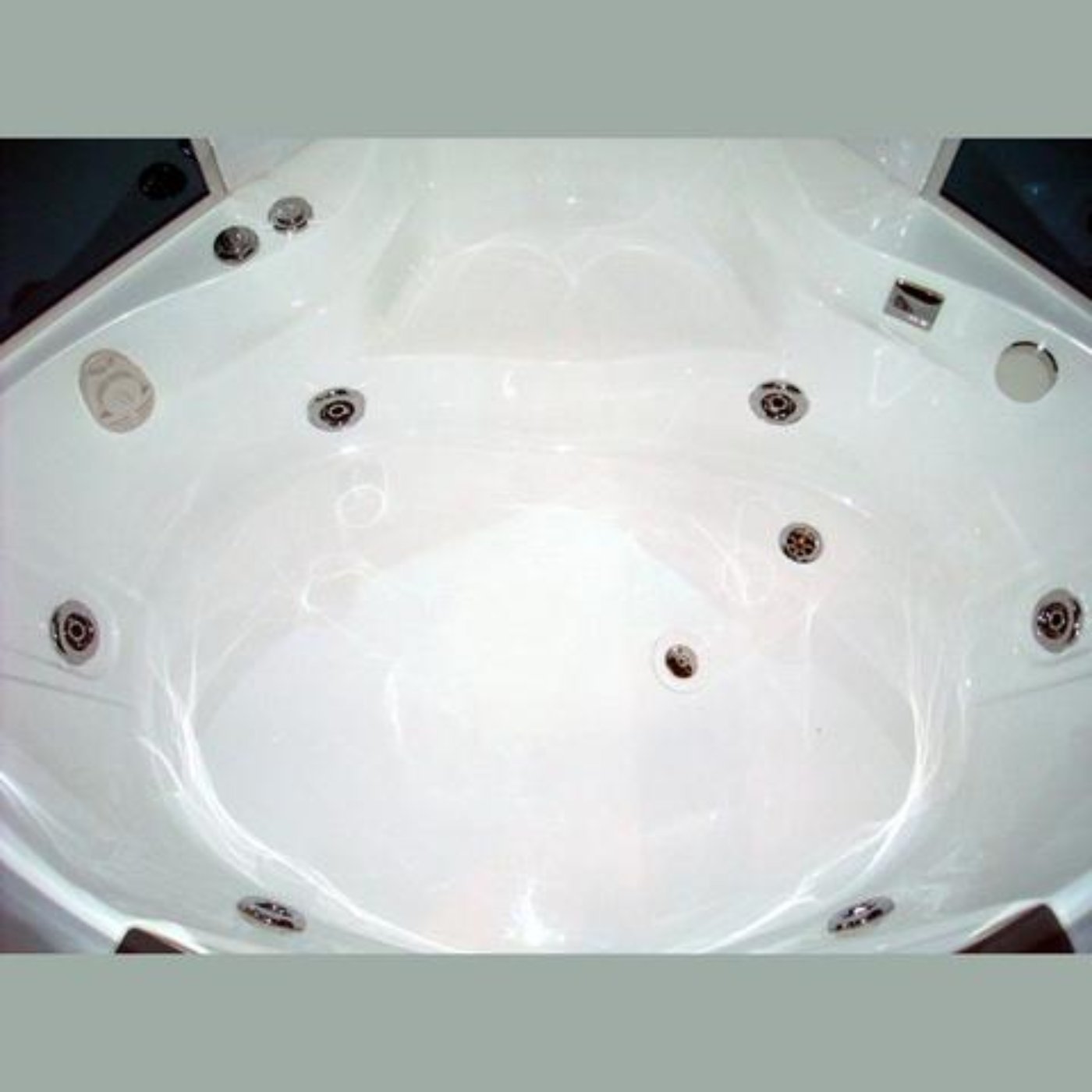

Jetted Tub with 6 Massage Jets
-
Sliding Glass Doors
-
Storage Shelves
-
Blue Tinted Glass
-
Towel rack
-
Marble step
Specification
Additional Information
Additional Steam Shower Features
-
CD/MP3 Connection
-
Overhead light
-
Ventilation Fan
-
Digital Timer and Temperature Control
-
Storage Shelves
-
Built-in Seating Above Tub
-
Fluorescent Blue Mood Lighting
-
Marble step
Product Manual
Spec Sheet
Warranty
All steam showers carry a (7) seven-year structural warranty against manufacturer defects. The structural warranty protects the structure of the steam shower from peeling, fading, delaminating, or cracking. Structural components include acrylic panels, shower pan, ceiling, and glass panels. All steam shower parts carry a (1) one-year guarantee against defects.
What Our Experts Think
The Mesa Steam Shower Tub Combo - 702A is a well-designed and highly functional unit, combining the benefits of a steam shower and a relaxing bathtub for a complete bathing experience. Here's why it stands out:
-
All-in-One Bath Solution: Combines a spacious soaking tub with a steam shower, perfect for both relaxation and revitalization.
-
Efficient Steam Generator: Provides quick and consistent steam to create a soothing spa environment.
-
Deep Soaking Tub: The large tub is ideal for a long, leisurely soak, promoting relaxation and relieving stress.
-
Multi-Function Shower System: Features a rainfall showerhead, adjustable body jets, and a handheld shower wand for a personalized shower experience.
-
Aromatherapy Integration: Built-in aromatherapy system enhances the spa-like atmosphere with soothing scents.
-
User-Friendly Controls: Digital control panel allows easy management of steam, temperature, water pressure, and lighting.
-
Durable & Stylish: Made from high-quality acrylic and tempered glass, providing both durability and a sleek, modern look.
-
Space-Saving Design: Ideal for smaller bathrooms without compromising on luxury and functionality.
Q&A
Does the unit come in one piece or in panels?
All units come in panels. The great thing about our Stand Alone Steam Showers is that they are pre-assembled with pre-drilled holes. You can move any of the units through a standard 32" doorway for easy access into remodeled homes, basements, and other unique situations.
Can I fit the parts through a standard doorway?
Yes, all units can fit through a standard 32" doorway. Even units with a whirlpool tub will fit through any space larger than 26".
What type of Electrical Connection and Breaker will I need?
(1) 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.
(1) 220v with a 20amp dual pole breaker GFCI Breaker for the heat pump
I would like to place it on the second floor, will there be a weight problem?
The unit is about 500 lbs.+water and your weight, and that is definitely a case-by-case type question. Please consult your contractor based on the weights we have provided.
What does the inline heat pump do?
The inline Heat Pump is attached to the water pump, and the heat pump will maintain the water temperature in the tub portion of the unit.
How many HOT/COLD Connections are required?
Regardless of the number of showerheads, all units have one hot/cold connection.

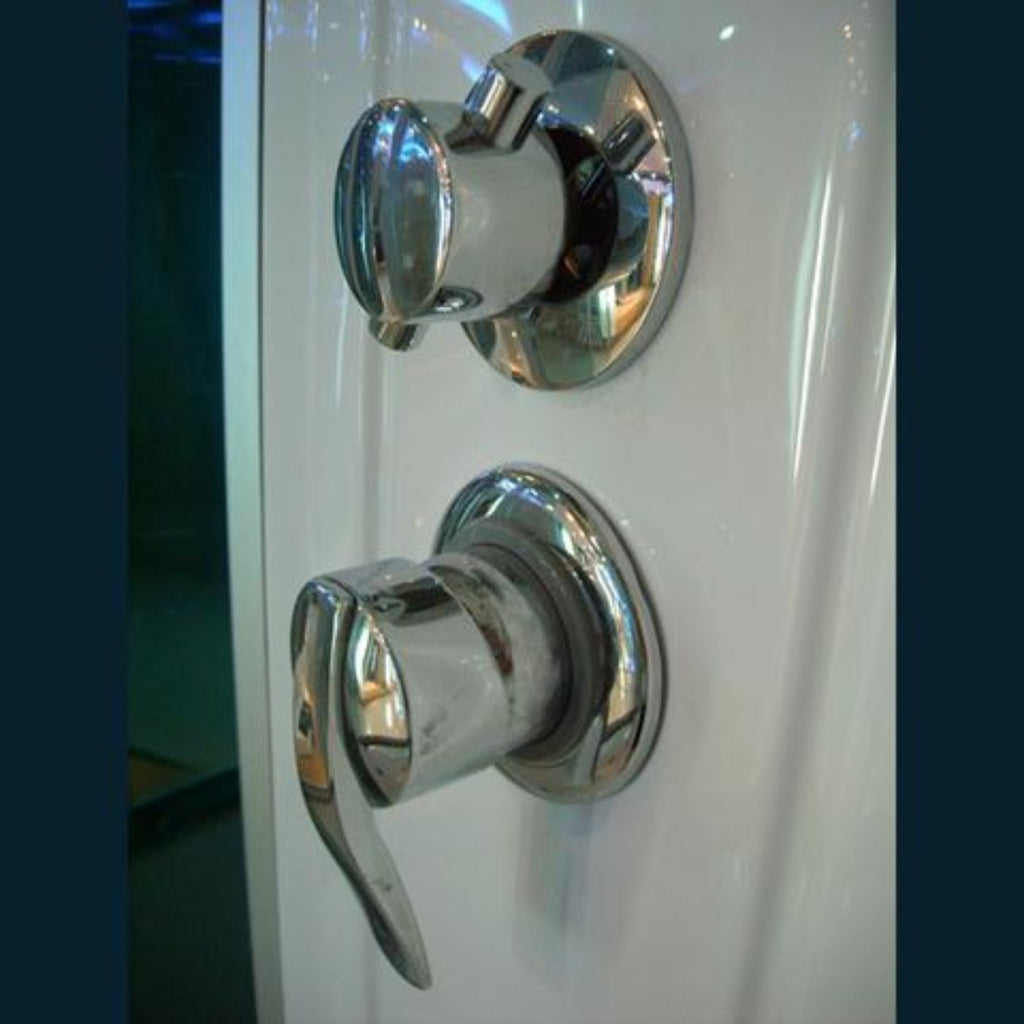

Where is the HOT/COLD Connection located?
The connection is located behind the shower hot/cold controls which differ per unit. Normally the hot/cold is about 30" from the floor on the back of the unit. Flex hoses are included for easy hookups no matter where your current hot/cold is located. Refer to the listing page of each steam shower for the exact location which can be seen in the diagrams towards the bottom of the page.
Where is the steam generator located?
The steam generator is located underneath the tub and on certain units, it is placed on the back of the unit. All generators are mounted to the frame or screwed to the back of the unit so that they do not take up a room beyond the dimensions of the shower. All of the steam showers will sit flush against the wall.
Do I need an access panel?
The steam showers are designed to be free-standing units so that in case of an issue behind the unit, you can easily slide the unit away from the wall for access. The plumbing and the electrical connections are flexible so that you can easily make this happen. If at all possible, an access panel is a terrific option in case of any future issues.
Maintenance Tips
-
Clean After Use: Allow the grill to cool, then remove food debris and grease with a non-abrasive brush. Wipe surfaces with a damp cloth.
-
Monthly Deep Clean: Detach removable components and wash them with warm, soapy water. Dry thoroughly before reassembling.
-
Burner Maintenance: Check and clean burner ports regularly using a soft brush to prevent blockages and maintain even heat.
-
Gas Connection Safety: Test for leaks using soapy water. Tighten any fittings that show bubbles.
-
Rust Prevention: Store in a dry location or cover with a weather-resistant cover to avoid moisture damage.
-
Steam Shower Compatibility: Ensure the insert fits properly with the Mesa Steam Shower Tub Combo 702A and keep it dry when not in use.
