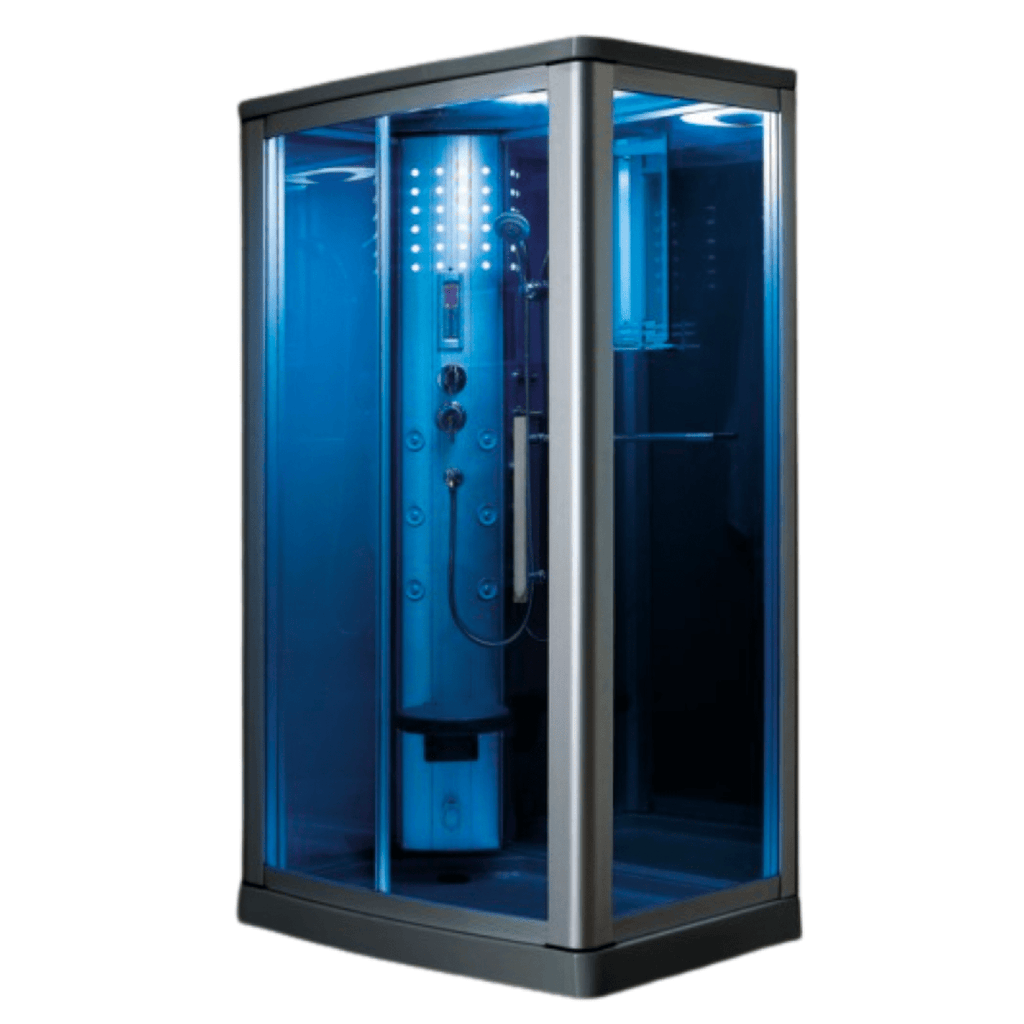

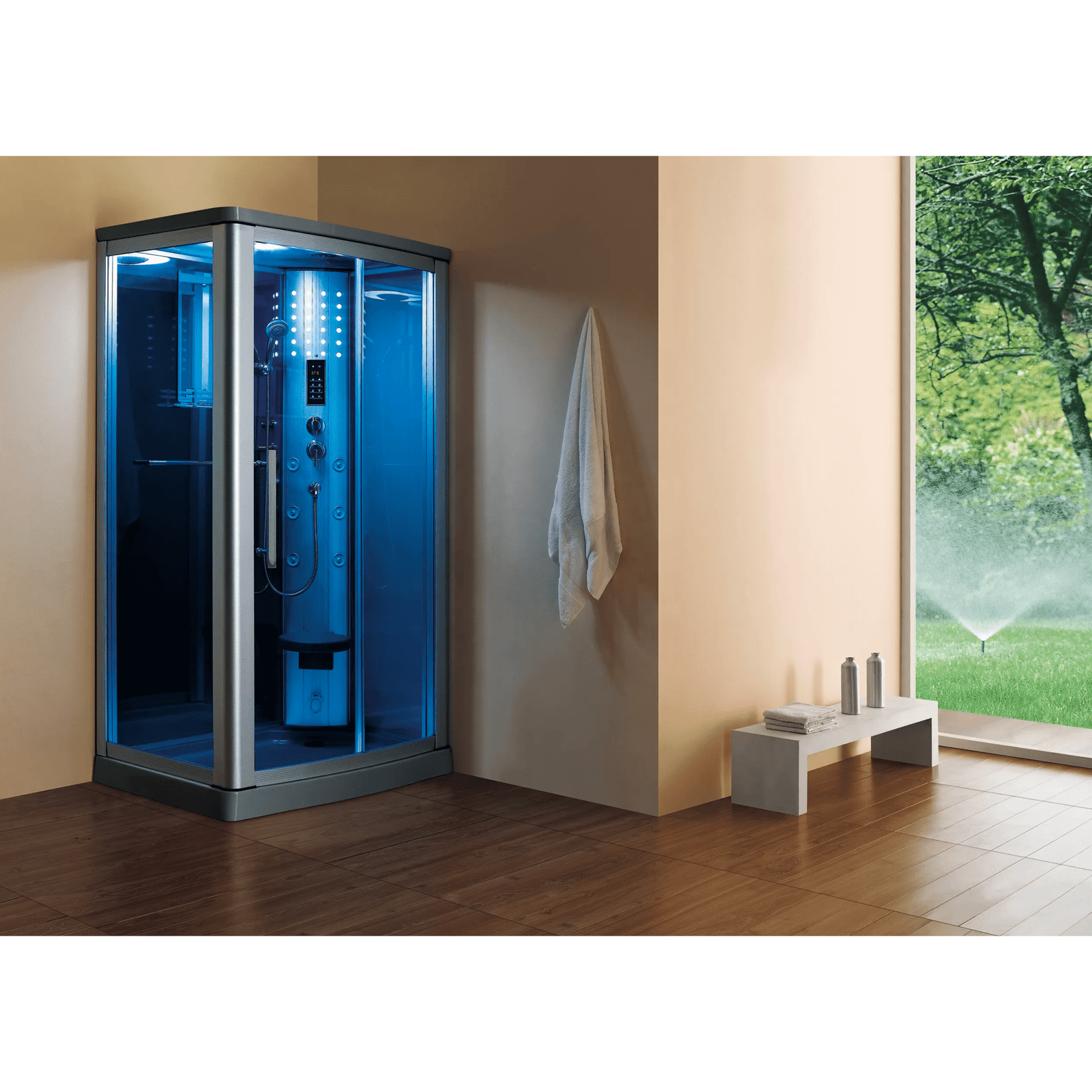

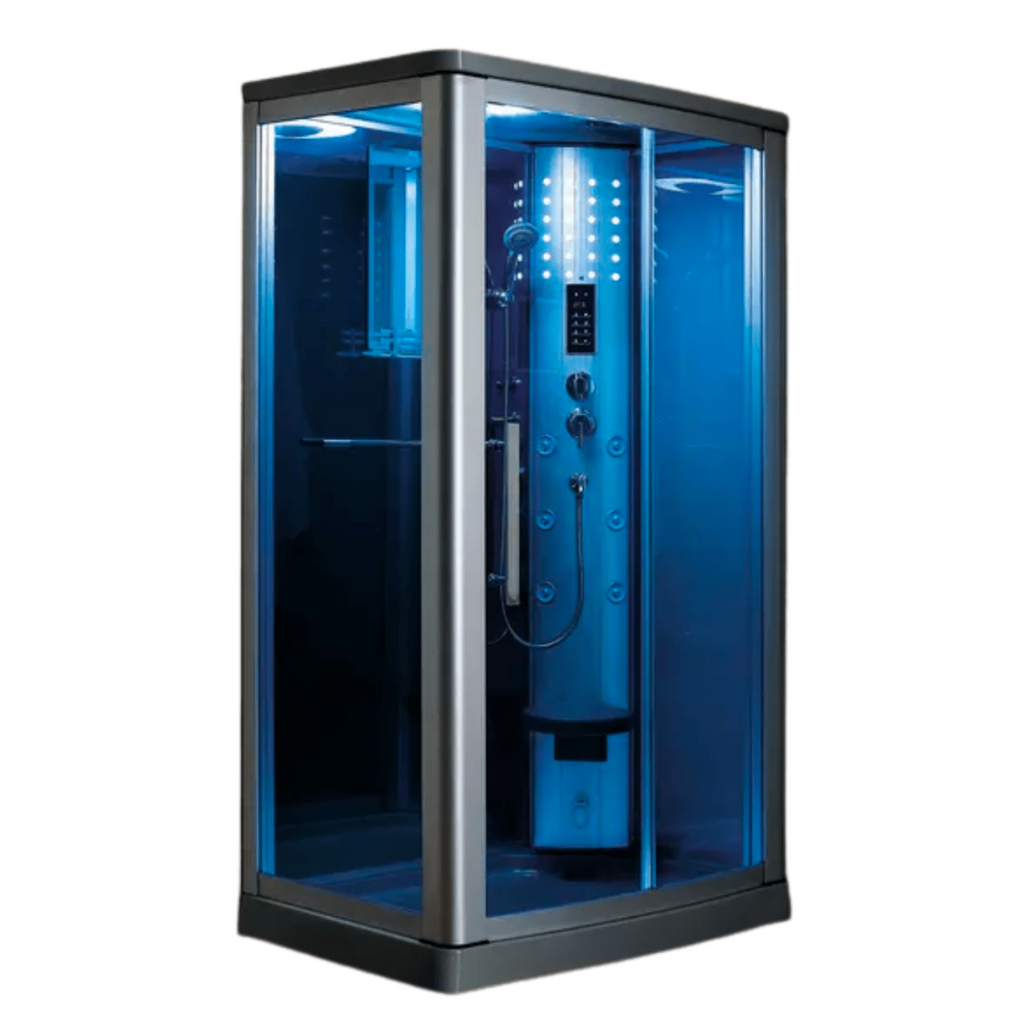

Mesa Steam Shower Blue Glass - 802L

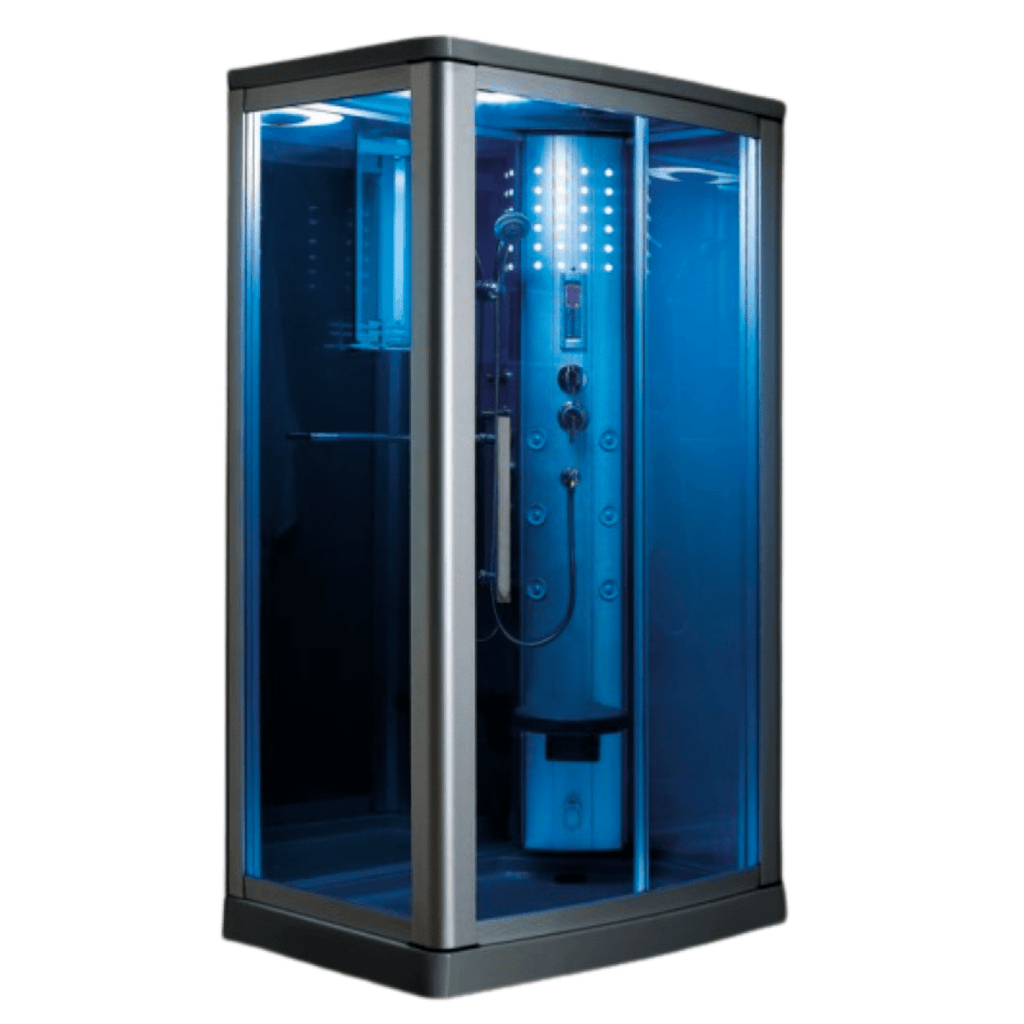

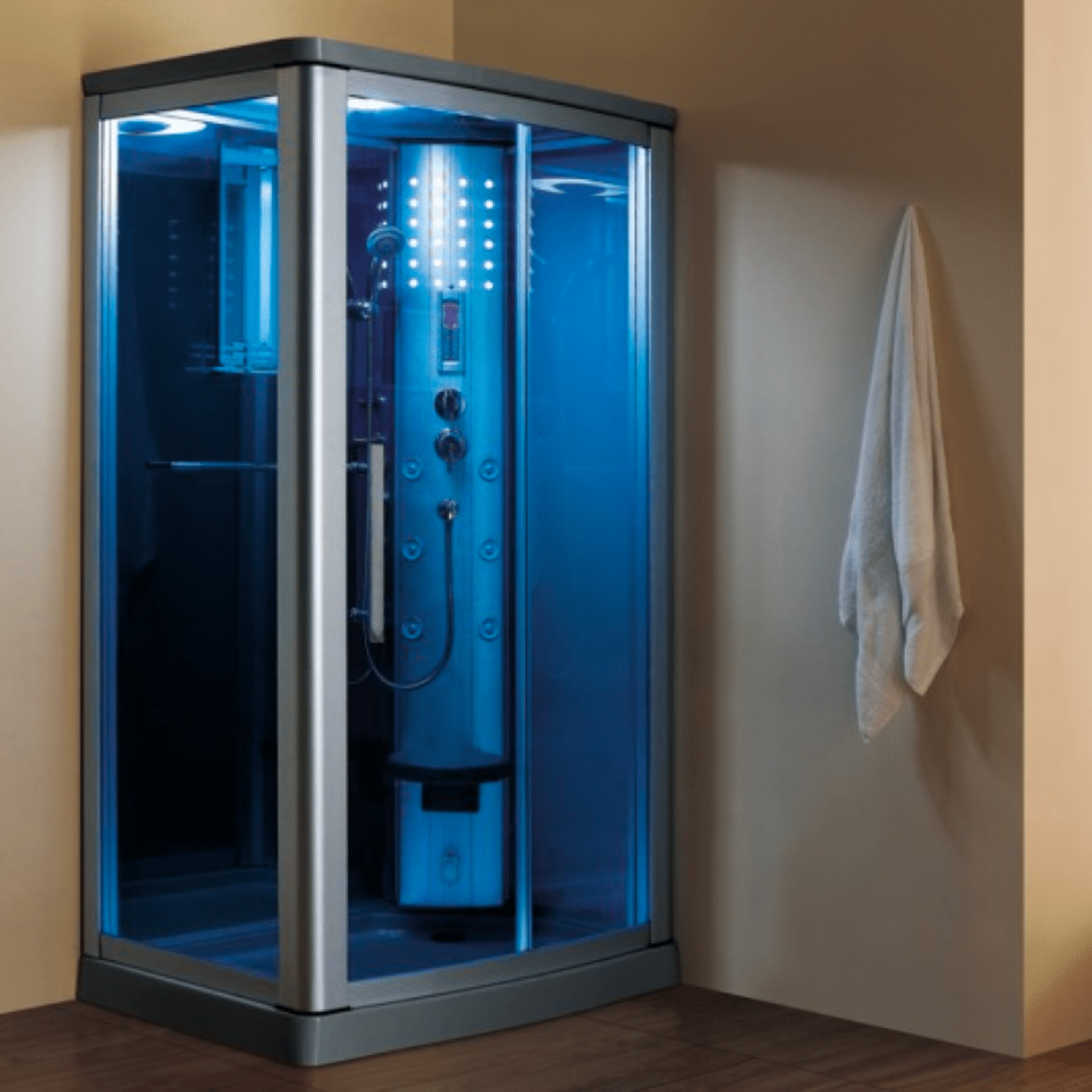

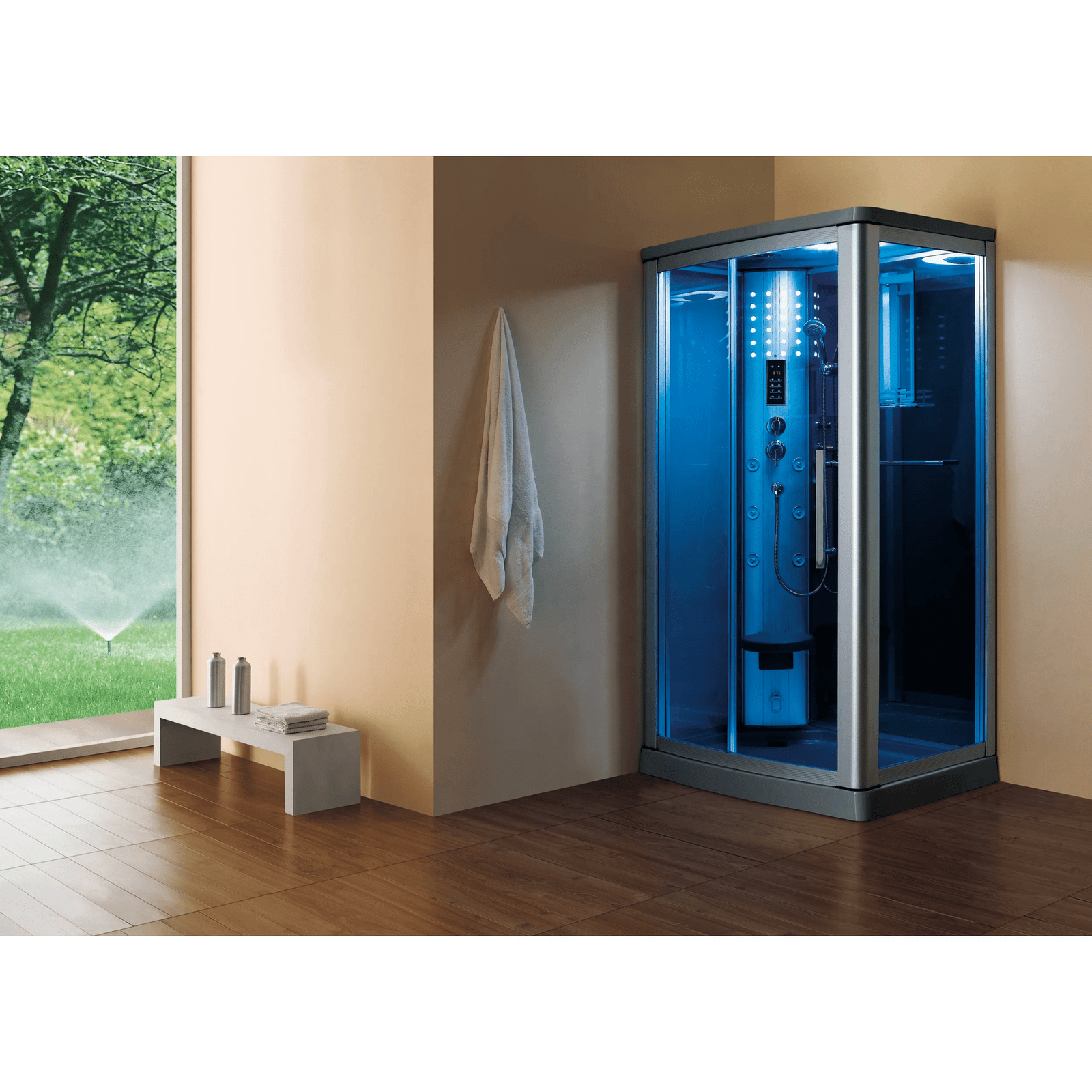

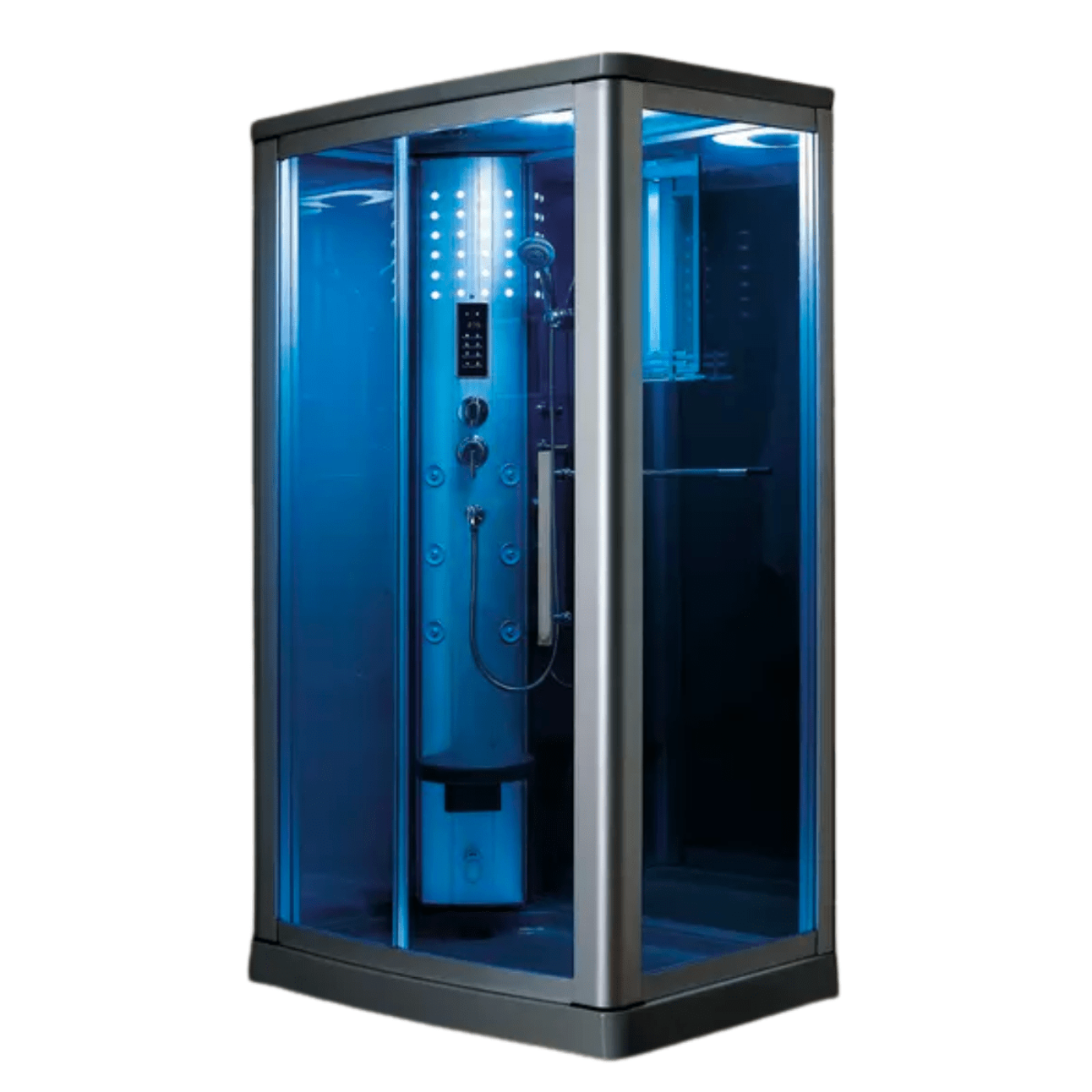

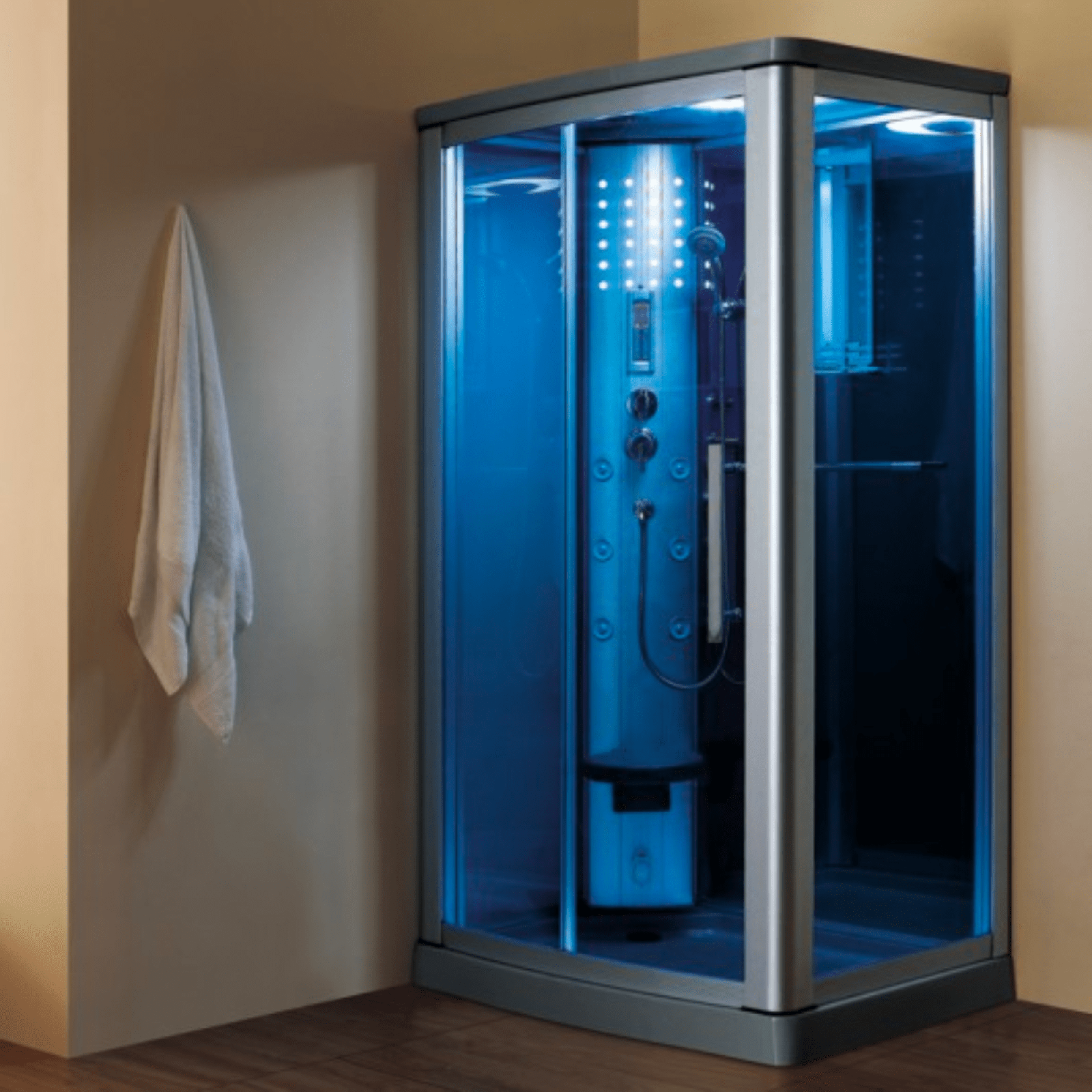

The Mesa WS-802L steam shower has tempered blue glass and a nickel interior control panel. Available as both a left and right-side unit, the WS-802L is a perfect steam shower for smaller bathrooms. It features chrome columns and hardware, a sliding glass door, and a fold-up seat for additional space. The sleek design and slightly curved front add style and modern flare to any bathroom.

View the Mesa Steam Shower Blue Glass - 802L Features below:

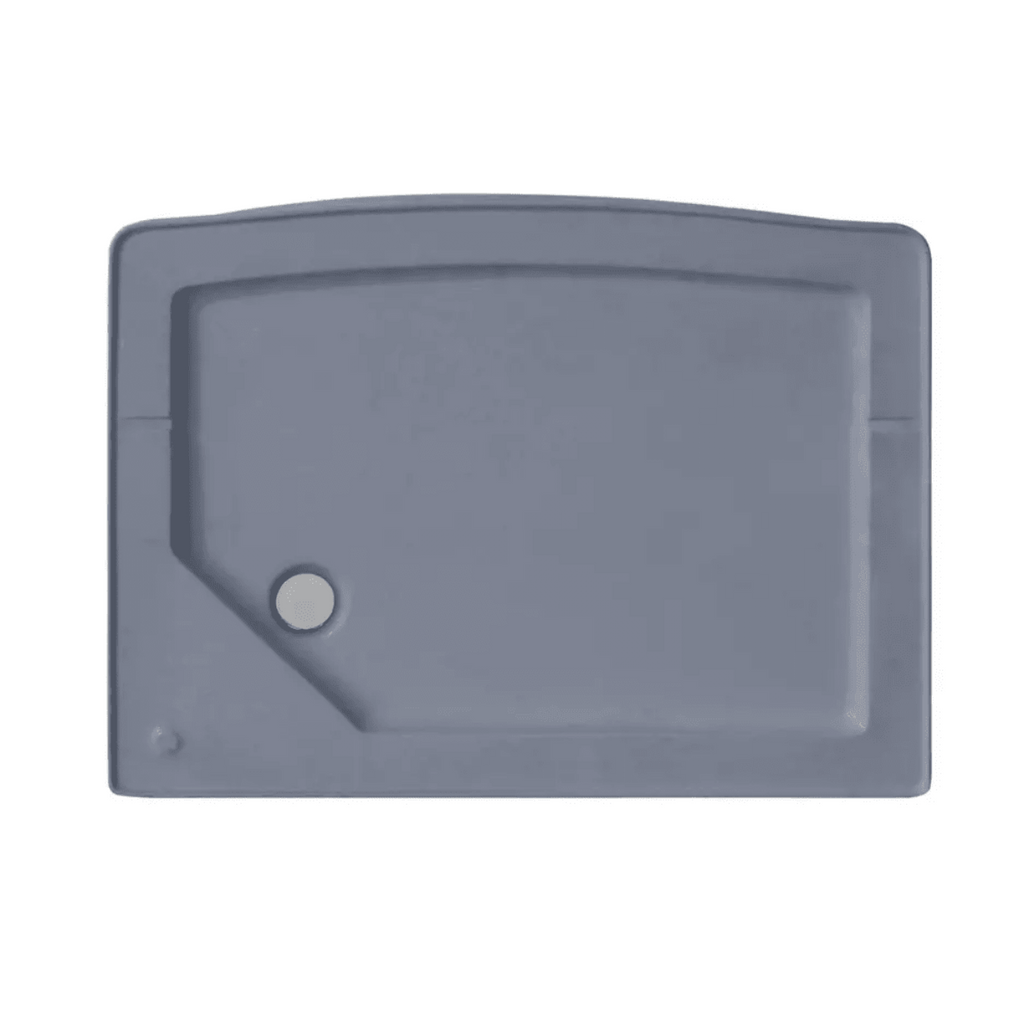

• Includes A Flexible Drain Hose. This means putting your drain anywhere you want

• Dimensions: 45"L x 32"W x 85"H  (add 2" for ventilation exhaust pipe)

• 220V ETL Certified

• Electrical requirements (1) 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.

• 3KW Steam Generator

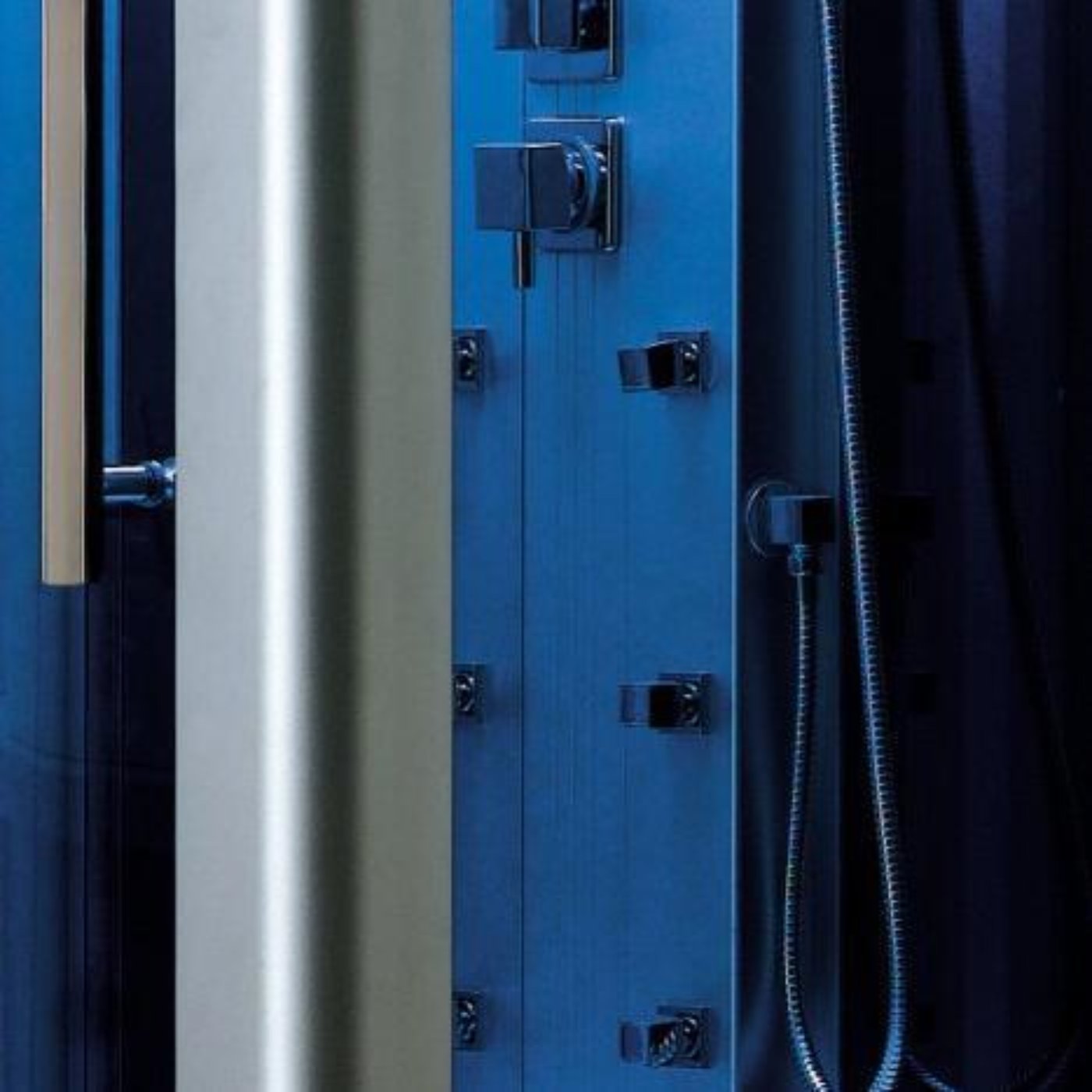

• 6 Acupuncture Water Body Jets

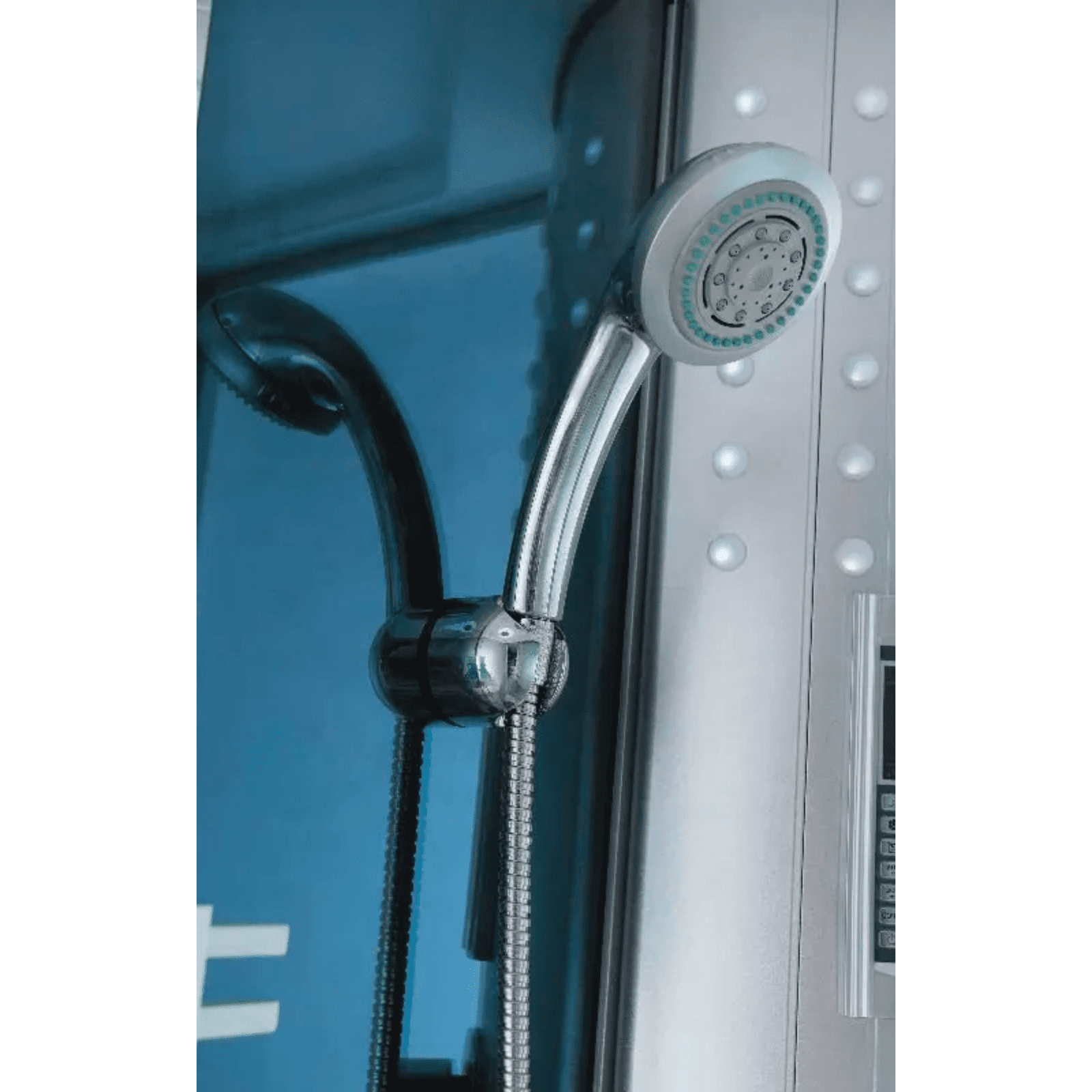

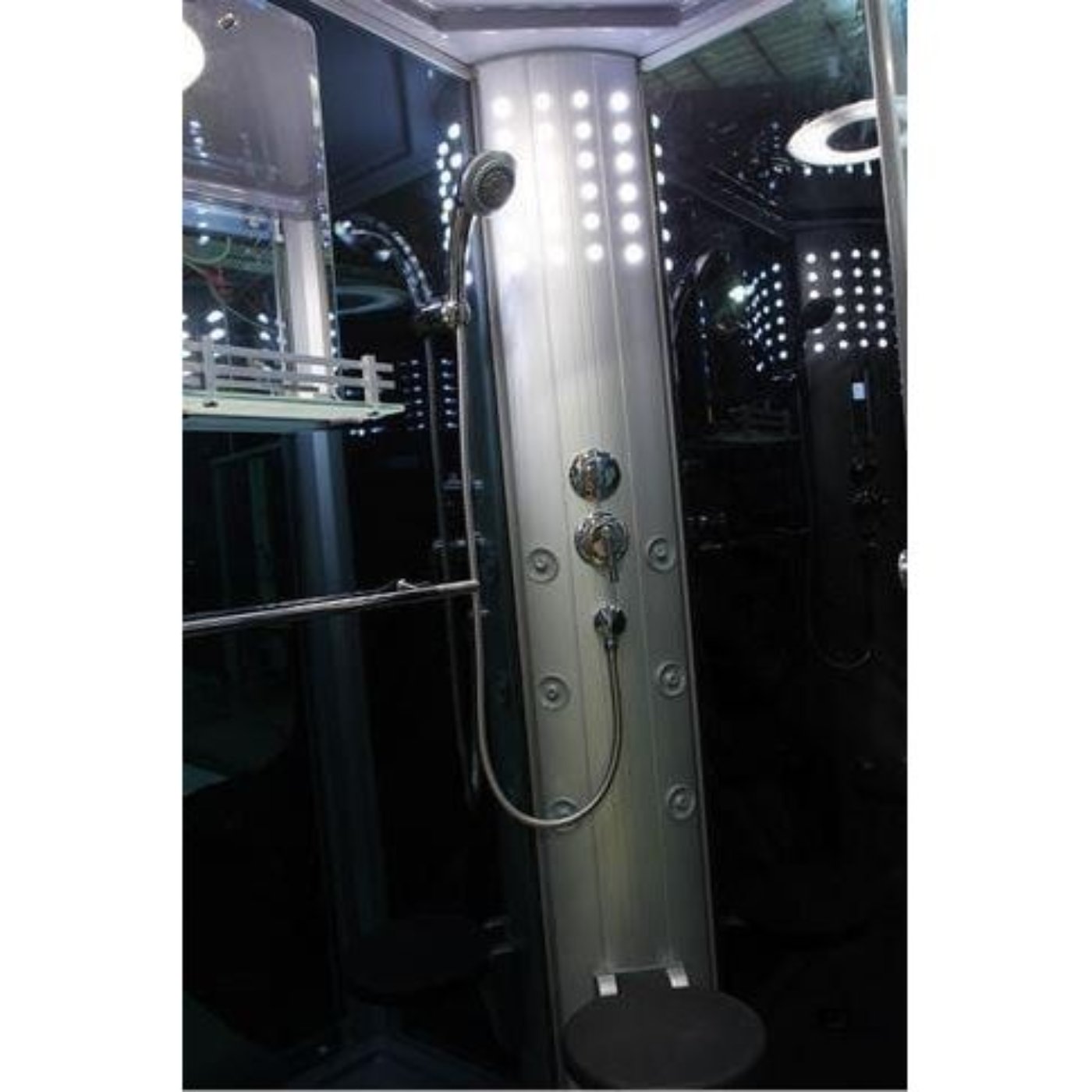

• Adjustable Handheld Shower Head

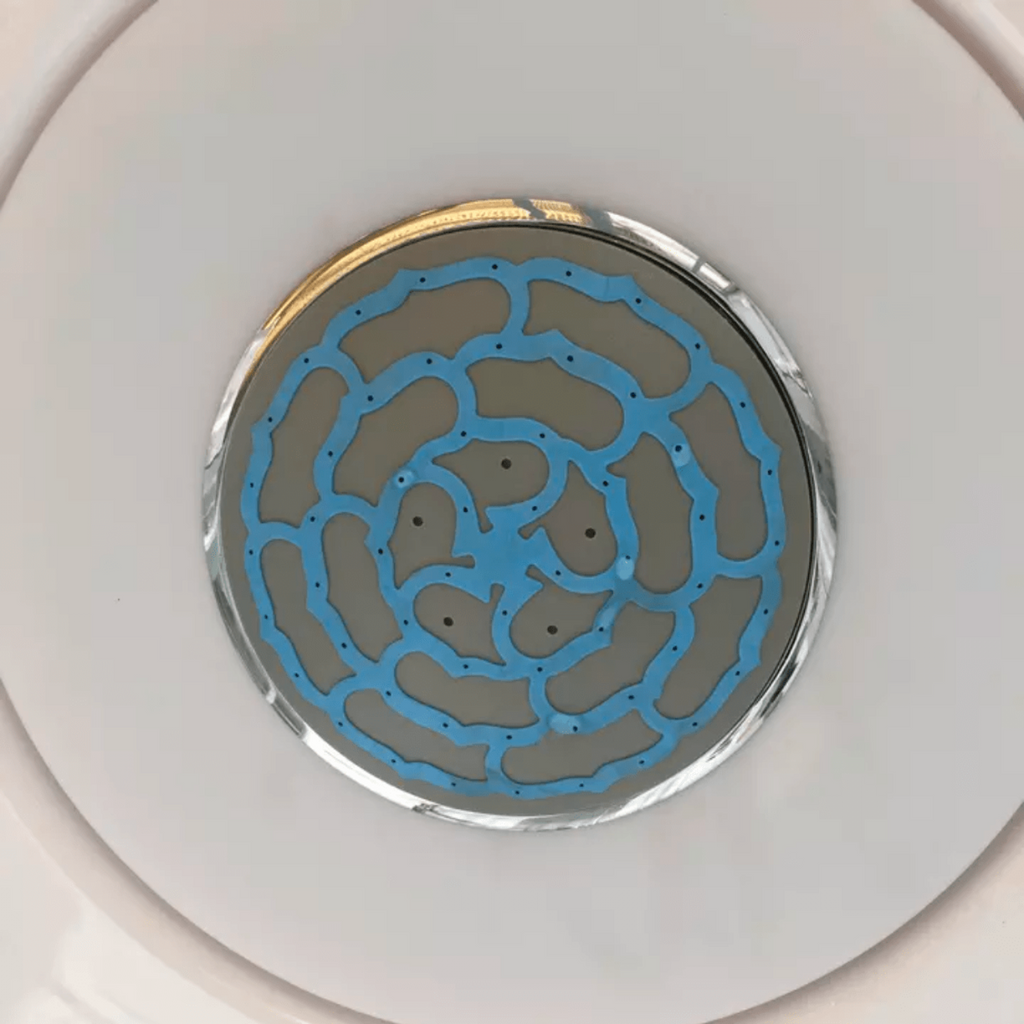

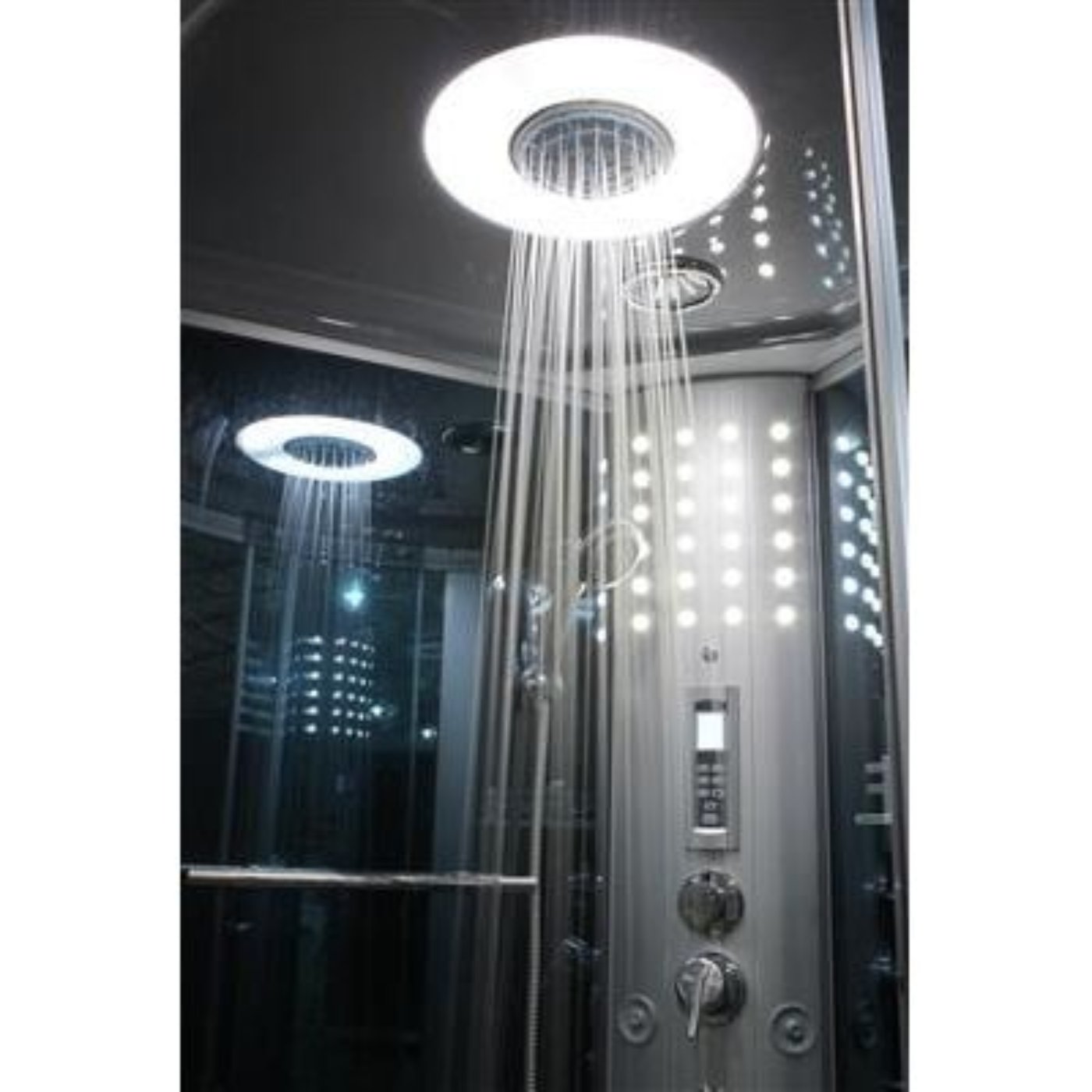

• Rainfall Shower Head

• FM Radio Built-In

• Tempered Blue Glass

• Ozone Sterilization System

• 7 Year Limited Warranty

Specification

Additional Information

Additional Steam Shower Features

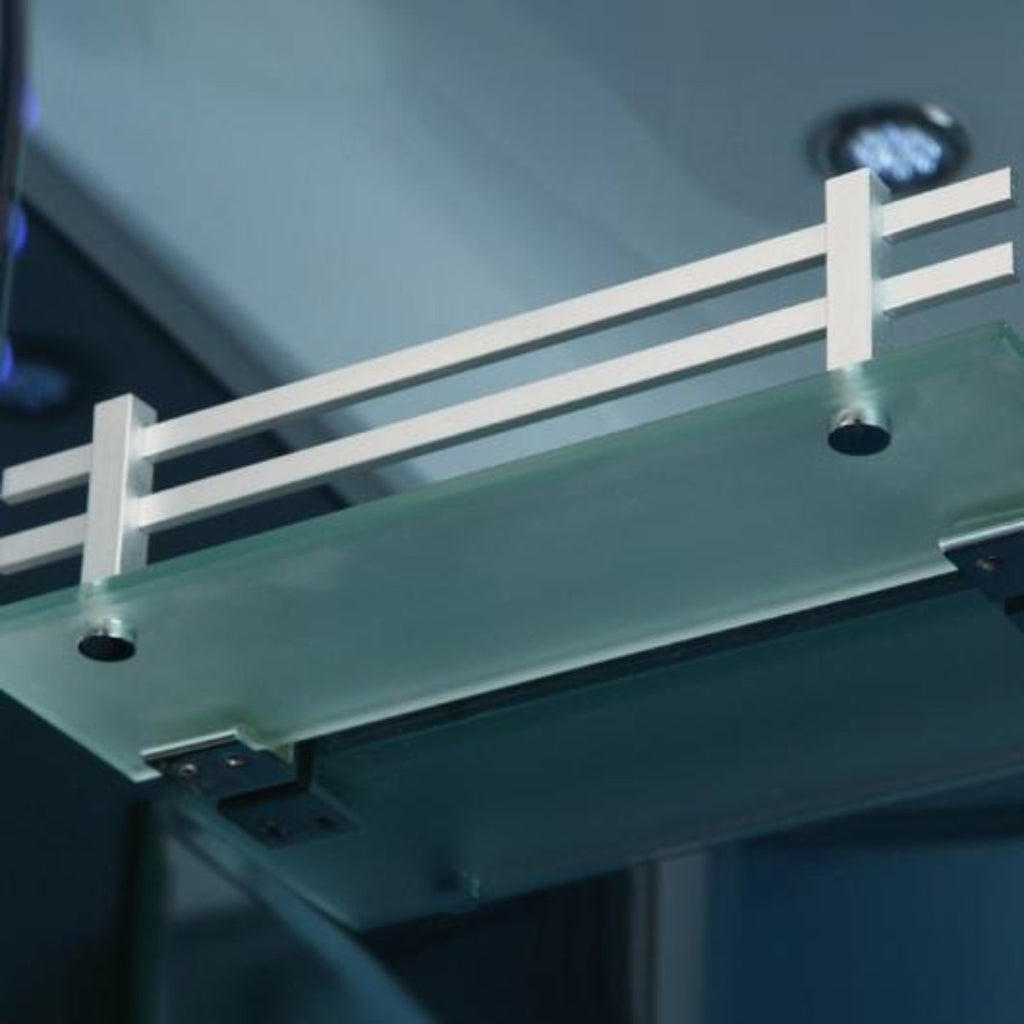

• Storage Shelves

• Blue LED Lighting

• Tempered Blue Glass

• Foldable Corner Seat

• Ventilation Fan

• Towel Bar.

Product Manual

Installation Manual

Spec Sheet

Warranty

All steam showers carry a (7) seven-year structural warranty against manufacturer defects. The structural warranty protects the structure of the steam shower from peeling, fading, delaminating, or cracking. Structural components include acrylic panels, shower pan, ceiling, and glass panels. All steam shower parts carry a (1) one-year guarantee against defects.

Videos

What Our Experts Think

The Mesa 802L Steam Shower with Blue Glass is a premium left-sided steam shower offering luxurious features and advanced functionality for a spa-like experience at home. Here’s why it stands out:

• Spacious Design: Generously sized interior with a left-side configuration, providing comfort and versatility for users.
• Blue Tempered Glass: Sleek and modern, the blue glass design enhances the aesthetic appeal of your bathroom.
• Steam Generator: Delivers a rejuvenating steam experience, promoting relaxation, detoxification, and improved circulation.
• Rainfall Showerhead: Offers a soothing overhead rain-like shower for ultimate relaxation.
• Body Massage Jets: Strategically placed jets provide a hydrotherapy massage to ease muscle tension and stress.
• Built-In Bench: Includes a comfortable seating area for extended steam sessions or relaxation.

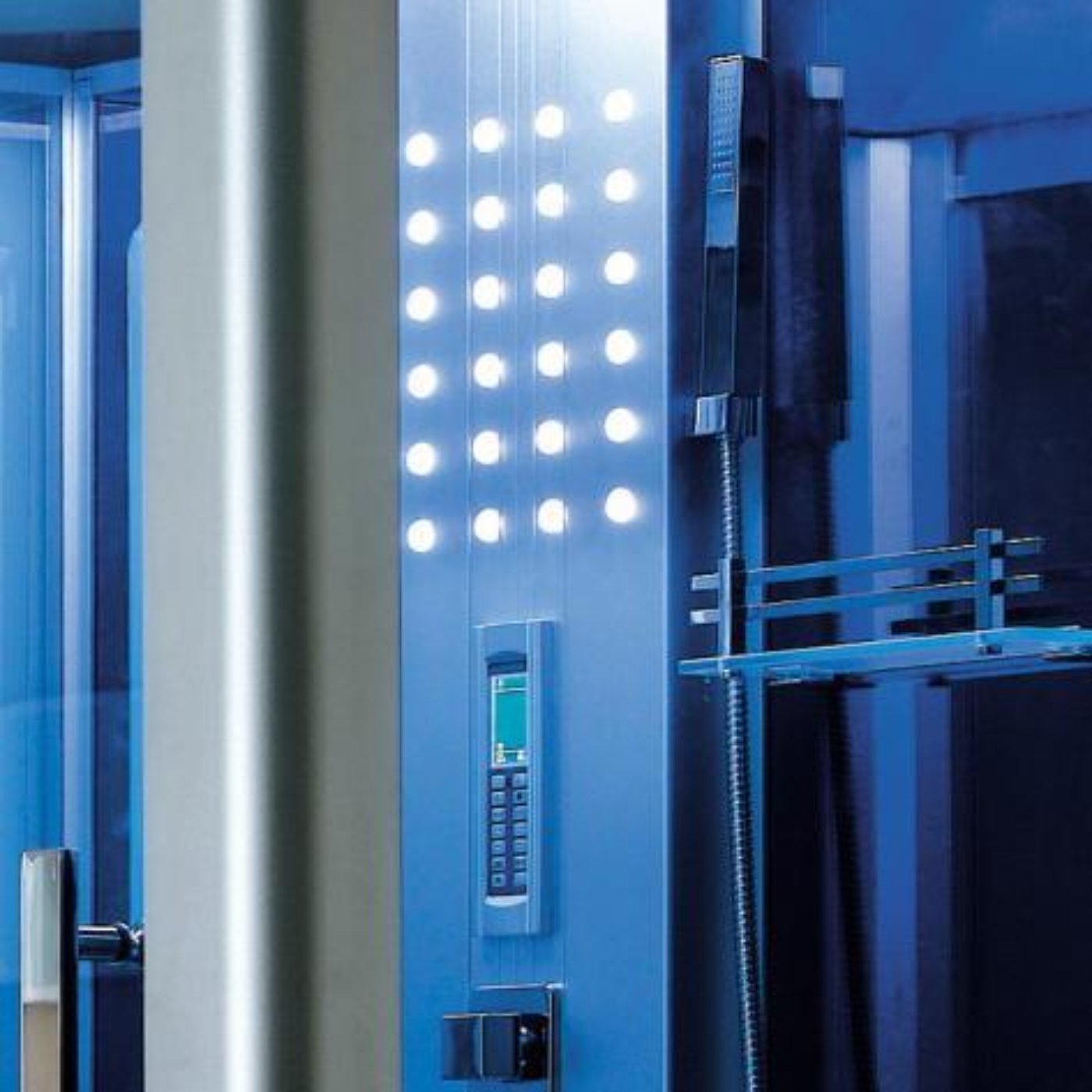

• Advanced Control Panel: Digital controls allow for precise adjustments of steam, temperature, and other settings.
• Added Features: Includes ambient lighting, a built-in FM radio, and a handheld showerhead for a customizable experience.
• Durable Construction: Built with high-quality materials to ensure longevity and easy maintenance.

Q&A

Does the unit come in one piece or in panels?

All units come in panels. The great thing about our Stand Alone Steam Showers is that they are pre-assembled with pre-drilled holes. You can move any of the units through a standard 32" doorway for easy access into remodeled homes, basements, and other unique situations.

Can I fit the parts through a standard doorway?

Yes, all units can fit through a standard 32" doorway. Even units with a whirlpool tub will fit through any space larger than 26".

What type of Electrical Connection and Breaker will I need?

• (1) 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.

• (1) 220v with a 20amp dual pole breaker GFCI Breaker for the heat pump

I would like to place it on the second floor, will there be a weight problem?

The unit is about 500 lbs.+water and your weight, and that is definitely a case-by-case type question. Please consult your contractor based on the weights we have provided.

How many HOT/COLD Connections are required?

Regardless of the number of showerheads, all units have one hot/cold connection.

Where is the HOT/COLD Connection located?

The connection is located behind the shower hot/cold controls which differs per unit. Normally the hot/cold is about 30" from the the floor on the back of the unit. Flex hoses are included for easy hook ups no matter where your current hot/cold is located. Refer to the listing page of each steam shower for the exact location which can be seen in the diagrams towards the bottom of the page.

Where is the steam generator located?

The steam generator is located underneath the tub and on certain units, it is placed on the back of the unit. All generators are mounted to the frame or screwed to the back of the unit so that they do not take up an room beyond the dimensions of the shower. All of the steam showers will sit flush against the wall.

Do I need an access panel?

The steam showers are designed to be free standing units so that in case of an issue behind the unit, you can easily slide the unit away from the wall for access. The plumbing and the electrical connections are flexible so that you can easily make this happen. If at all possible, an access panel is a terrific option in case of any future issues.

Maintenance Tips

• Clean the Blue Glass Panels: After each use, wipe the glass with a non-abrasive glass cleaner and a microfiber cloth to prevent water spots and soap scum buildup.
• Descale the Steam Generator: Use a recommended descaling solution every 2-3 months to remove mineral deposits and maintain optimal steam performance.
• Inspect and Clean Jets: Check body jets for clogs and clean them with a soft brush to ensure consistent water flow.
• Clean the Door Seals: Regularly clean the rubber door seals with mild soap and water to prevent mold, mildew, and leaks. Replace seals if they show signs of wear or damage.
• Drain the Steam Generator: Periodically drain any residual water from the steam generator to minimize scaling.
• Wipe the Floor and Clear the Drain: After each use, clean the floor and ensure the drain is free of debris to prevent clogs.
• Maintain the Control Panel: Wipe the control panel with a damp cloth to remove dirt or fingerprints, avoiding excess water to protect electronic components.
• Ventilate After Use: Leave the shower door slightly open to allow moisture to escape and prevent mold growth.
• Avoid Abrasive Cleaners: Use pH-neutral cleaners to protect the glass, metal, and acrylic surfaces from scratches or damage.
