The Ultimate Upgrade To A Luxurious Bathroom Is Here!

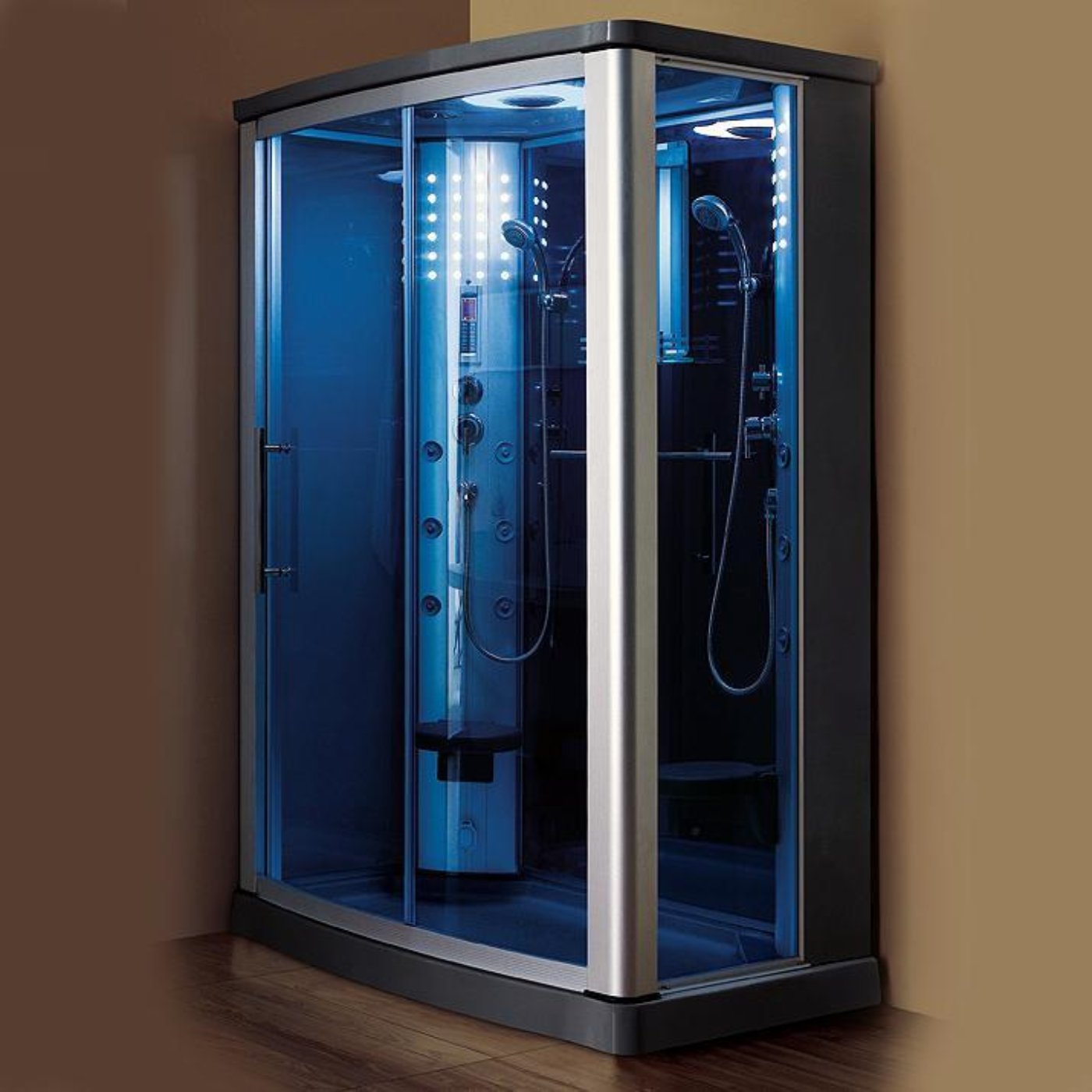

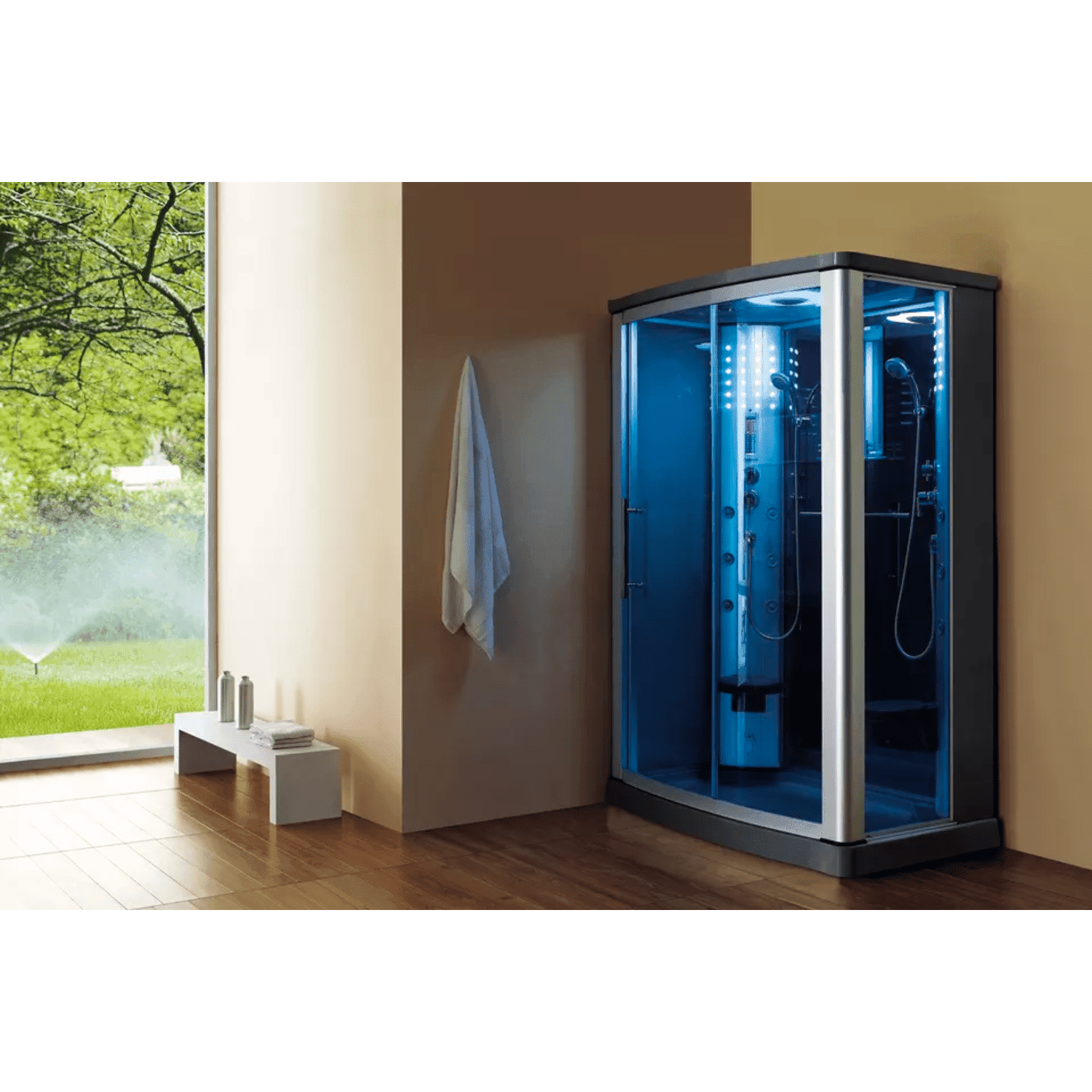

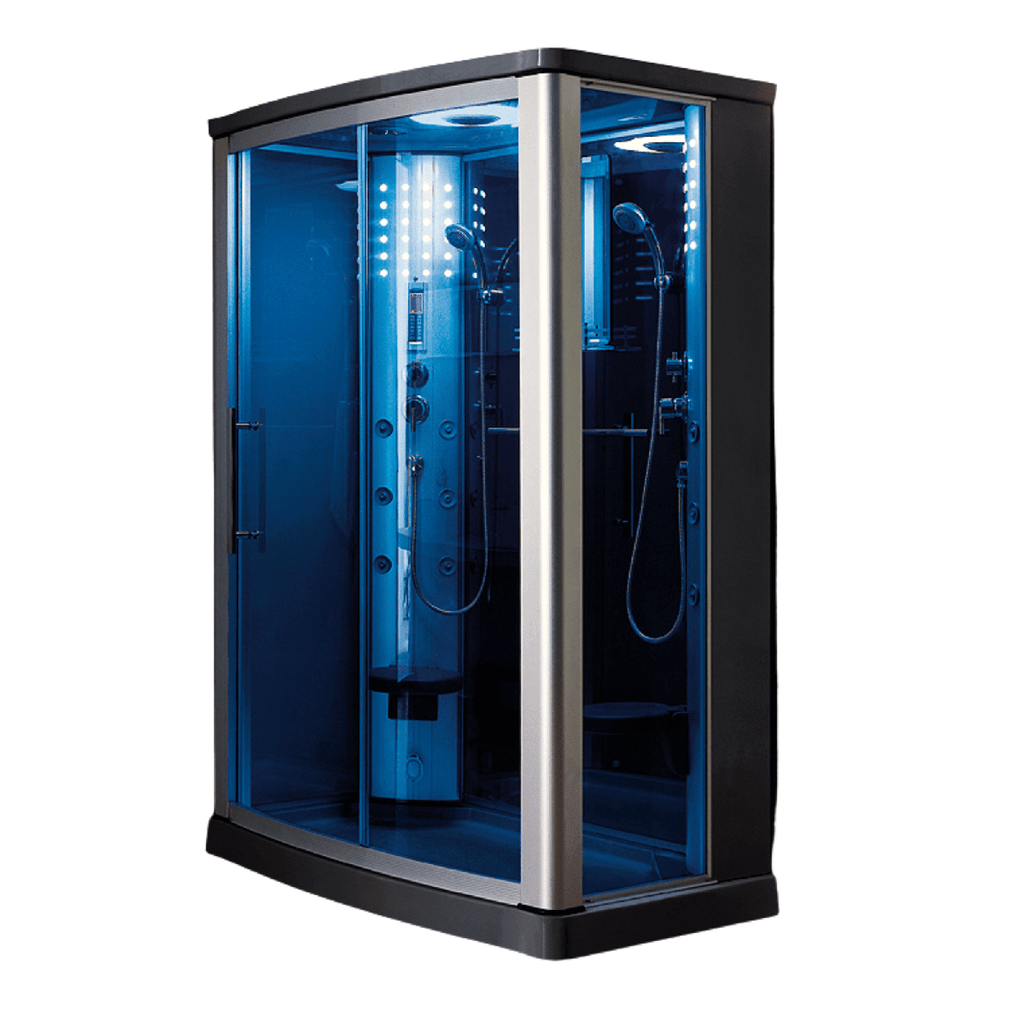

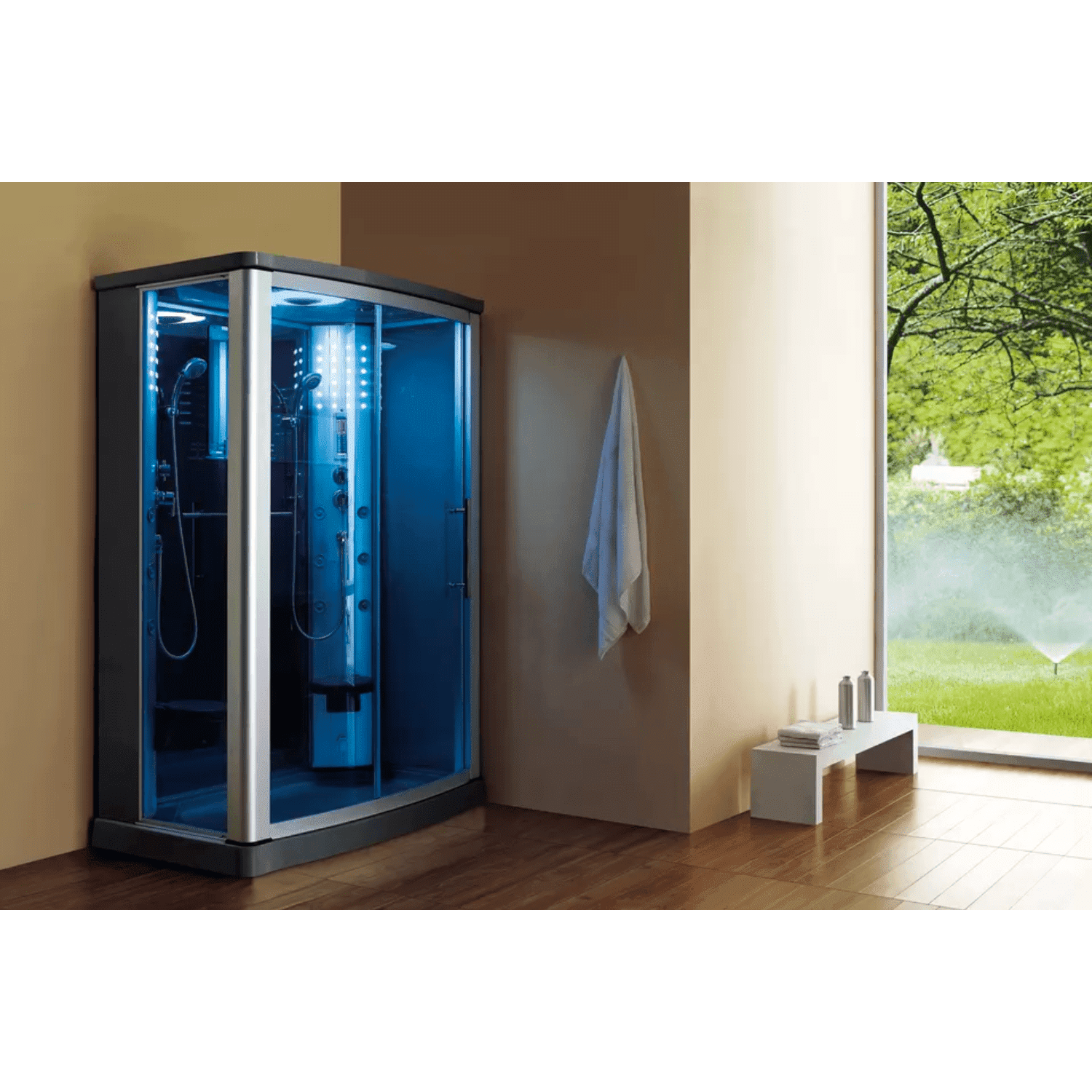

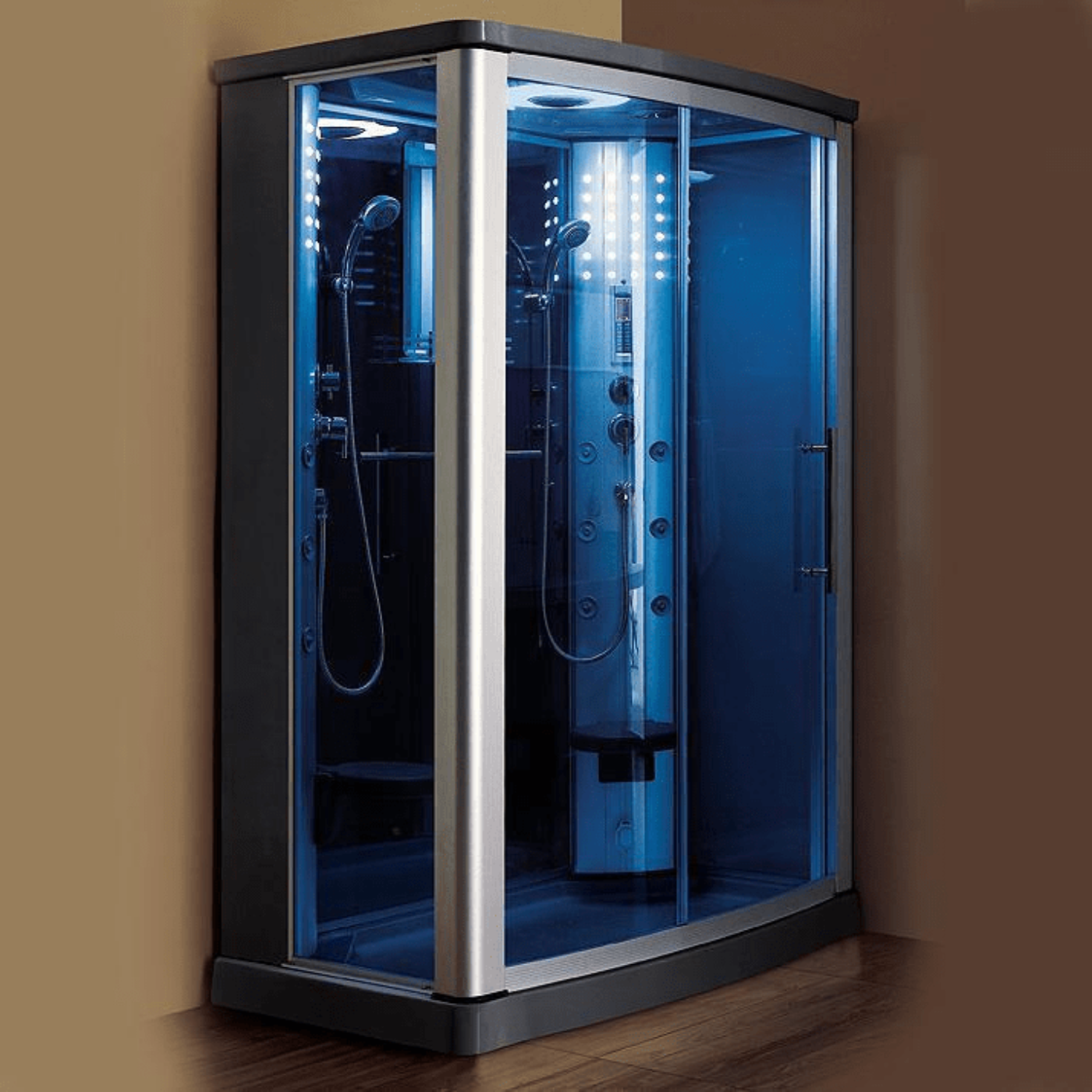

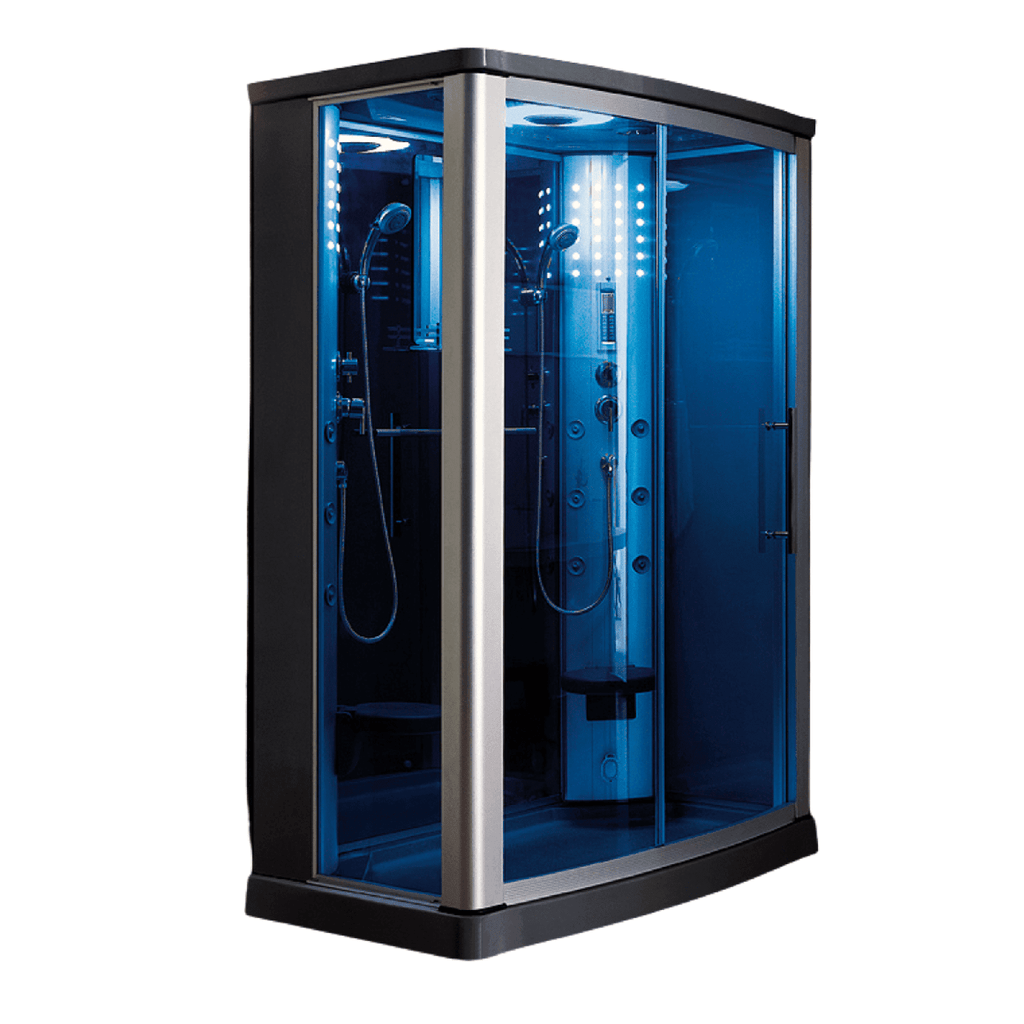

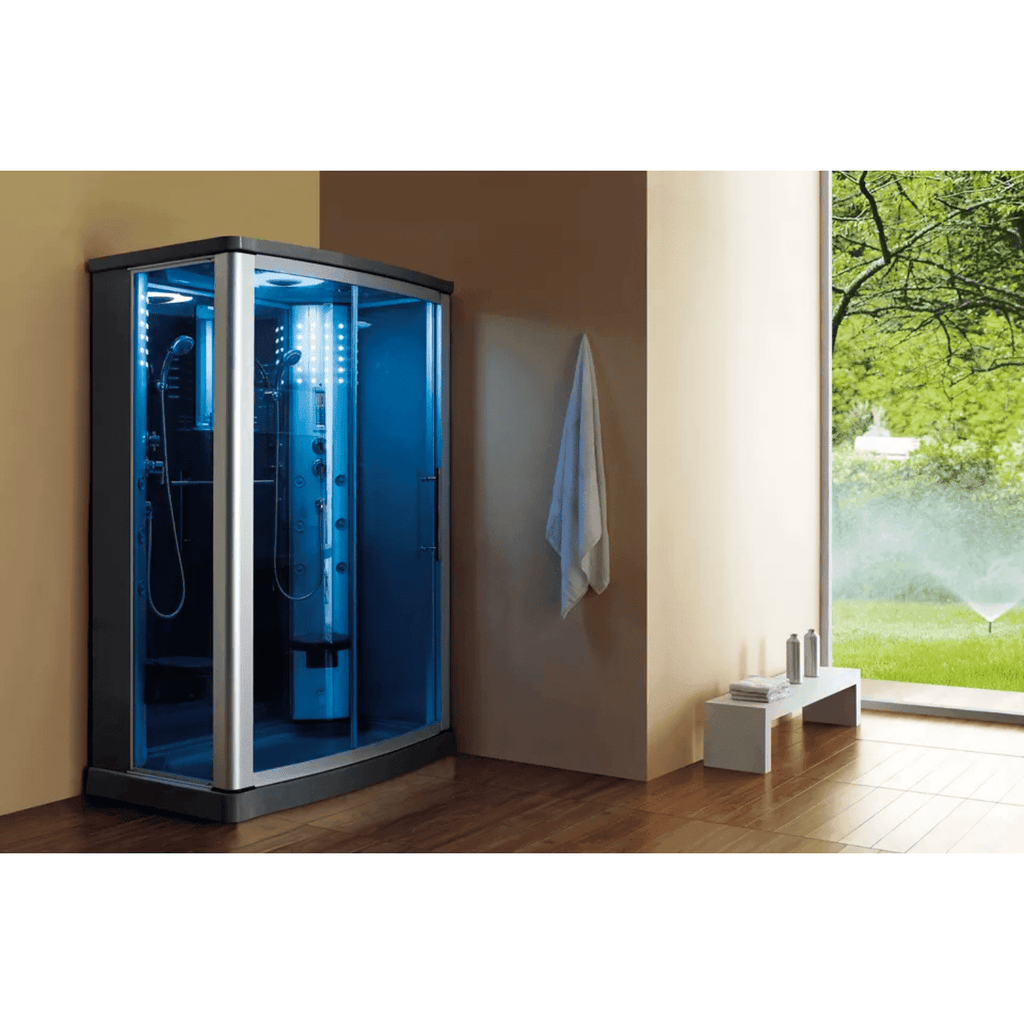

The Mesa WS-803L walk-in steam shower features blue tempered glass and dual interior control panels. The WS-803L also includes dual shower wands and fold-up seating making it a perfect two-person shower. Featuring a slightly curved front, sliding glass doors, and brushed nickel trim, the 803L steam shower is a great upgrade for any contemporary bathroom.
View the Mesa Steam Shower Blue Glass - WS-803L Features below:
-
Includes A Flexible Drain Hose. This means putting your drain anywhere you want!
-
Right or left wall configuration
-
54"L x 35"W x 85"H (Add 2" for ventilation exhaust pipe)
-
Available in Right or Left Hand Unit
-
220V ETL Certified
-
Electrical requirements (1) 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.
-
3KW Steam Generator
-

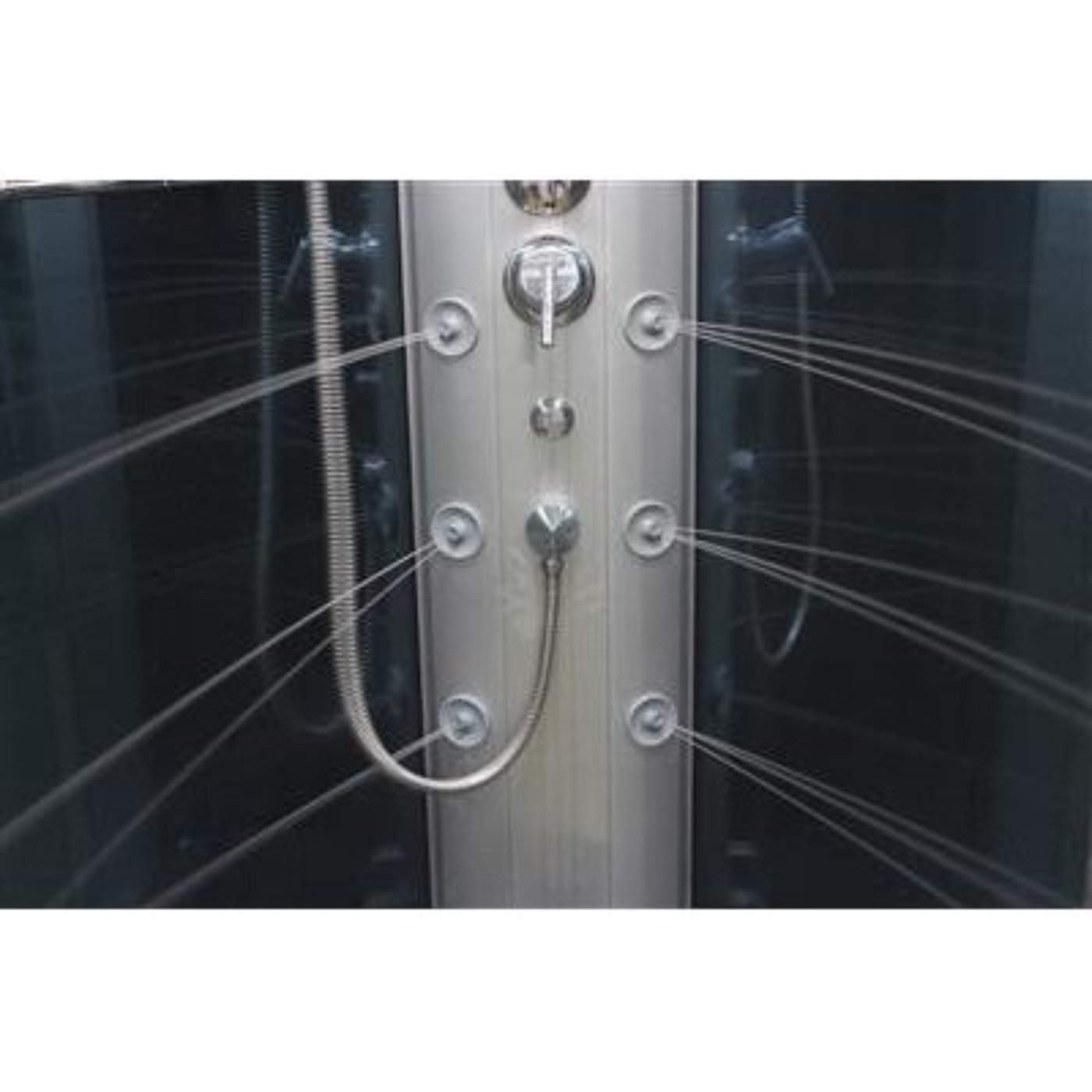

12 Acupuncture Water Body Jets
-

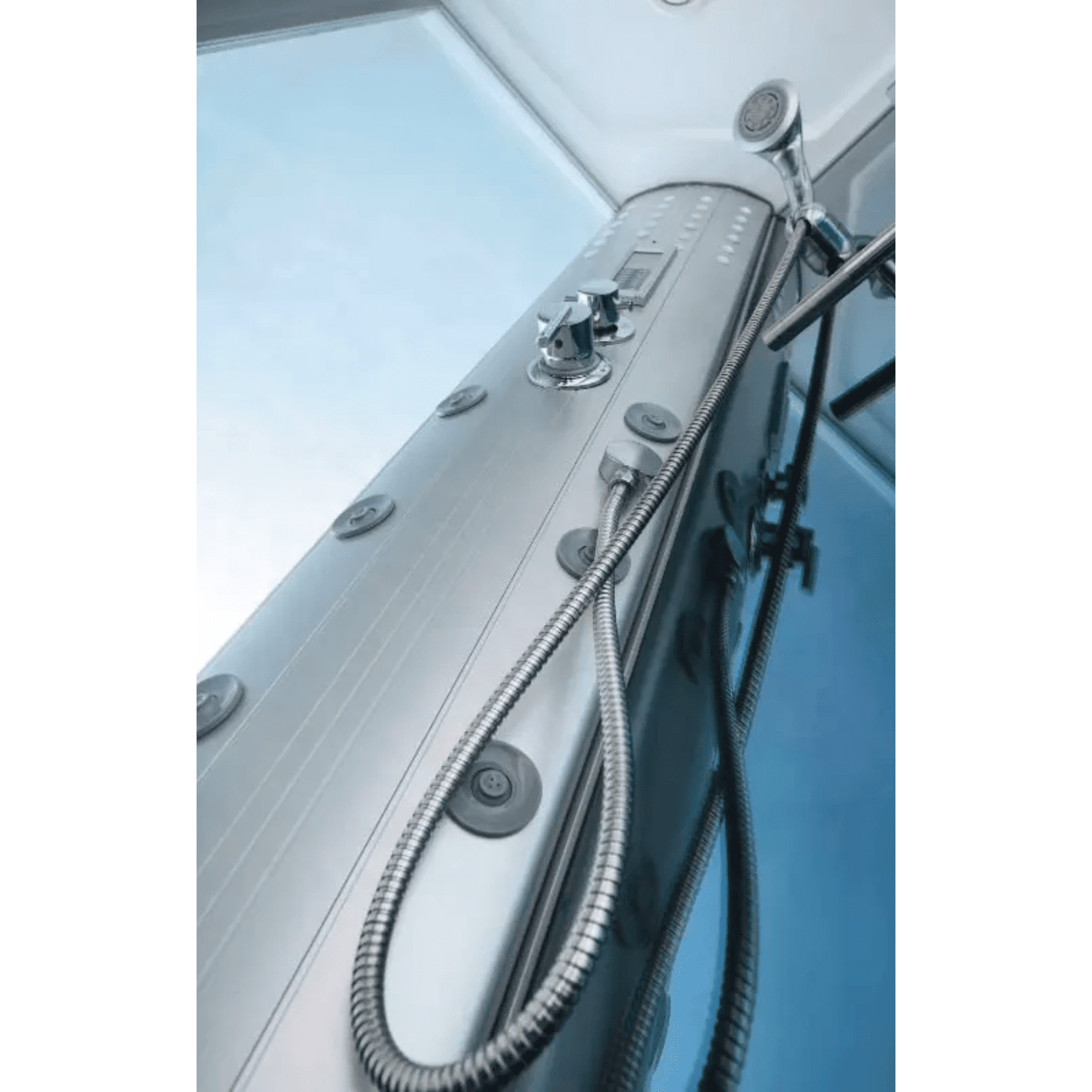

2 Adjustable Handheld Shower Wands
-

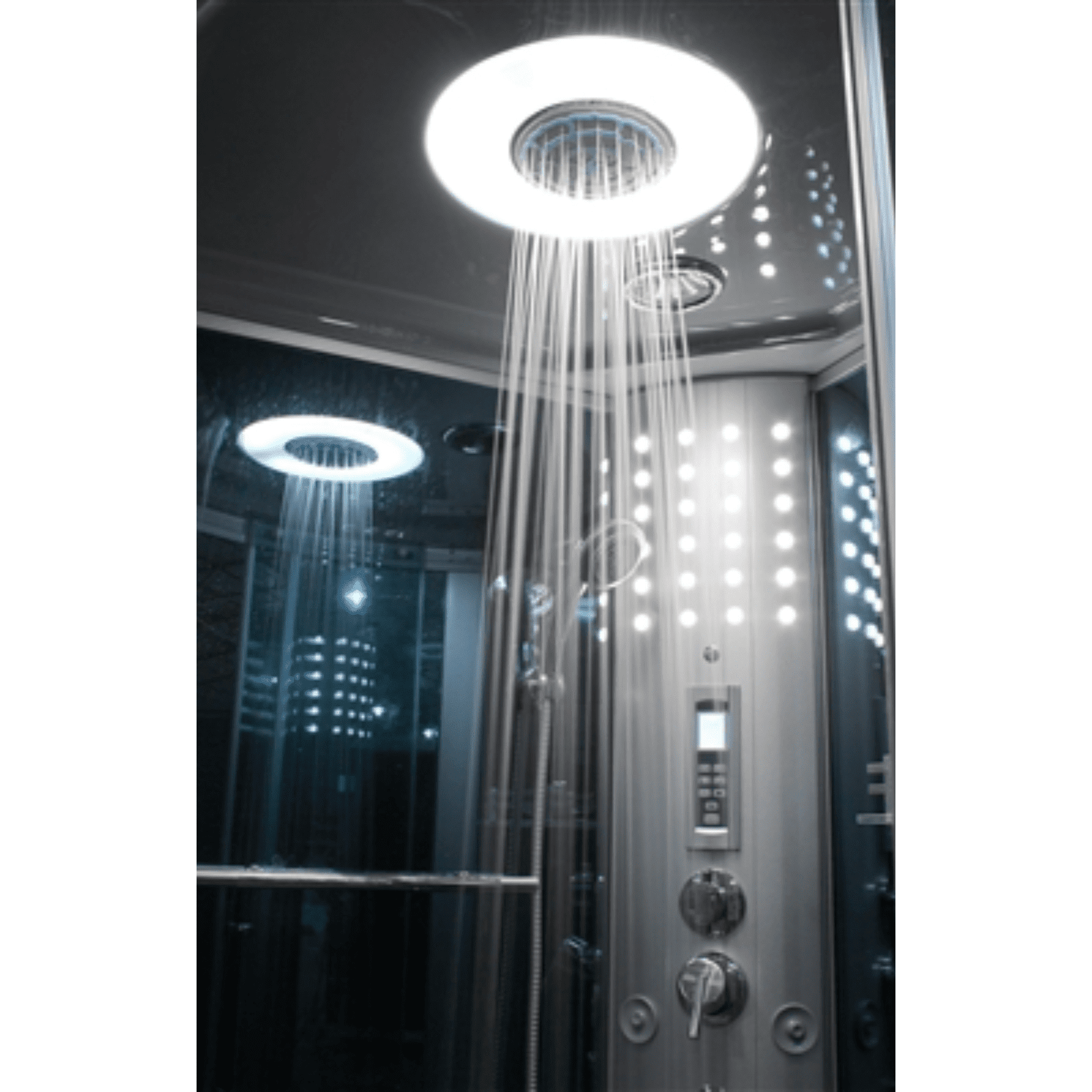

Rainfall Shower Head
-
FM Radio Built-In
-
Tempered Blue Glass
-

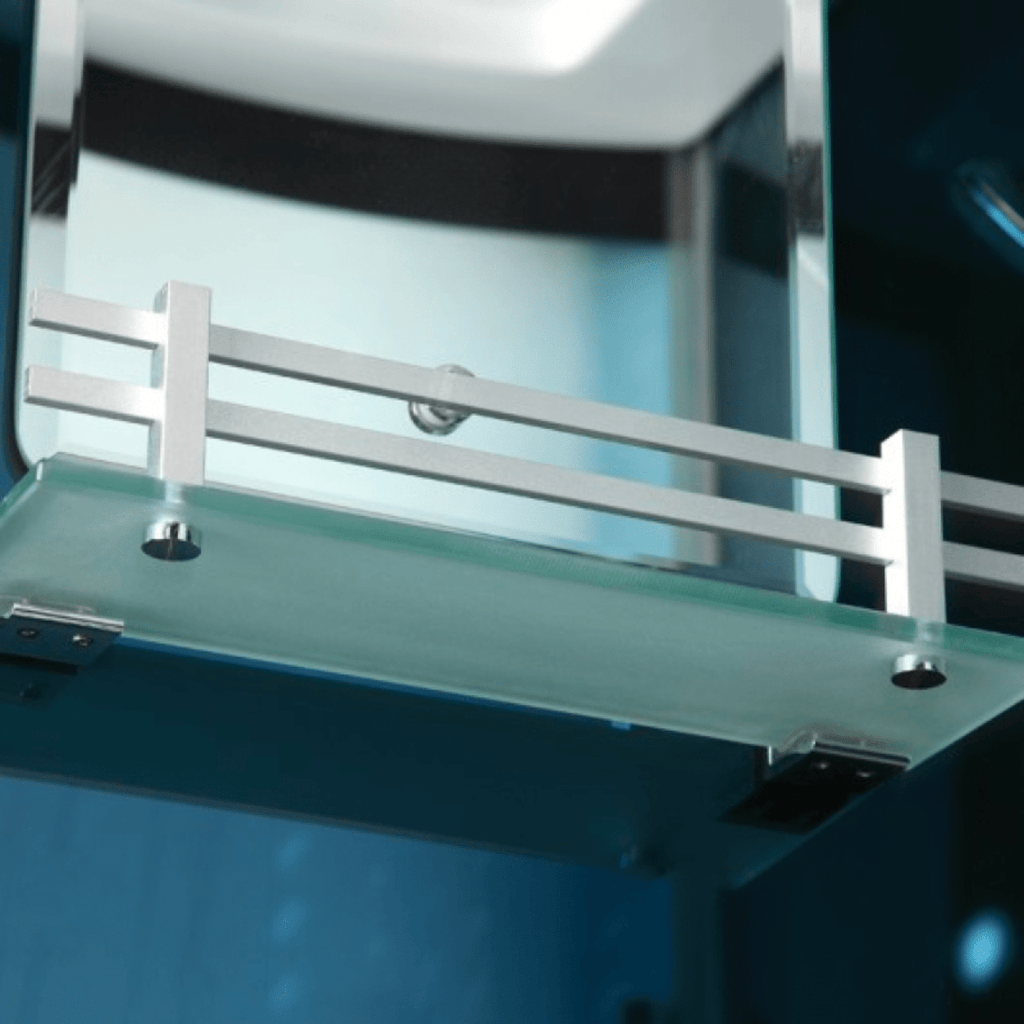

Storage Shelves
-
Blue LED Lighting
-
Tempered Blue Glass
-

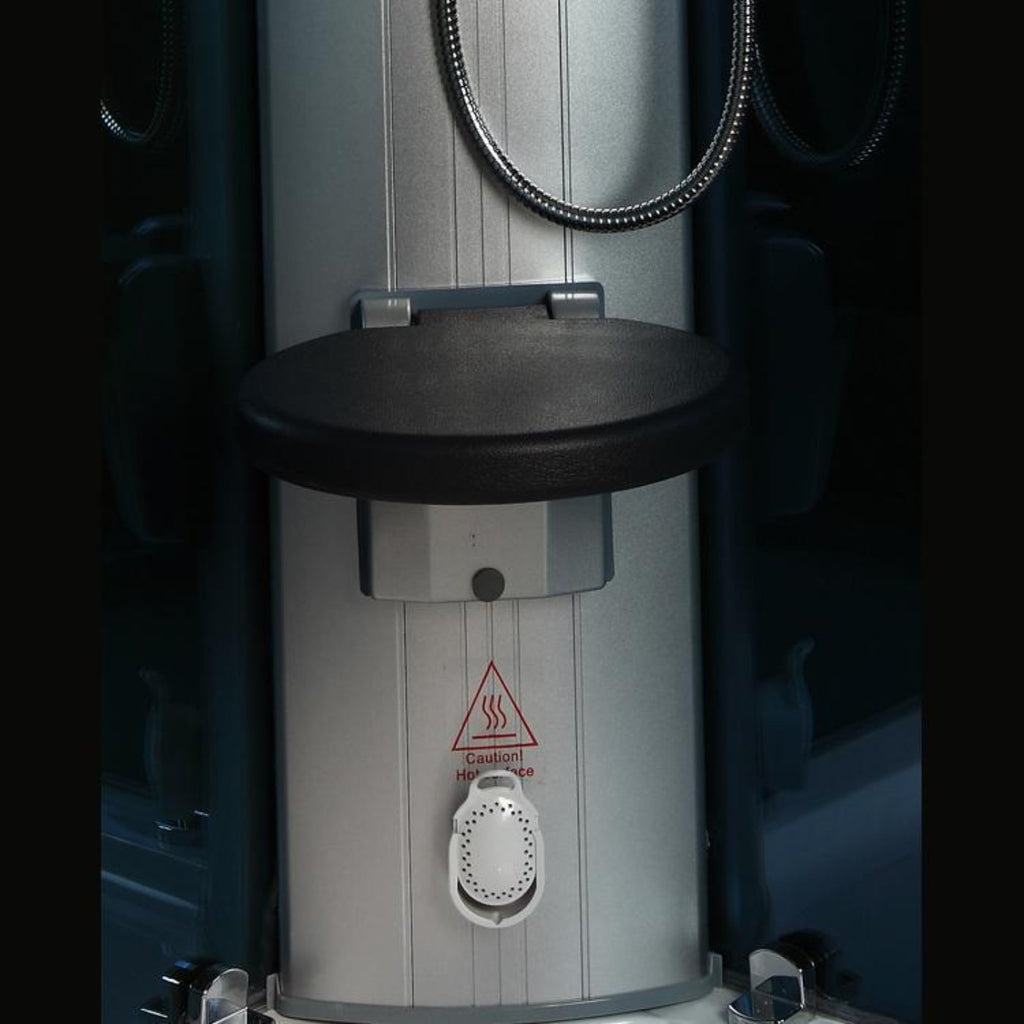

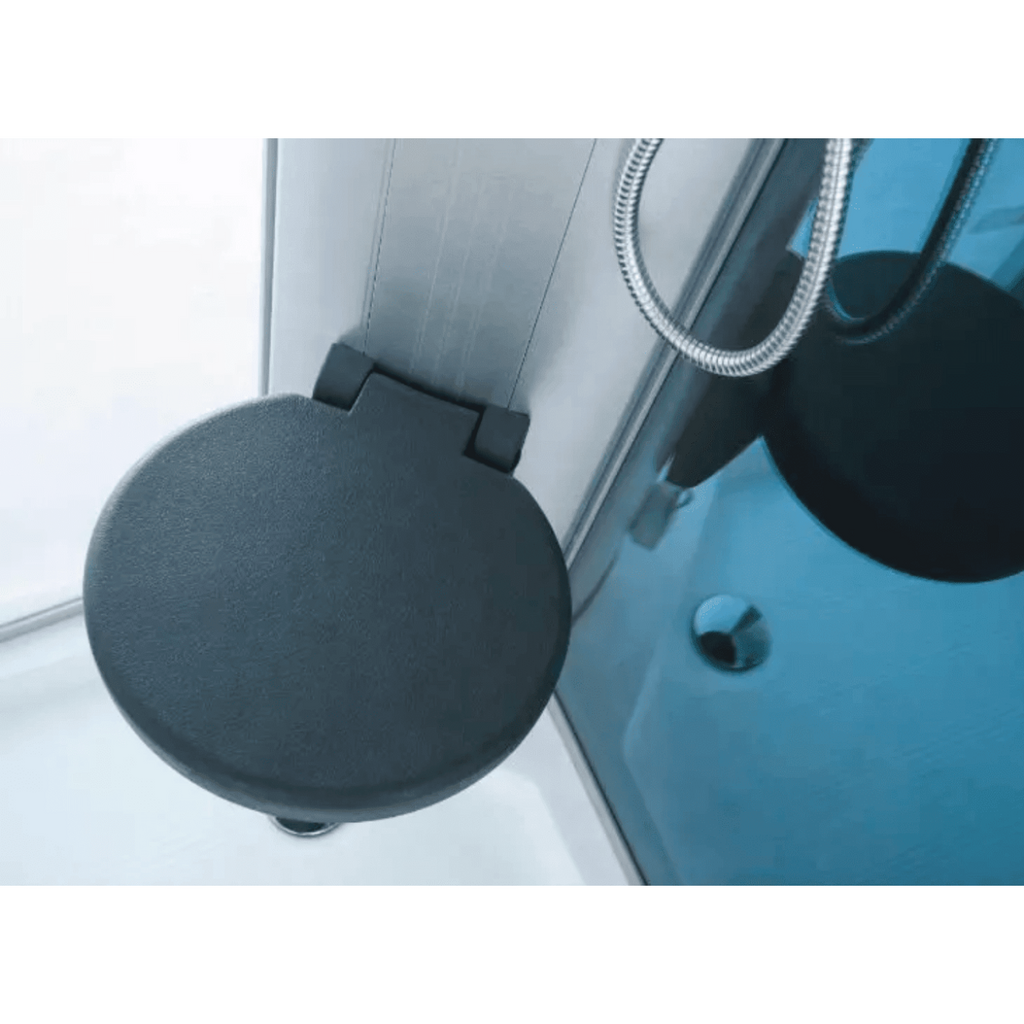

Dual Fold Up Corner Seats
-
Ventilation Fan
-
Towel Bar
-
Ozone Sterilization System
Specifications
Product Manual
Specs Guide
Installation Guide
Warranty
All steam showers carry a (7) seven-year structural warranty against manufacturer defects. The structural warranty protects the structure of the steam shower from peeling, fading, delaminating, or cracking. Structural components include acrylic panels, shower pan, ceiling, and glass panels. All steam shower parts carry a (1) one-year guarantee against defects.
What Our Experts Think
The Mesa WS-803L Steam Shower with Blue Glass is a premium, spa-quality shower unit designed to elevate your bathroom experience. Here's what makes it exceptional:
-
Spacious Design: Large, comfortable interior with a left-side configuration, perfect for relaxing steam sessions or invigorating showers.
-
Blue Tempered Glass: Stylish and modern, this sleek finish enhances any bathroom aesthetic.
-
Steam Generator: Built-in steam system provides a rejuvenating and therapeutic experience, promoting relaxation and wellness.
-
Multi-Function Showerhead: Features a rainfall showerhead for a soothing, natural feel and a handheld option for versatility.
-
Body Massage Jets: Strategically placed jets deliver a targeted hydrotherapy massage for tension relief.
-
Built-In Seating: Includes a convenient bench for comfort during extended steam or shower sessions.
-

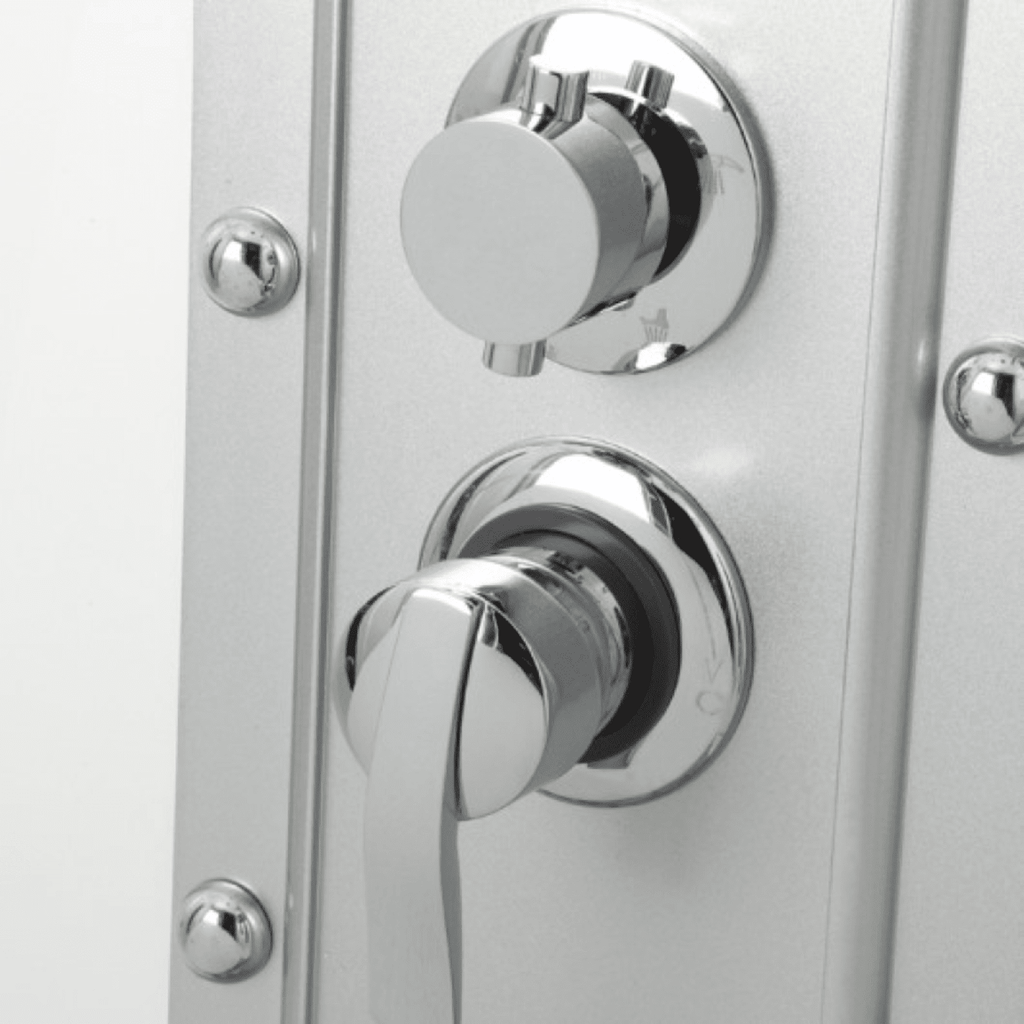

Control Panel: Intuitive digital controls allow for easy customization of steam, temperature, and other settings.
-
Additional Features: Includes a built-in FM radio and ambient lighting for a complete spa-like experience.
-
High-Quality Construction: Durable materials ensure long-term reliability and low maintenance.
Q&A
Does the unit come in one piece or in panels?
All units come in panels. The great thing about our Stand Alone Steam Showers is that they are pre-assembled with pre-drilled holes. You can move any of the units through a standard 32" doorway for easy access into remodeled homes, basements, and other unique situations.
Can I fit the parts through a standard doorway?
Yes, all units can fit through a standard 32" doorway. Even units with a whirlpool tub will fit through any space larger than 26".
What type of Electrical Connection and Breaker will I need?
(1) 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.
I would like to place it on the second floor, will there be a weight problem?
The unit is about 500 lbs.+water and your weight, and that is definitely a case-by-case type question. Please consult your contractor based on the weights we have provided.
How many HOT/COLD Connections are required?
Regardless of the number of showerheads, all units have one hot/cold connection.
Where is the HOT/COLD Connection located?
The connection is located behind the shower hot/cold controls which differs per unit. Normally the hot/cold is about 30" from the the floor on the back of the unit. Flex hoses are included for easy hook ups no matter where your current hot/cold is located. Refer to the listing page of each steam shower for the exact location which can be seen in the diagrams towards the bottom of the page.
Where is the steam generator located?
The steam generator is located underneath the tub and on certain units, it is placed on the back of the unit. All generators are mounted to the frame or screwed to the back of the unit so that they do not take up an room beyond the dimensions of the shower. All of the steam showers will sit flush against the wall.
Do I need an access panel?
The steam showers are designed to be free standing units so that in case of an issue behind the unit, you can easily slide the unit away from the wall for access. The plumbing and the electrical connections are flexible so that you can easily make this happen. If at all possible, an access panel is a terrific option in case of any future issues.
Maintenance Tips
-
Clean the Blue Glass Panels: After each use, wipe the glass with a non-abrasive glass cleaner and a soft microfiber cloth to prevent water spots and soap scum buildup.
-
Descale the Steam Generator: Use a recommended descaling solution every 2-3 months to remove mineral deposits and keep the steam function efficient.
-
Inspect Body Jets: Regularly clean the body jets with a soft brush or toothpick to remove buildup and ensure proper water flow.
-
Wipe Door Seals and Gaskets: Clean seals and gaskets with mild soap and water to prevent mold, mildew, and leaks. Replace if they show signs of wear.
-
Drain the Steam Generator: Periodically drain the steam generator to remove residual water and minimize scaling.
-
Clean the Floor and Drain: Wipe the shower floor after each use and clear the drain of debris to avoid clogs.
-
Maintain the Control Panel: Wipe the control panel with a damp cloth; avoid excessive water exposure to prevent electrical issues.
-
Ventilate After Use: Leave the shower door open slightly to let the enclosure air out, reducing moisture buildup and preventing mold.
-
Avoid Abrasive Cleaners: Use non-abrasive, pH-neutral cleaners for all surfaces, including glass, metal, and acrylic.
