Mesa Steam Shower - 9090C

The Ultimate Upgrade To A Luxurious Bathroom Is Here!

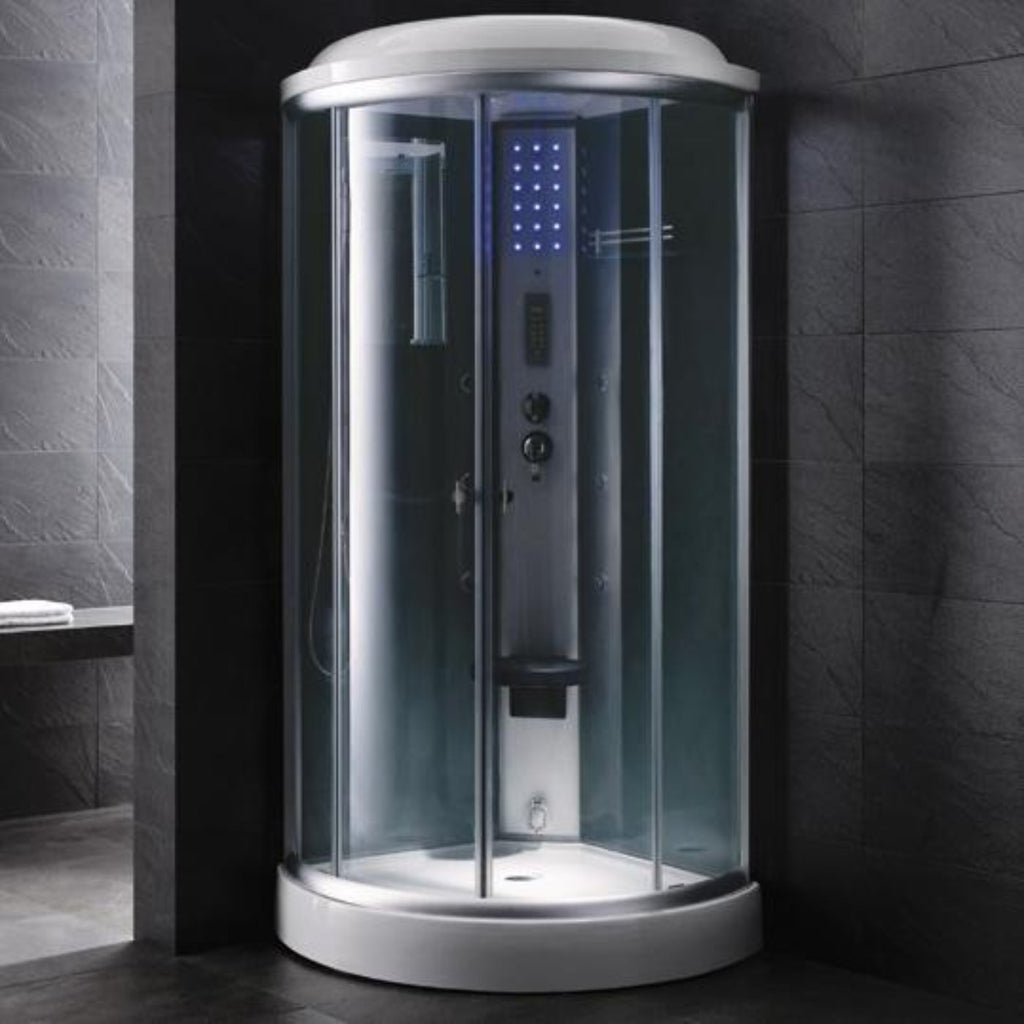

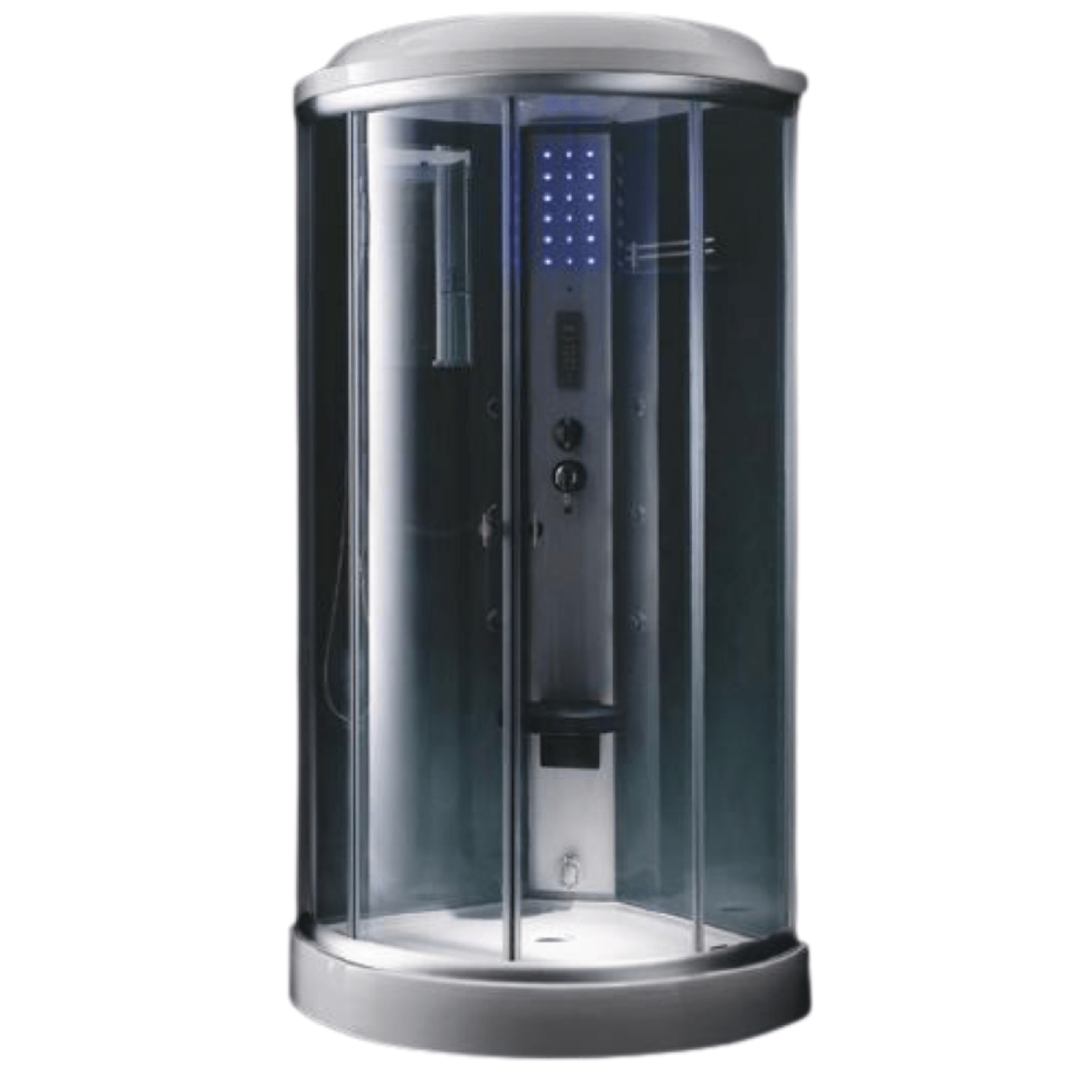

The Mesa 9090K-Clear corner steam shower provides all the luxurious features of larger units in a compact design. Featuring clear tempered glass and nickel trim, the 9090K-Clear steam shower is similar to our popular 9090K model but without the blue glass.  A great one-person steam shower for any corner or free-standing application. The curved glass, enclosed top, and chrome trim of the 9090K steam shower are both stylish and appealing.

View the Mesa Steam Shower - 9090C Features below:

• Includes A Flexible Drain Hose. This means putting your drain anywhere you want

• Dimensions: 36"L x 36"W x 85"H ( Add 2" for ventilation exhaust pipe)

• Interior Dimensions: 32 x 32

• 220V ETL Certified

• Electrical requirements (1) 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.

• 3KW High Output Steam Generator

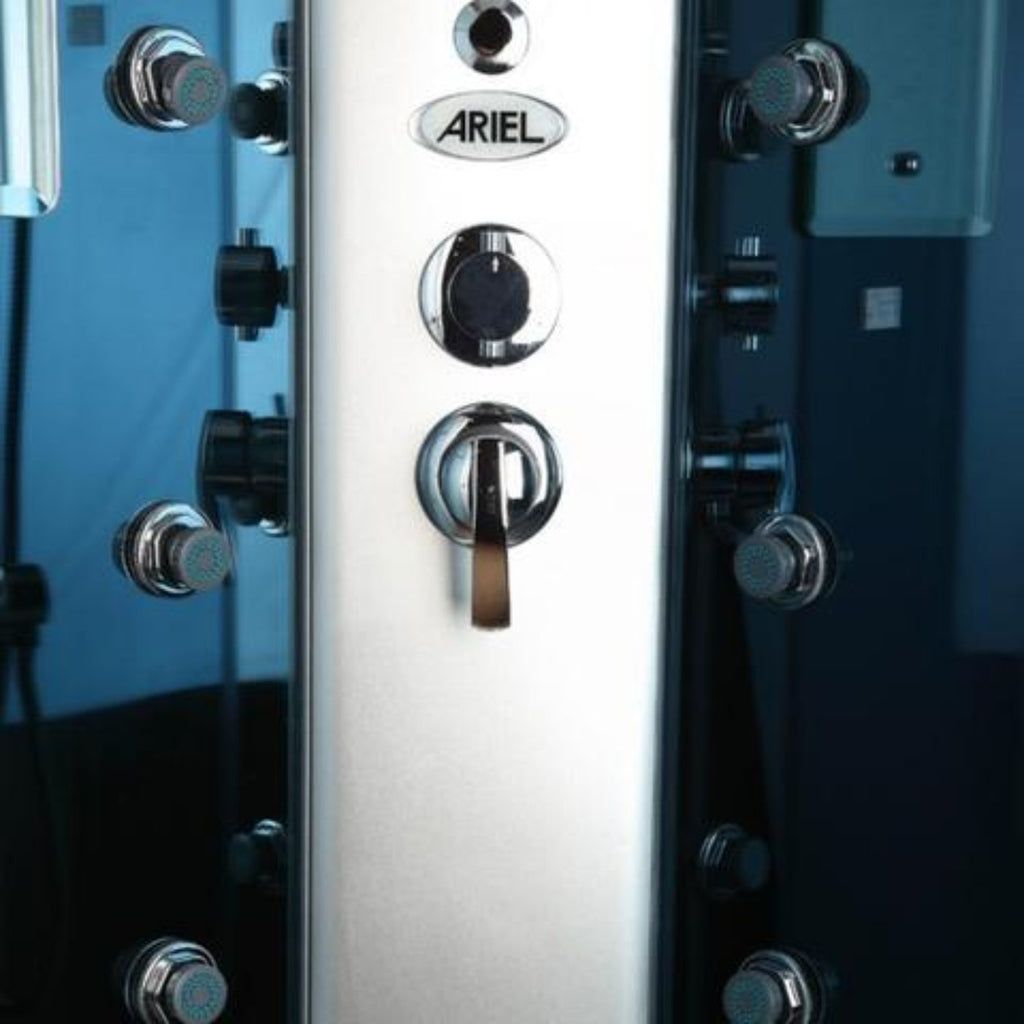

• 6 Body Massage Jets

• Adjustable Handheld Shower Head

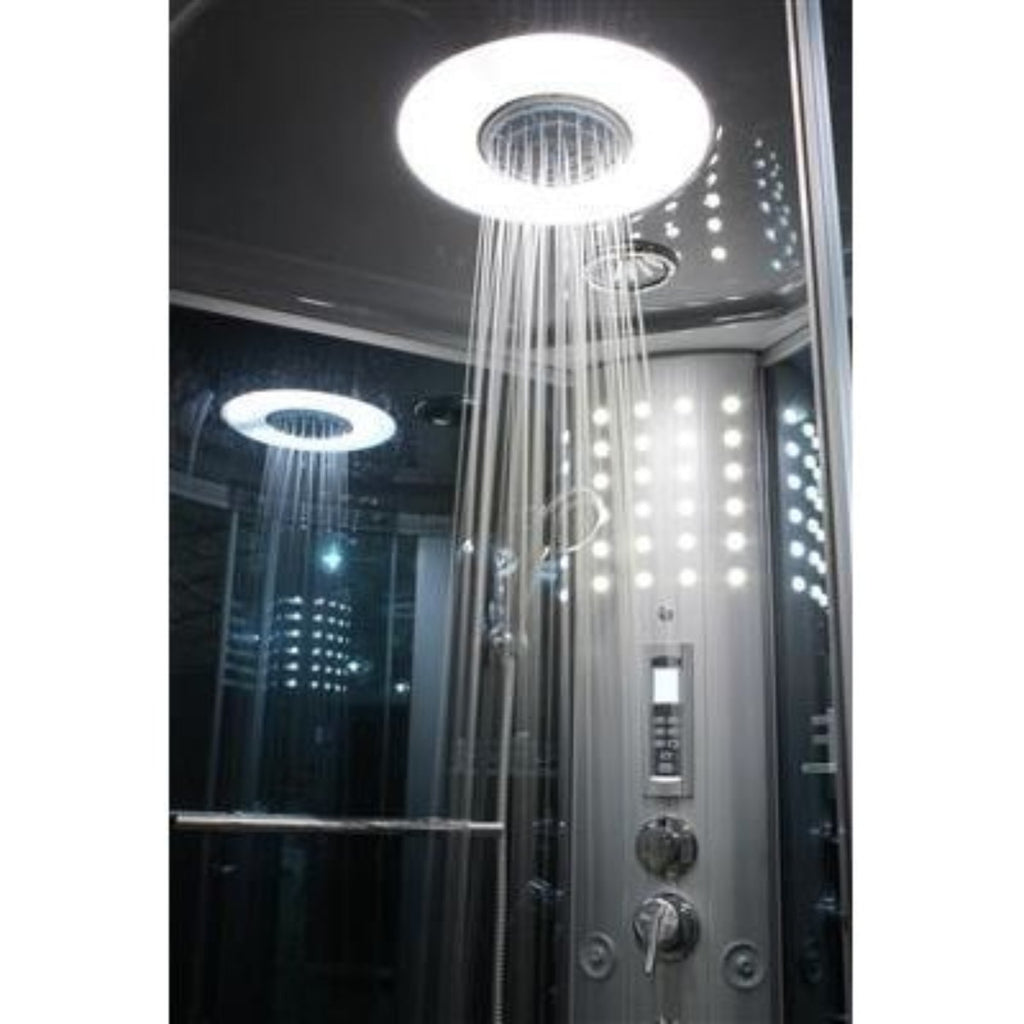

• Rainfall Shower Head

• FM Radio Built-In

• Tempered Clear Glass

Specifications

Additional Information

Additional Steam Shower Features

• Blue LED Mood Lighting

• Tempered Glass

• Temperature Sensor

• Ventilation Fan

• Enclosed Top

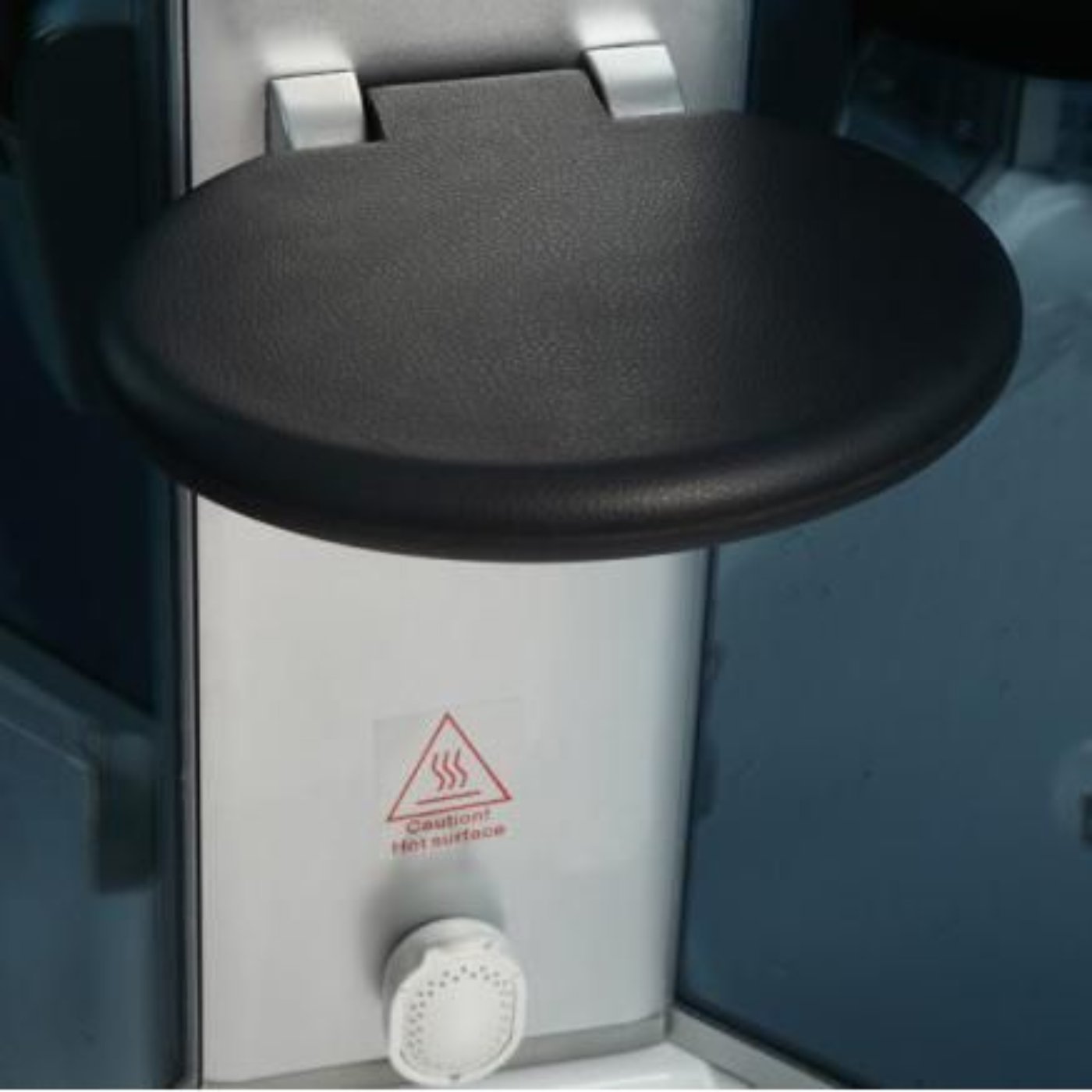

• Fold-Up Seat

Product Manual

Installation Guide

Specs Guide

Warranty

All steam showers carry a (7) seven-year structural warranty against manufacturer defects. The structural warranty protects the structure of the steam shower from peeling, fading, delaminating, or cracking. Structural components include acrylic panels, shower pan, ceiling, and glass panels. All steam shower parts carry a (1) one-year guarantee against defects.

Video

What Our Experts Think

The Mesa 9090C Steam Shower is a compact and luxurious steam shower designed to deliver a premium spa experience at home. Here's why it's a top choice:

• Space-Efficient Design: Compact footprint, perfect for smaller bathrooms while offering full-featured functionality.
• Sleek Aesthetic: Tempered glass panels and a modern design enhance the look of your bathroom.
• Steam Generator: Provides a therapeutic steam bath to relax muscles, improve circulation, and promote detoxification.
• Rainfall Showerhead: Offers a gentle, rain-like shower for a calming and immersive experience.
• Hydrotherapy Jets: Strategically positioned jets provide a relaxing massage to relieve muscle tension and stress.
• Built-In Seating: Comfortable bench for extended steam sessions or relaxation during showers.
• Digital Controls: Easy-to-use controls for adjusting steam, temperature, and other settings for a personalized spa experience.
• High-Quality Construction: Durable materials ensure long-lasting performance and easy maintenance.

Q&A

Does the unit come in one piece or in panels?

All units come in panels. The great thing about our Stand Alone Steam Showers is that they are pre-assembled with pre-drilled holes. You can move any of the units through a standard 32" doorway for easy access into remodeled homes, basements, and other unique situations.

Can I fit the parts through a standard doorway?

Yes, all units can fit through a standard 32" doorway. Even units with a whirlpool tub will fit through any space larger than 26".

What type of Electrical Connection and Breaker will I need?

(1) 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.

(1) 220v with a 20amp dual pole breaker GFCI Breaker for the heat pump

I would like to place it on the second floor, will there be a weight problem?

The unit is about 500 lbs.+water and your weight, and that is definitely a case-by-case type question. Please consult your contractor based on the weights we have provided.

What does the inline heat pump do?

The inline Heat Pump is attached to the water pump, and the heat pump will maintain the water temperature in the tub portion of the unit.

How many HOT/COLD Connections are required?

Regardless of the number of showerheads, all units have one hot/cold connection.

Where is the HOT/COLD Connection located?

The connection is located behind the shower hot/cold controls which differ per unit. Normally the hot/cold is about 30" from the floor on the back of the unit. Flex hoses are included for easy hookups no matter where your current hot/cold is located. Refer to the listing page of each steam shower for the exact location which can be seen in the diagrams towards the bottom of the page.

Where is the steam generator located?

The steam generator is located underneath the tub and on certain units, it is placed on the back of the unit. All generators are mounted to the frame or screwed to the back of the unit so that they do not take up a room beyond the dimensions of the shower. All of the steam showers will sit flush against the wall.

Do I need an access panel?

The steam showers are designed to be free-standing units so that in case of an issue behind the unit, you can easily slide the unit away from the wall for access. The plumbing and the electrical connections are flexible so that you can easily make this happen. If at all possible, an access panel is a terrific option in case of any future issues.

Maintenance Tips

• Clean Glass Panels: After each use, clean the glass panels with a non-abrasive glass cleaner and a microfiber cloth to prevent water spots and soap scum buildup.
• Descale the Steam Generator: Use a descaling solution every 2-3 months to remove mineral deposits and maintain efficient steam production.
• Inspect and Clean Body Jets: Check the body jets regularly for clogs or residue, and clean them with a soft brush to ensure consistent water flow.
• Maintain Door Seals: Wipe the rubber door seals with mild soap and water to prevent mold, mildew, and leaks. Replace them if they show wear or damage.
• Drain the Steam Generator: Periodically empty the steam generator to remove standing water and reduce scaling.
• Clean the Shower Floor and Drain: Wipe down the shower floor after each use and keep the drain free of debris to avoid clogs.
• Control Panel Maintenance: Gently clean the control panel with a damp cloth to remove dirt or fingerprints. Avoid excessive moisture near electronic components.
• Ventilate After Use: Leave the shower door slightly ajar to allow moisture to escape, reducing the risk of mold and mildew.
• Avoid Harsh Cleaners: Use non-abrasive and pH-neutral cleaners to protect the glass, acrylic, and metal surfaces from scratches or damage.
