The Ultimate Upgrade To A Luxurious Bathroom Is Here!

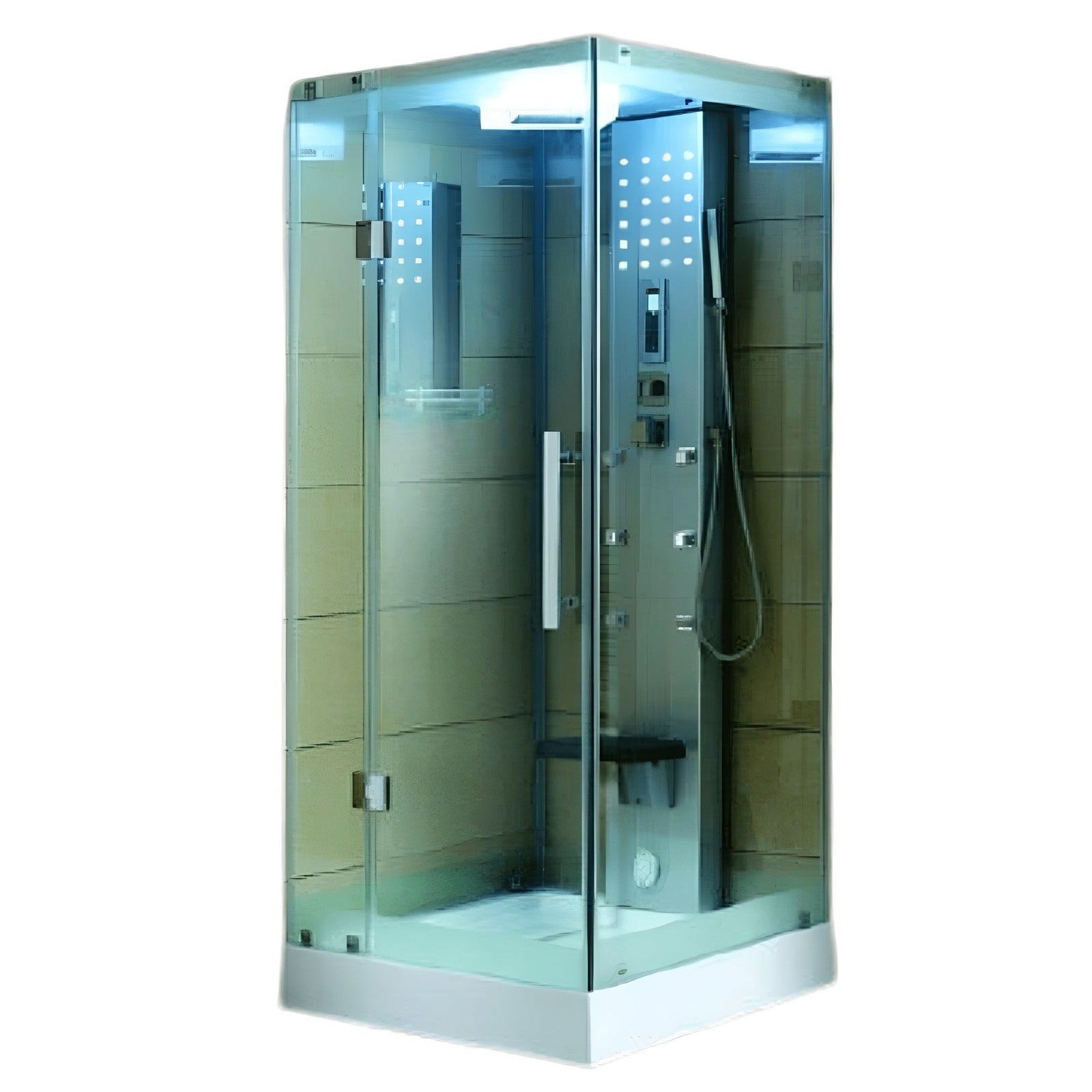

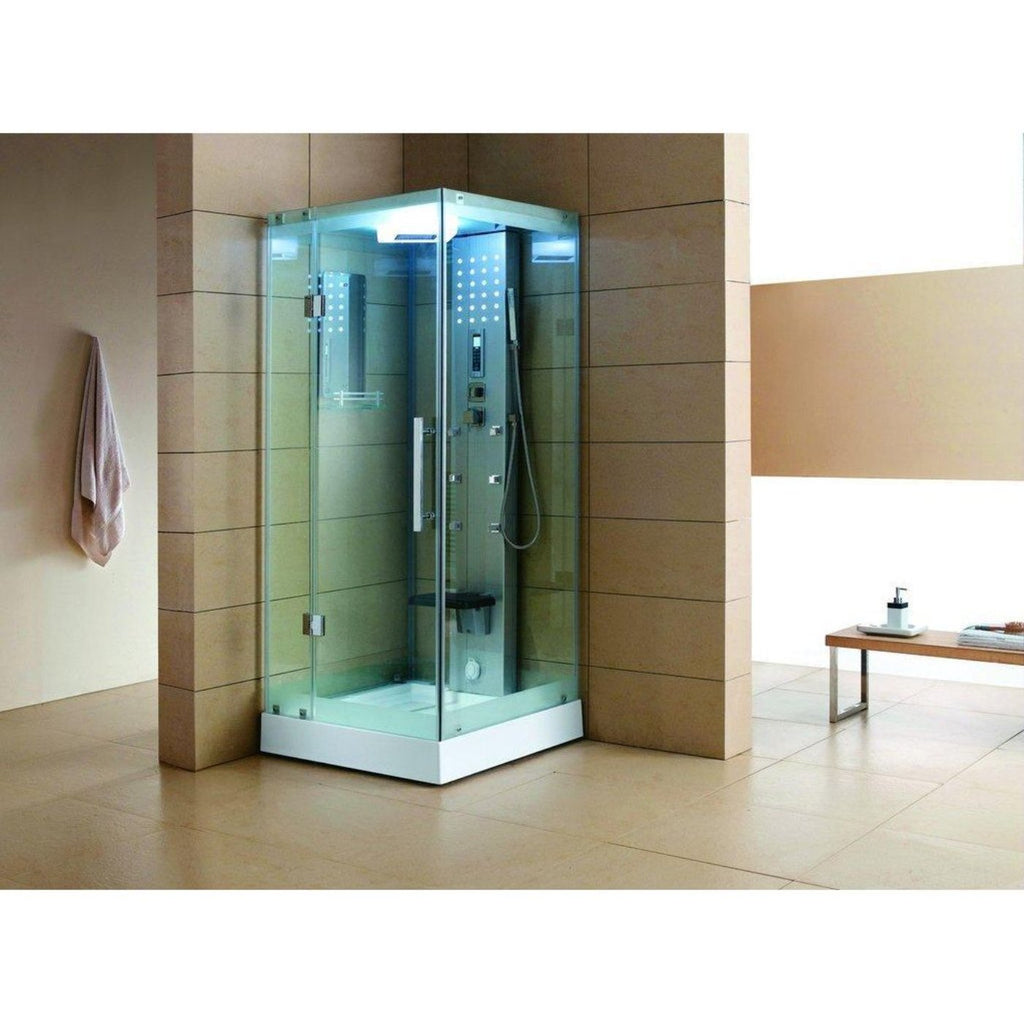

The Mesa WS-301A walk-in steam shower features tempered blue glass with nickel trim. The WS-301A is a sleek and space-saving steam shower unit perfect for smaller bathrooms. The WS-301A steam shower adds style and modern flair to any bathroom.
View the Mesa Steam Shower - WS-301 Features below:
-
Dimensions: 36"L x 36"W x 85"H (Add 2" for ventilation exhaust pipe)
-
Interior Dimensions 34" x 26"
-
220V ETL Certified
-
Electrical requirements 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.
-
3KW Steam Generator
-
6 Acupuncture Water Body Jets
-
Adjustable Handheld Shower Head
-
Rainfall Shower Head
-
FM Radio Built-In
-
Tempered Blue Glass
-
Shipping weight is 431 lbs. Dry weight is 387 lbs.
Specification
Additional Information
Additional Steam Shower Features
-
Overhead Lighting
-
Ventilation Fan
-

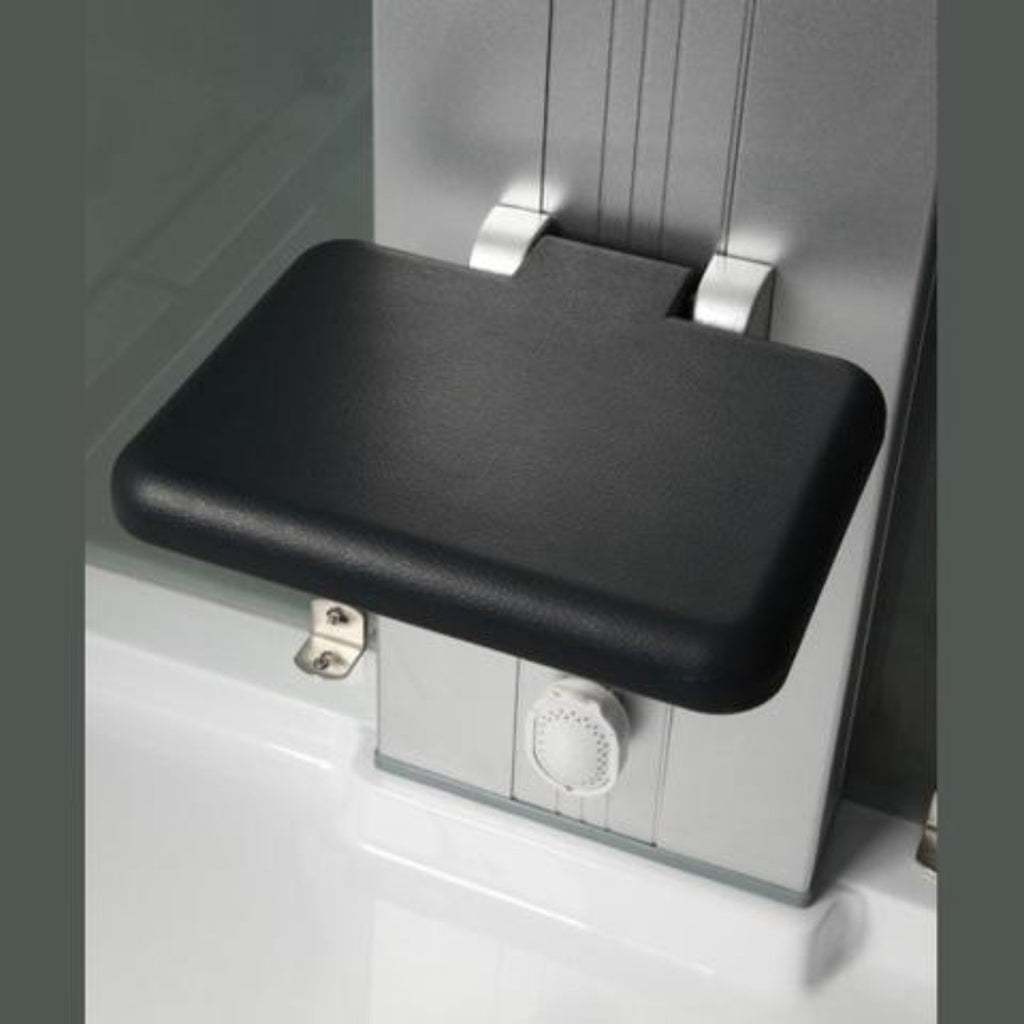

Foldable Center Seat
-
Ozone Sterilization System
-
Digital Timer and Temperature Control
-
Storage Shelves
-
Fluorescent Blue Mood Lighting
Product Manual
Specs Guide
Installation Guide
Warranty
All steam showers carry a (7) seven-year structural warranty against manufacturer defects. The structural warranty protects the structure of the steam shower from peeling, fading, delaminating, or cracking. Structural components include acrylic panels, shower pan, ceiling, and glass panels. All steam shower parts carry a (1) one-year guarantee against defects.
What Our Experts Think
The Mesa WS-301 Steam Shower is a compact and luxurious steam shower designed for those who want a spa experience at home without requiring a large space. Here's why it’s an excellent choice:
-
Compact Footprint: Ideal for smaller bathrooms, offering a full range of high-end features in a space-efficient design.
-
Blue Tempered Glass: Sleek and modern, the blue glass enhances your bathroom’s style and sophistication.
-
Steam Generator: Provides a rejuvenating steam experience, promoting relaxation, improved circulation, and detoxification.
-
Rainfall Showerhead: Mimics natural rainfall, creating a calming and immersive shower experience.
-
Hydrotherapy Jets: Equipped with strategically placed body jets for a therapeutic massage that soothes tired muscles.
-
Built-In Bench: Offers a comfortable seating option for longer steam or shower sessions.
-

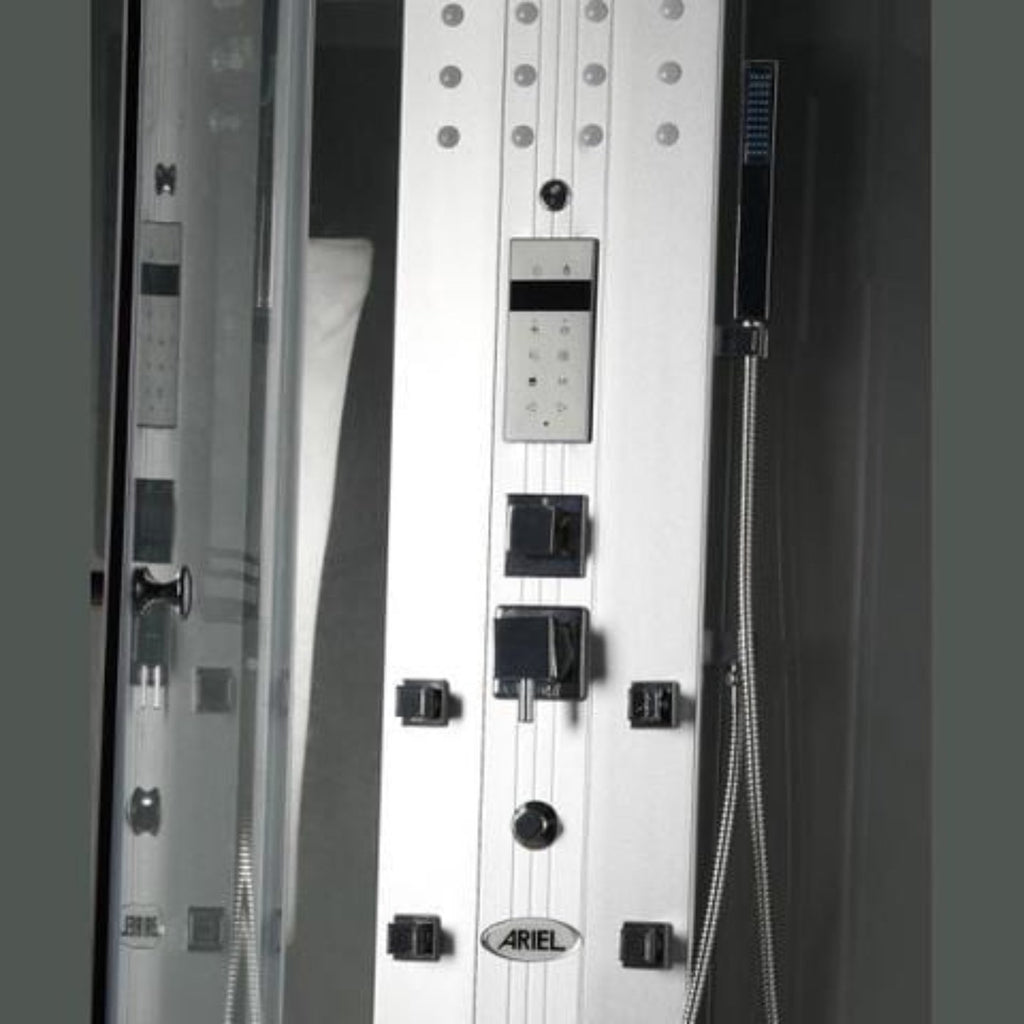

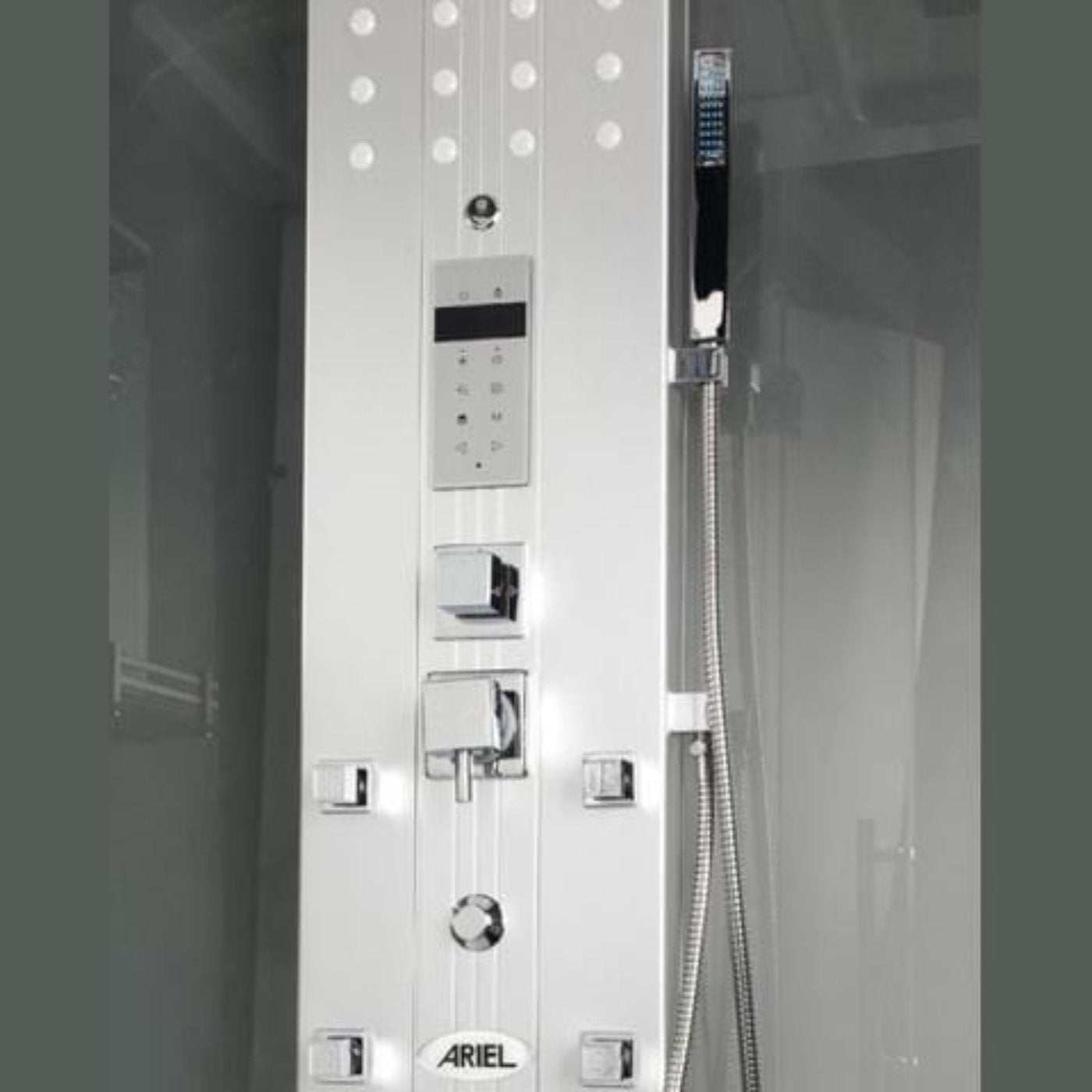

Digital Controls: User-friendly panel for easy customization of steam, temperature, and lighting settings.
-
Durable Construction: Built with high-quality materials for long-lasting durability and minimal maintenance.
Q&A
Does the unit come in one piece or in panels?
All units come in panels. The great thing about our Stand Alone Steam Showers is that they are pre-assembled with pre-drilled holes. You can move any of the units through a standard 32" doorway for easy access into remodeled homes, basements, and other unique situations.
Can I fit the parts through a standard doorway?
Yes, all units can fit through a standard 32" doorway. Even units with a whirlpool tub will fit through any space larger than 26".
What type of Electrical Connection and Breaker will I need?
(1) 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.
(1) 220v with a 20amp dual pole breaker GFCI Breaker for the heat pump
I would like to place it on the second floor, will there be a weight problem?
The unit is about 500 lbs.+water and your weight, and that is definitely a case-by-case type question. Please consult your contractor based on the weights we have provided.
What does the inline heat pump do?
The inline Heat Pump is attached to the water pump, and the heat pump will maintain the water temperature in the tub portion of the unit.
How many HOT/COLD Connections are required?
Regardless of the number of showerheads, all units have one hot/cold connection.
Where is the HOT/COLD Connection located?
The connection is located behind the shower hot/cold controls which differ per unit. Normally the hot/cold is about 30" from the floor on the back of the unit. Flex hoses are included for easy hookups no matter where your current hot/cold is located. Refer to the listing page of each steam shower for the exact location which can be seen in the diagrams towards the bottom of the page.
Where is the steam generator located?
The steam generator is located underneath the tub and on certain units, it is placed on the back of the unit. All generators are mounted to the frame or screwed to the back of the unit so that they do not take up a room beyond the dimensions of the shower. All of the steam showers will sit flush against the wall.
Do I need an access panel?
The steam showers are designed to be free-standing units so that in case of an issue behind the unit, you can easily slide the unit away from the wall for access. The plumbing and the electrical connections are flexible so that you can easily make this happen. If at all possible, an access panel is a terrific option in case of any future issues.
Maintenance Tips
-
Clean Glass Panels: Wipe down the glass panels with a non-abrasive glass cleaner and a microfiber cloth after each use to prevent water spots and soap buildup.
-
Descale the Steam Generator: Use a descaling solution every 2-3 months to remove mineral deposits and maintain efficient steam output.
-
Inspect and Clean Jets: Check the body jets regularly for clogs or residue, and clean them with a soft brush to ensure proper water flow.
-
Maintain Door Seals: Clean the rubber door seals with mild soap and water to prevent mold, mildew, and leaks. Replace seals if they become worn or damaged.
-
Drain the Steam Generator: Periodically drain the generator to remove residual water and reduce scaling.
-
Clean the Shower Floor and Drain: Wipe the floor after use and keep the drain free of debris to avoid clogs and ensure proper drainage.
-
Control Panel Maintenance: Gently clean the control panel with a damp cloth to remove dirt or smudges, avoiding excessive moisture to protect the electronics.
-
Ventilate After Use: Leave the door slightly open after using the shower to allow moisture to escape, reducing the risk of mold and mildew.
-
Use Proper Cleaning Products: Avoid harsh or abrasive cleaners to protect the glass, metal, and acrylic surfaces from damage.
