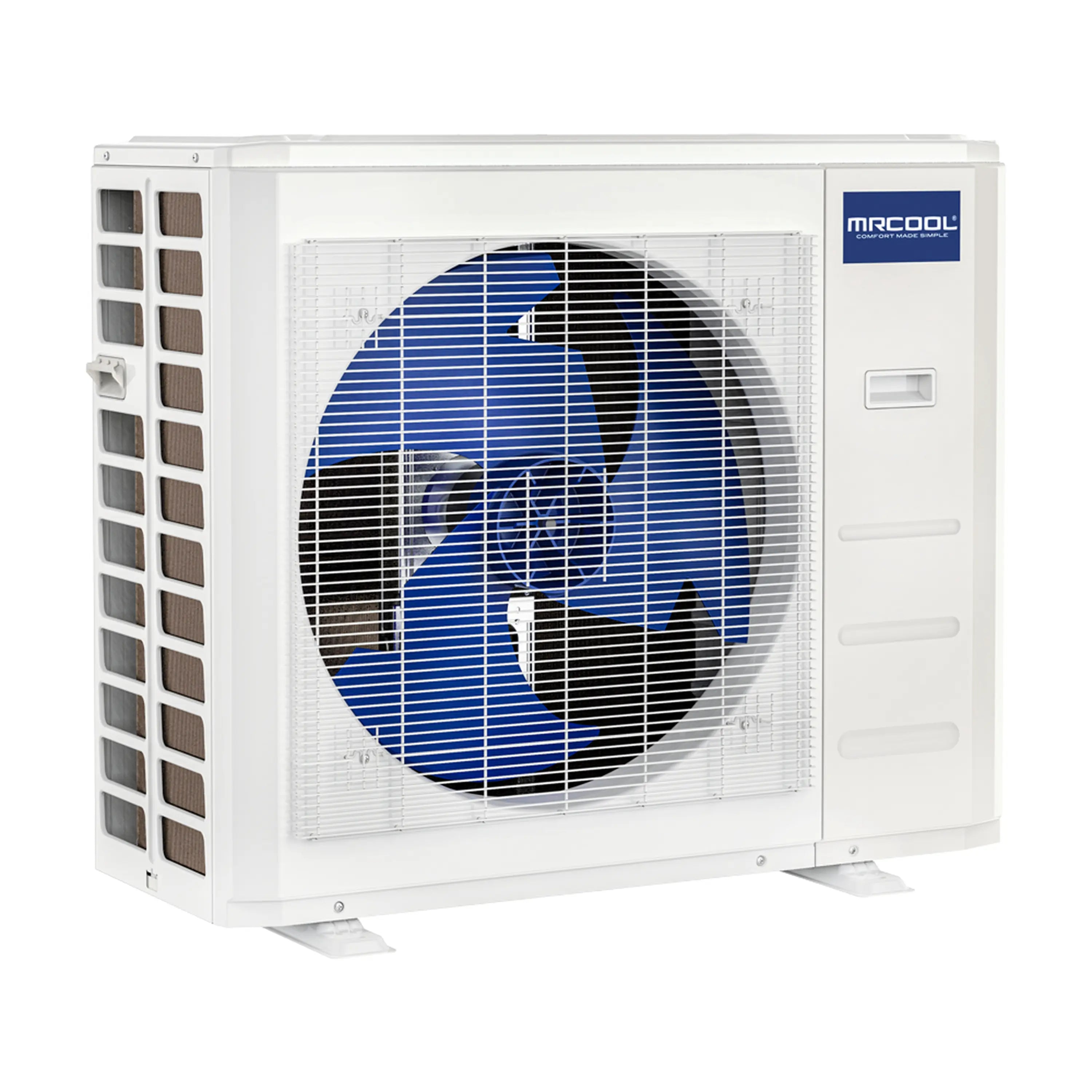

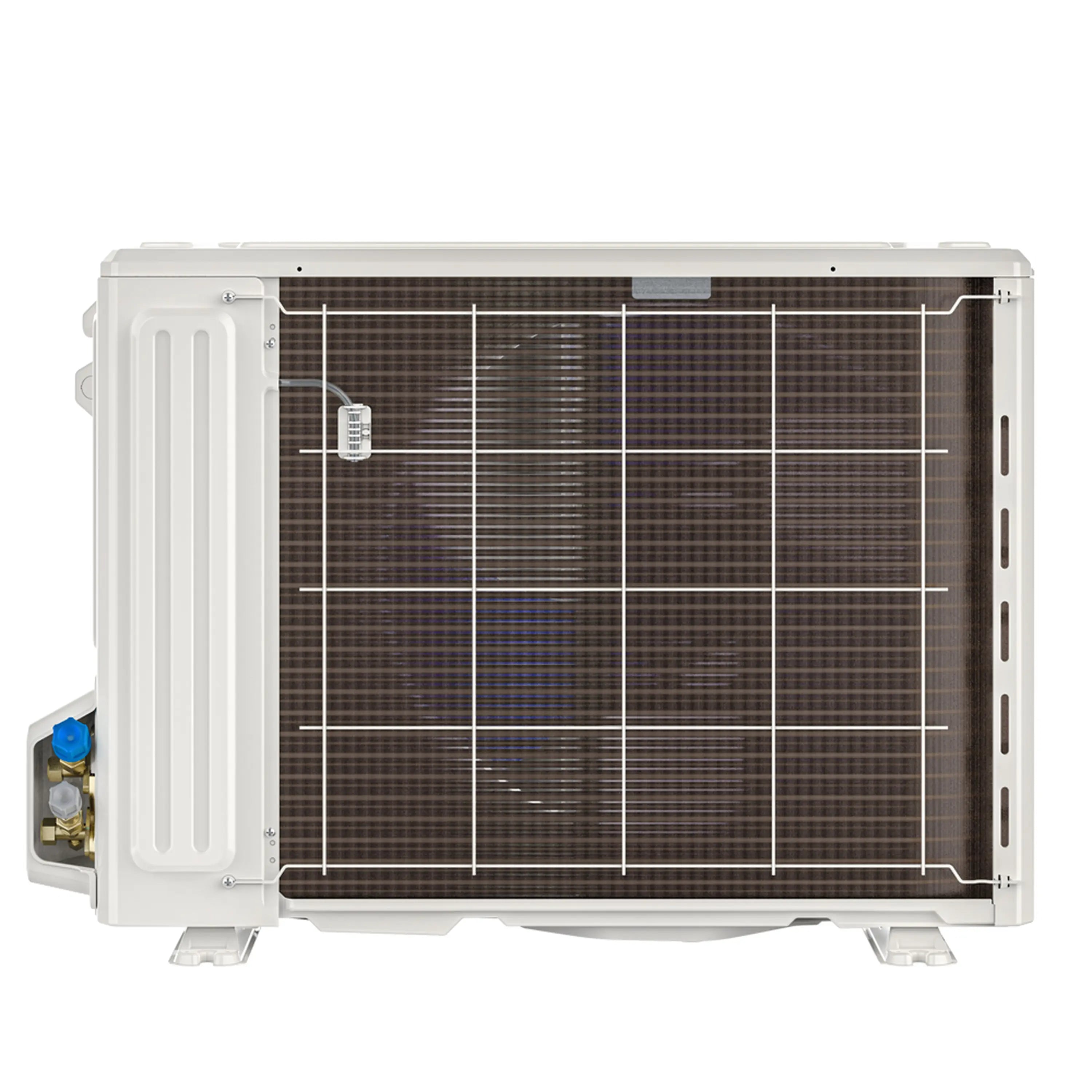

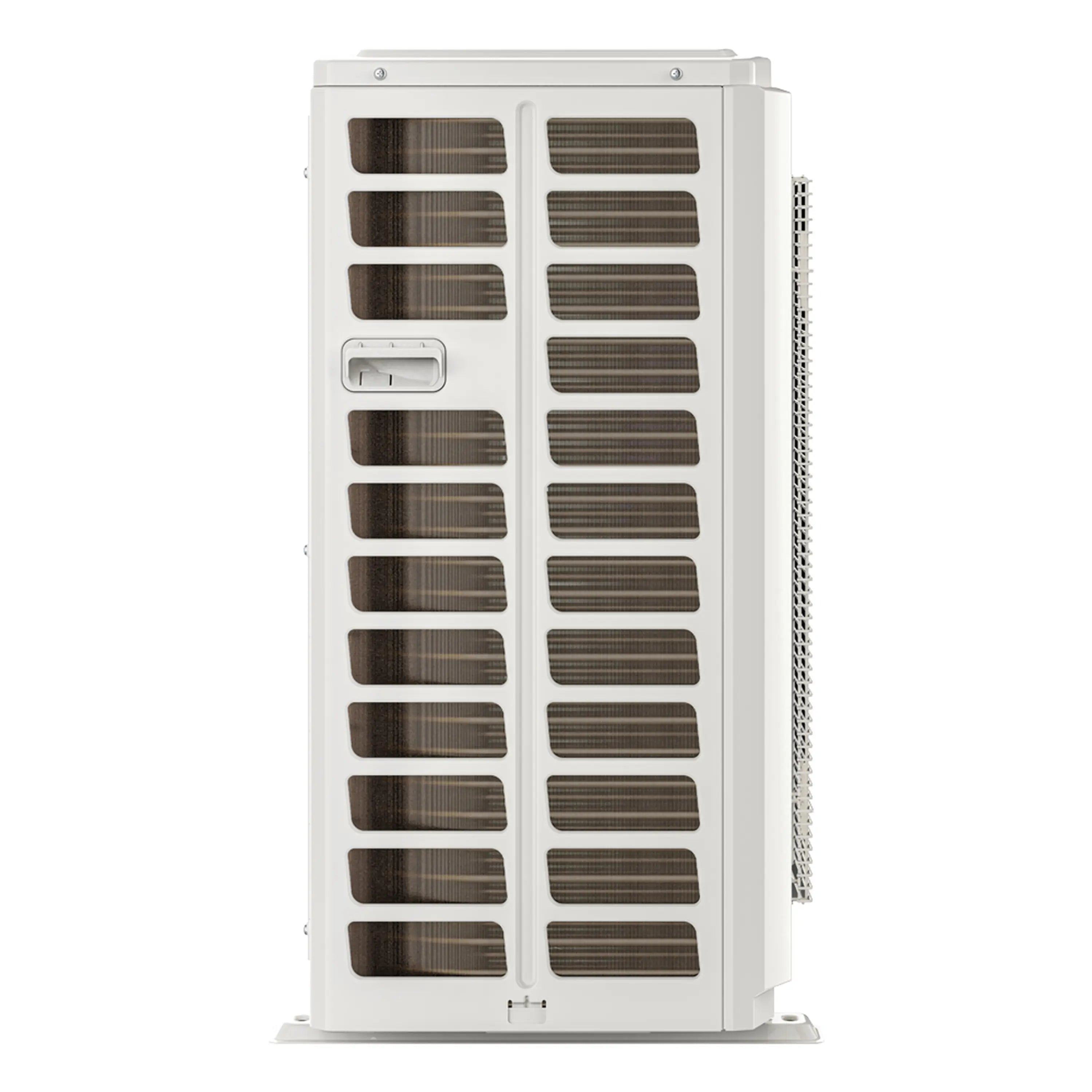

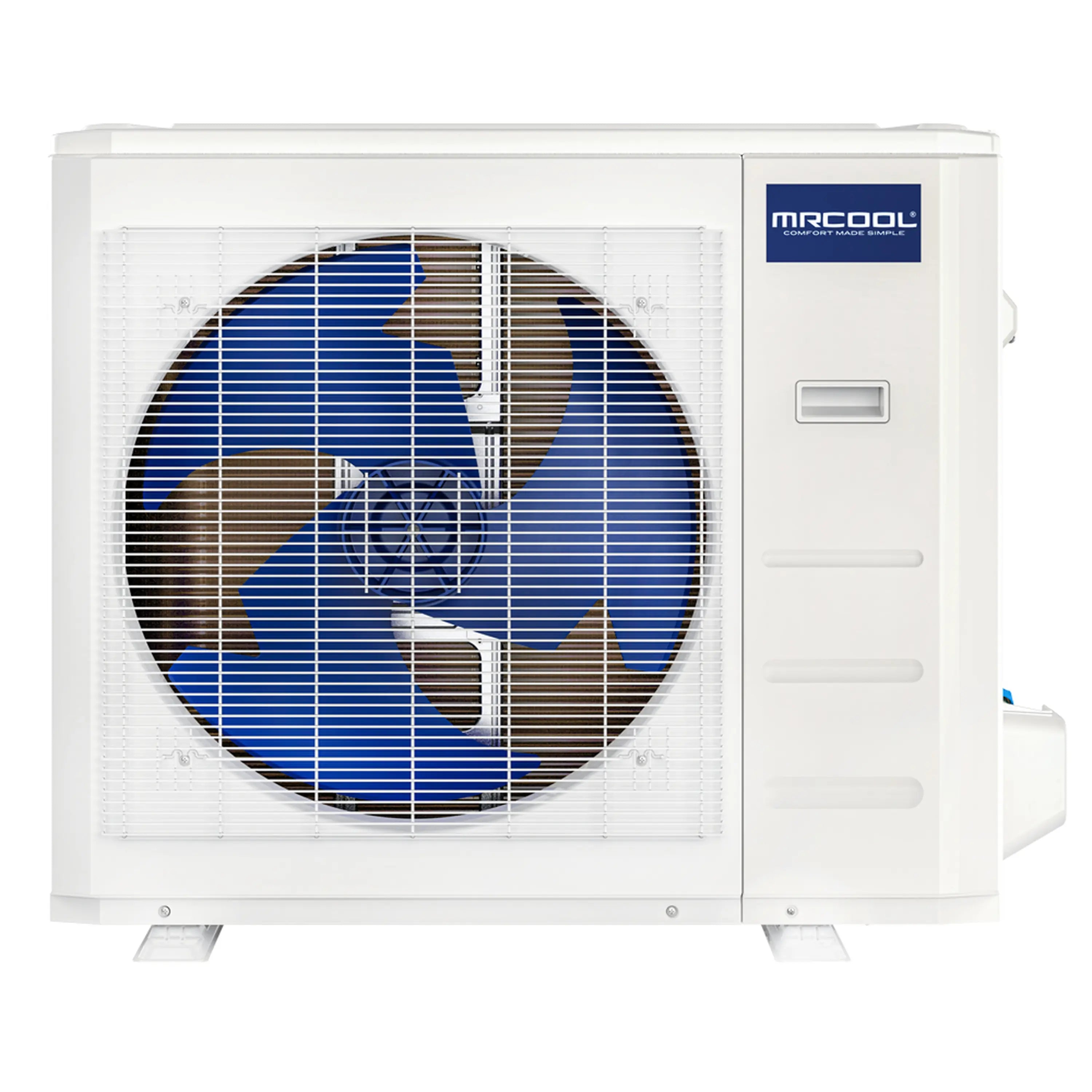

MRCOOL Hyper Heat 2nd Gen 24K BTU, 2 Ton, 18.3 SEER2 Central Ducted Condenser - CENTRAL-24-HP-C-230B00-O
Maintain year-round comfort in your home with the 24K MRCOOL® Hyper Heat Central Ducted Condenser, a reliable system designed to perform in both freezing temperatures and scorching heat. This cutting-edge unit combines powerful performance with energy efficiency, featuring a DC Inverter and variable speed technology. With a SEER2 rating of up to 18.3 and an HSPF-4 rating of up to 10, it offers excellent heating capabilities while optimizing energy use. You can also enjoy effortless control with the included MRCOOL® Smart thermostat making temperature adjustments simple and efficient. The 24K MRCOOL® Hyper Heat Central Ducted Condenser is also designed to work with the 24K MRCOOL® VersaPro® Central Ducted Air Handler. Installation is straightforward with an adaptable air handler that supports multiple configurations, and a heat kit can be added for additional functionality.
This central ducted unit uses R-454B refrigerant, a modern choice designed to reduce environmental impact. Additionally, the Hyper Heat Condenser is fully compatible with the 2-Ton MRCOOL® VersaPro® Central Ducted Air Handler. The outdoor heat pump boasts a durable painted galvanized steel exterior for long-lasting performance. The air handler complements this with a compact design, slide-out blower, and a self-diagnostics panel, allowing straightforward maintenance and troubleshooting. To ensure peace of mind, the 24K MRCOOL® Hyper Heat Central Ducted Condenser comes with a 10-year warranty that covers the compressor, parts, and labor. The labor warranty is activated automatically at installation, providing seamless and worry-free protection.
Specifications
Dimensions |
13.46" D x 26.5" H x 35.04" W |
SEER2 |
18.3 |
EER2 |
11.7 |
HSPF-4 |
10 |
HSPF-5 |
8 |
CFM |
1765.7 |
Tonnage |
2 |
Cooling Capacity (BTU) |
23000 |
Heating Capacity (BTU) |
24000 |
Voltage (V) |
208-230 |
Phase |
1 |
Cycle |
60 |
Max Fuse Breaker(A) |
20 |
Min Circuit Ampacity (A) |
19 |
Color |
gray |
Refrigerant Type |
R454B |
Refrigerant Volume (OZ) |
74.08 |
Decibel Rating (DBA) |
60 |
Liquid Line Size |
3/8 |
Suction Line Size |
3/4 |
WIFI Compatibility |
Yes |
APP Compatibility |
Yes |
ETL Certified |
Yes |
Energy Star Certified |
Yes |
AHRI Certified |
Yes |
Base Parts Warranty |
10 Years |
Base Compressor Warranty |
10 Years |
Base Labor Warranty |
10 Years |
Contains Electronics |
Yes |
Contains Chemicals |
Yes |
Contains Compressed Gas |
Yes |
Net Weight (Lbs) |
102.29 |
Gross Depth (In) |
15.67 |
Gross Height (In) |
29.13 |
Gross Width (In) |
39.17 |
Gross Weight (Lbs) |
109.13 |
What our Experts Think
-
Efficient Heating & Cooling – 24K BTU, 2-ton capacity ideal for small to medium homes.
-
High Energy Efficiency – 18.3 SEER2 rating delivers strong performance while lowering energy costs.
-
Hyper Heat Capability – Reliable heating even in colder climates.
-
Durable Construction – Built for consistent, long-term operation.
-
Flexible Integration – Designed to pair seamlessly with compatible ducted air handlers.
Q&A
Q: What is the cooling and heating capacity?
A: The MRCOOL CENTRAL-24-HP-C-230B00-O delivers 24,000 BTU (2 ton) capacity, ideal for small to medium-sized homes.
Q: What efficiency rating does it have?
A: It operates at 18.3 SEER2, providing energy-efficient heating and cooling.
Q: What components are included?
A: This listing includes the central ducted condenser only, compatible with MRCOOL Hyper Heat ducted air handlers.
Q: Can it provide both heating and cooling?
A: Yes, paired with a ducted air handler, it supports year-round heating and cooling as part of a Hyper Heat system.
Q: Who is this product ideal for?
A: Perfect for homeowners and HVAC contractors upgrading or installing a high-efficiency ducted system.
Q: Is professional installation required?
A: Yes, professional installation is recommended for proper integration and performance.
Maintenance Tips
-
Keep outdoor condenser free of leaves, dirt, and debris to ensure proper airflow.
-
Inspect refrigerant lines and electrical connections regularly for wear or damage.
-
Check for unusual noises or vibrations that may indicate issues.
-
Ensure condensate drain lines are clear to prevent water buildup.
-
Schedule annual professional servicing to maintain efficiency and extend system lifespan.
