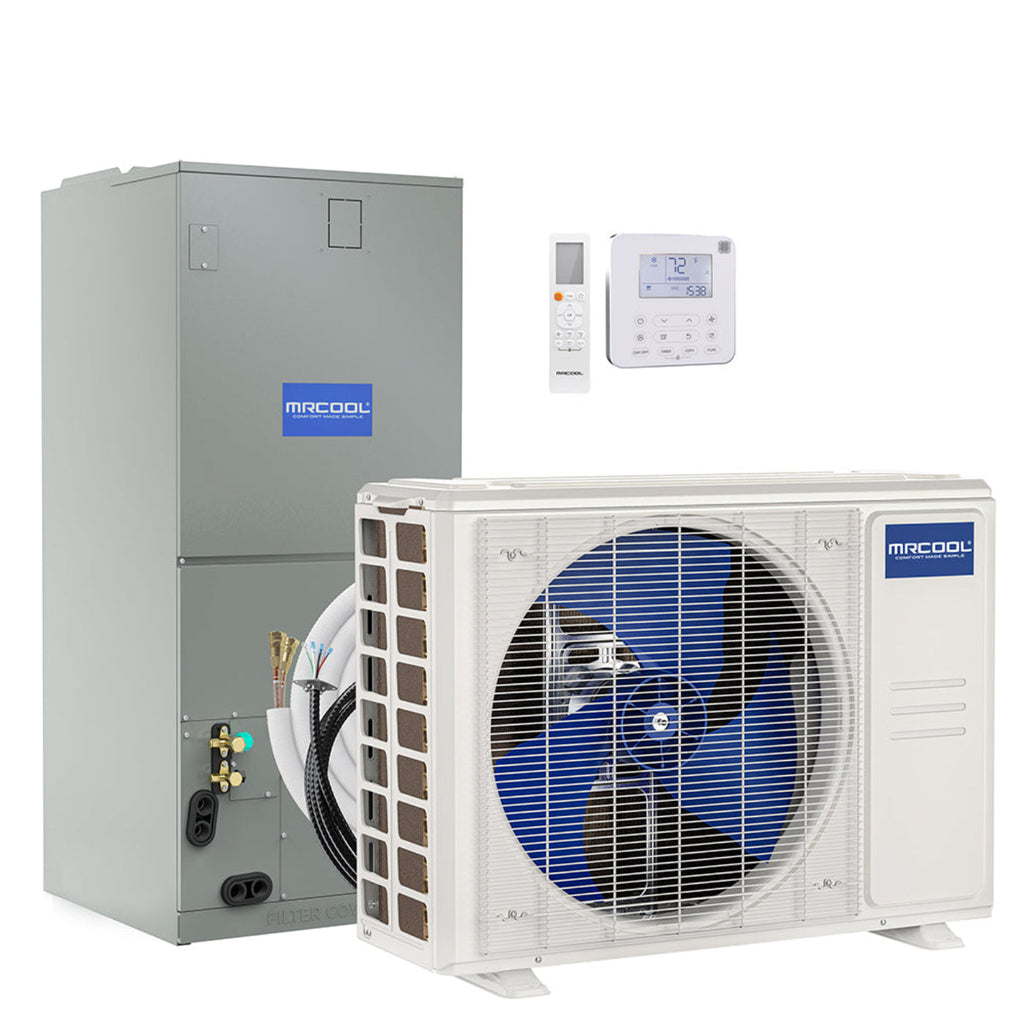

MRCOOL 30K BTU 18.5 SEER Ducted Air Handler and Condenser with 25 ft. Pre-Charged Line Set, - CENTRAL-30-HP-230-25
If you’ve been having to choose between comfort and savings because of an old HVAC system, why not enjoy both with the MRCOOL 30k BTU up to 18.5 SEER Central Ducted DC Inverter Heat Pump System? You’ll be able to enjoy the temperatures you want throughout 1,250 square feet. This efficient and affordable comfort solution could save money and time, because it comes with a 25 foot MRCOOL pre-charged line set, which can be easily plugged into the fittings of the air handler and the condenser. This system can be installed virtually anywhere. This multi-position air handler is able to be installed in an upflow, downflow, horizontal left or horizontal right airflow configuration.
Enjoy your comfort completely guilt-free, because the variable speed condenser can help you save money as it runs. Identify error codes on the handler’s panel or on the thermostat to maintain your system. The use of filters also ensures clean, crisp air throughout your home. Enjoy total peace of mind thanks to a 10 year parts warranty, as well as a , so you don’t have to shell out lots of money in a panic in the unlikely event that something goes wrong. Choose comfort by choosing the MRCOOL 30k BTU 18.5 SEER Central Ducted DC Inverter Heat Pump System.
Features
-
High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.
-
Multi-Positional. The unit is compatible with upflow, counterflow, downflow and horizontal configurations.
-
Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!
-

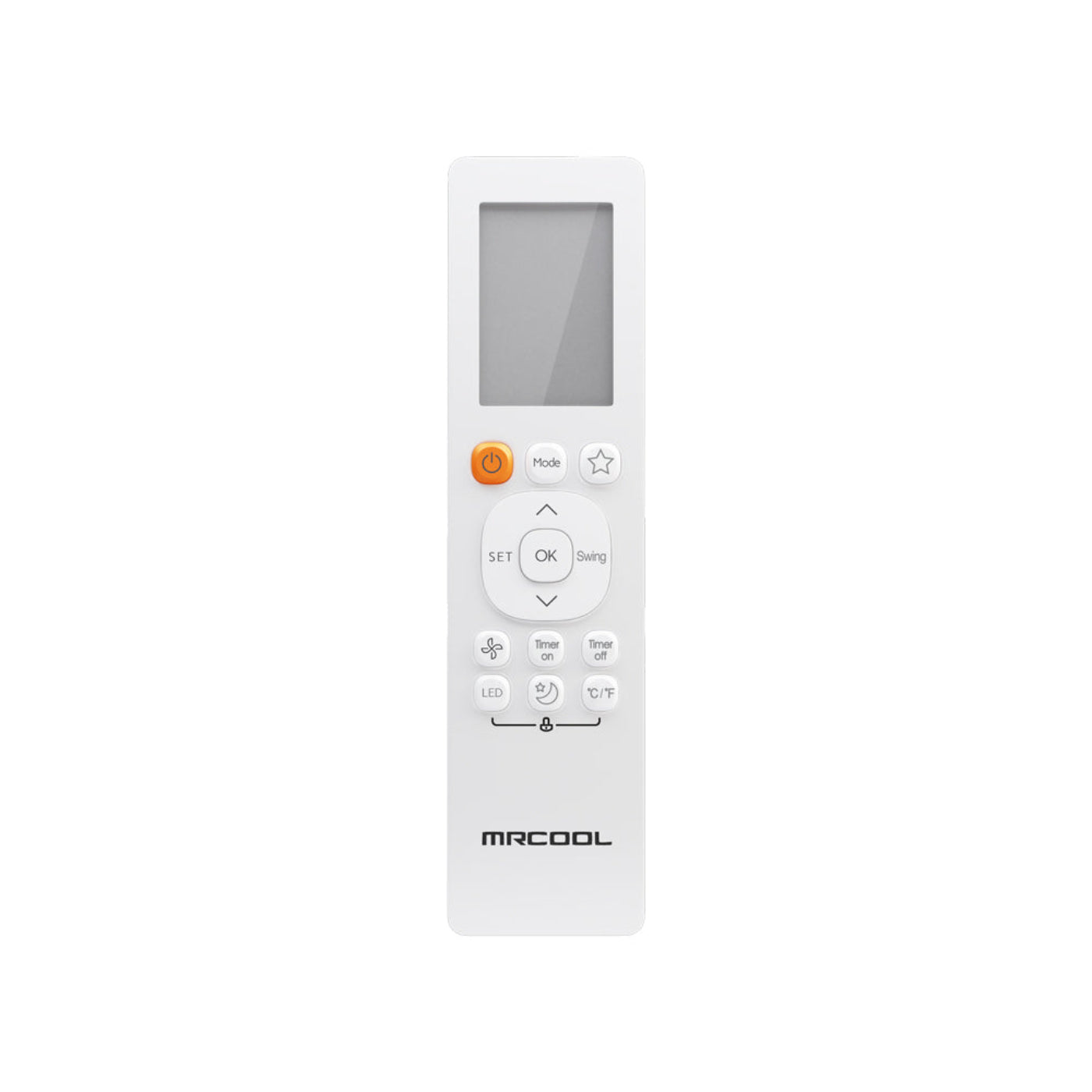

Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.
- Optional heating kit available
- R-410A environmentally friendly refrigerant
Specifications

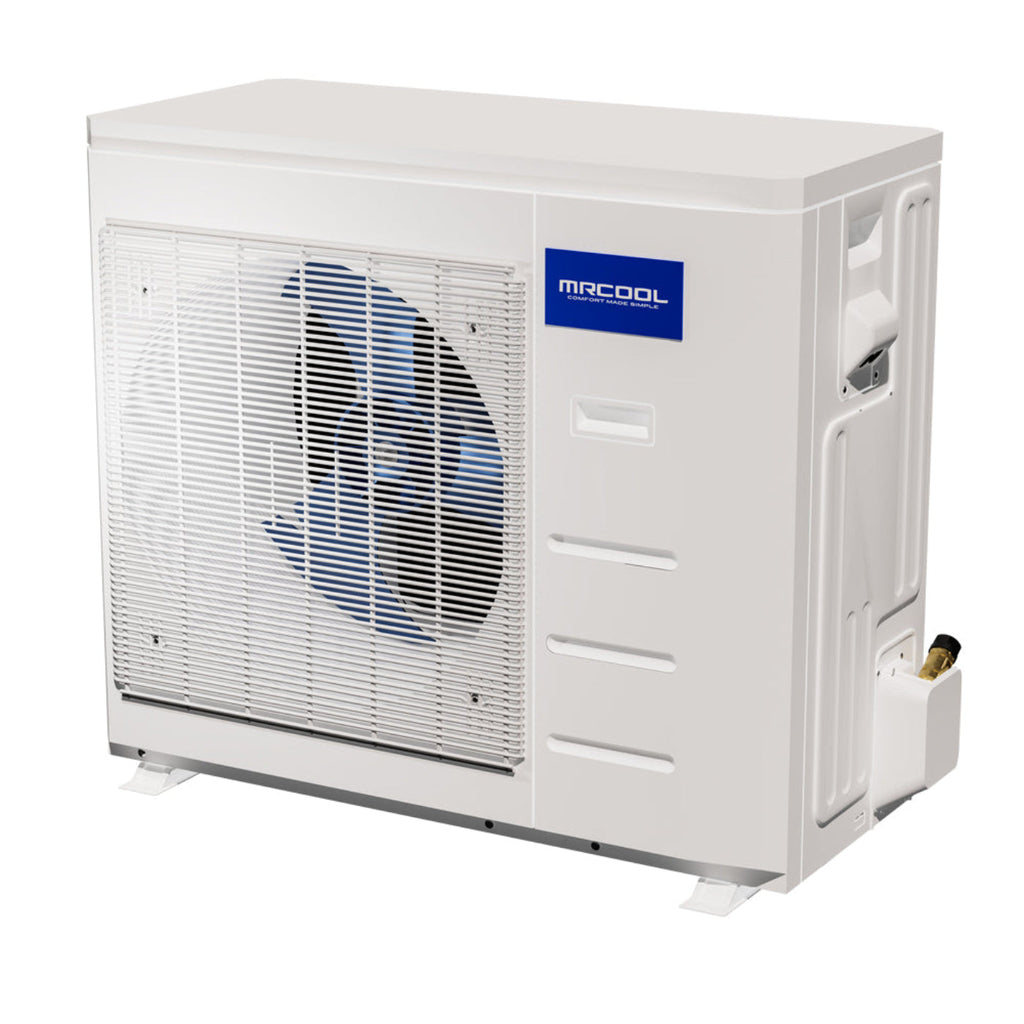

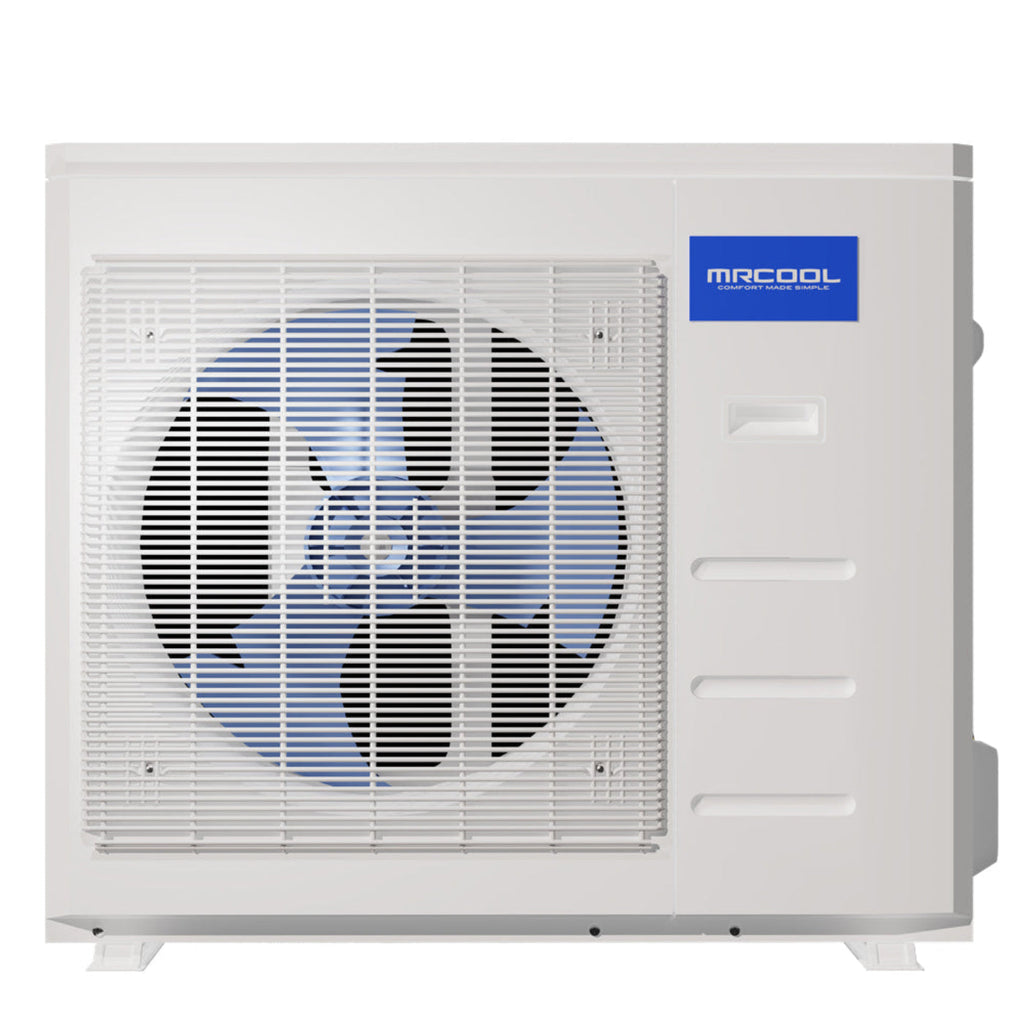

| Condenser Dimensions |
37.24"W x
16.14"D x
31.89"H |
| Condenser Weight |
146.39 lbs |

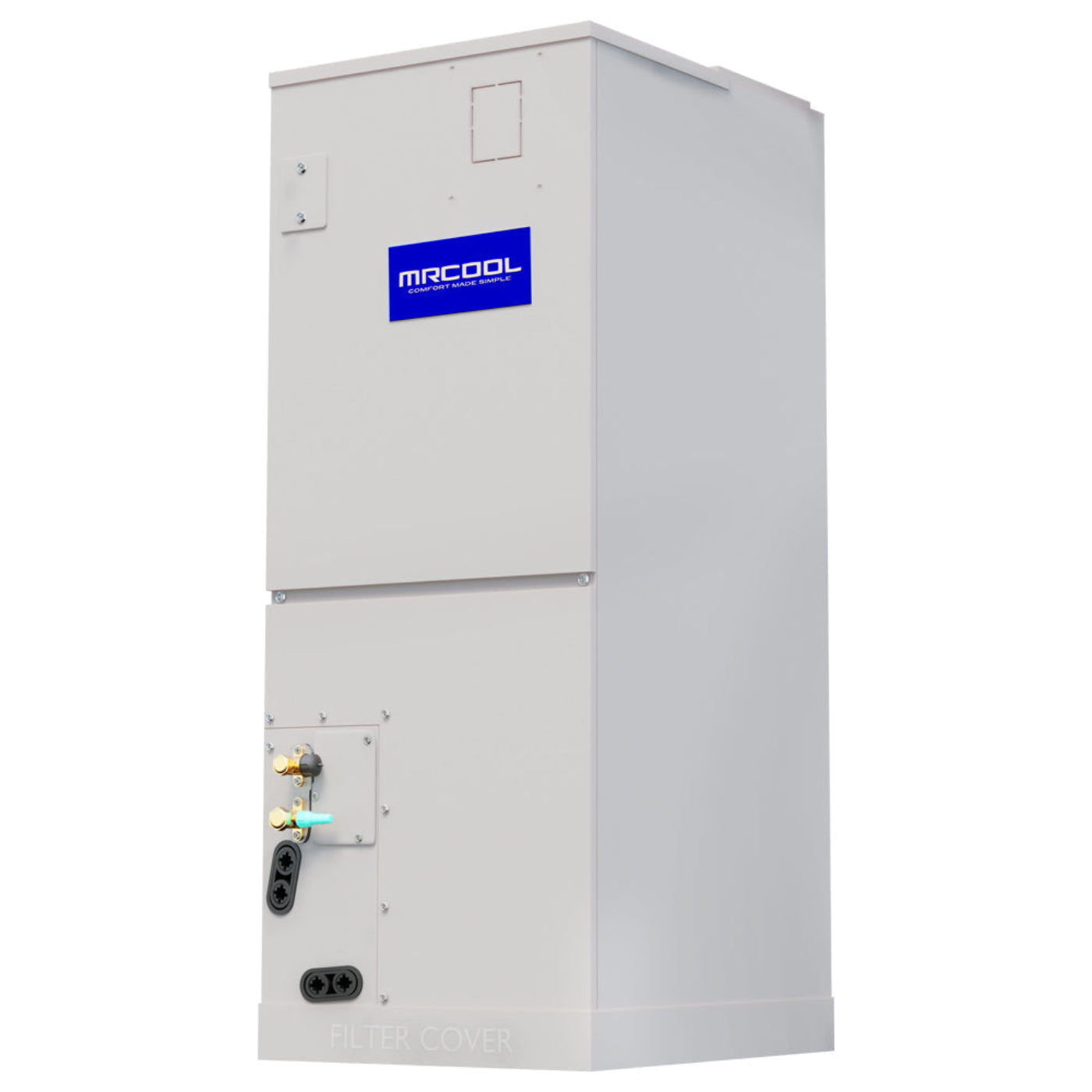

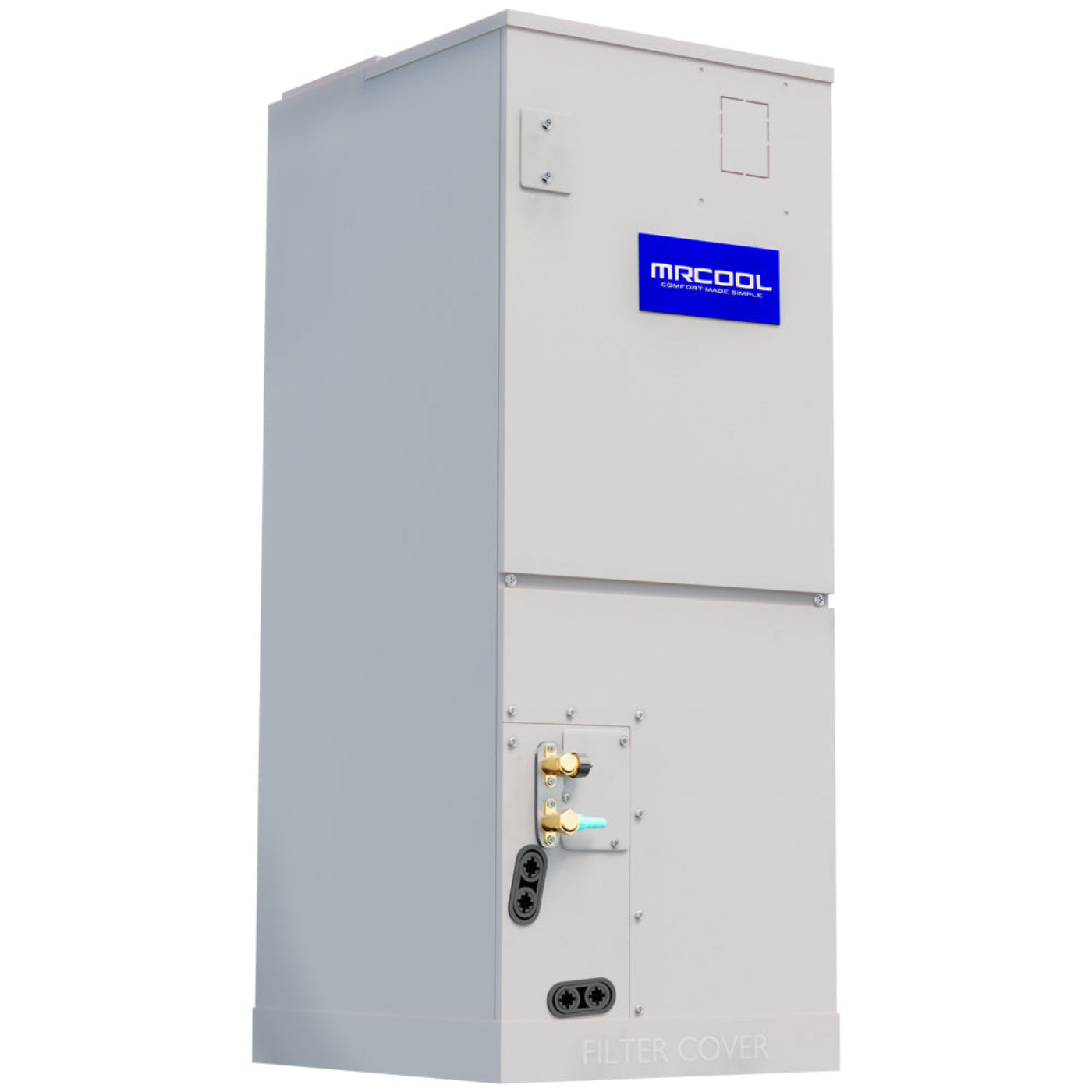

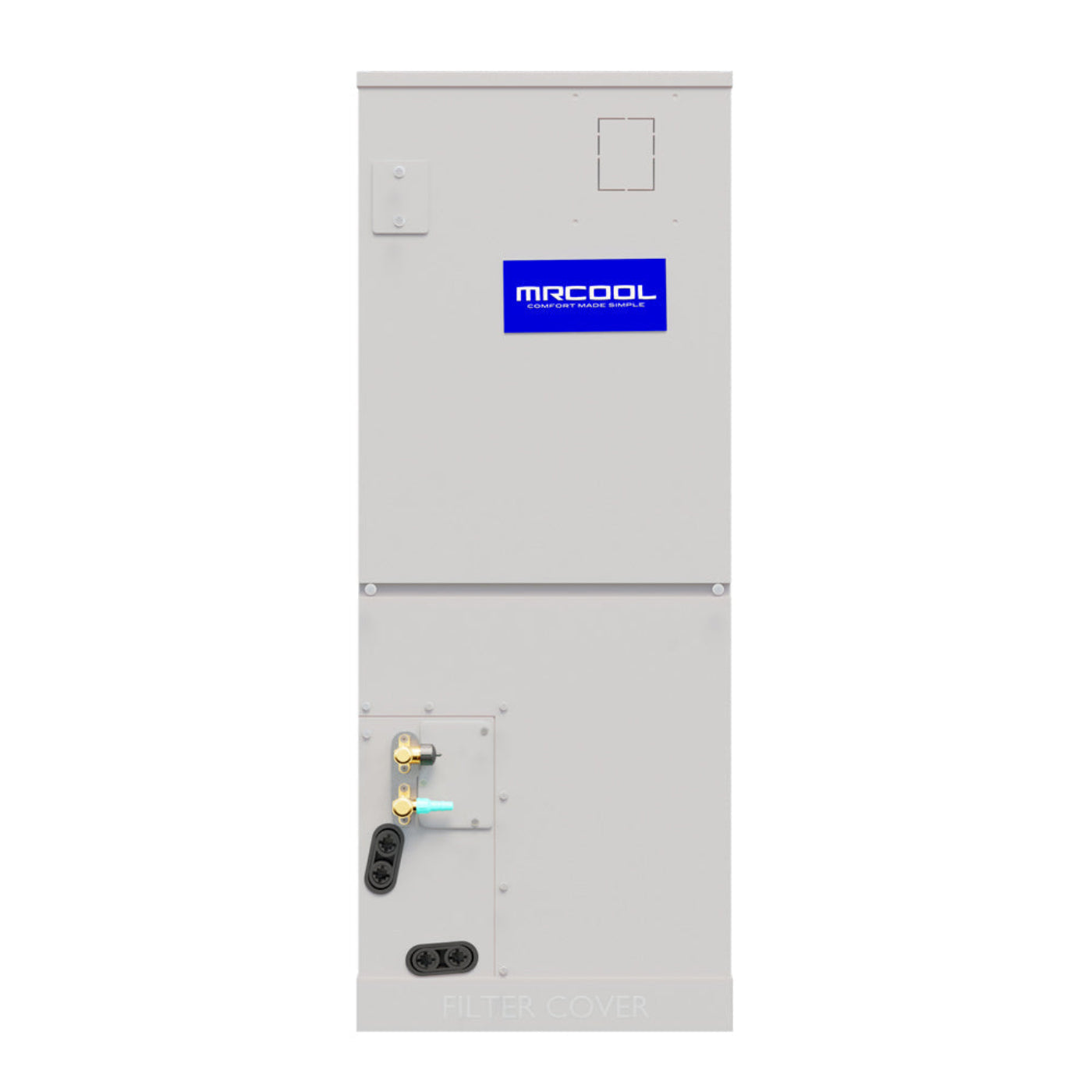

| Air Handler Dimensions |
21.02"W x
21.02"D x
49.02"H |
| Air Handler Weight |
128.53
lbs |
| SEER |
18.5 |
| EER |
10.3 |
| HSPF |
hspf4/hspf5: 9.5/8 |
| CFM |
894.12/805.88/711.76 |
| Cooling Capacity |
30,000 BTU |
| Heating Capacity |
30,000 BTU |
| Voltage |
Requires a minimum of
208-230V/60HZ/40A (please check your home meets this electrical requirement prior to purchase) |
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
40 |
| Min Circuit Ampacity |
25 |
| Color |
Gray |
| Rate Load |
0.65 |
| Zone Capacity |
1 |
| Coverage Area |
1,250 square feet |
| Refrigerant Type |
R410A |
| Refrigerant Volume |
111.11 oz |
| Decibel Rating |
46.5/43/39.5 |
| Decibel Rating Low |
39.5 |
| Decibel Rating High |
46.5 |
| Air Flow Direction |
Multi-position |
| Min Ambient Cool |
5~122F |
| Min Ambient Heat |
5~75.2F |
| Lineset Included |
Yes |
| Lineset Length |
25ft |
| Liquid Line Size |
3/8 in
|
| Suction Line Size |
5/8in |
| Compressor Motor Type |
Rotary |
| Condenser Fan Motor RPM |
1150/1050/900/850 |
| Filter Type |
Replaceable |
| Auxiliary Heater Included |
No |
| Auxiliary Heater Available |
Yes |
| Auxiliary Heater Sizes |
5kw, 8kw,10kw, 15kw |
| Adjustable Thermostat |
Yes |
| Modes |
Fan
Sleep
Auto Cool
|
| Includes |
Remote
Battery |
| App Compatibility |
No |
What our Experts Think
-
Optimal mid-size capacity: 30,000 BTU delivers consistent comfort for medium-sized homes.
-
High efficiency: 18.5 SEER ensures lower energy costs while maintaining reliable cooling and heating.
-
Complete ducted solution: Includes air handler and condenser for seamless whole-home integration.
-
Convenient installation: Comes with 25 ft. pre-charged line set to simplify setup and reduce installation time.
-
Durable MRCOOL engineering: Built for long-term performance and minimal maintenance.
Q&A
Q: What is the MRCOOL CENTRAL-30-HP-230-25?
A: A 30,000 BTU (2.5-ton) ducted air handler and condenser with 18.5 SEER efficiency and a 25 ft. pre-charged line set.
Q: How efficient is it?
A: Rated 18.5 SEER, offering energy savings and consistent home comfort.
Q: What spaces is it suitable for?
A: Ideal for medium-sized homes, depending on insulation and climate.
Q: Is it easy to install?
A: Yes, includes a 25 ft. pre-charged line set for faster, simpler installation.
Q: Why choose MRCOOL CENTRAL-30-HP-230-25?
A: Provides reliable performance, high efficiency, and ready-to-install convenience for central HVAC upgrades.
Maintenance Tips
-
Replace or clean air filters every 1–3 months to maintain airflow and indoor air quality.
-
Keep outdoor condenser clear of debris, leaves, and vegetation to ensure efficient heat exchange.
-
Inspect refrigerant lines and electrical connections periodically to prevent leaks or faults.
-
Clean evaporator and condenser coils annually for optimal cooling performance.
-
Check condensate drain lines regularly to prevent clogs and water damage.
-
Schedule yearly professional maintenance to verify refrigerant levels, electrical connections, and system performance.
-
Use a programmable thermostat to optimize comfort, reduce energy costs, and extend system lifespan.
-
Ensure ducts are sealed and unobstructed to maximize efficiency.
