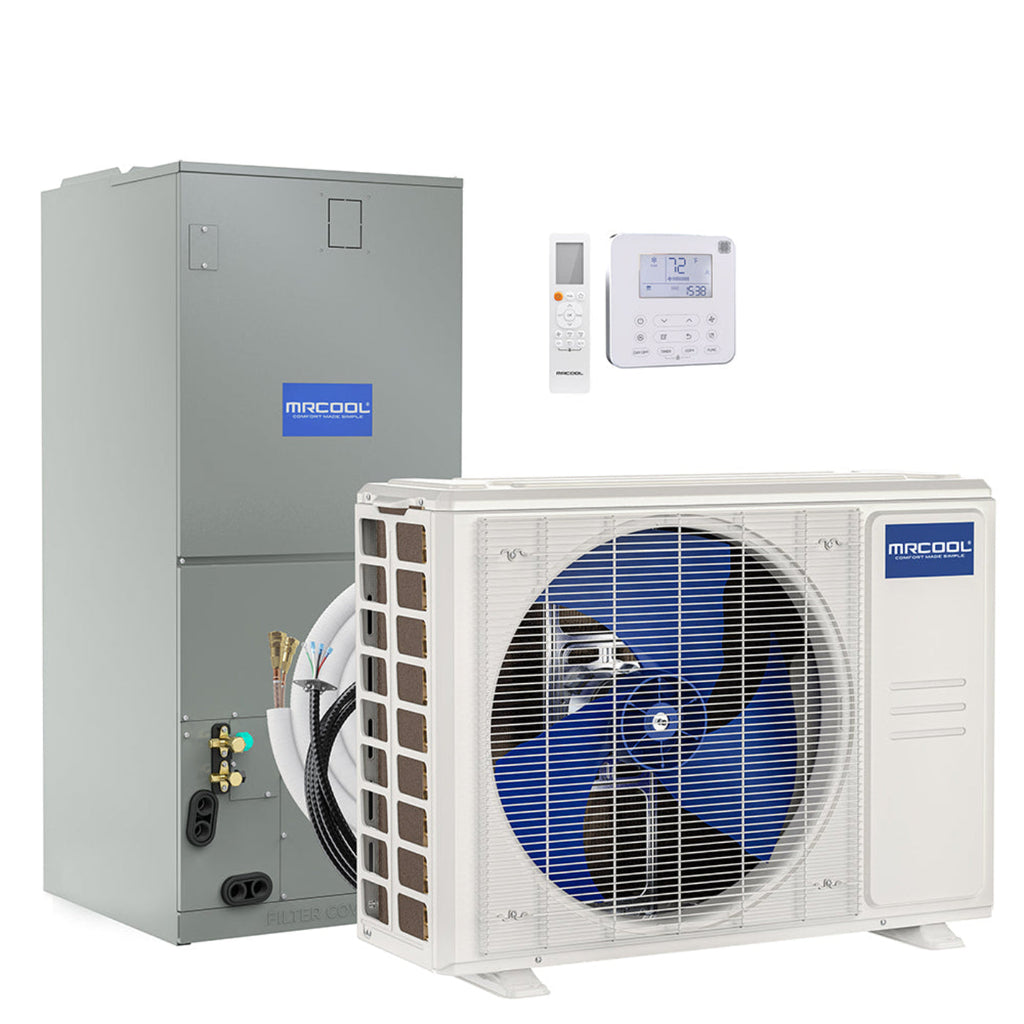

MRCOOL 36K BTU 18 SEER Ducted Air Handler and Condenser, - CENTRAL-36-HP-230-00

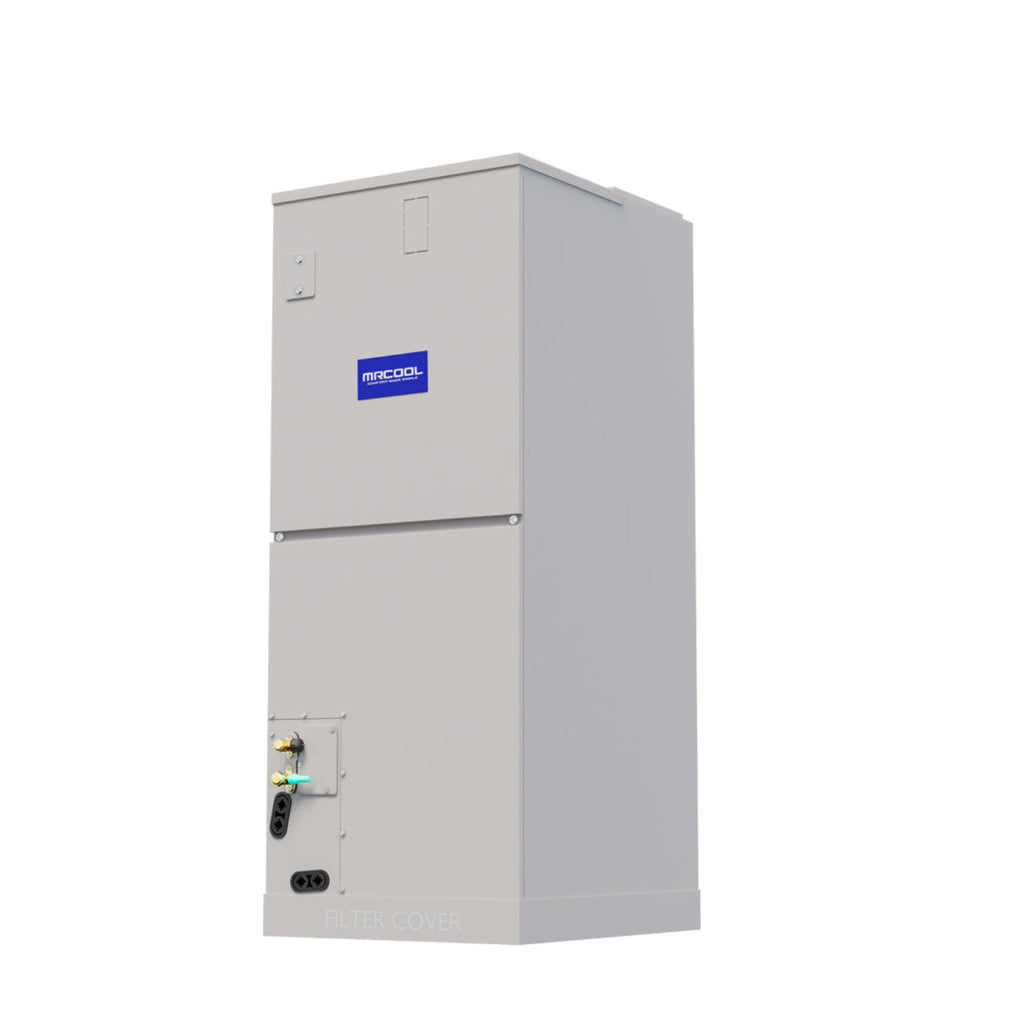

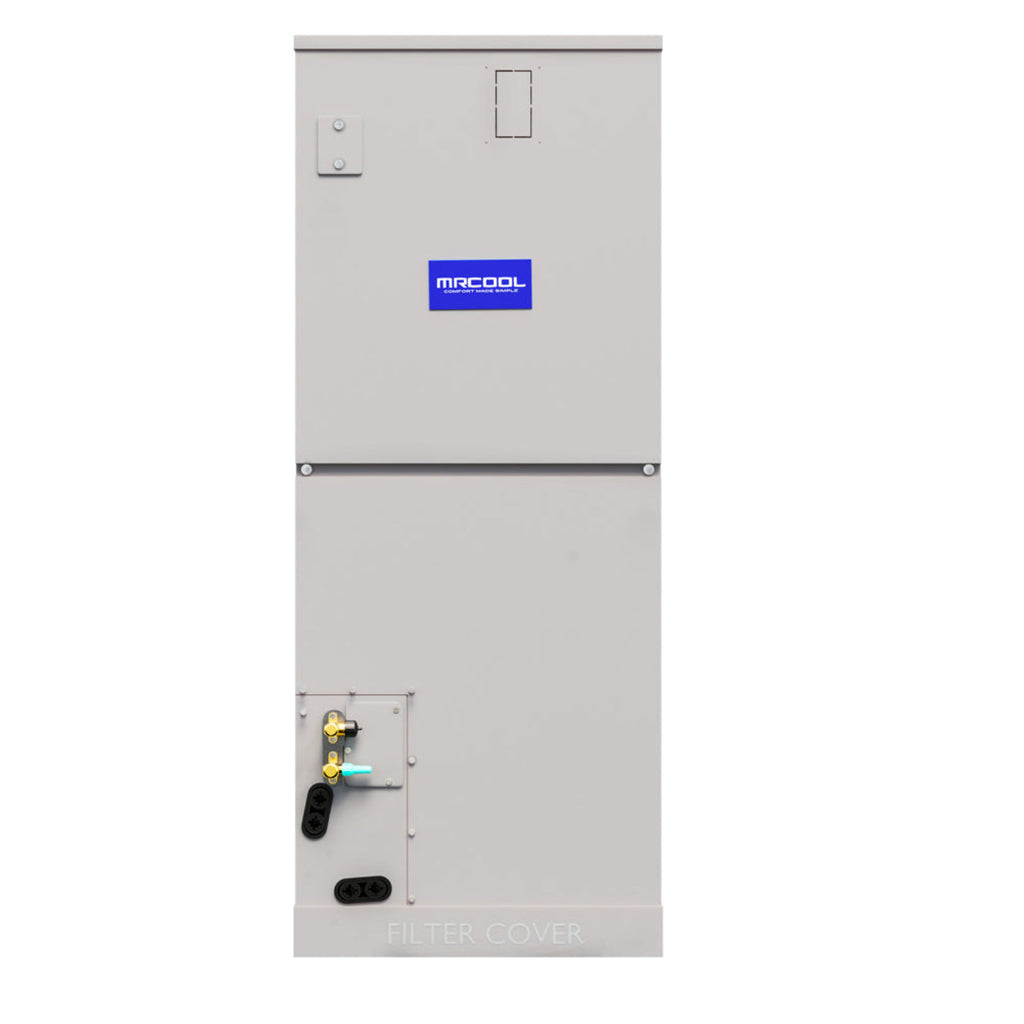

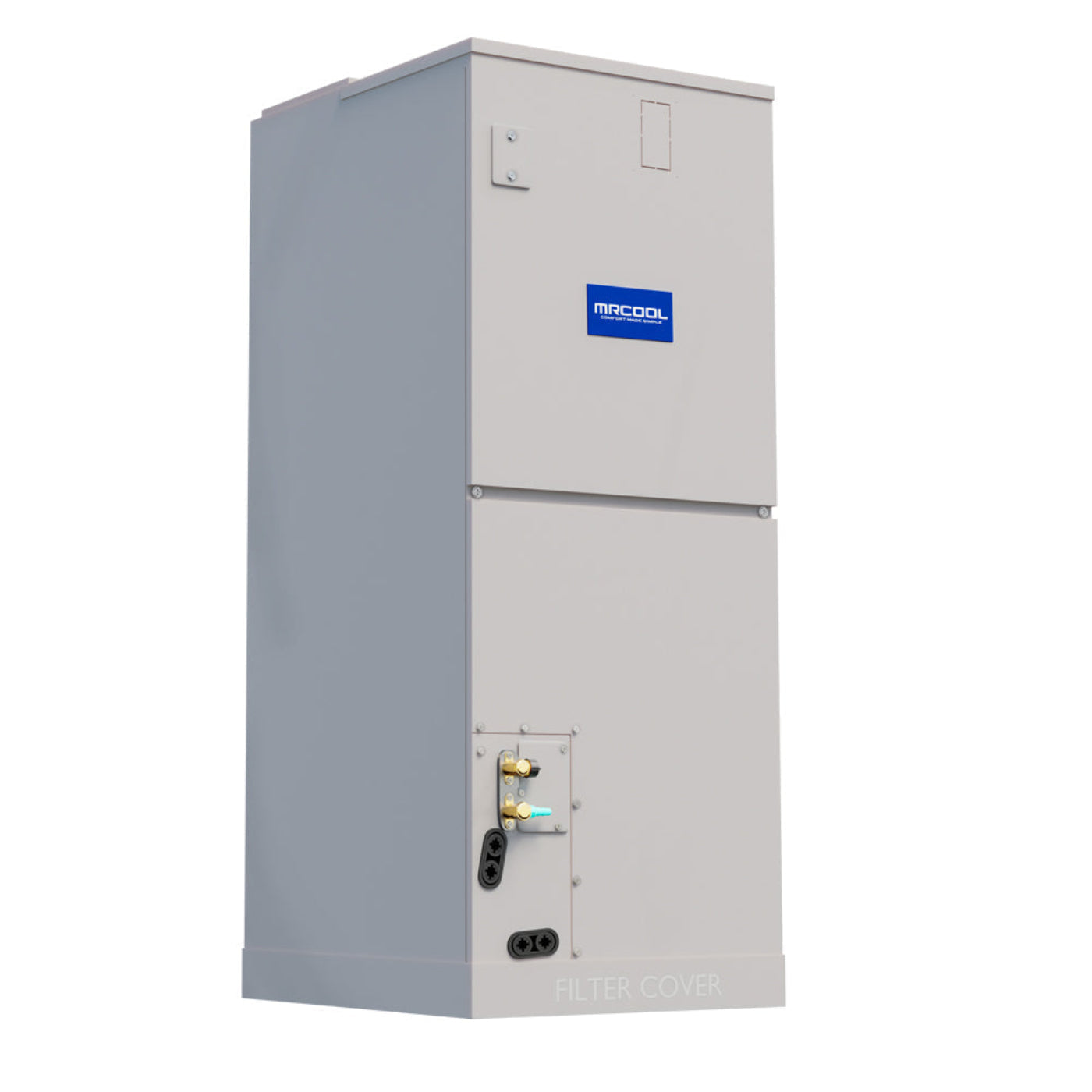

This MRCOOL 36k BTU up to 18 SEER Central Ducted DC Inverter Heat Pump System will be one of the best decisions that you could make for your comfort, as it’ll help you save money and time, all while increasing your comfort! Take your comfort to the next level as you enjoy the temperature you deserve throughout 1,500 square feet. The affordable multi-position air handler can accommodate upflow, downflow, horizontal left and horizontal right airflow configurations. This system is compatible with the MrCool® No-Vac Quick Connect line set. This system’s variable speed condenser is able to keep energy consumption low and comfort levels high.
You can identify any error codes on the handler’s panel or on the thermostat. You’ll be breathing clean thanks to the use of filters, making for a pure and comfortable living environment. This system is protected by a 10 year parts warranty and a 10 year service warranty. Trust in this MRCOOL 36k BTU 18 SEER Central Ducted DC Inverter Heat Pump System to bring you the comfort you crave and save you money.
Features
-
High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.
-
Multi-Positional. The unit is compatible with upflow, counterflow and horizontal configurations.
-

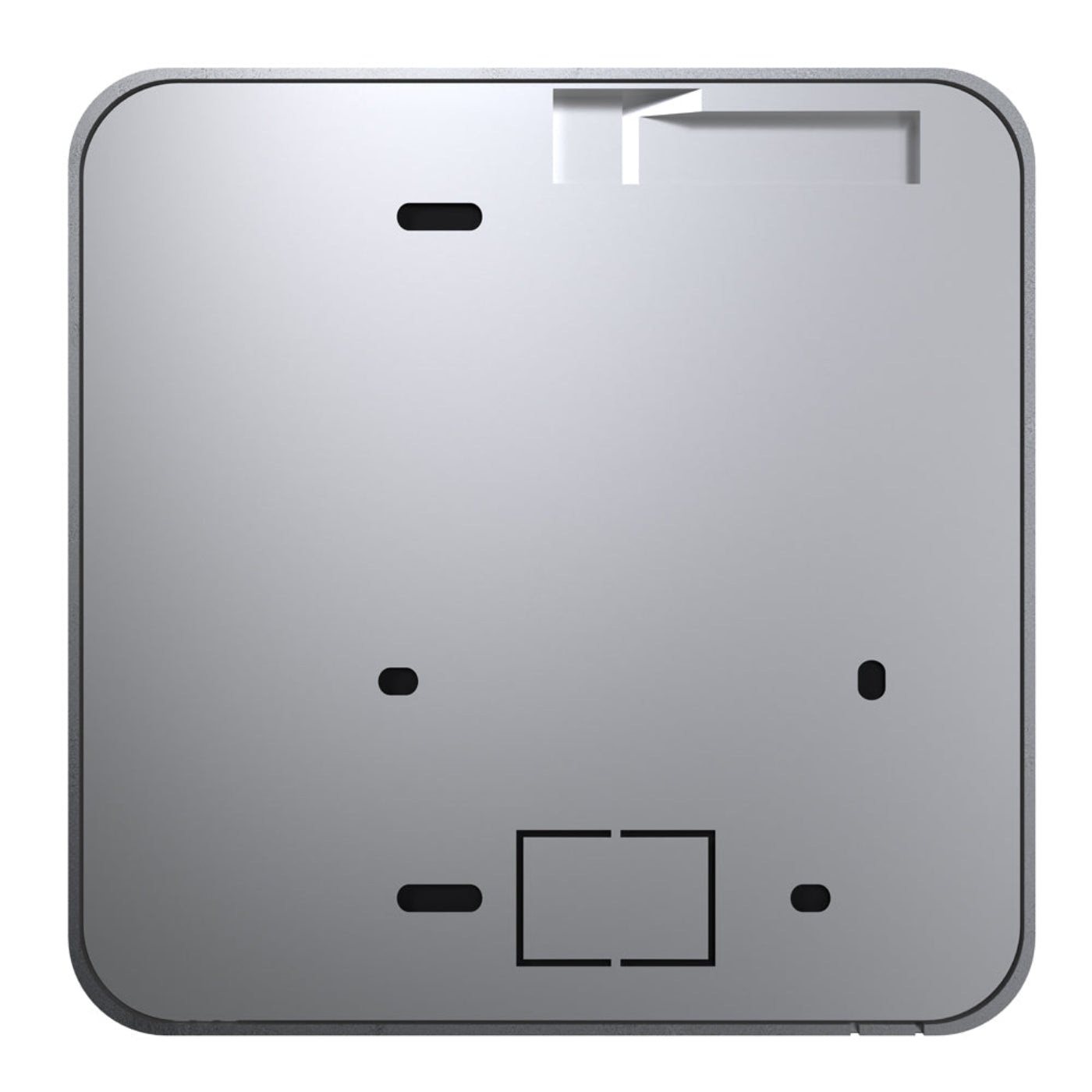

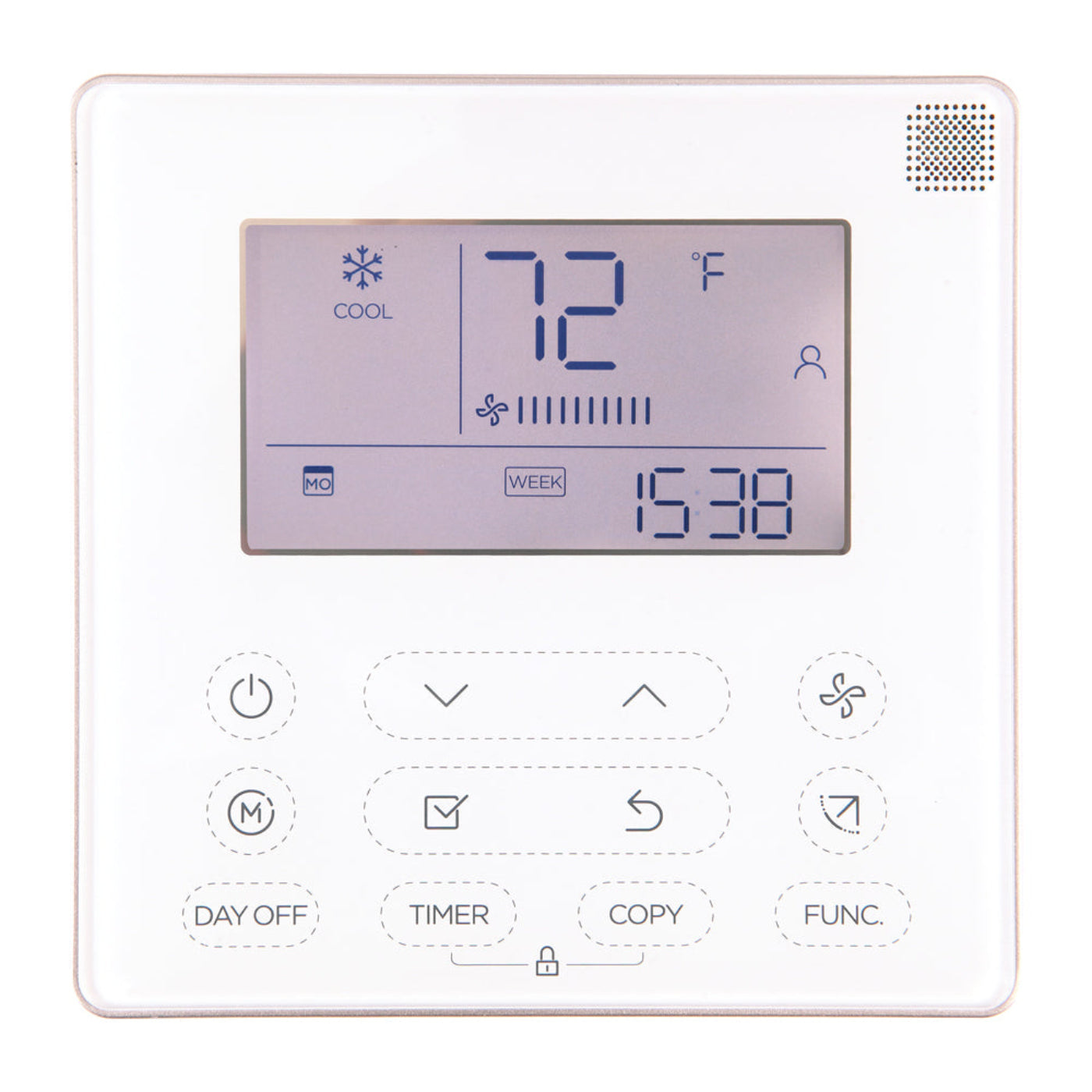

Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!
-

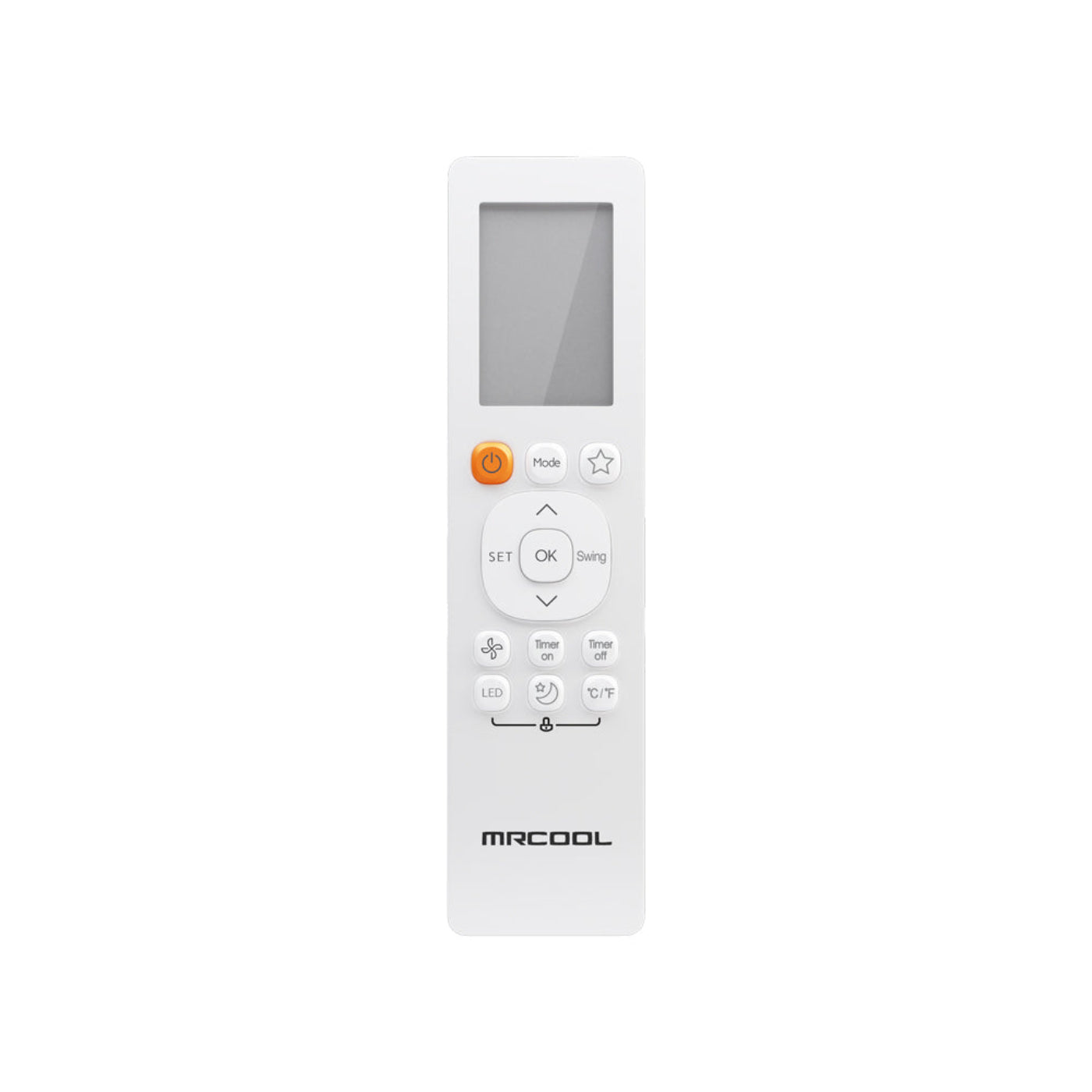

Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.
- R-410A environmentally friendly refrigerant
Specifications
| Condenser Dimensions |
37.24"W x
16.14"D x
31.89"H |
| Condenser Weight |
151.68 lbs |
| Air Handler Dimensions |
21.02"W x
21.02"D x
49.02"H |
| Air Handler Weight |
129.63
lbs |
| SEER |
18 |
| EER |
10.4 |
| HSPF |
hspf4/hspf5: 9.1/7.1 |
| CFM |
1082.35/970.59/864.71 |
| Cooling Capacity |
36,000 BTU |
| Heating Capacity |
36,000 BTU |
| Voltage |
Requires a minimum of
208-230V/60HZ/40A (please check your home meets this electrical requirement prior to purchase) |
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
40 |
| Min Circuit Ampacity |
24 |
| Color |
Gray |
| Rate Load |
1.48 |
| Zone Capacity |
1 |
| Coverage Area |
1,500 Square Feet |
| Refrigerant Type |
R410A |
| Refrigerant Volume |
130.51 oz |
| Decibel Rating |
46.8/44/41.3 |
| Decibel Rating Low |
41.3 |
| Decibel Rating High |
46.8 |
| Air Flow Direction |
Multi-position |
| Min Ambient Cool |
5~122F |
| Min Ambient Heat |
5~75.2F |
| Lineset Included |
No |
| Liquid Line Size |
3/8 in
|
| Suction Line Size |
3/4in |
| Compressor Motor Type |
Rotary |
| Condenser Fan Motor RPM |
1150/1050/900/850 |
| Filter Type |
Replaceable |
| Auxiliary Heater Included |
No |
| Auxiliary Heater Available |
Yes |
| Auxiliary Heater Sizes |
5kw,8kw,10kw, 15kw, 20kw |
| Adjustable Thermostat |
Yes |
| Modes |
Fan
Sleep
Auto Cool
|
| Includes |
Remote
Battery |
| App Compatibility |
No |
What our Experts Think
-
Balanced 36 000 BTU performance: This 18 SEER central ducted system delivers reliable heating and cooling for homes up to ~1 500 sq ft with consistent comfort year‑round. Refrigerant type is R‑410A, a modern eco‑friendly choice.
-
Complete matched system: Includes a 36 K BTU ducted air handler and matching condenser, engineered to work together for efficient airflow and performance.
-
Flexible installation: Multi‑position air handler can be installed upflow, horizontal, or downflow to fit varied mechanical layouts and ductwork configurations.
-
Comfort control: System includes a wired thermostat plus modes like auto cool, timer, and fan‑only, giving users versatile climate control options.
-
Efficient airflow performance: Air handler supports multiple fan speeds (~1080–860 CFM), helping maintain comfort at various load levels.
-
Ready for optional heat: Compatible with auxiliary heating kits (e.g., 5–20 kW) if supplemental heat is desired in colder climates.
-
SEO & Merchant Center optimized: Includes high‑impact terms like 36 000 BTU central ducted system, 18 SEER, matched condenser + air handler, multi‑position install, and 10‑year warranty to help improve search visibility and conversions.
Q&A
Q: What is included with this system?
A: Includes a 36,000 BTU ducted indoor air handler and outdoor condenser. Refrigerant line sets, thermostats, and installation hardware are sold separately.
Q: What is the SEER rating?
A: Features 18 SEER efficiency, delivering energy-efficient cooling and comfort year-round.
Q: What voltage and phase does it require?
A: Operates on 230V / 60Hz, single phase power.
Q: What type of system is this?
A: Central ducted air handler and condenser split system, ideal for heating and cooling larger rooms or multi-room areas via ductwork.
Q: What refrigerant does it use?
A: Uses R-410A refrigerant, which is environmentally friendly and energy-efficient.
Q: What size area can it serve?
A: Efficiently cools and heats spaces up to approximately 1,800–2,200 sq. ft., depending on insulation and layout.
Q: Is this system energy efficient?
A: Yes, it provides high SEER efficiency, inverter-driven compressor technology, and quiet operation.
Q: What style or design features does it have?
A: Outdoor condenser has durable, weather-resistant housing, and the indoor ducted air handler features compact design for easy installation in closets or attics.
Maintenance Tips
-
Clean Filters Monthly: Ensure optimal airflow and efficiency.
-
Inspect Coils & Fins: Keep indoor/outdoor coils clean; straighten fins if bent.
-
Clear Debris Around Outdoor Unit: Prevent airflow obstruction and overheating.
-
Check Refrigerant Lines: Inspect for leaks and proper insulation annually.
-
Schedule Professional Tune-Up: Yearly service maintains peak performance and extends system life.
