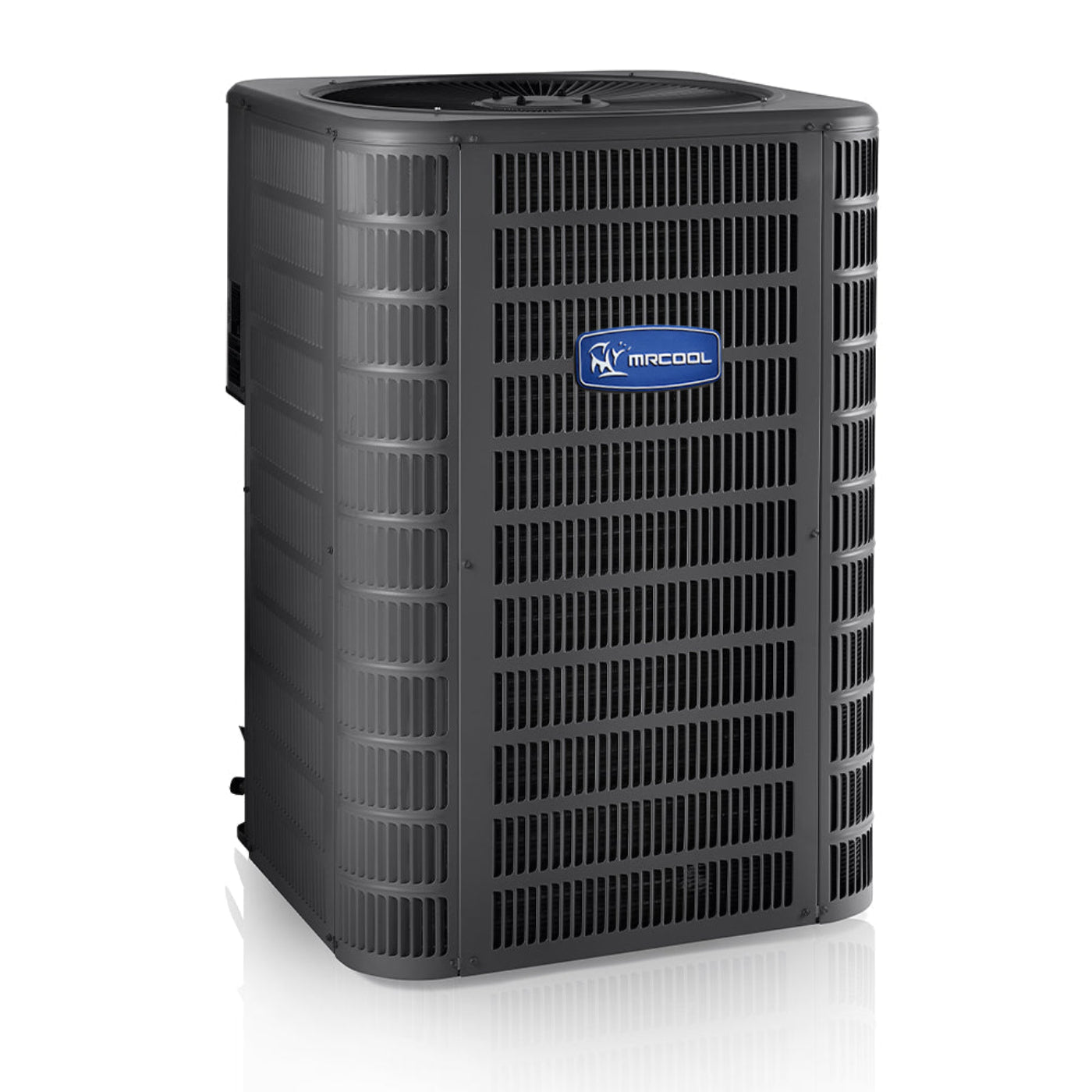

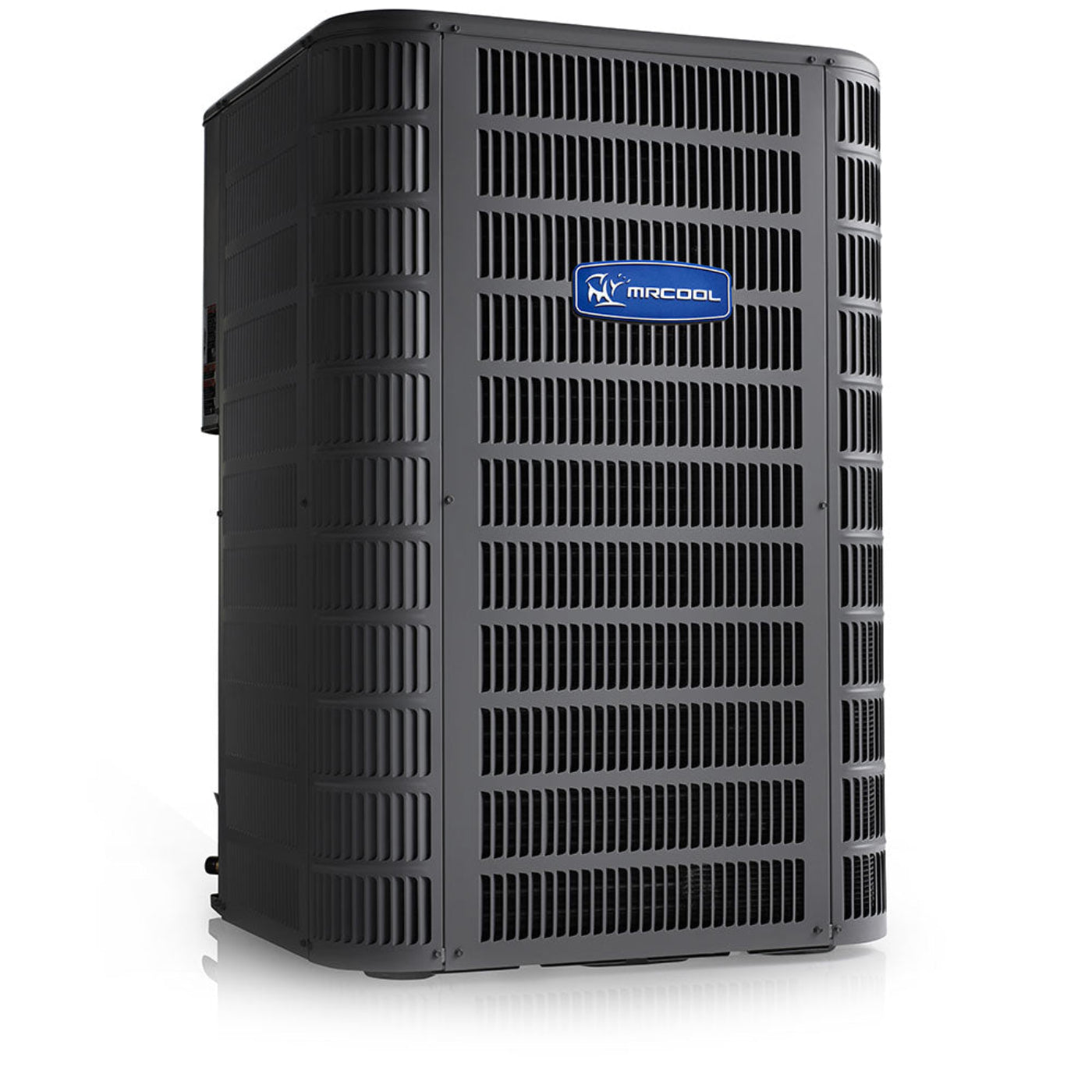

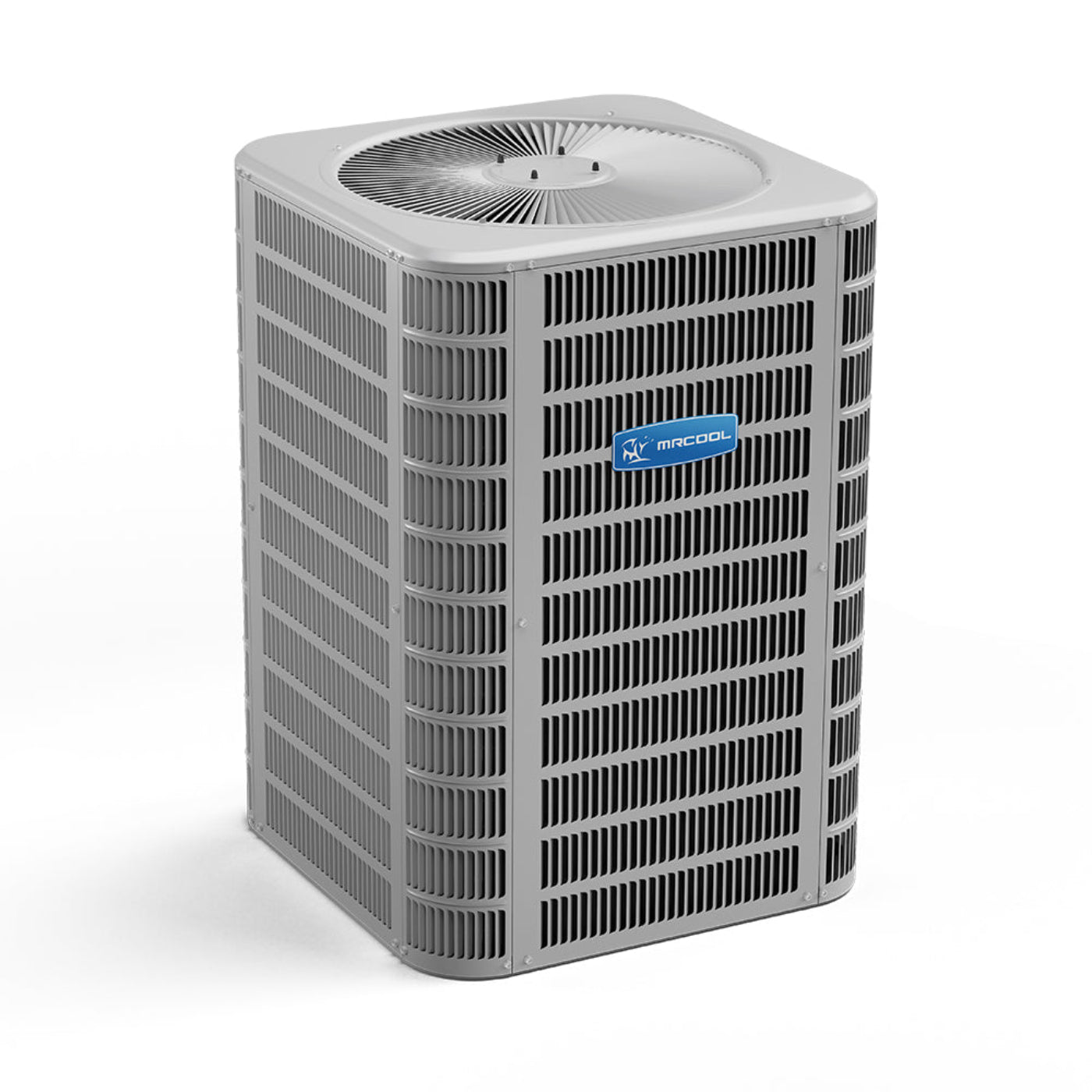

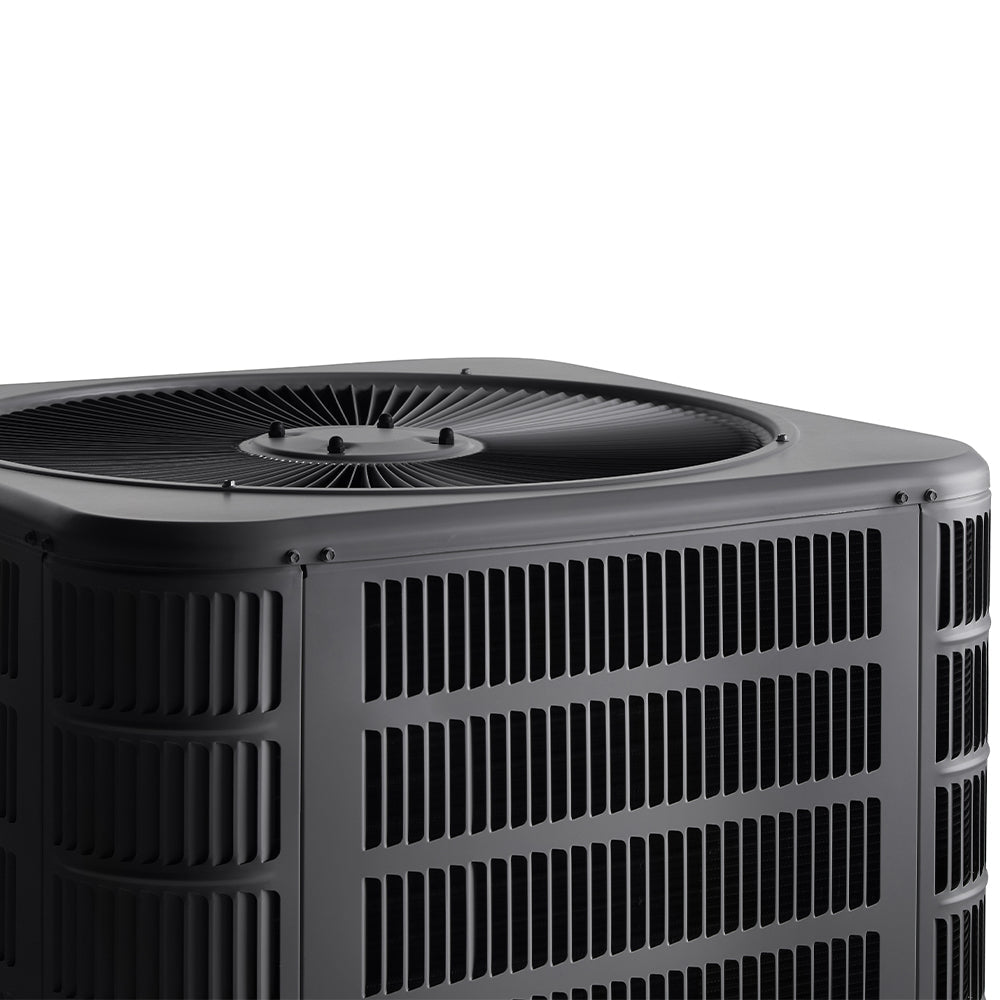

MRCOOL 4 Ton 16 SEER Split System Air Conditioner Condenser, - MAC16048A
Do you need cooling relief right away? How about a decreasing utility bill? Thanks to MRCOOL, you can have all these things and more with our Split System A/C Condensers. This is a brand new 4 ton, 208-230 volt, R410-A refrigerant, MRCOOL outdoor condenser. This condenser (when paired with other MRCOOL products) has a seasonal energy efficiency rating of up to 16 SEER, providing maximum comfort cooling. Thanks to its high energy efficiency, you will see your utility bill decline year after year. This unit only provides "cooling" (this is NOT a heat pump).
Features
-
CoolGuard total corrosion protection technology designed coil

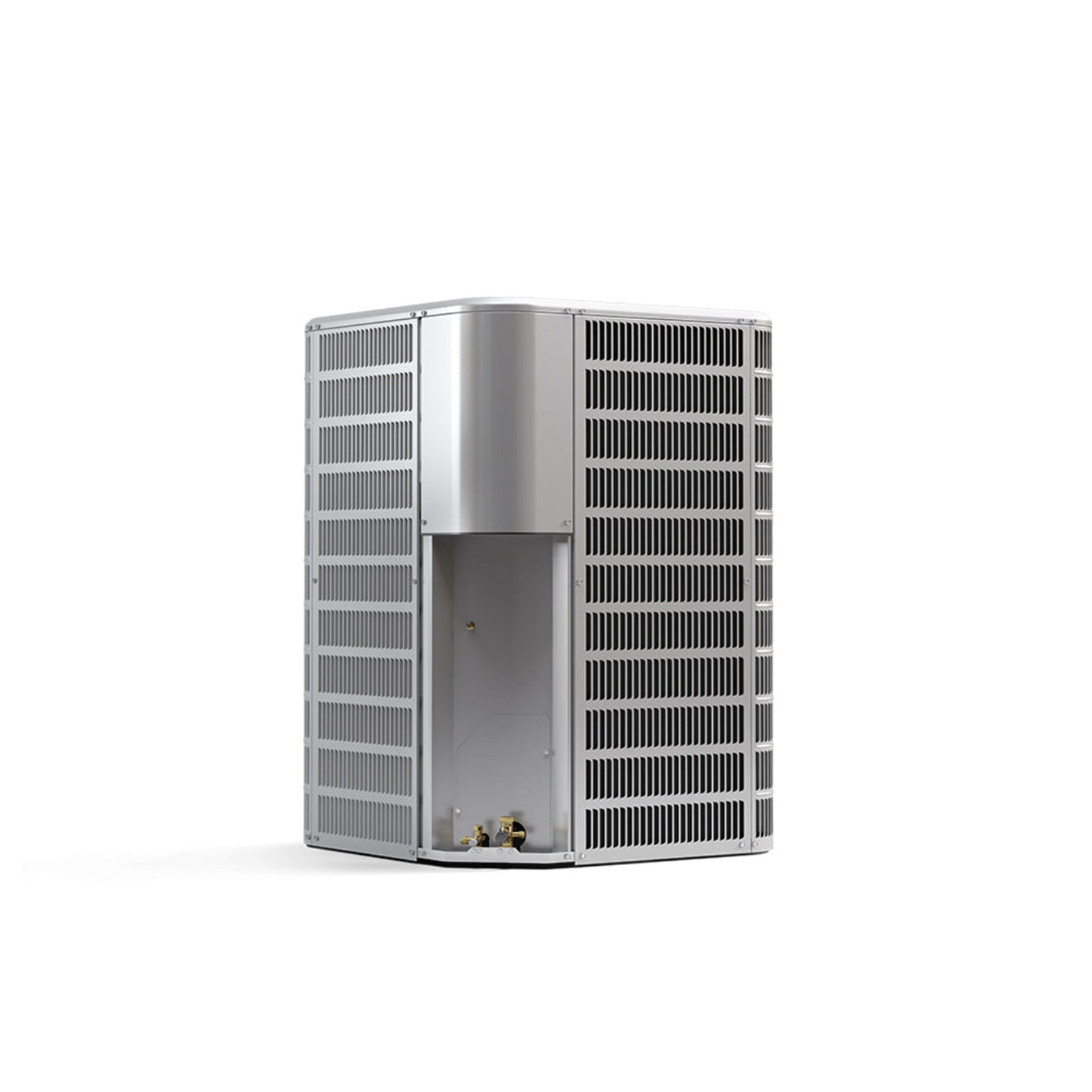

- Corner-mounted controls for easy service
- Full metal louvered construction to protect the coil/ hail protection
- Factory installed high pressure switch
- Thread-on pressure switches for simple, quick replacement
- 10 year limited warranty on compressor
- Charged for 15 feet of line set

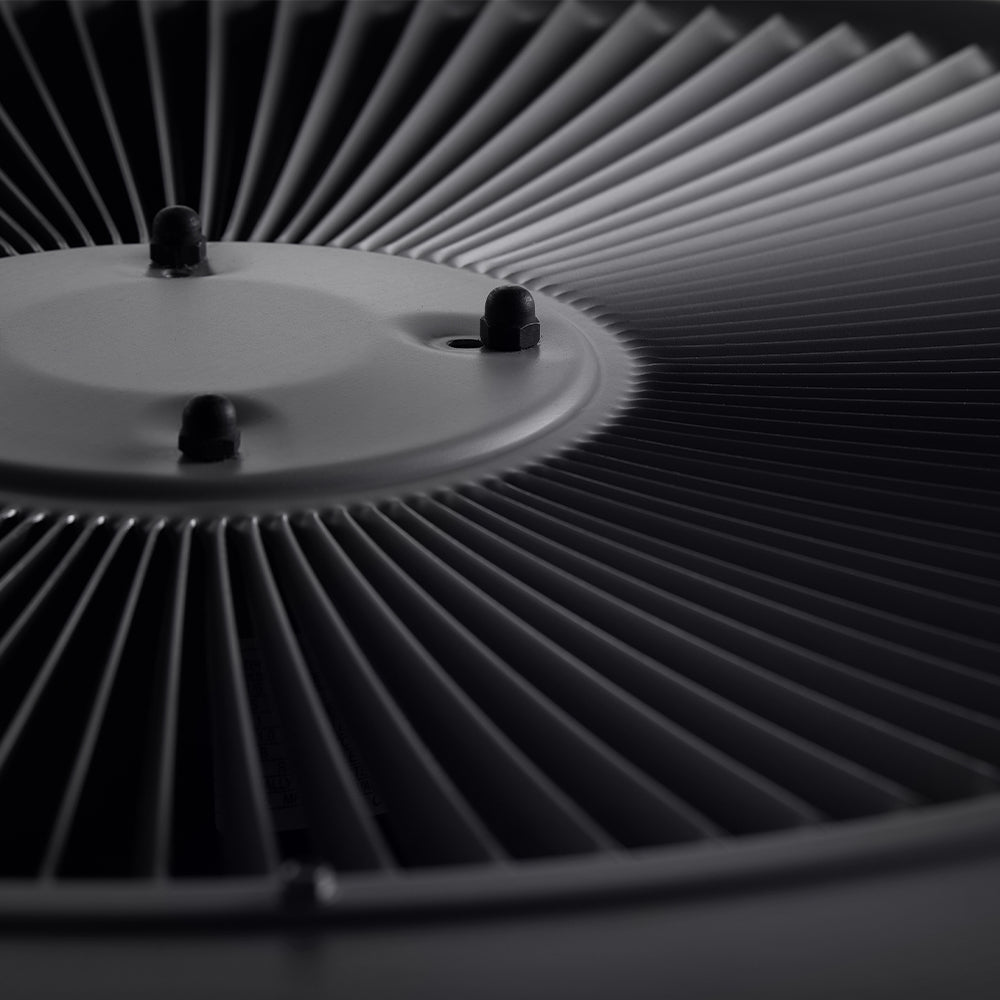

- Fan orifice for smoother airflow and sound level reduction
- Lanced fins for maximum heat transfer
- Every coil factory tested for leak proof construction
- All units ETL and ETLC approved and AHRI Certified
- Internally protected against high temperature motor overload conditions
Specifications
| Product Dimensions |
28.25"W x
37"D x
28.25"H |
| Product Weight |
218 lbs |
| Unit Type |
Split System AC Condensers |
| SEER |
up to 16
|
| Max SEER |
16 |
| EER |
11.7 |
| CFM |
1500-1600 |
| Tonnage |
4 |
| Cooling Capacity |
46500-47500 |
| Voltage |
Requires a minimum of 208V-230V/60HZ/
40A (please check your home meets this electrical requirement prior to purchase)
|
| Phase |
1 |
| Cycle |
60 |
| Stage |
Single |
| Max Fuse Breaker |
40 A |
| Min Circuit Ampacity |
24.2 |
| Color |
Gray |
| Rated Load |
18 |
| Max Coverage Area |
2000 |
| Refrigerant Type |
R-410A |
| Refrigerant Volume |
156 |
| Decibel Rating |
78 |
| Min Ambient Cool |
(-20F)
|
| Line Set Length |
15ft, 25ft, 35ft, 50ft |
Max
Line Set Length |
50ft
|
| Line Set Fitting Type |
Sweat |
| Liquid Line Size |
3/8 in |
| Suction Line Size |
7/8 |
| Compressor Motor Type |
Scroll |
| Condenser Fan Motor Type |
Direct Drive |
| Condenser Fan Motor HP |
1/4 |
| Condenser Fan Motor RPM |
825 |
| Metering Device |
TXV |
| Auxiliary Heater |
Yes |
| Auxiliary Heater Sizes |
7.5kw, 10kw, 15kw, 20kw |
Manual
What our Experts Think
-
Powerful 4 Ton cooling capacity: Designed to deliver strong, consistent cooling for larger homes or commercial spaces—perfect where high performance is needed. SEER up to 16 means improved energy efficiency and potential utility savings.
-
R‑410A refrigerant: Environmentally friendly cooling performance that aligns with modern HVAC standards.
-
Built‑for durability: CoolGuard corrosion protection, full metal louvered construction, and factory‑tested leak‑proof coils deliver long‑lasting reliability—even in harsh conditions.
-
Service‑friendly design: Corner‑mounted controls and thread‑on pressure switches make maintenance and service tasks easier for HVAC pros.
-
Quiet, efficient operation: Lanced fins and optimized airflow reduce noise while maintaining smooth, powerful cooling.
-
Certified & backed: ETL, ETLC, and AHRI certifications ensure performance and safety; 10‑year limited compressor warranty offers long‑term peace of mind.
-
Pro‑installation ready: Requires a licensed HVAC technician for installation (not DIY), and is compatible with matched indoor units for best performance.
-
Search‑optimized appeal: Uses high‑intent terms like 4 ton AC condenser, 16 SEER cooling, R‑410A, durable construction, and long warranty to help improve Merchant Center visibility and drive conversions.
Q&A
Q: What is included with this unit?
A: Includes a 4 Ton outdoor condenser unit. Indoor air handler, refrigerant line set, and installation hardware are sold separately.
Q: What is the SEER rating?
A: This condenser provides 16 SEER efficiency, delivering energy-efficient cooling for residential and commercial applications.
Q: What voltage does it require?
A: Operates on 230V / 60Hz power.
Q: What type of installation is required?

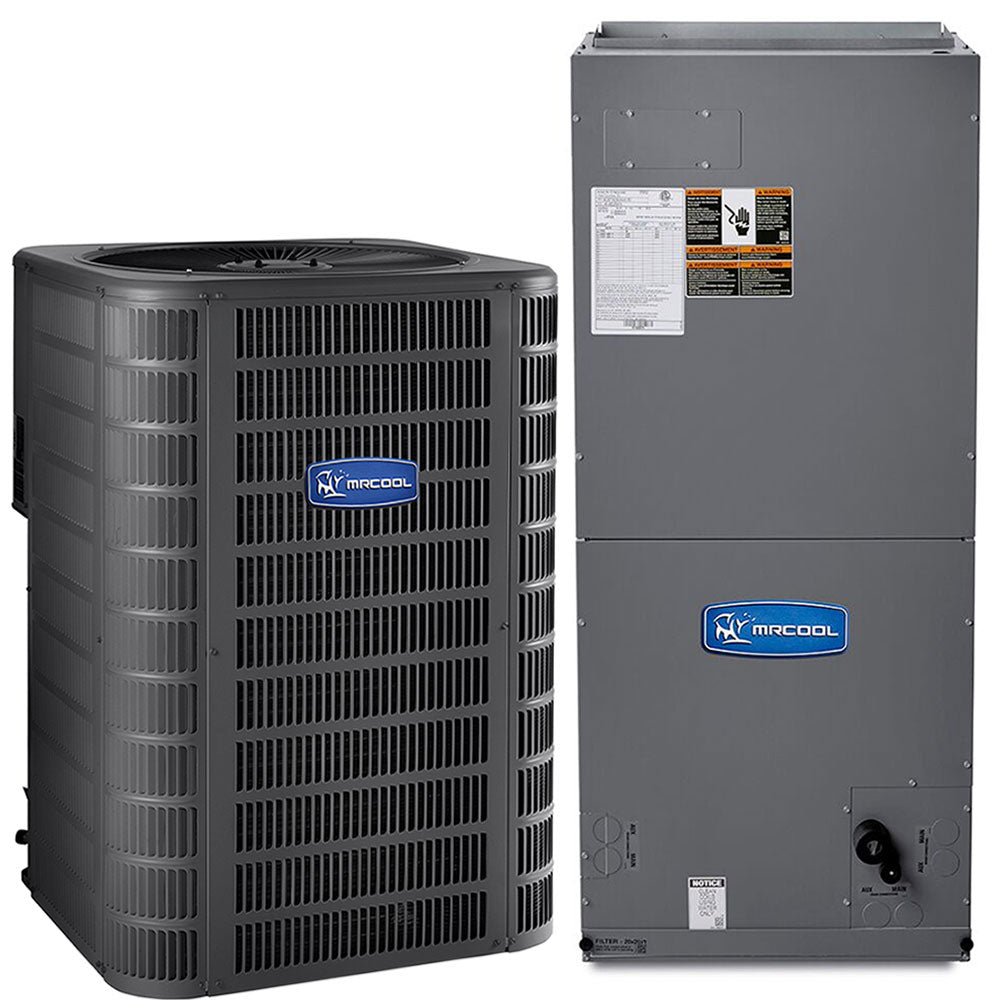

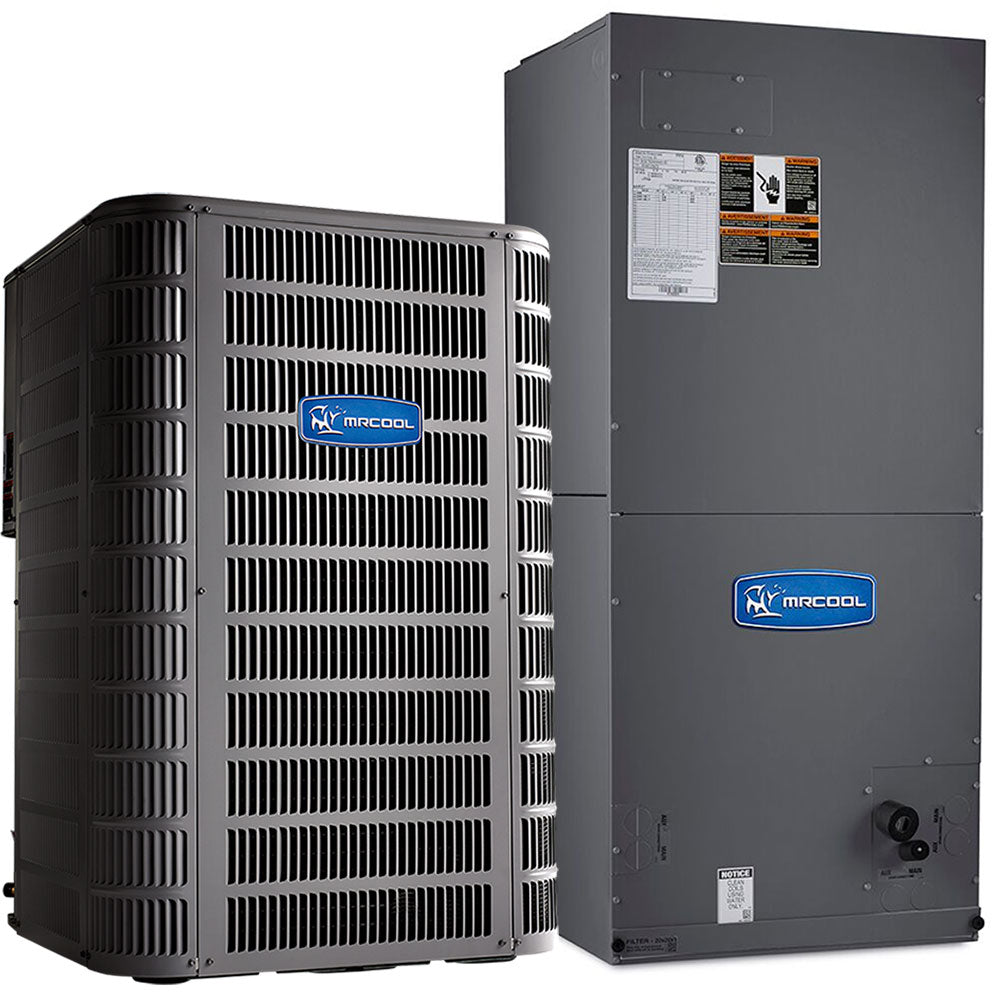

A: Designed for split-system installation, compatible with MRCOOL indoor air handlers or existing ductwork.
Q: What refrigerant does it use?
A: Uses R-410A refrigerant, which is environmentally friendly and highly efficient.
Q: What size area can it cool?
A: Efficiently cools spaces of approximately 2,400–2,800 sq. ft., depending on insulation and layout.
Q: Is this system energy efficient?
A: Yes, it offers high SEER efficiency, quiet operation, and reliable cooling performance.
Q: What style or design does this unit have?
A: Features a durable, weather-resistant outdoor condenser design with corrosion-resistant coating for long-lasting operation
Maintenance Tips
-
Professional installation: Always have this condenser installed by a qualified HVAC technician to ensure correct refrigerant charge, electrical setup, and full SEER performance. It’s designed for 208–230 V and R‑410A refrigerant and should be matched with compatible indoor equipment.
-
Keep the condenser clear: Regularly remove leaves, dirt, grass, and debris from around the unit and clean the condenser coils to maintain airflow and efficiency. Shut off power before cleaning and gently rinse coils (avoid high‑pressure water which can bend fins).
-
Check for corrosion and damage: Inspect the CoolGuard™ corrosion‑protected coil and metal louvers for damage or rust, especially after extreme weather. Promptly clear blockages to protect performance and longevity.
-
Monitor refrigerant and pressure: During annual service, have a technician verify proper refrigerant level and inspect the factory‑installed high‑pressure switch and pressure connections for leaks.
-
Electrical & fan checks: Ensure electrical connections, fan motor, and condenser fan are inspected yearly for wear and secure wiring.
-
Ventilation & clearance: Keep at least 2–3 ft of clearance around the unit and avoid covering it, so airflow is not restricted.
-
Annual professional service: Schedule yearly HVAC maintenance to check coils, wiring, pressures, and overall system function for reliability and peak performance.
