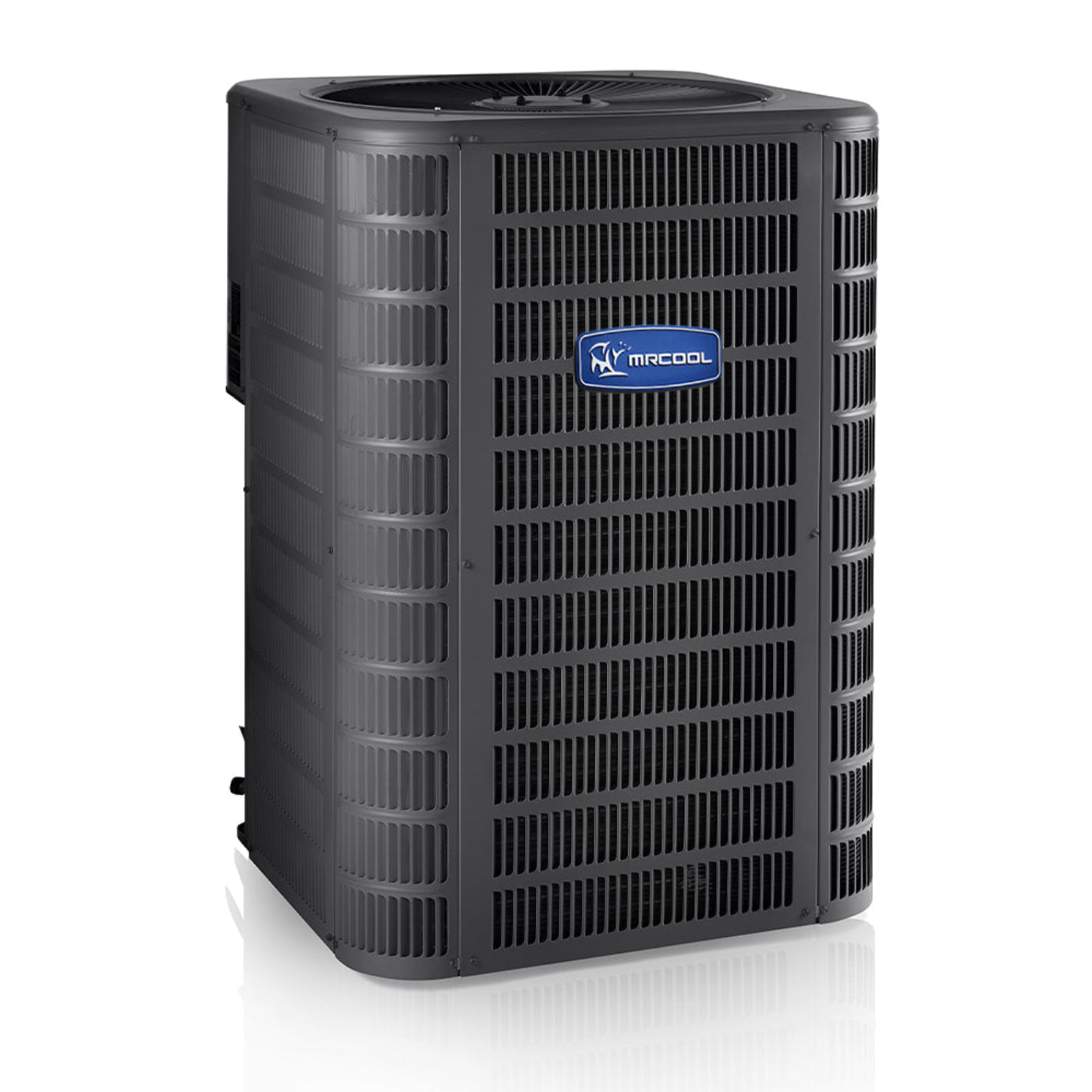

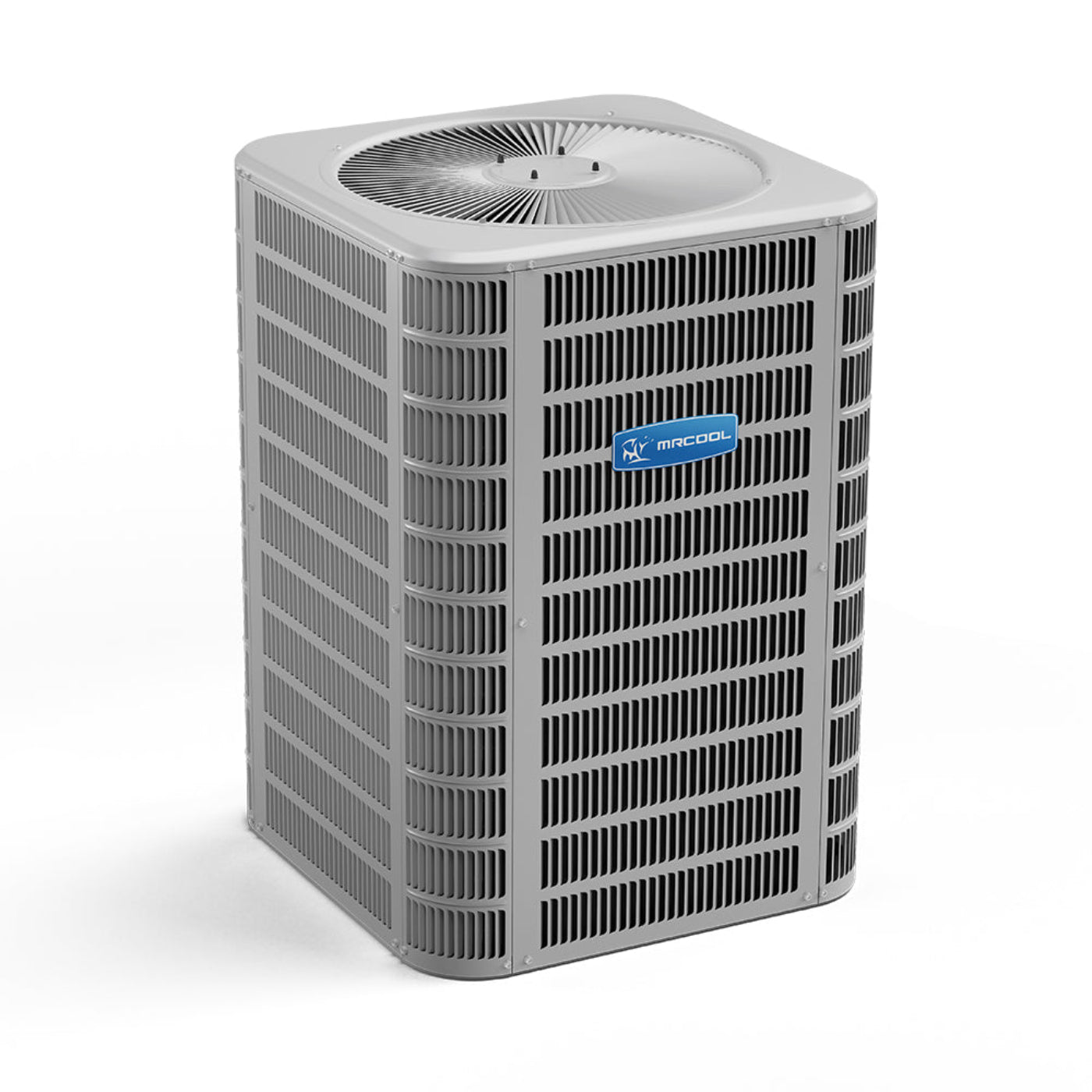

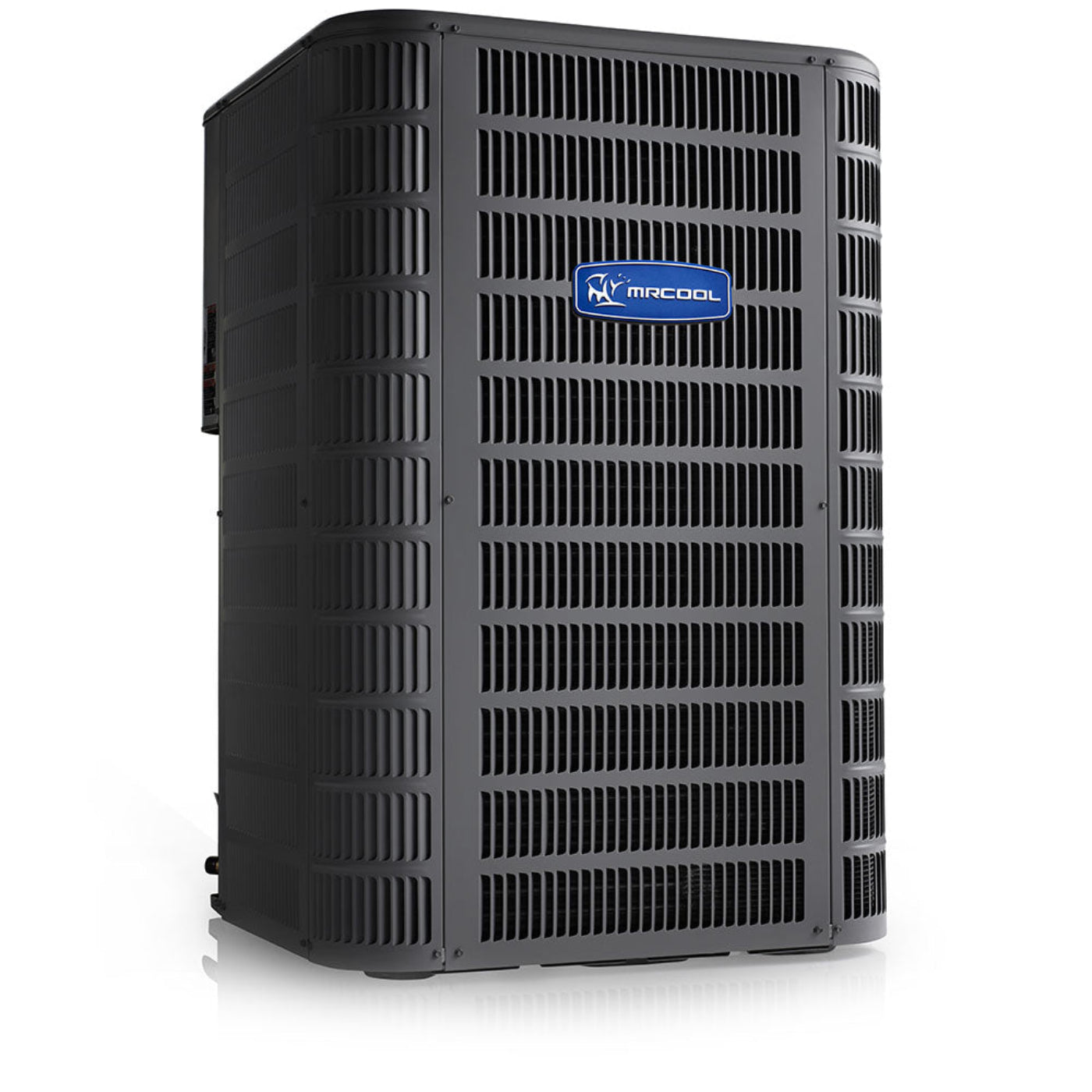

MRCOOL 5 Ton 16 SEER Split System Air Conditioner Condenser, - MAC16060A
Do you need cooling relief right away? How about a decreasing utility bill? Thanks to MRCOOL, you can have all these things and more with our Split System A/C Condensers. This is a brand new 5 ton, 208-230 volt, R410-A refrigerant, MRCOOL outdoor condenser. This condenser (when paired with other MRCOOL products) has a seasonal energy efficiency rating of up to 16 SEER, providing maximum comfort cooling. Thanks to its high energy efficiency, you will see your utility bill decline year after year. This unit only provides "cooling" (this is NOT a heat pump).
Features
-
CoolGuard total corrosion protection technology designed coil

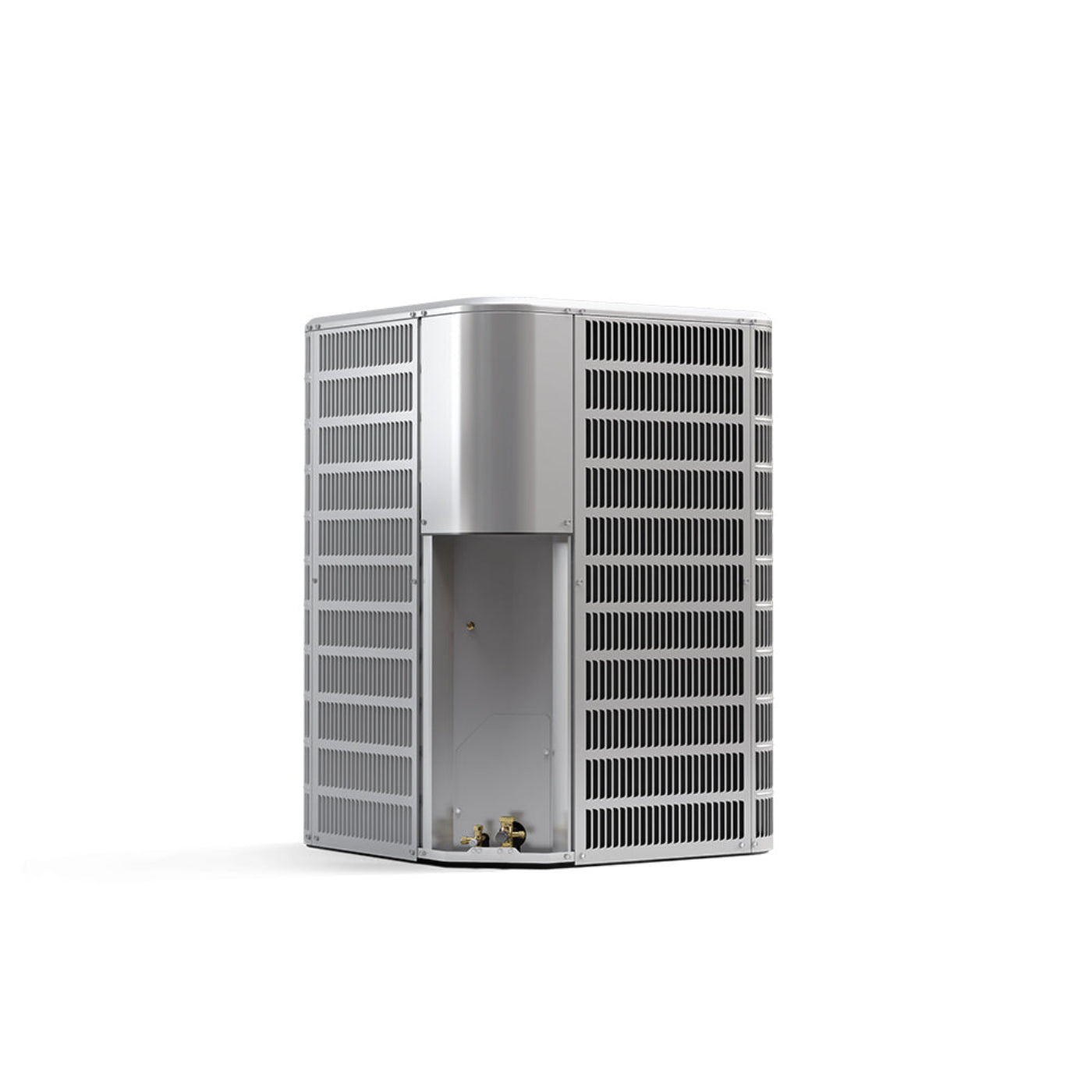

- Corner-mounted controls for easy service

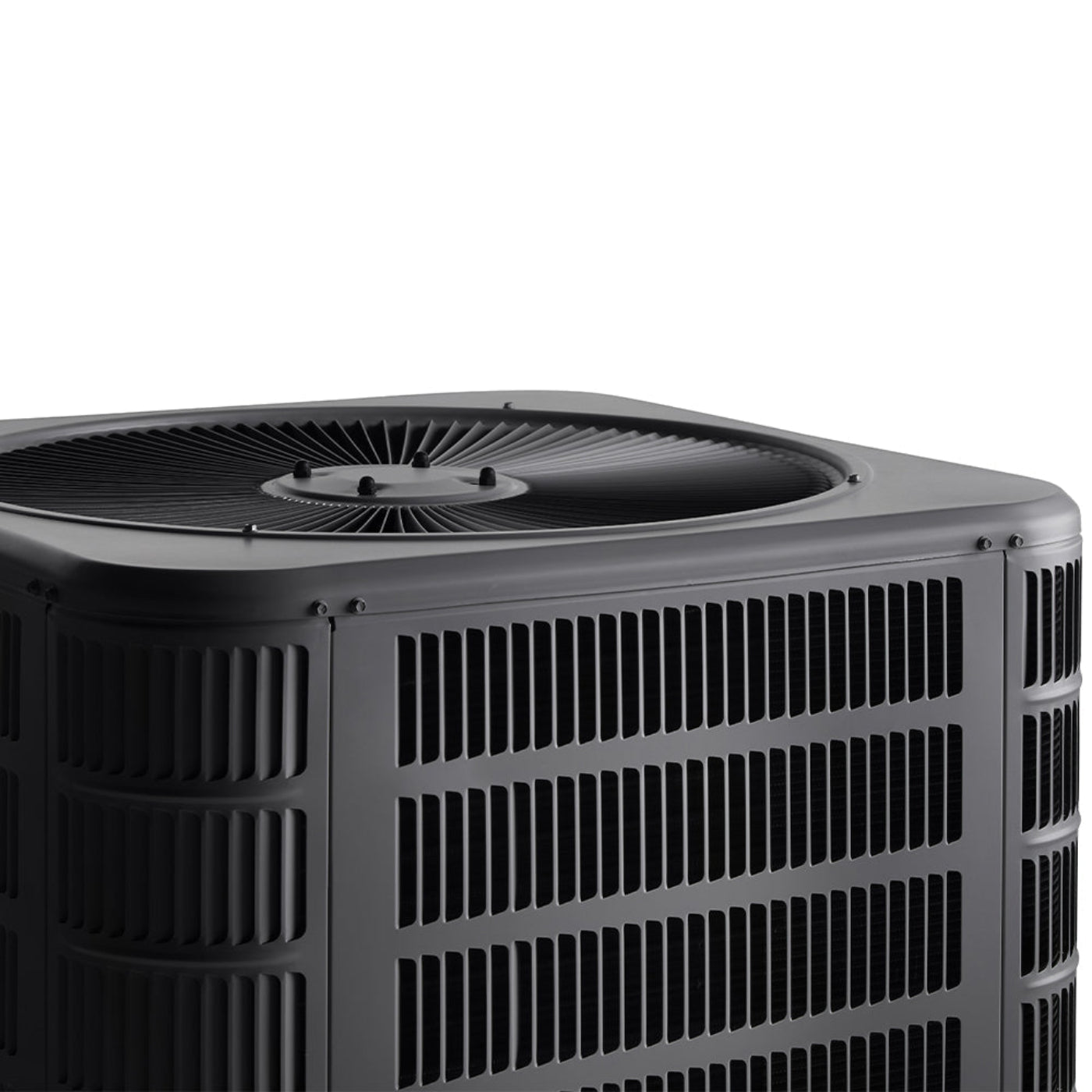

- Full metal louvered construction to protect the coil/ hail protection
- Factory installed high pressure switch
- Thread-on pressure switches for simple, quick replacement
- Charged for 15 feet of line set

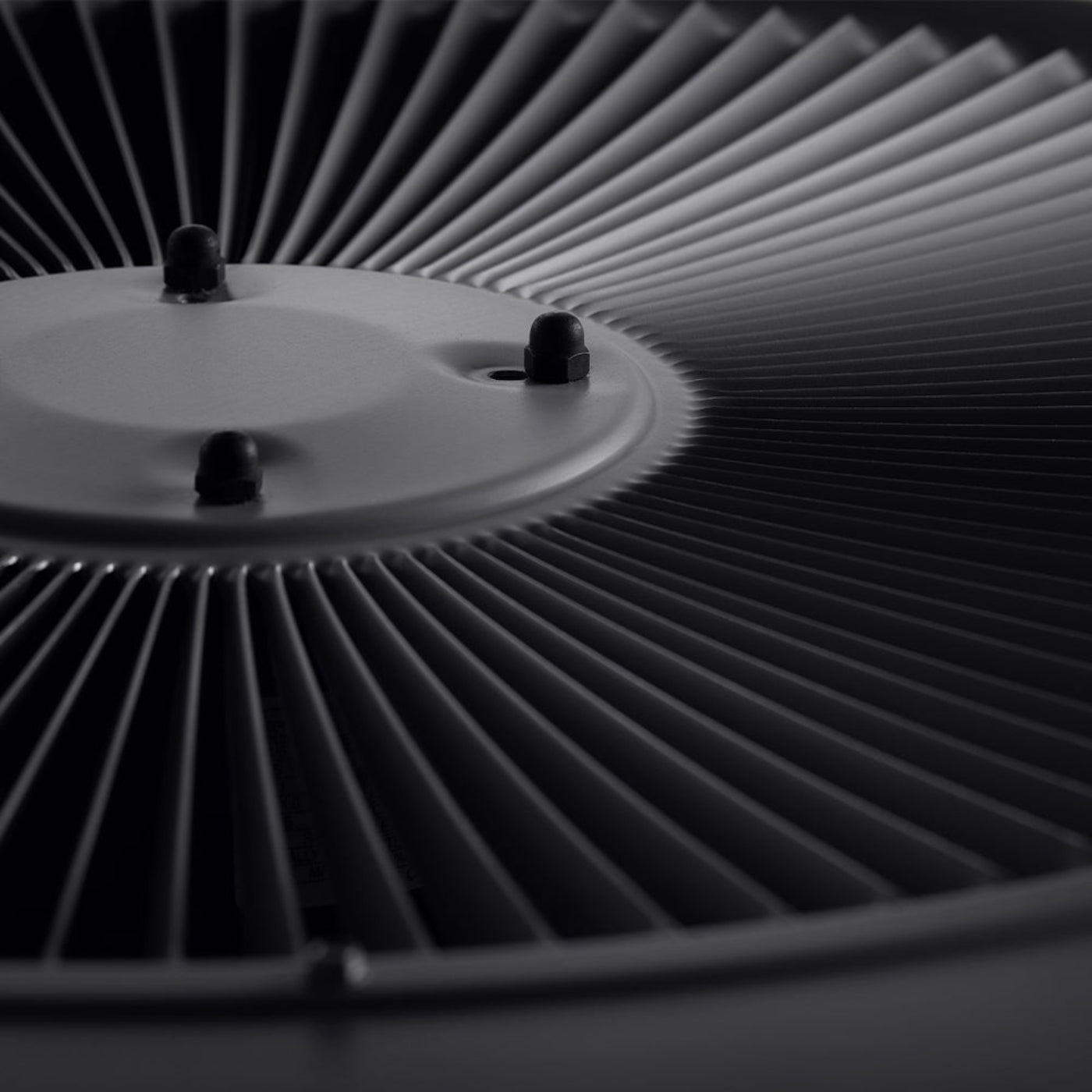

- Fan orifice for smoother airflow and sound level reduction
- Lanced fins for maximum heat transfer
- Every coil factory tested for leak proof construction
- All units ETL and ETLC approved and AHRI Certified
- Internally protected against high temperature motor overload conditions
Specifications
| Product Dimensions |
32.25"W x
43"D x
32.25"H |
| Product Weight |
226 lbs |
| Unit Type |
Split System AC Condensers |
| SEER |
up to 16
|
| Max SEER |
16 |
| EER |
11.7 |
| CFM |
1780-1800 |
| Tonnage |
5 |
| Cooling Capacity |
57000-58000 |
| Voltage |
Requires a minimum of 208V-230V/60HZ/
50A (please check your home meets this electrical requirement prior to purchase)
|
| Phase |
1 |
| Cycle |
60 |
| Stage |
Single |
| Max Fuse Breaker |
50 A |
| Min Circuit Ampacity |
29.6 |
| Color |
Gray |
| Rated Load |
22.2 |
| Max Coverage Area |
2500 |
| Refrigerant Type |
R-410A |
| Refrigerant Volume |
192 |
| Decibel Rating |
80 |
| Min Ambient Cool |
(-20F)
|
| Line Set Length |
15ft, 25ft, 35ft, 50ft |
Max
Line Set Length |
50ft
|
| Line Set Fitting Type |
Sweat |
| Liquid Line Size |
3/8 in |
| Suction Line Size |
7/8 ** Ada |
| Compressor Motor Type |
Scroll |
| Condenser Fan Motor Type |
Direct Drive |
| Condenser Fan Motor HP |
1/3 |
| Condenser Fan Motor RPM |
825 |
| Metering Device |
TXV |
| Auxiliary Heater |
Yes |
| Auxiliary Heater Sizes |
7.5kw, 10kw, 15kw, 20kw |
What our Experts Think
-
Powerful 5 Ton cooling capacity: Delivers strong, consistent cooling for large homes, commercial spaces, or open‑plan areas needing robust comfort. Up to 16 SEER means improved efficiency and potential utility savings.
-
Efficient R‑410A refrigerant: Standard modern refrigerant supports reliable performance and aligns with current HVAC requirements.
-
Durable outdoor design: CoolGuard™ coil protection, full metal louvered construction, and factory‑tested leak‑proof coils boost durability and seasonal performance.
-
Service‑friendly features: Corner‑mounted controls, factory high‑pressure switch, and thread‑on pressure switches make maintenance and service easier for HVAC pros.
-
Solid build quality: Lanced fins improve heat transfer; internally protected motor reduces overheating risk under heavy use
Q: What is included with this unit?
A: Includes a 5 Ton outdoor condenser unit. Indoor air handler, refrigerant line set, and installation hardware are sold separately.
Q: What is the SEER rating?
A: This condenser provides 16 SEER efficiency, delivering energy-efficient cooling for residential and commercial applications.
Q: What voltage does it require?
A: Operates on 230V / 60Hz power.
Q: What type of installation is required?

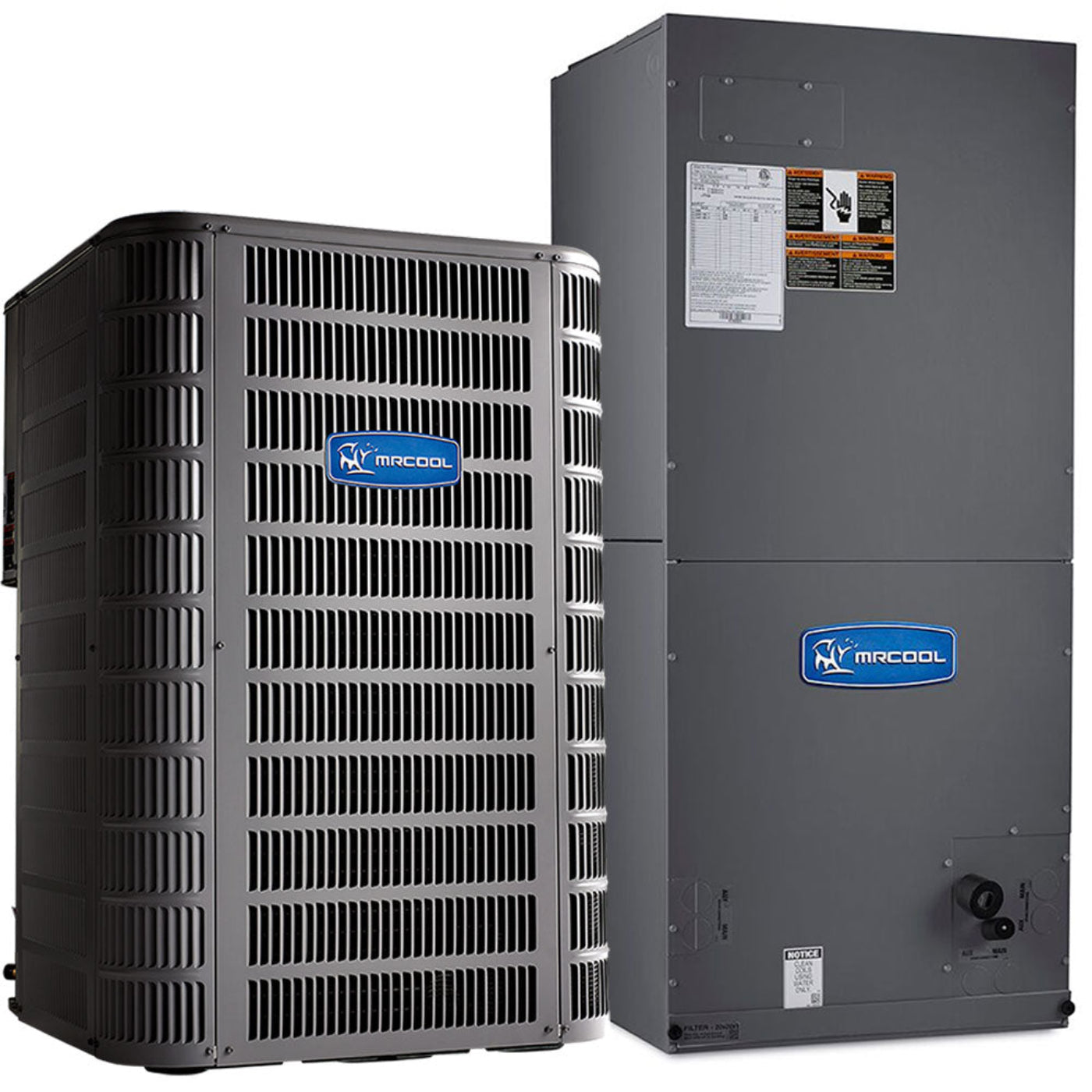

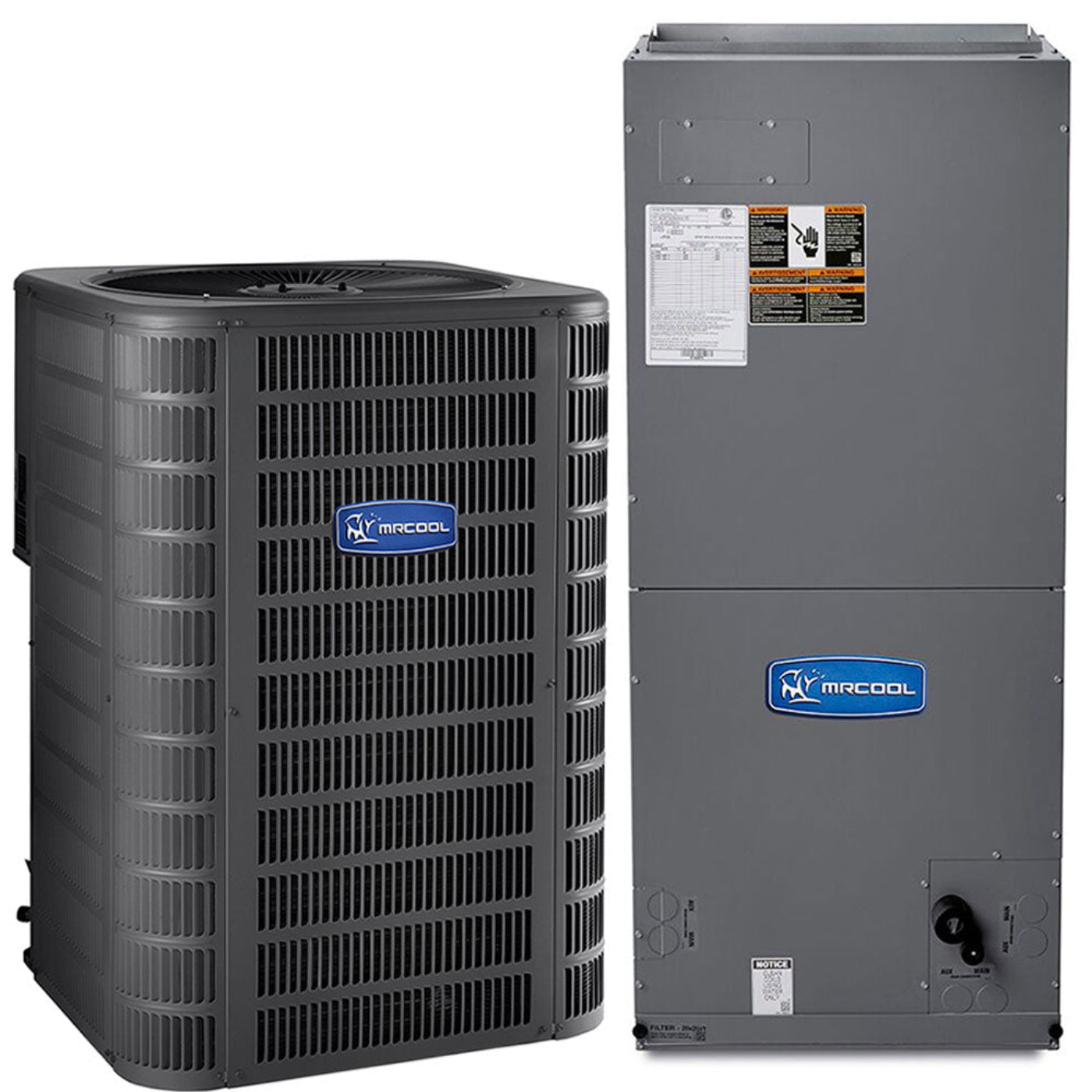

A: Designed for split-system installation, compatible with MRCOOL indoor air handlers or existing ductwork.
Q: What refrigerant does it use?
A: Uses R-410A refrigerant, which is environmentally friendly and highly efficient.
Q: What size area can it cool?
A: Efficiently cools spaces of approximately 3,000–3,500 sq. ft., depending on insulation and layout.
Q: Is this system energy efficient?
A: Yes, it offers high SEER efficiency, quiet operation, and reliable cooling performance.
Q: What style or design does this unit have?
A: Features a durable, weather-resistant outdoor condenser design with corrosion-resistant coating for long-lasting operation.
Maintenance Tips
-
Professional installation: Must be installed by a qualified HVAC technician to ensure proper refrigerant charge, electrical setup, and full SEER performance. This unit is designed for cooling only and uses R‑410A refrigerant at 208–230 V.
-
Keep the unit clear: Regularly remove debris, leaves, and dirt around the condenser and coils to maintain airflow and efficiency; shut off power before cleaning.
-
Clean coils periodically: Have a technician inspect and gently clean condenser coils to prevent efficiency loss from clogging or buildup.
-
Check electrical & controls: During annual service, ensure electrical connections, factory‑installed high‑pressure switch, and fan motor are functioning correctly.
-
Monitor refrigerant & pressure: Have a pro verify refrigerant levels and check for leaks as part of yearly maintenance.
-
Maintain clearance: Keep at least 2–3 ft of space around the condenser and avoid directing sprinklers or hoses at the coil.
-
Annual professional service: Schedule HVAC maintenance yearly to check wiring, coils, and overall system health for long‑term operation.
