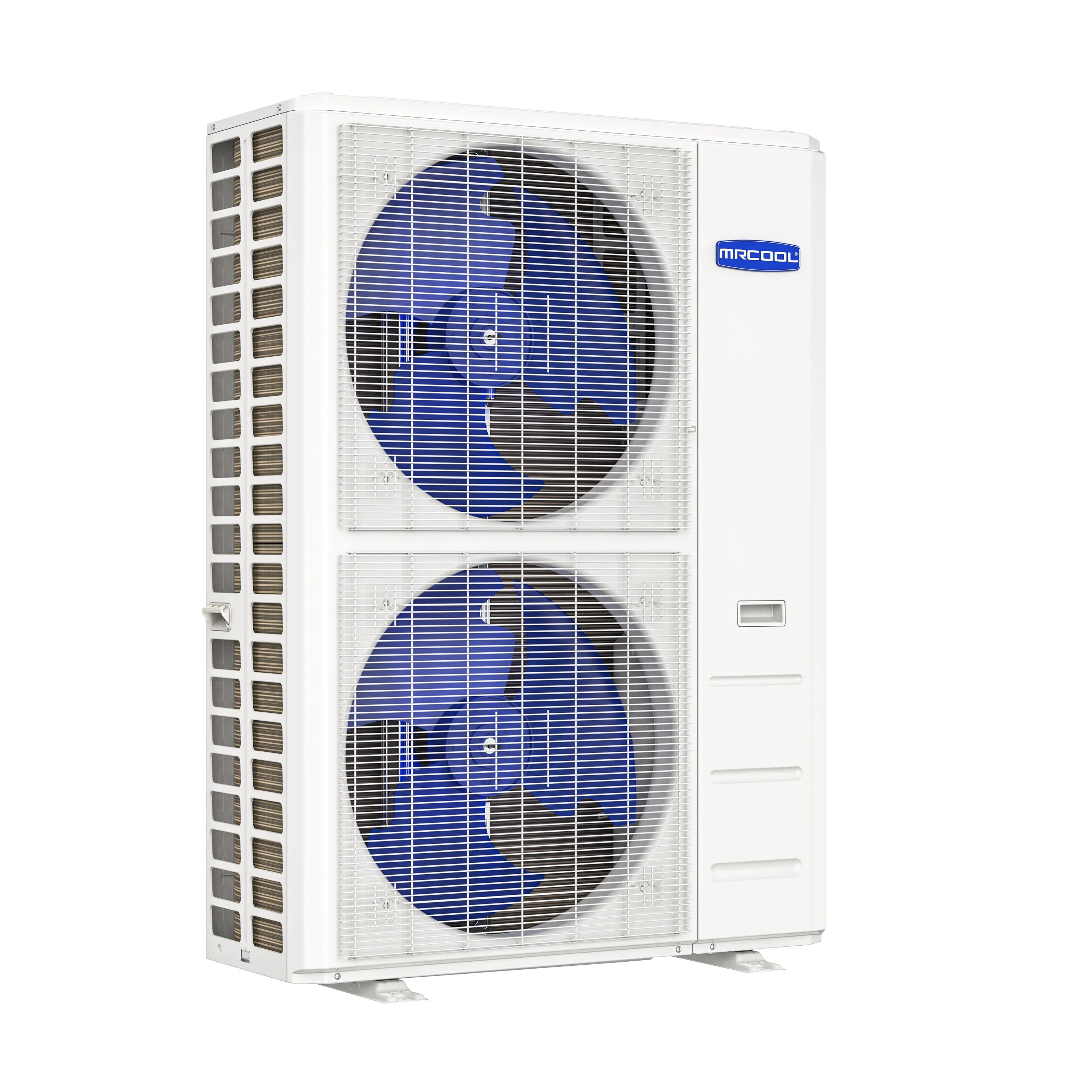

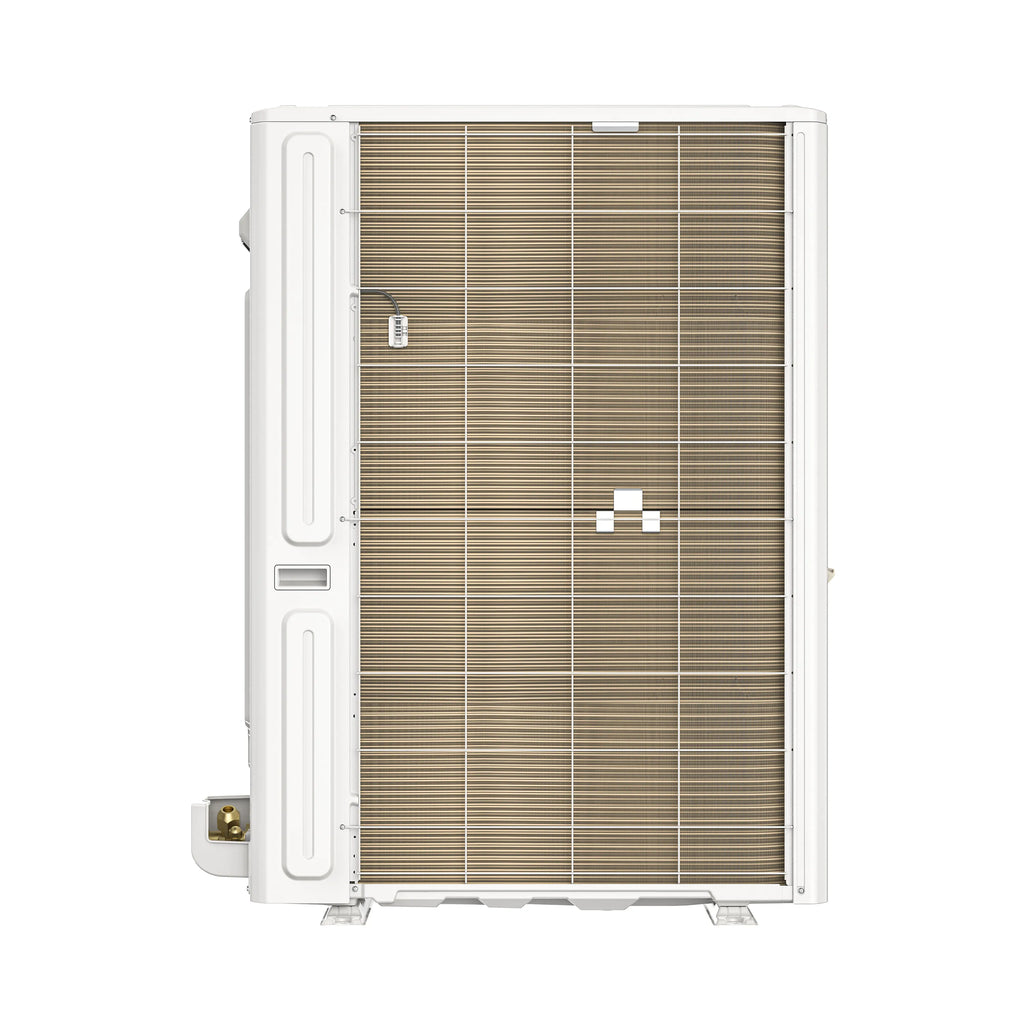

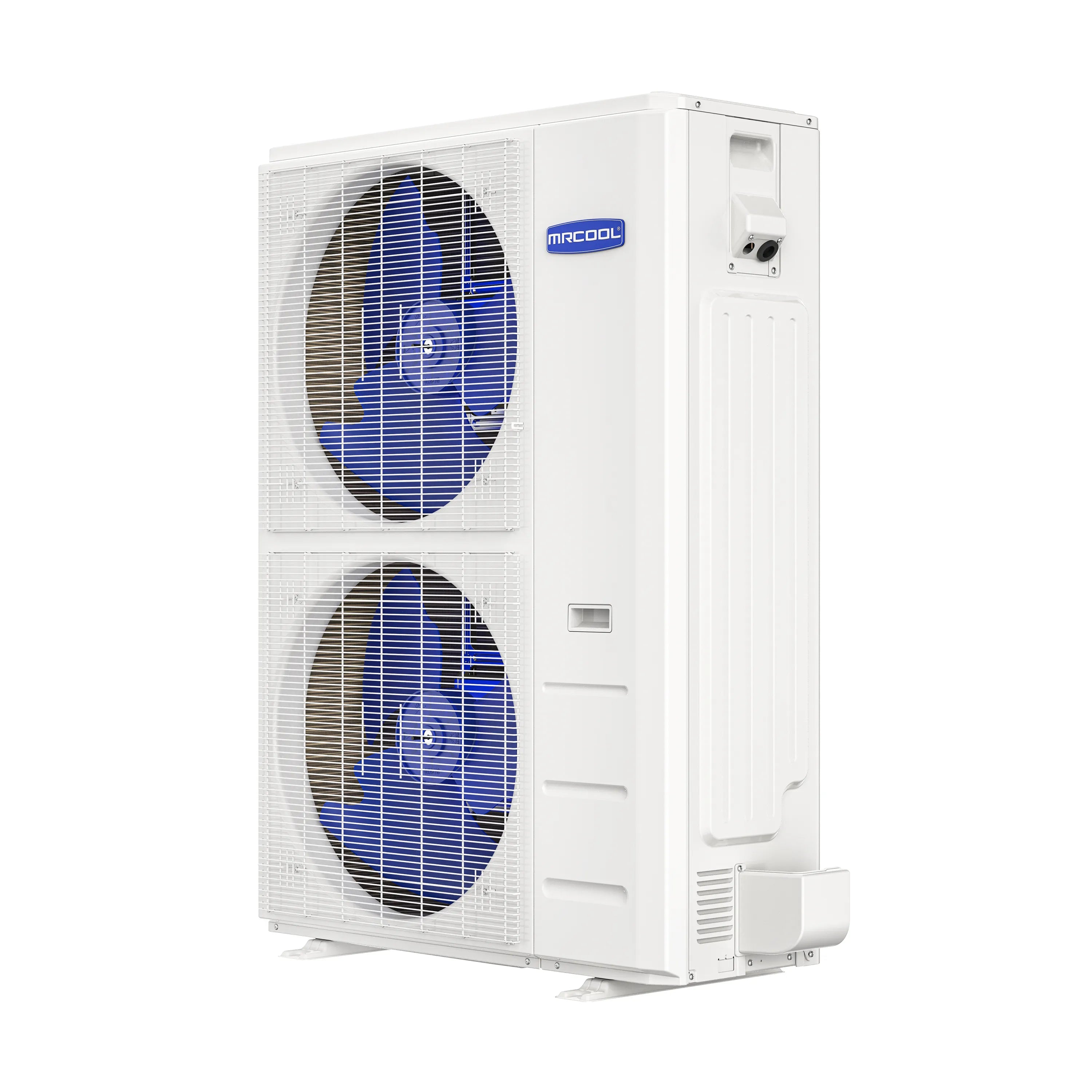

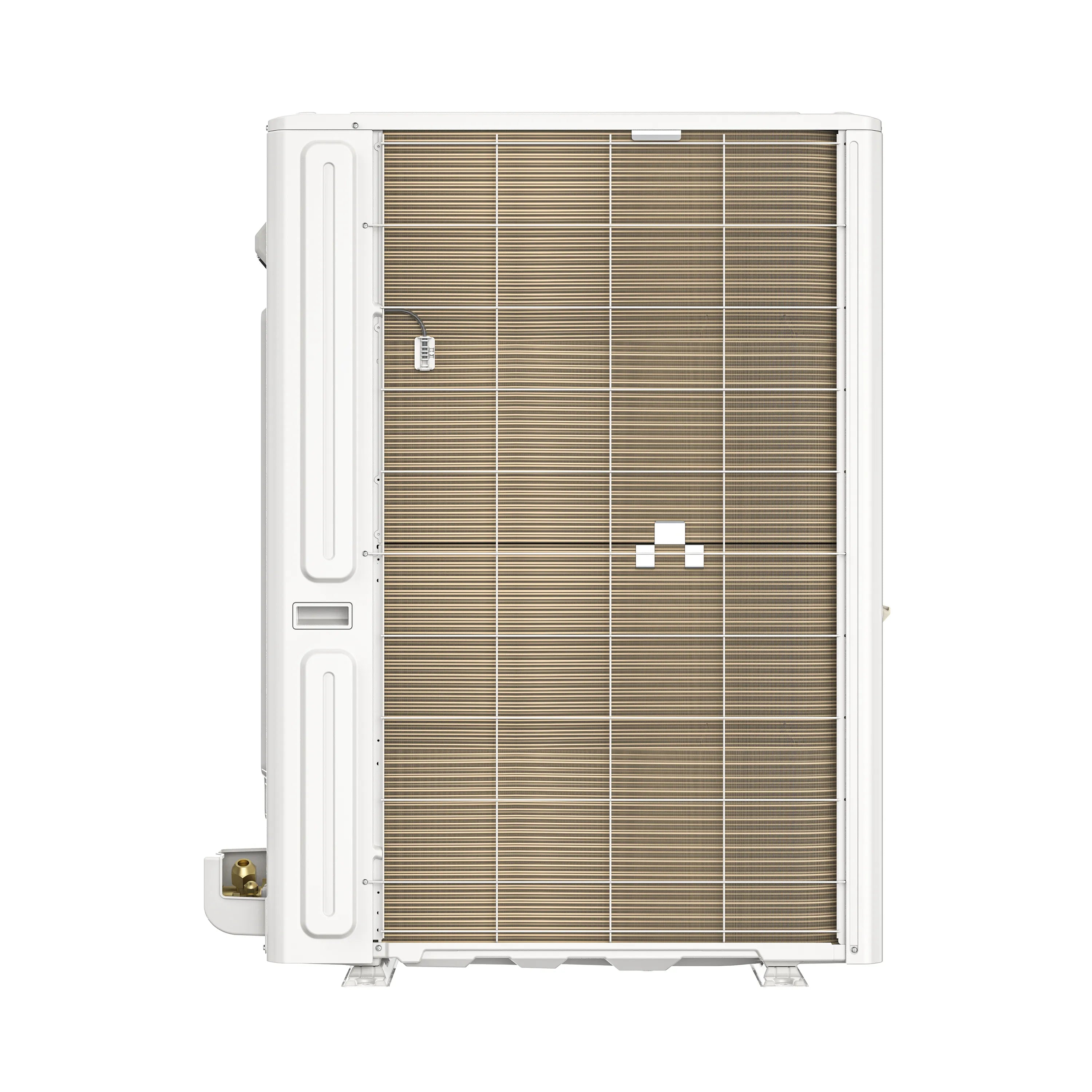

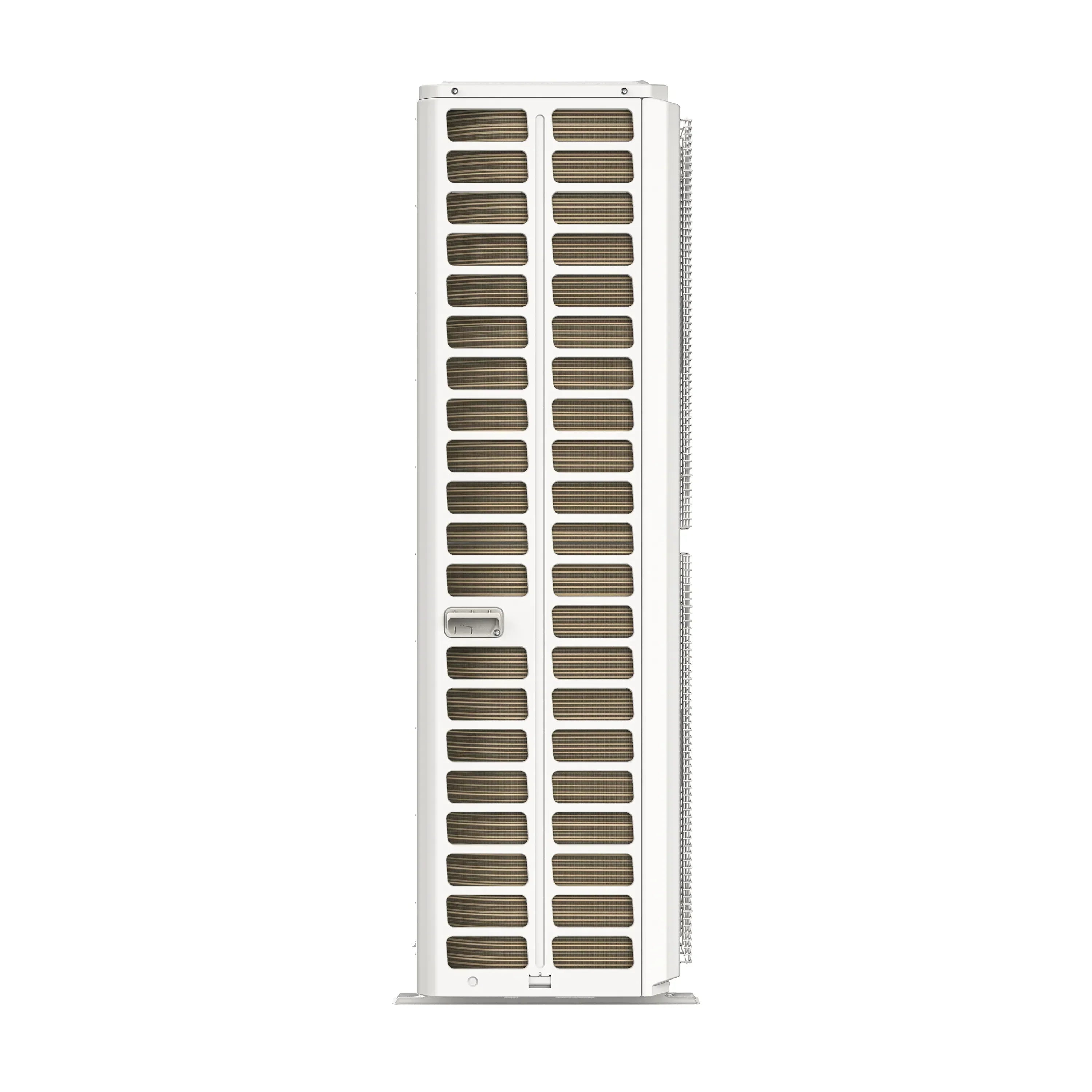

MRCOOL Hyper Heat 2nd Gen 60K BTU, 5 Ton, 16 SEER2 Central Ducted Condenser - CENTRAL-60-HP-C-230B00-O
The 60K MRCOOL® Hyper Heat Central Ducted Condenser is built to perform exceptionally in all weather conditions, whether enduring the chill of winter or the heat of summer. This advanced Hyper Heat system leverages DC Inverter technology and variable speed capabilities to ensure reliable and efficient operation. With a SEER2 rating of up to 16 and an HSPF2-4 rating of up to 9, it offers robust heating and cooling while optimizing energy usage. The included MRCOOL® Smart thermostat makes it easy to control your home’s climate.
The 60K MRCOOL® VersaPro® Central Ducted Air Handler pairs seamlessly with the 60K MRCOOL® Hyper Heat Central Ducted Condenser. Designed for versatility, the air handler supports a variety of installation options and can be paired with an optional heat kit to enhance functionality. It uses R-454B refrigerant, an eco-conscious choice that reduces environmental impact. Durability is key to the outdoor heat pump, which is constructed with painted galvanized steel for lasting strength. The air handler is designed for convenience, featuring a compact size, slide-out blower, and a self-diagnostic panel to simplify maintenance and troubleshooting.
With a 10-year warranty covering the compressor, parts, and labor, you can enjoy peace of mind knowing your system is covered. The labor warranty activates automatically at installation, with no registration necessary. Upgrade your home’s heating and cooling with the reliable, efficient 60K MRCOOL® Hyper Heat Central Ducted Condenser today!
Specifications
Dimensions |
16.34" D x 52.48" H x 37.48" W |
SEER2 |
16 |
EER2 |
10 |
HSPF-4 |
9 |
HSPF-5 |
8 |
CFM |
2648.6 |
Tonnage |
5 |
Cooling Capacity (BTU) |
54000 |
Heating Capacity (BTU) |
56000 |
Voltage (V) |
208-230 |
Phase |
1 |
Cycle |
60 |
Max Fuse Breaker (A) |
40 |
Min Circuit Ampacity (A) |
40 |
Color |
gray |
Refrigerant Type |
R454B |
Refrigerant Volume(OZ) |
183.42 |
Decibel Rating (DBA) |
65 |
Liquid Line Size |
3/8 |
Suction Line Size |
3/4 |
WIFI Compatibility |
Yes |
APP Compatibility |
Yes |
ETL Certified |
Yes |
Energy Star Certified |
Yes |
AHRI Certified |
Yes |
Base Parts Warranty |
10 Years |
Base Compressor Warranty |
10 Years |
Base Labor Warranty |
10 Years |
Contains Electronics |
Yes |
Contains Chemicals |
Yes |
Contains Compressed Gas |
Yes |
Net Weight (Lbs) |
242.95 |
Gross Depth (In) |
19.49 |
Gross Height (In) |
58.27 |
Gross Width (In) |
43.11 |
Gross Weight (Lbs) |
275.13 |
What our Experts Think
-
High-Capacity Comfort – 60,000 BTU (5 Ton) condenser designed for large homes or light commercial spaces.
-
Energy-Efficient Operation – 16 SEER2 rating ensures lower utility costs while maintaining reliable performance.
-
Heat Pump Technology – Provides year-round heating and cooling when paired with a compatible air handler.
-
Durable Construction – Built for long-lasting performance and quiet operation.
-
Flexible Compatibility – Works seamlessly with MRCOOL Hyper Heat 2nd Gen ducted air handlers and heat kits.
Q&A
Q: What is included in this MRCOOL Hyper Heat 2nd Gen system?
A: This product is the central 60,000 BTU (5 ton) ducted heat pump condenser for use with compatible MRCOOL ducted air handlers.
Q: How energy efficient is the system?
A: With a 16 SEER2 rating, it provides efficient cooling and heating while helping reduce energy costs.
Q: Can it provide both heating and cooling?
A: Yes, the condenser supports year-round heating and cooling when paired with a compatible air handler.
Q: What size area can it cover?
A: Ideal for larger homes or commercial spaces up to approximately 2,500–3,000 sq. ft., depending on insulation and climate.
Q: Is it compatible with existing ductwork?
A: Yes, it is designed for use with standard central ducted systems and compatible MRCOOL air handlers.
Q: Who should choose this condenser?
A: Homeowners or businesses looking for a high-capacity, energy-efficient central HVAC condenser for large spaces.
Maintenance Tips
-
Air Filter Care: Replace or clean indoor filters every 1–3 months to maintain airflow and system efficiency.
-
Outdoor Unit Maintenance: Keep condenser free of leaves, dirt, and debris for optimal performance.
-
Ductwork Inspection: Seal leaks and clean ducts regularly to ensure even air distribution.
-
Condensate Drain: Check and clear drain lines to prevent water buildup and potential damage.
-
Coil Cleaning: Schedule annual cleaning of condenser coils for peak efficiency.
-
Professional Service: Arrange yearly maintenance to maintain 16 SEER2 efficiency and extend system lifespan.
