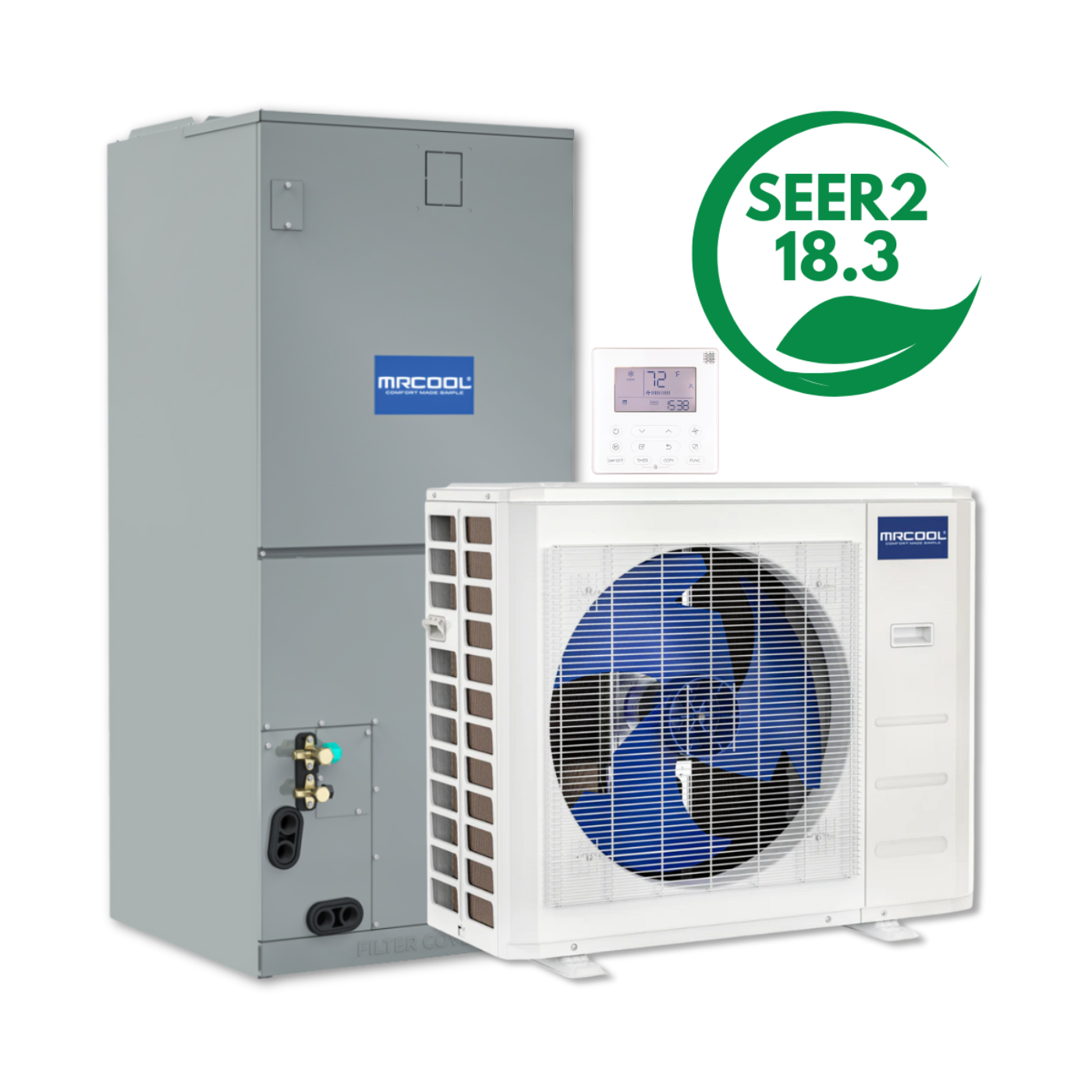

MRCOOL Hyper Heat 2nd Gen 24K BTU 2 Ton 18.3 SEER2 Central Ducted Heat Pump Split System, - CENTRAL-24-HP-230B00-O
Get year-round comfort with MRCOOL’s 24K Hyper Heat Central Ducted Condenser. Designed for extreme weather, this unit combines powerful performance with energy efficiency. With a SEER2 rating of up to 18.3 and an HSPF2-4 rating of up to 10, it offers excellent heating capabilities while optimizing energy use. Easily control your home’s temperature with the included MRCOOL Smart thermostat. Plus, enjoy peace of mind with the 24K MRCOOL Hyper Heat Central Ducted Condenser’s
What our Experts Think
-
Strong year‑round comfort: This MRCOOL Hyper Heat 2nd Gen 24K BTU (2 ton) central ducted heat pump delivers reliable cooling (23,000 BTU) and heating (24,000 BTU) performance—ideal for homes needing dependable HVAC comfort.
-
High efficiency & energy savings: Up to 18.3 SEER2 and solid HSPF2‑4 heating performance mean efficient operation that can reduce energy costs over traditional systems.
-
Eco‑friendly refrigerant: Uses R‑454B, a next‑generation refrigerant designed to lower environmental impact while maintaining strong performance.
-
Smart control included: MRCOOL Smart Thermostat provides intuitive temperature control and app connectivity for easy comfort management.
-
Flexible installation: Works with central ducted air handlers in multiple orientations (upflow, downflow, horizontal) to fit various HVAC layouts.
-
Durable build & quiet operation: Painted galvanized steel construction and variable‑speed inverter technology deliver long‑lasting reliability with smooth, quiet performance.
-
Comprehensive warranty: Backed by a 10‑year warranty covering compressor, parts, and labor for peace of mind.
-
SEO & Merchant Center optimized: Includes high‑intent terms like 24 K BTU heat pump, 18.3 SEER2, central ducted system, R‑454B refrigerant, and smart thermostat included to help improve visibility and conversions.
Q&A
Q: What is included with this system?
A: Includes a 24,000 BTU (2 Ton) outdoor heat pump condenser and compatible indoor air handler. Refrigerant line set, thermostats, and installation hardware are sold separately.
Q: What is the SEER2 and HSPF rating?
A: Features 18.3 SEER2 efficiency and 9.0 HSPF, providing energy-efficient cooling and heating year-round.
Q: What voltage and phase does it require?
A: Operates on 230V / 60Hz, single phase power.
Q: What type of system is this?
A: Central ducted heat pump split system, ideal for homes requiring both efficient heating and cooling through existing ductwork.
Q: What refrigerant does it use?
A: Uses R-454B refrigerant, which is environmentally friendly and energy-efficient.
Q: What size area can it serve?
A: Efficiently heats and cools spaces up to approximately 1,200–1,500 sq. ft., depending on insulation and layout.
Q: Is this system energy efficient?
A: Yes, it provides high SEER2 efficiency, inverter-driven compressor technology, and quiet operation.
Q: What style or design features does it have?
A: Outdoor condenser has weather-resistant housing, and indoor air handler is compact with low-profile ducted design for easy installation.
Maintenance Tips
-
Regular Filter Cleaning: Check and clean filters every 1–2 months to maintain airflow and efficiency.
-
Inspect Coils & Fins: Keep indoor/outdoor coils clean and fins straight for optimal heat exchange.
-
Clear Debris: Ensure outdoor unit is free from leaves, dirt, and obstructions.
-
Check Refrigerant & Lines: Monitor refrigerant levels and inspect lines for leaks annually.
-
Schedule Professional Tune-Up: Have a certified HVAC technician service the unit yearly for peak performance.
