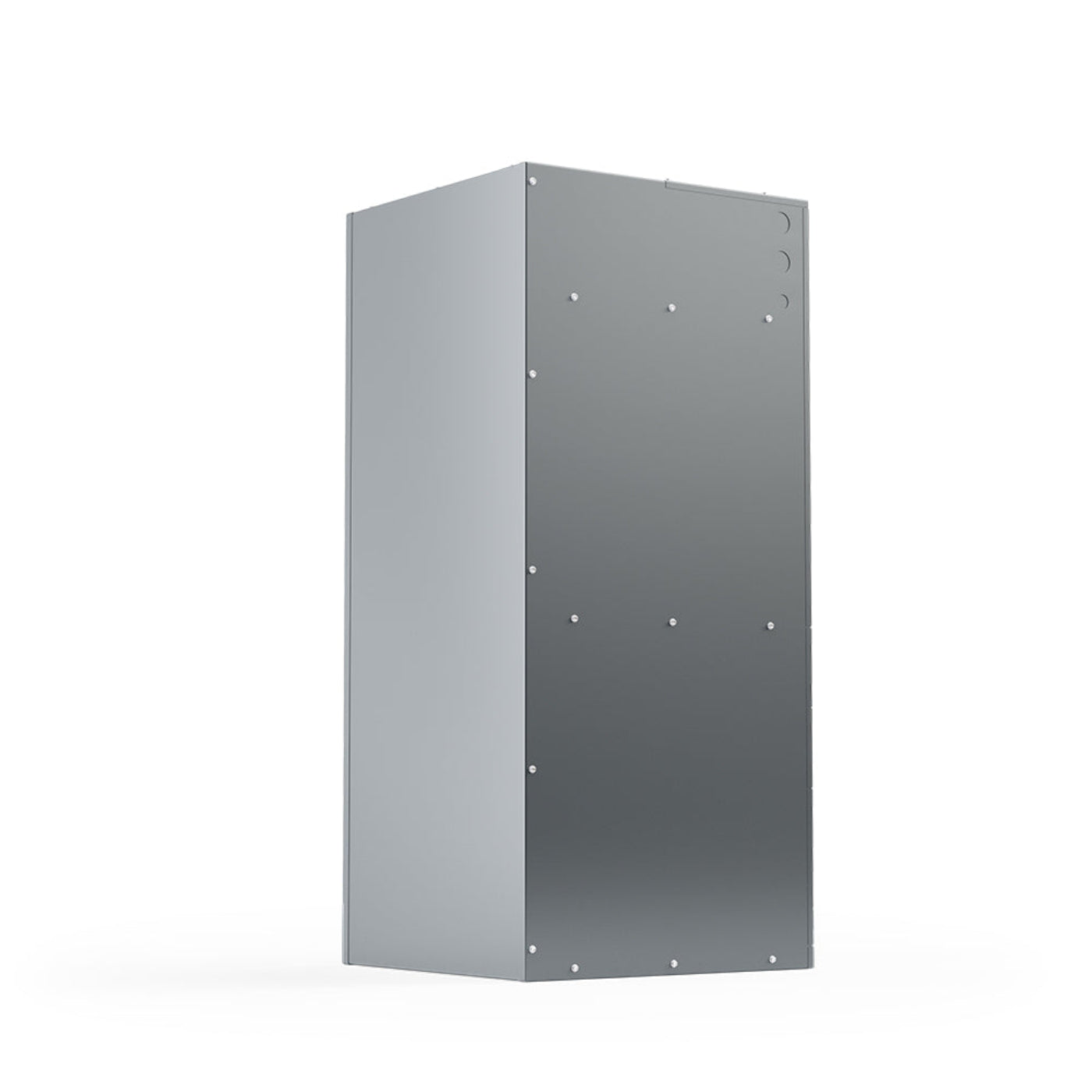

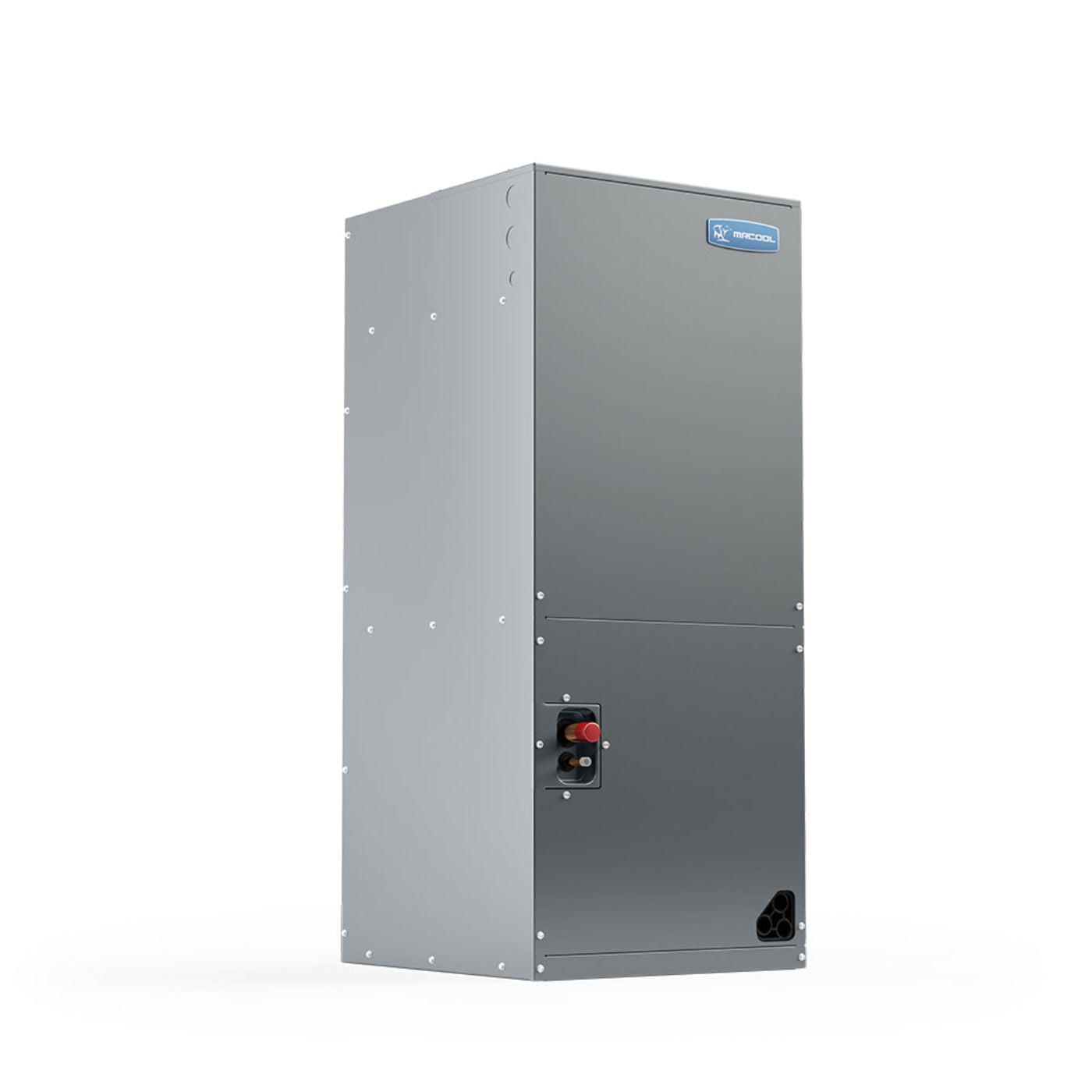

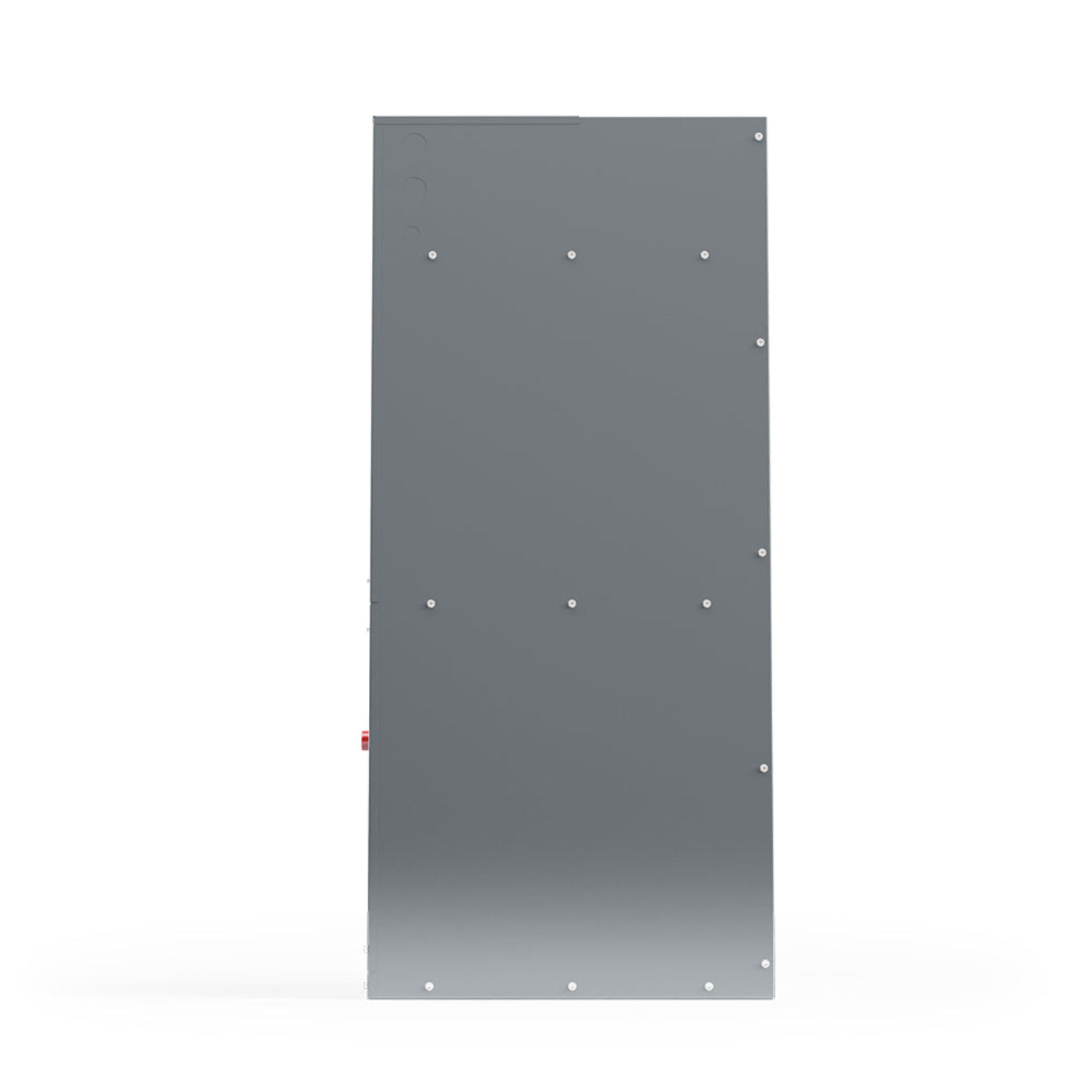

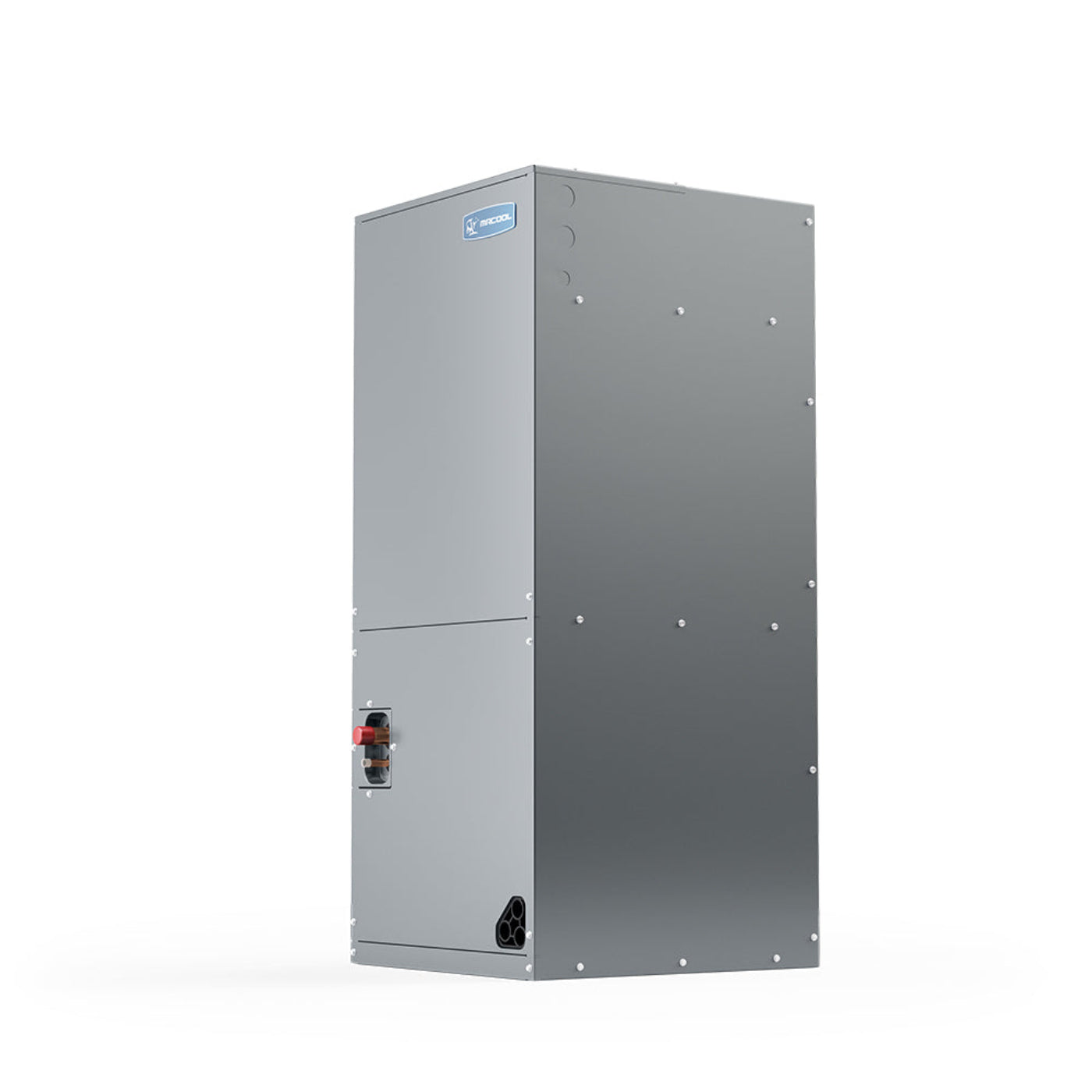

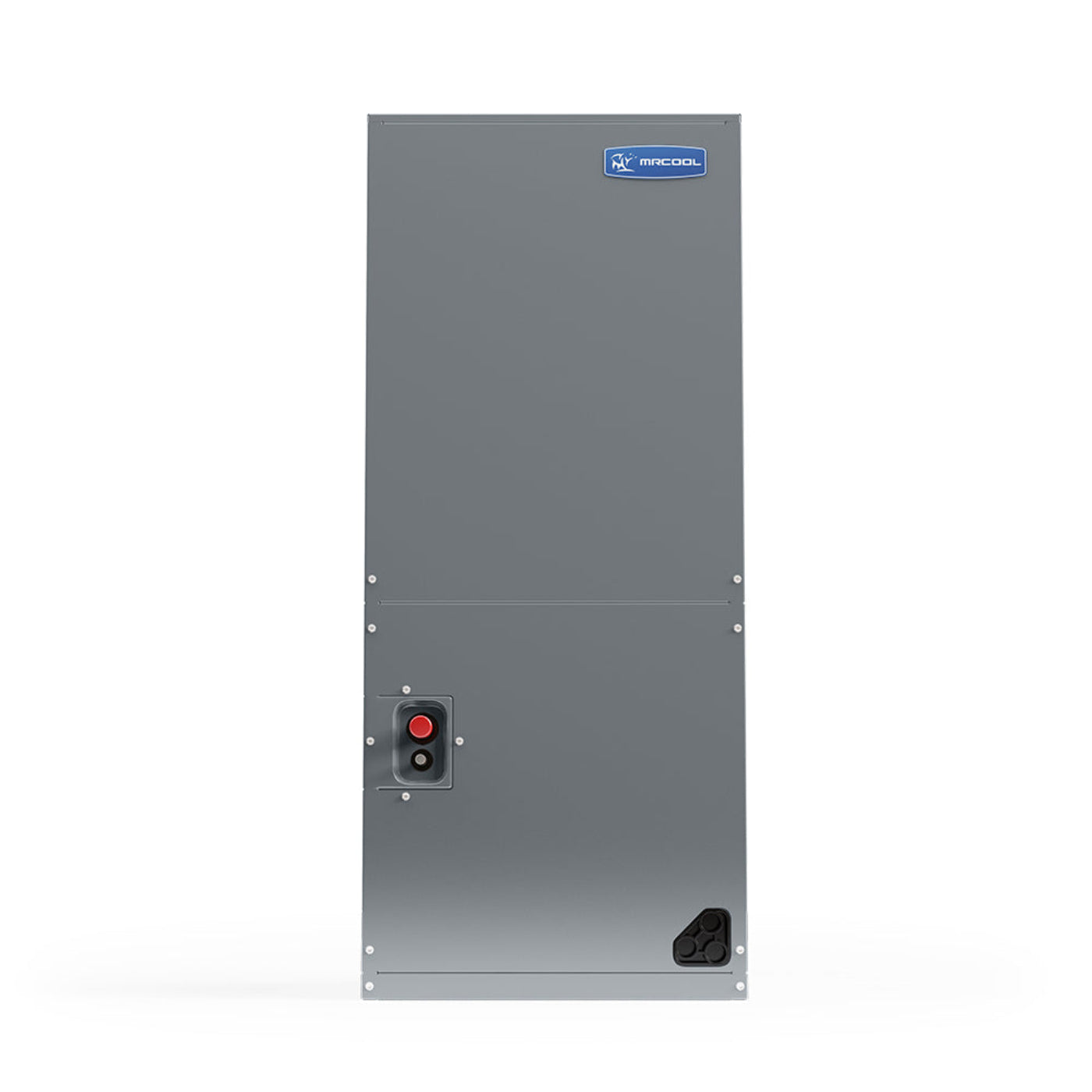

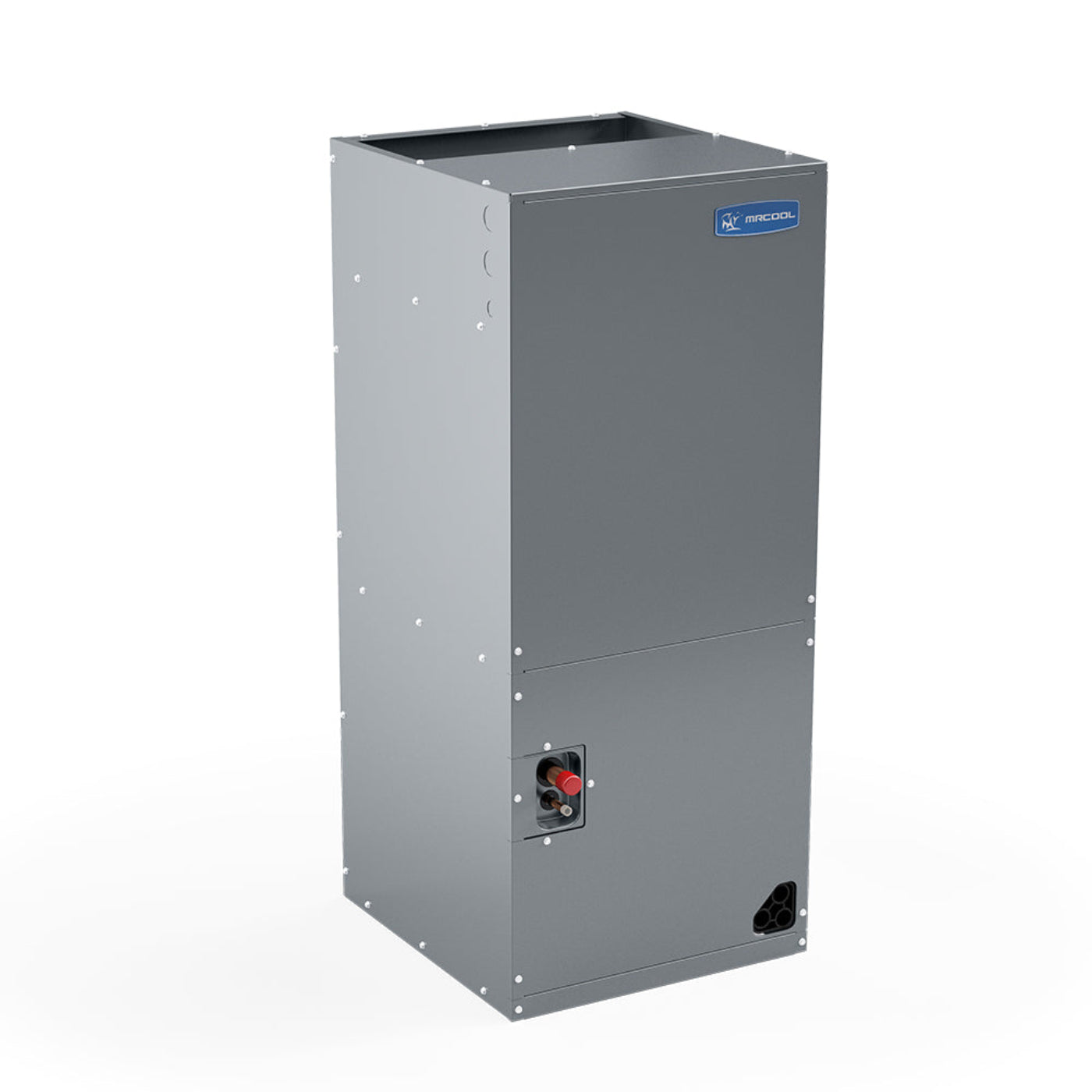

MRCOOL ProDirect 24K BTU, 2 Ton, 15 SEER2, Split System A/C Air Handler - Multiposition - HAH15024
Total comfort isn’t hard to attain when you have a unit like the multiposition MRCOOL ProDirect 2 Ton 15 SEER Split System Air Handler working in your home. This unit uses its “A” shaped evaporator coil to draw out all of the discomfort in your home, and once the air is ready to make you comfortable, it gets dispersed throughout your home by the three-speed direct drive blower motor. It goes through a removable filter to ensure the air is purified of contaminants so you’re only ever breathing crisp and clean air. It can also be installed in four airflow directions and with an electric heat kit, making it extremely accommodating.
Your comfort will never be in danger thanks to the corrosion resistant galvanized steel cabinet that guards your unit from harm. There’s also a warranty that covers the air handler if you register online in case something goes wrong. To make your home feel better every day of the year without making your bills go higher and higher, have the ProDirect 2 ton split system air handler installed in your home.
Features
- Equipment should be installed by a qualified professional
- 10 Year Registered Warranty
- AHRI Certified & ETL listed
Specifications
Dimensions |
22 in D x 45-3/4 in H x 19-2/3 in W |
CFM |
742 |
Voltage
|
208-230 V |
Phase
|
1 |
Cycle
|
60 Hz |
Decibel Rating
|
54 dBA |
Auxiliary Heater Included
|
No |
Auxiliary Heater Available
|
Yes |
Auxiliary Heater Sizes
|
5kW, 7.5kW, 10kW |
ETL Listed |
Yes |
AHRI Certified |
Yes |
Registered Parts Warranty
|
10 year parts |
Proposition 65 Warning
|
Yes |
Net Weight
|
130 lbs |
Gross Depth
|
25-3/5 in |
Gross Height
|
47-5/8 in |
Gross Width
|
22-5/6 in |
Gross Weight
|
141 lbs |
What our Experts Think
-
Flexible Installation — Supports upflow, downflow, and horizontal airflow, fitting a variety of home setups.
-
Efficient Air Distribution — Three-speed direct drive blower ensures consistent airflow and comfort.
-
Improved Air Quality — Includes a removable filter for cleaner indoor air.
-
Built to Last — Corrosion-resistant galvanized steel cabinet enhances durability.
-
Heating Ready — Compatible with 5kW, 7.5kW, and 10kW electric heat kits for supplemental warmth.
-
Quiet Operation — Runs at a low 54 dBA noise level to maintain a peaceful environment.
-
Peace of Mind — Comes with a 10-year registered parts warranty for reliability.
Q&A
Q: What is the cooling capacity?
A: 24,000 BTU (2 Ton).
Q: What SEER rating does it support?
A: 15 SEER2 efficiency.
Q: What type of system is it for?
A: Split system air conditioning.
Q: What installation options are available?
A: Multiposition—supports upflow, downflow, and horizontal setups.
Q: Is it compatible with MRCOOL systems?
A: Yes, designed for MRCOOL ProDirect series.
Maintenance Tips
-
Clean or replace air filters every 1–3 months for efficient airflow
-
Inspect and clean evaporator coils annually to maintain cooling performance
-
Check condensate drain lines regularly to prevent clogs and water damage
-
Ensure all electrical connections are tight and corrosion-free
-
Keep the area around the unit clear to allow proper airflow
