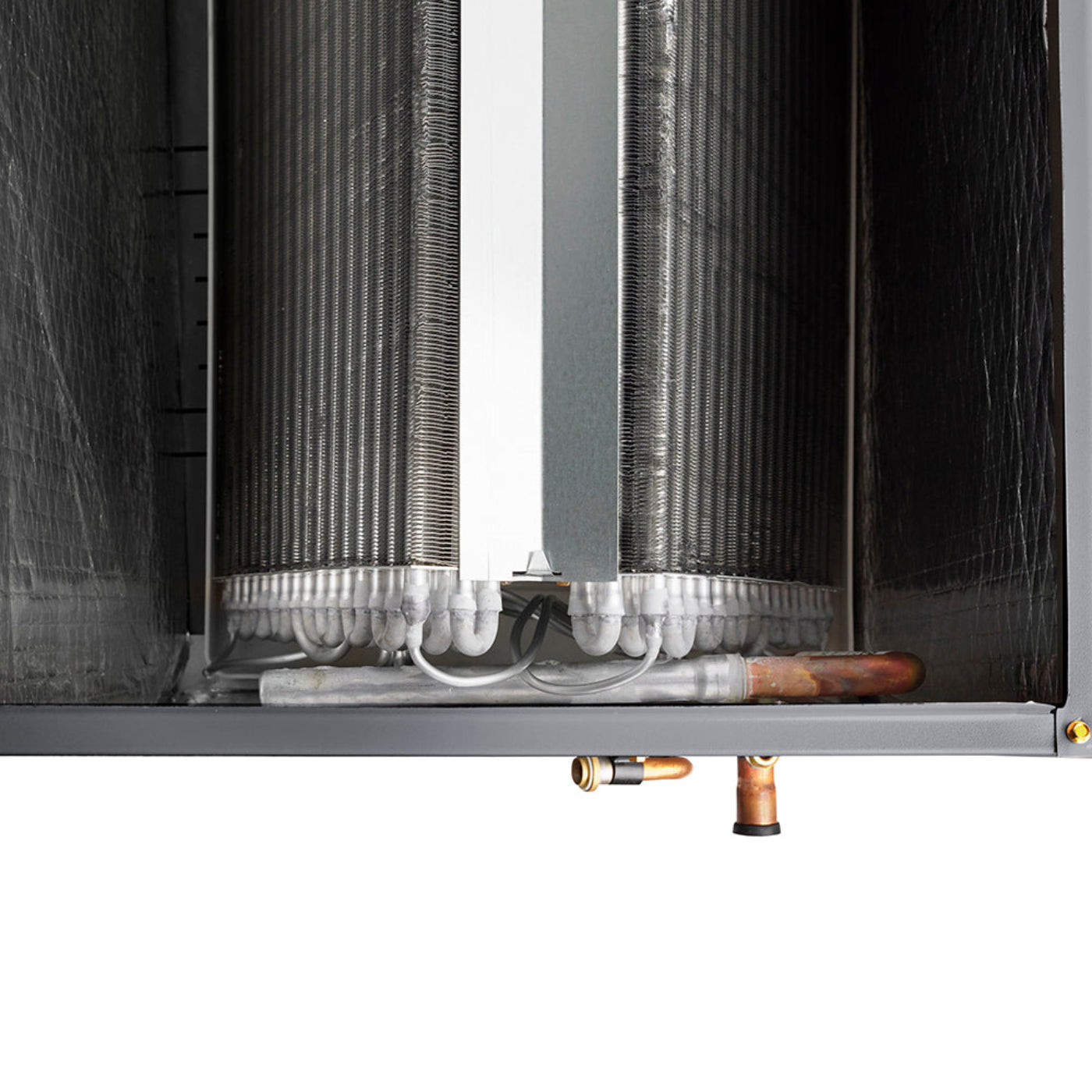

MRCOOL Signature 24K BTU, 2 Ton, 16 SEER, Upflow Cased Evaporator Coil - 17.5-Inch Cabinet - MCVP24BNPA

MRCOOL Signature 24K BTU, 2 Ton, 16 SEER, Upflow Cased Evaporator Coil - 17.5-Inch Cabinet  - MCVP24BNPA

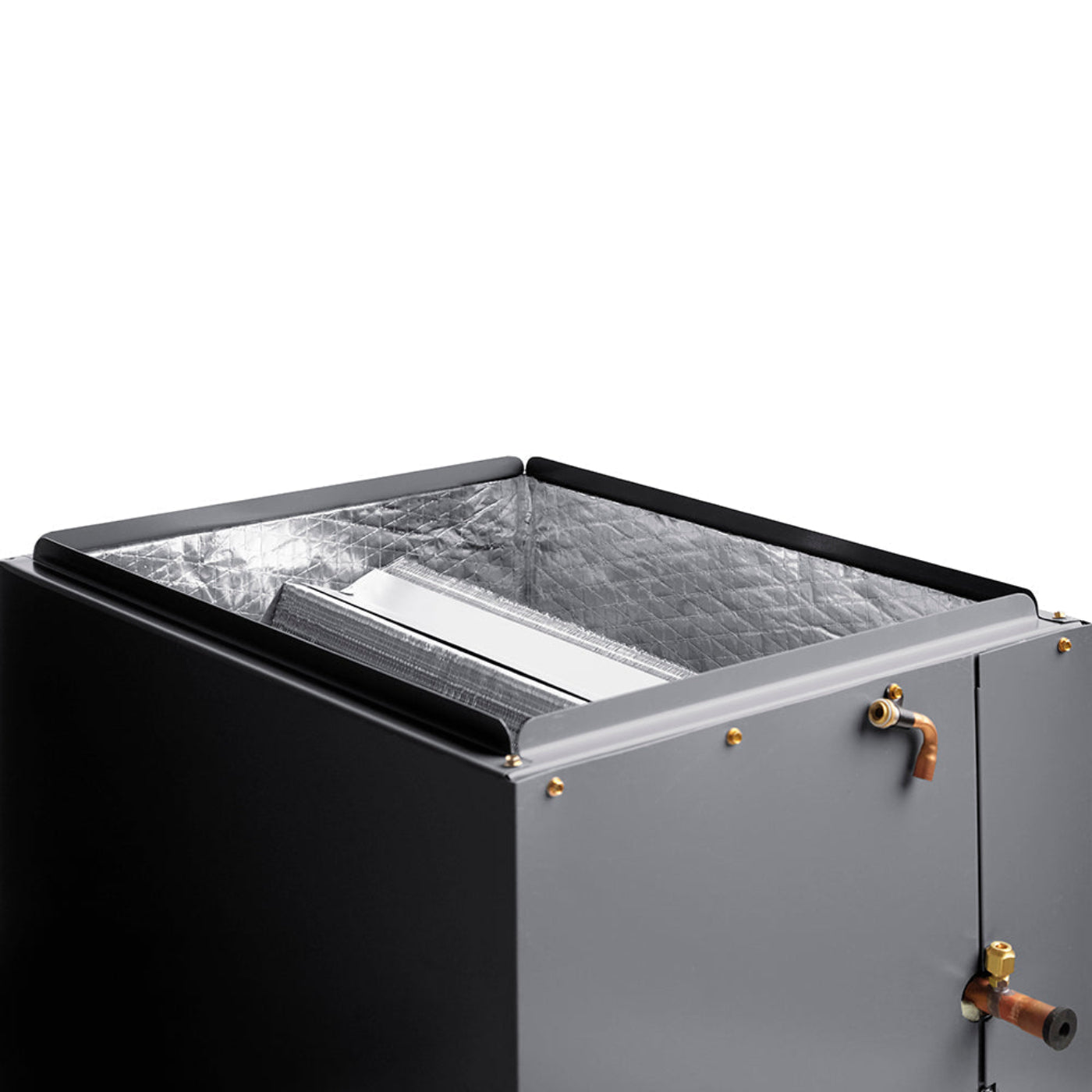

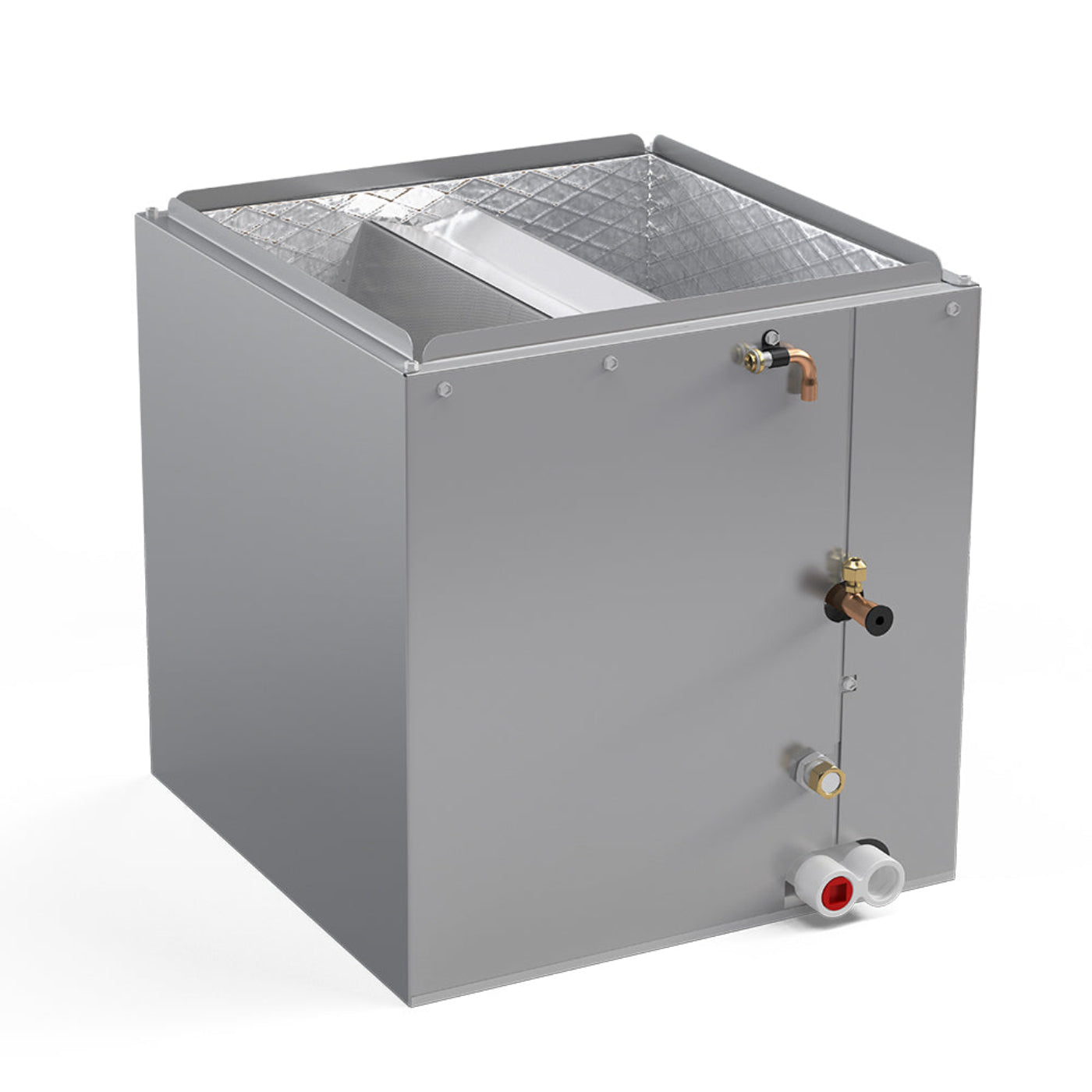

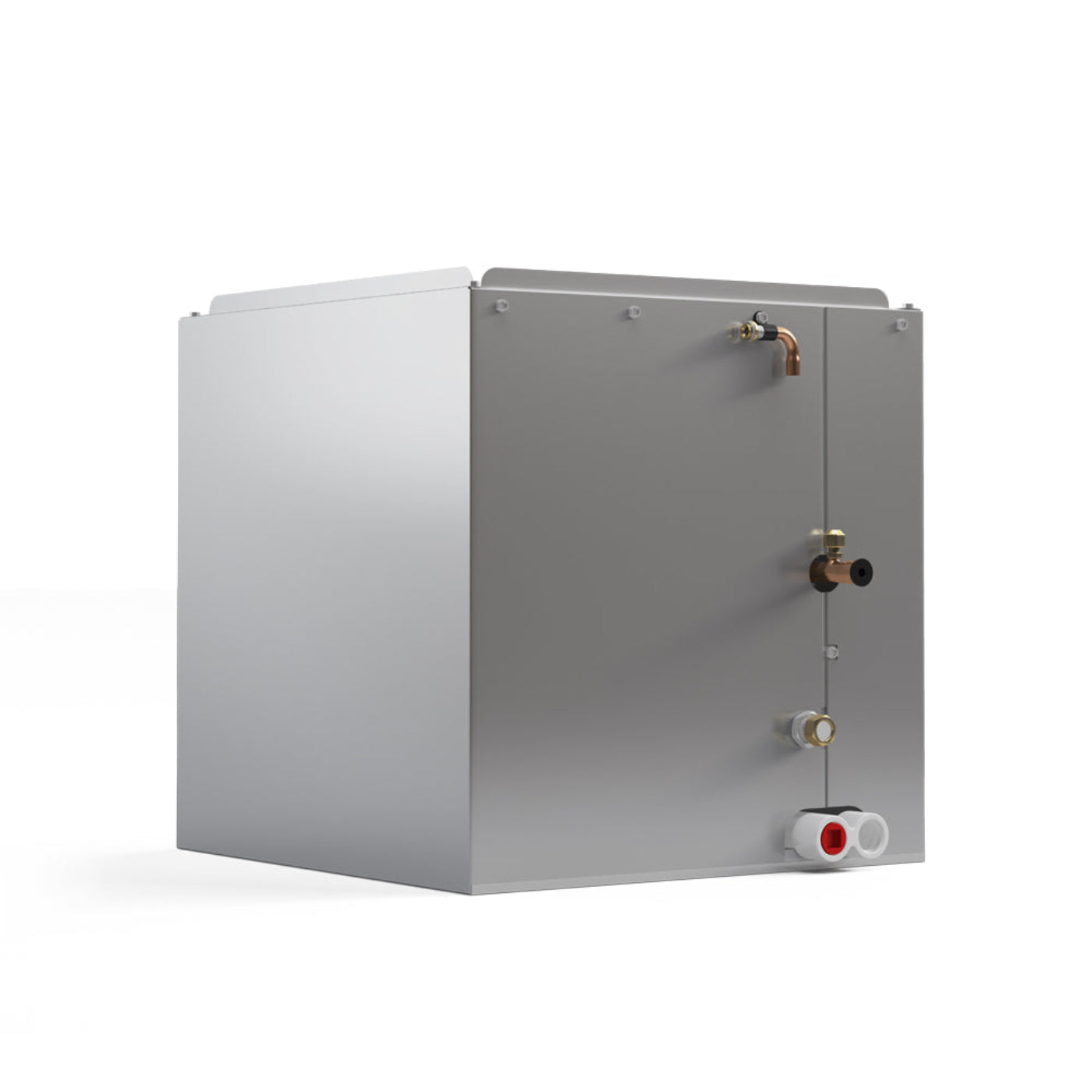

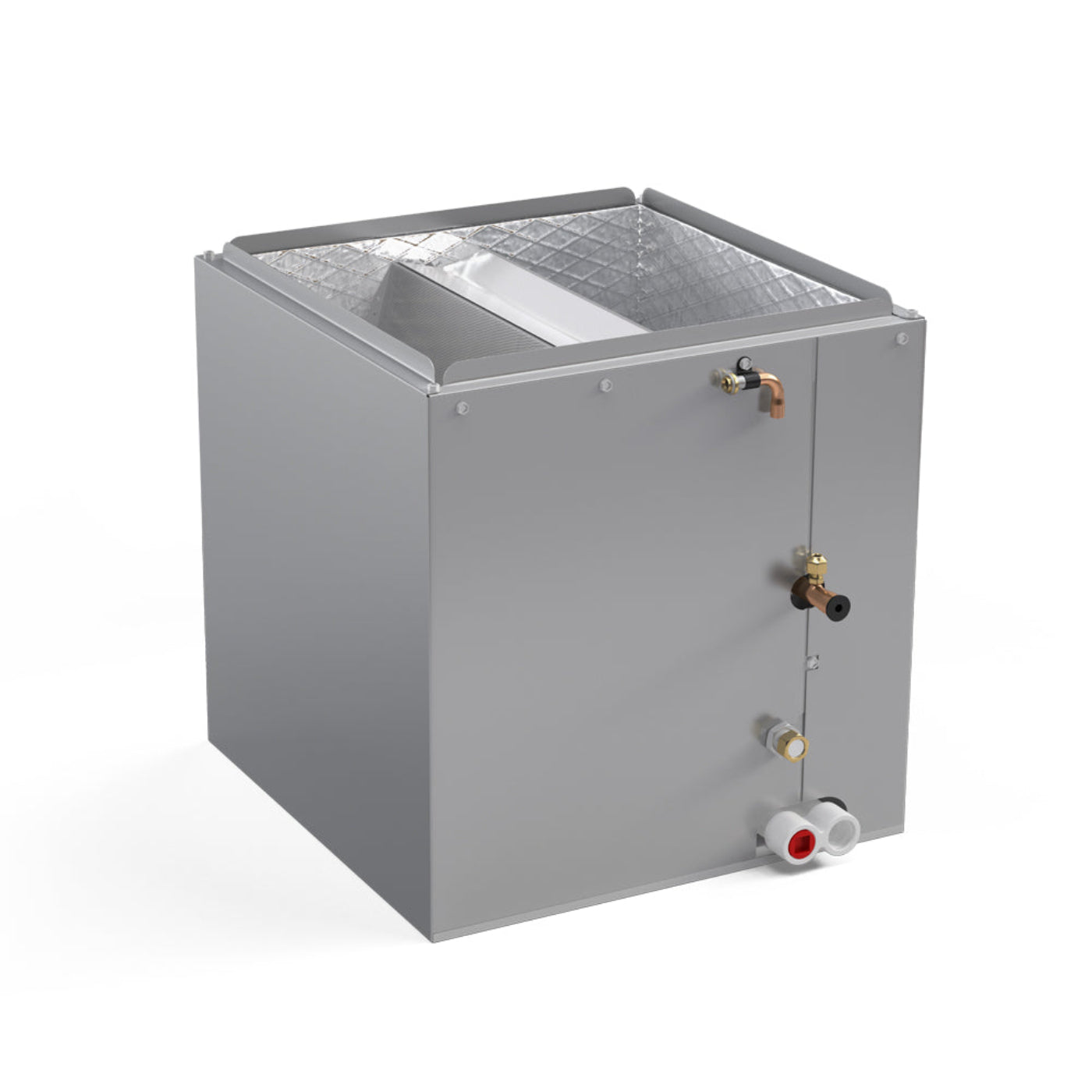

2 Ton BTU R410A Upflow Cased Evaporator Coil

This is a brand new 2 ton, R410A refrigerant, Upflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.

Features

• Interlocking door assemblies and snug line sealgrommets to minimize air leakage
• All units UL Listed and AHRI Certified
• One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
• External cabinet mounted distributor body designed for easy changing of orifice sizes and fast TXV connections

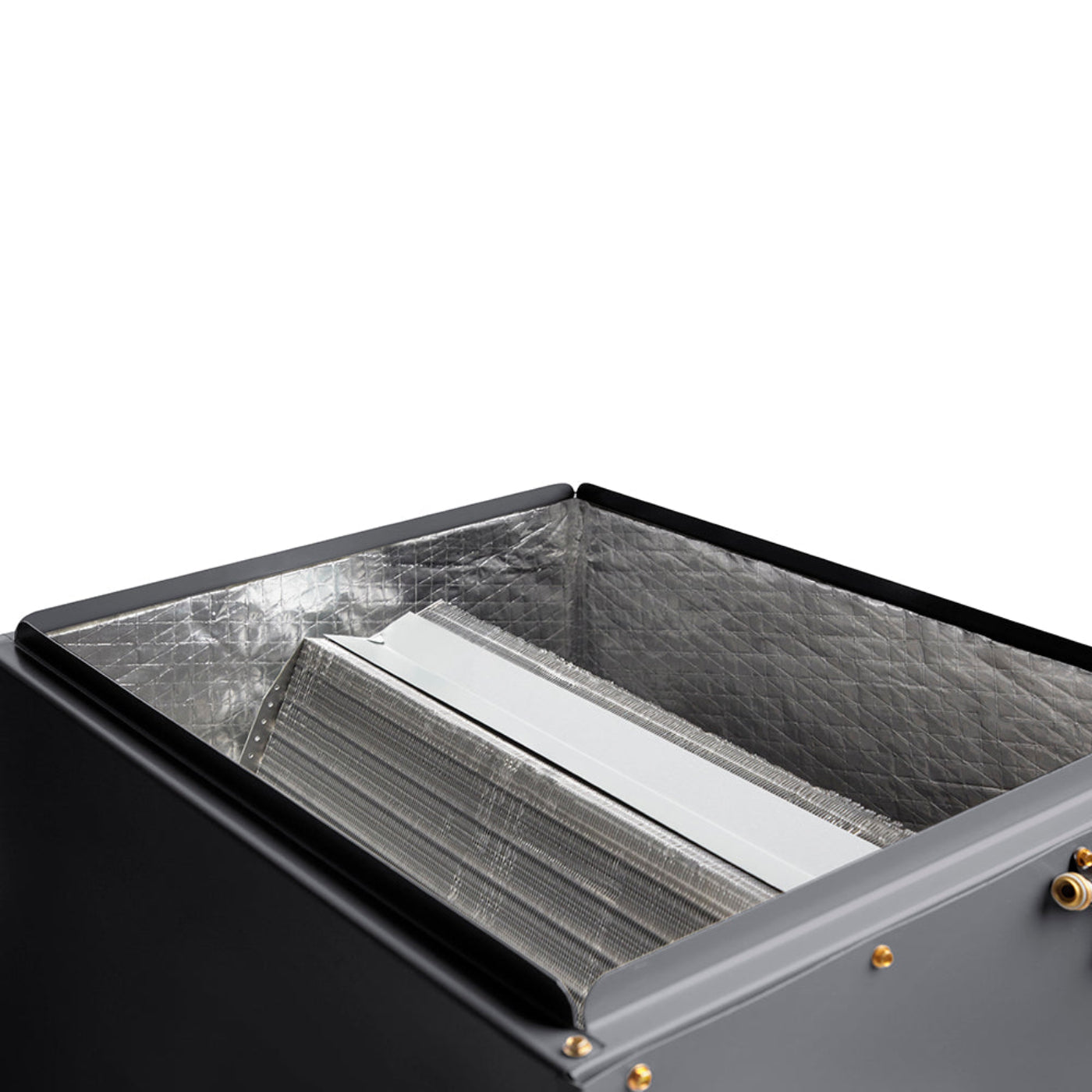

• Foil-face insulation for easy cleaning
• All drain pans are compatible with UV lights
• Two dual drain on front of coil for install flexibility of drain lines around furnace vent and utility connections.
• Superior service access to components, withtubing located at door split and foil-face insulation
• 10-Year Parts Limited Warranty
• Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines. Tubing located at door split for easy coil service or cleaning
• Tightly sealed, painted steel cabinet with wall to wall insulation to ensure <2% air leakage

Specifications

What our Experts Think

• Efficient Cooling Support – 24,000 BTU (2 Ton) capacity delivers reliable performance for residential HVAC systems.

• Optimized Airflow – Upflow cased design ensures smooth, efficient distribution of cooled or heated air.

• Durable Construction – Heavy-duty cabinet protects internal components and ensures long service life.

• Flexible Compatibility – Pairs seamlessly with MRCOOL Signature Series systems and other standard HVAC units.

• Compact Fit – 17.5-inch cabinet width makes it suitable for tight installation spaces.

• Energy-Conscious Choice – 16 SEER rating helps improve efficiency when matched with the right condenser.

Q&A

Q: What is the MRCOOL Signature 24K BTU Upflow Cased Evaporator Coil?
A: It’s a 2-ton, 16 SEER compatible evaporator coil designed for upflow applications in central HVAC systems.

Q: What size is the cabinet?
A: The coil comes in a 17.5-inch cabinet, making it suitable for a wide range of standard HVAC installations.

Q: Is this evaporator coil energy efficient?
A: Yes, it supports 16 SEER efficiency ratings, helping maintain consistent performance and reduce energy costs.

Q: Can it be used for both heating and cooling?
A: Yes, when paired with a compatible heat pump or air conditioner, it handles both cooling and heating cycles.

Q: Who should use this coil?
A: It’s ideal for homeowners or contractors looking for a reliable, long-lasting solution to complete their MRCOOL or compatible HVAC setup.

Q: Is this coil durable?
A: Yes, it’s built with high-quality materials to withstand long-term use and deliver dependable performance.

Maintenance Tips

• Inspect and clean the coil surface regularly to prevent dust and dirt buildup.

• Replace or clean air filters every 1–2 months for proper airflow.

• Check for signs of ice, leaks, or restricted airflow in the coil area.

• Keep surrounding area free of debris to ensure ventilation.

• Ensure condensate drain is clear to avoid water damage.

• Have a professional perform annual inspections for efficiency and long life.
