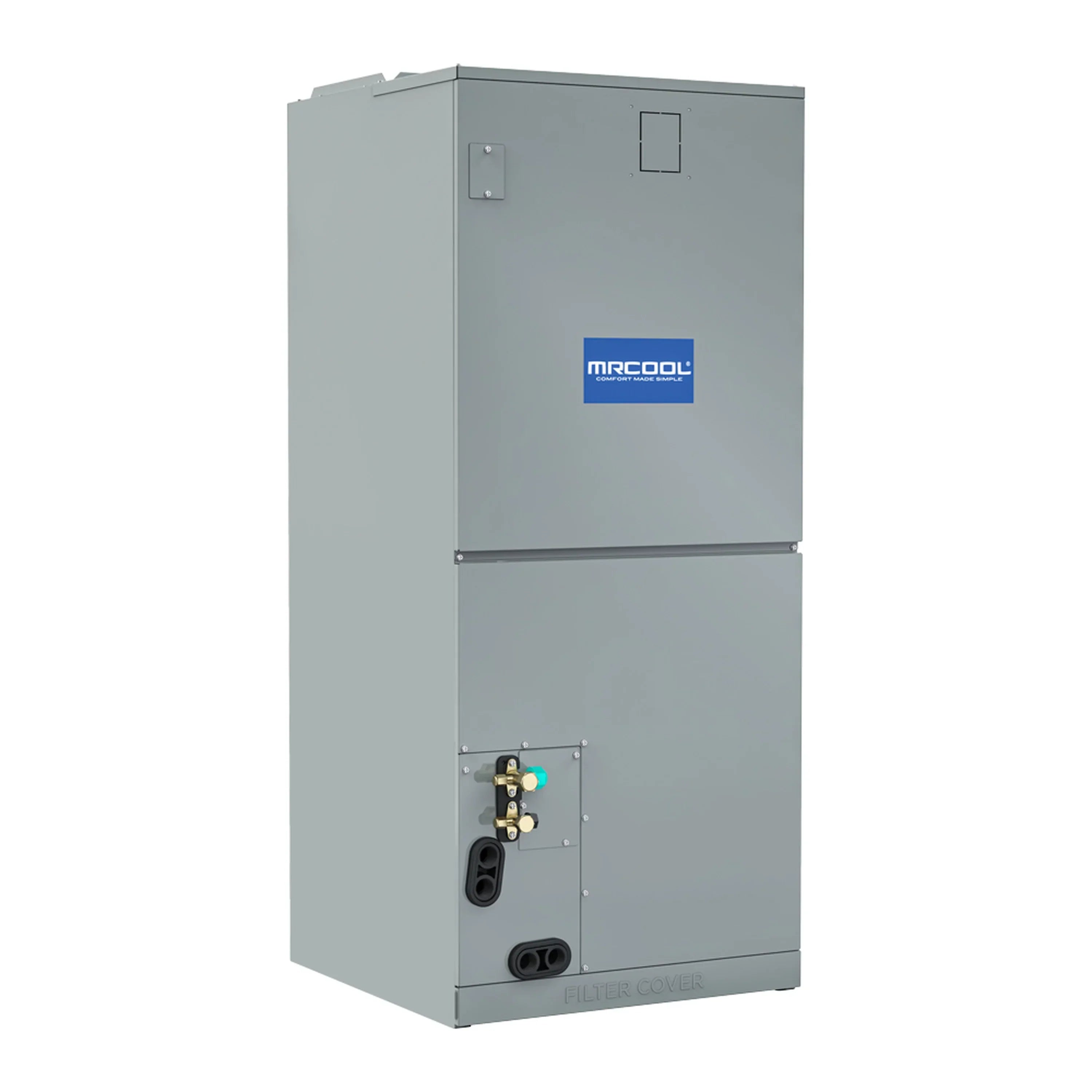

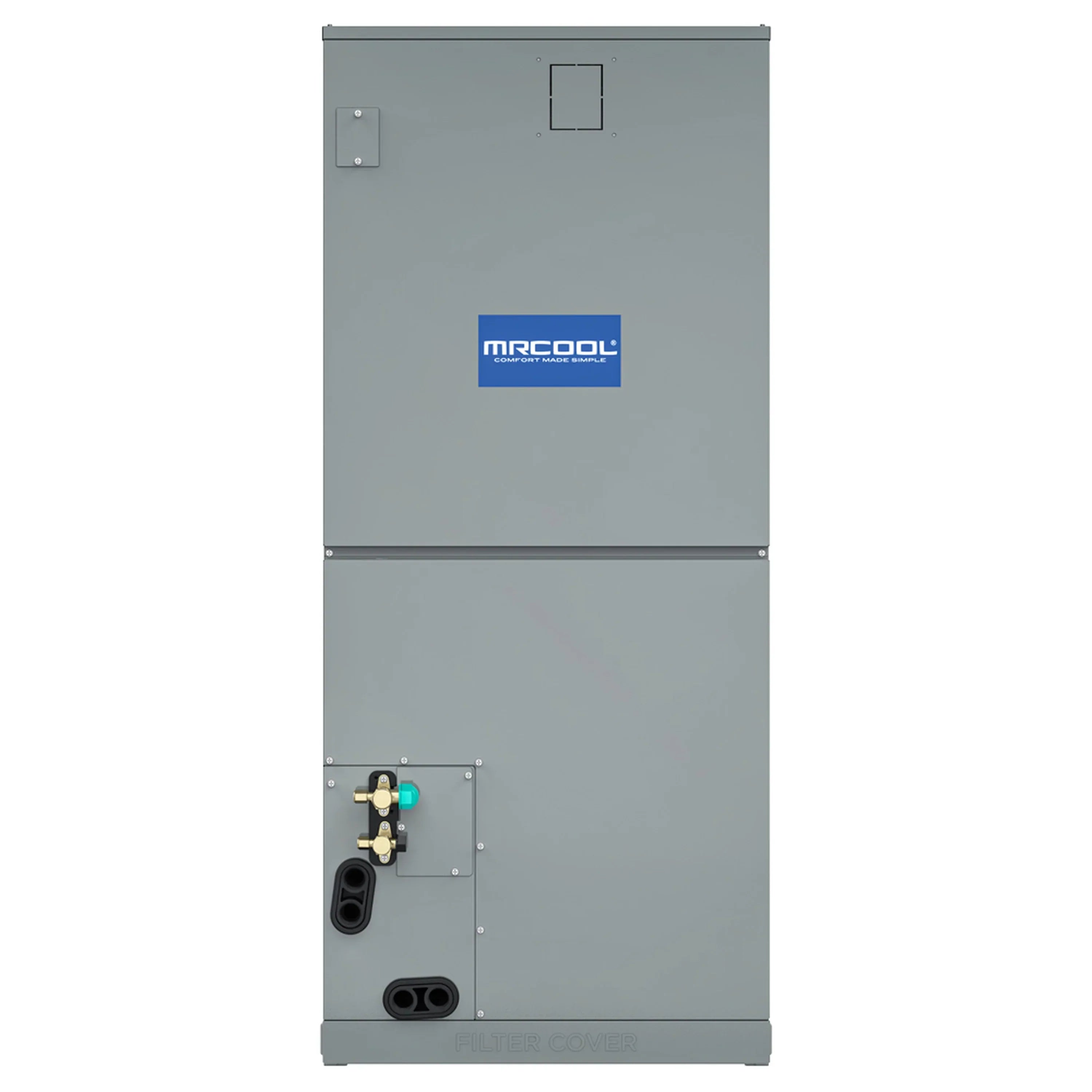

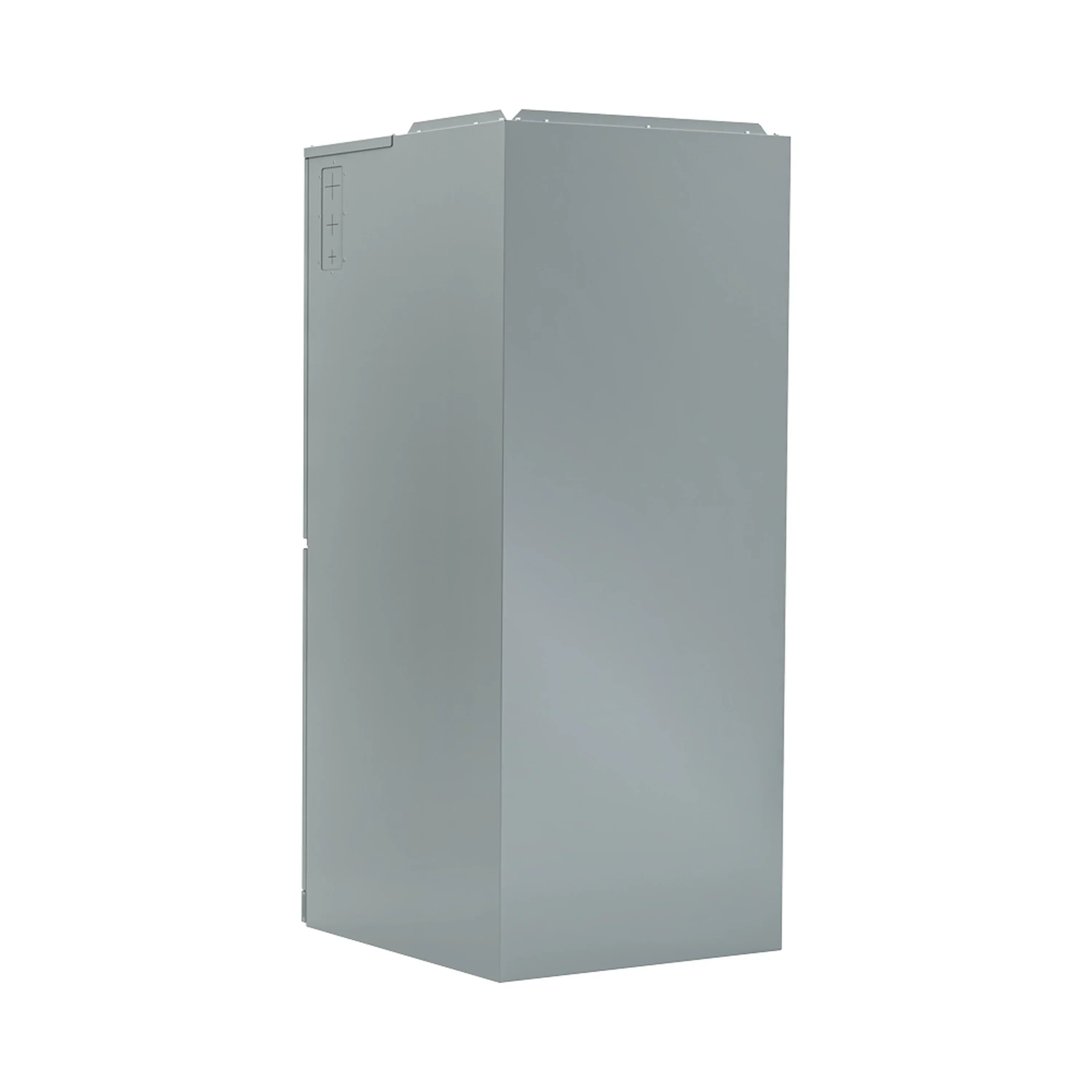

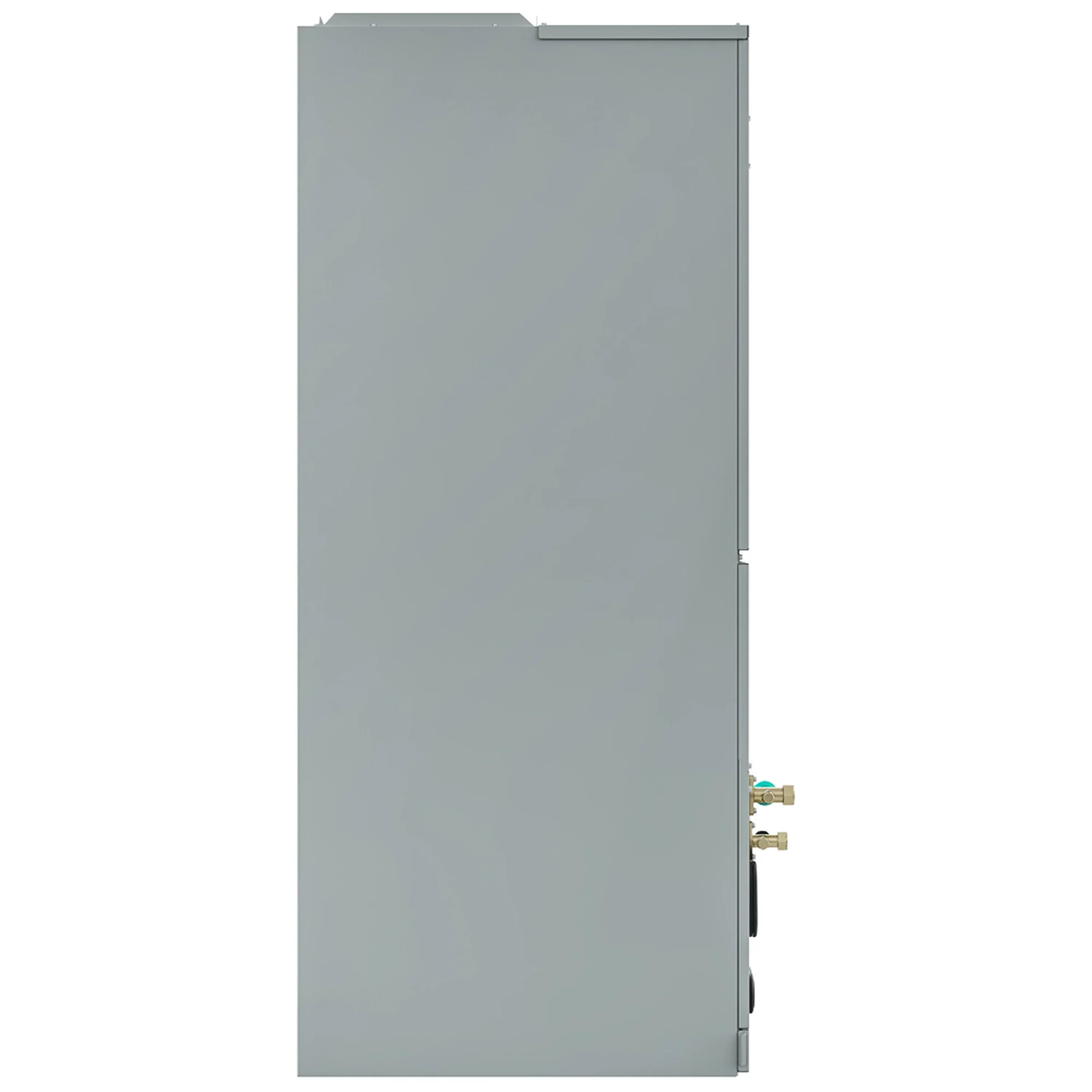

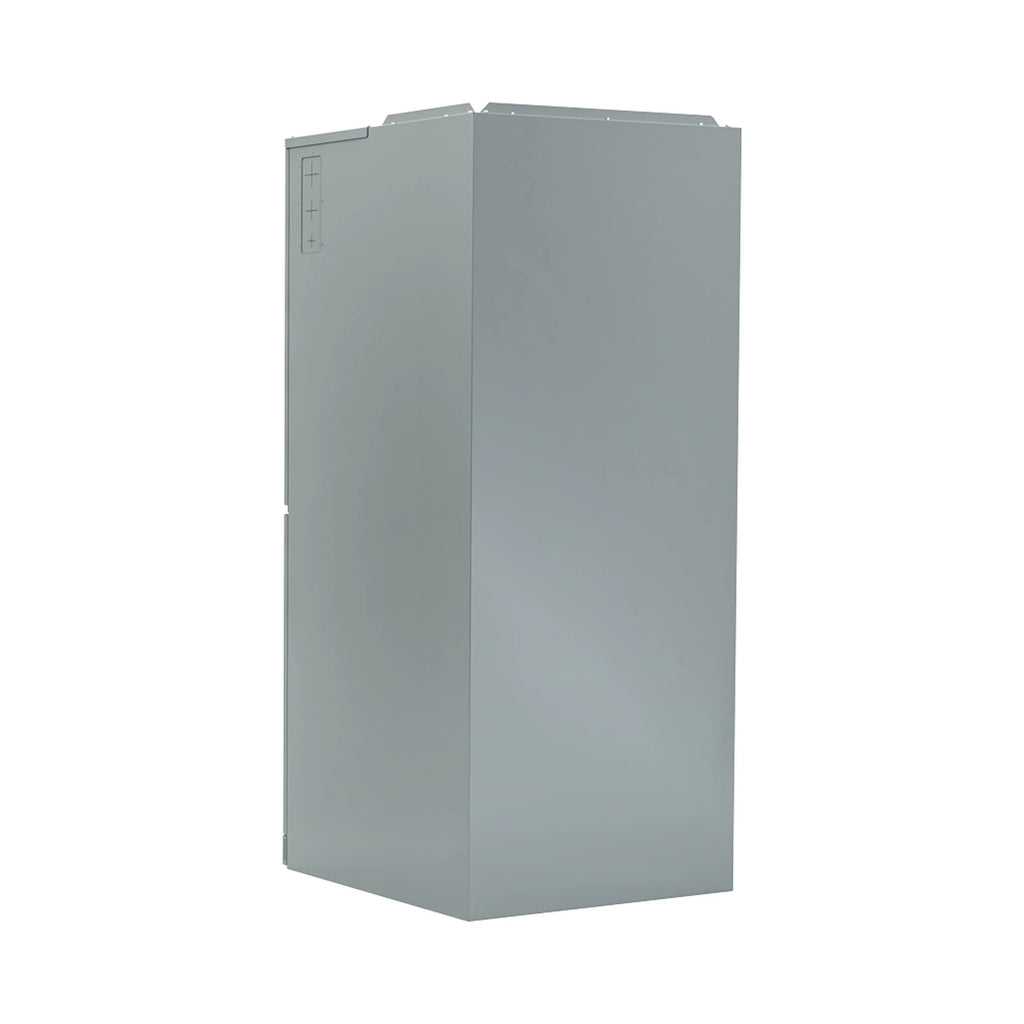

MRCOOL VersaPro 2nd Gen 24K BTU, 2 Ton Central Ducted Air Handler - MVP-24-HP-MUAH-230A00-O
The 2 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient option for year-round heating and cooling your home. With a SEER2 rating of up to 18.3, it’s suitable for spaces up to 1,000 square feet, making it a practical choice for replacing older HVAC systems. Built with durability in mind, the air handler features a painted galvanized steel exterior, ensuring long-lasting performance. The self-diagnostics panel makes maintenance easier, helping identify error codes quickly and simplifying troubleshooting.
The unit offers flexible installation options, including upflow, downflow, and horizontal left or right configurations to fit various home layouts. It also uses R-454B refrigerant, an eco-friendly option that reduces environmental impact while maintaining performance. Plus, this air handler works seamlessly with our Central Ducted Hyper Heat system for reliable whole-home comfort. If you need additional heating, an optional heat kit can be added. The included wireless remote offers the Follow Me function, adjusting the airflow temperature based on its location for personalized comfort. Combined with the MRCOOL® Smart thermostat, which ensures reliable and easy temperature control, maintaining your home’s ideal comfort level has never been simpler. With a 10-year warranty, the 2 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers dependable performance, energy efficiency, and flexibility, making it an innovative and cost-effective upgrade for your home’s HVAC system.
Specifications
Dimensions |
17.52" D x 45" H x 21.02" W |
CFM |
824.04/759.29/694.55/629.80 |
Tonnage |
2 |
Cooling Capacity (BTU) |
24000 |
Heating Capacity (BTU) |
26000 |
Voltage (V) |
115/208-230 |
Phase |
1 |
Cycle |
60 |
Max Fuse Breaker (A) |
15 |
Min Circuit Ampacity (A) |
5.5/4.0 |
Color |
gray |
Decibel Rating Low (DBA) |
28 |
Decibel Rating High (DBA) |
44 |
Number of Speeds |
3 |
Max Lineset Length (FT) |
164 ft |
Liquid Line Size |
3/8 |
Suction Line Size |
3/4 |
Filter Type |
Replaceable |
Filter Size |
16x20x1 |
Auxiliary Heater Included |
No |
Auxiliary Heater Available |
Yes |
Auxiliary Heater Sizes |
5kW/8kW/10kW/15kW |

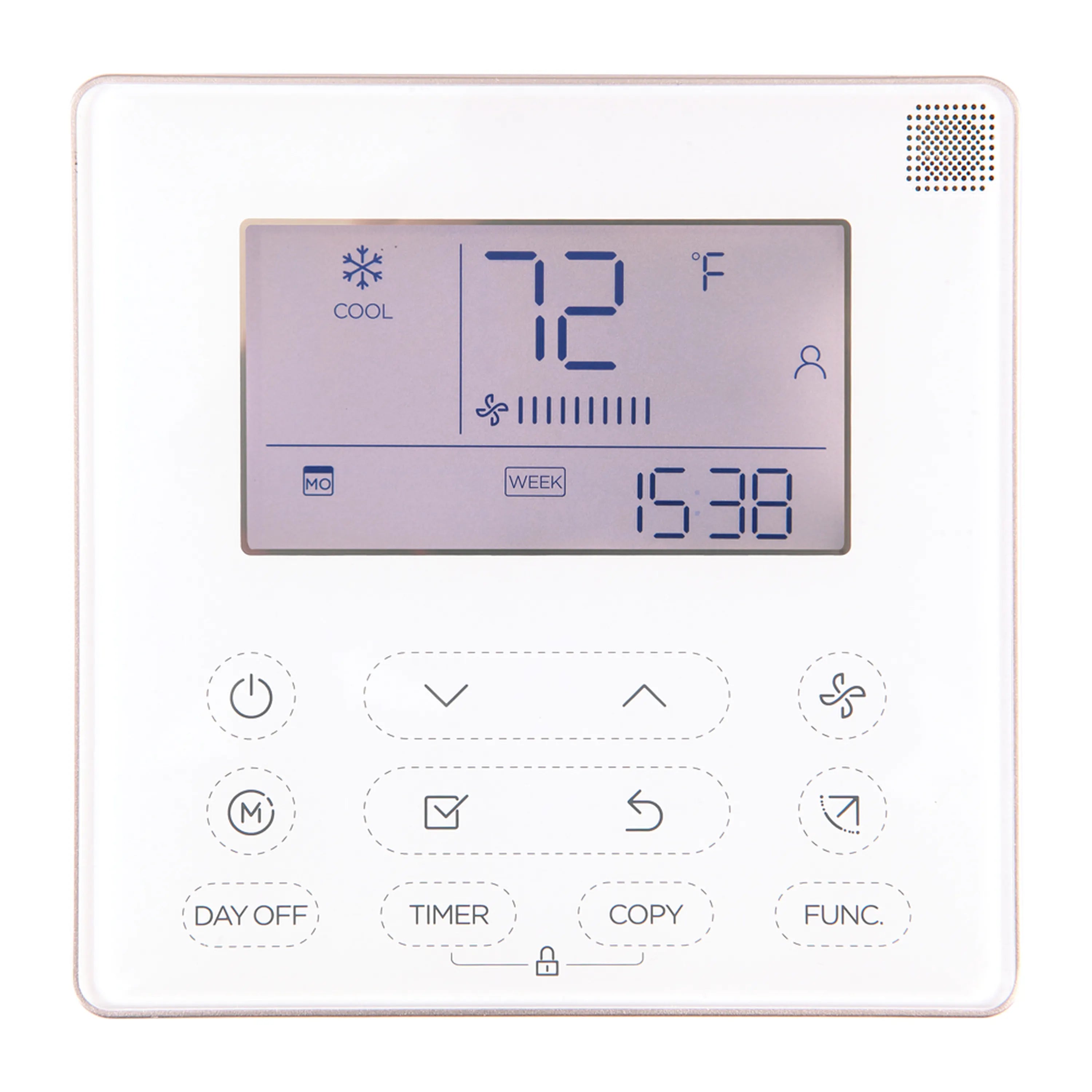

Adjustable Thermostat |
Yes |
WIFI Compatibility |
Yes |
APP Compatibility |
Yes |
ETL Certified |
Yes |
Energy Star Certified |
Yes |
AHRI Certified |
Yes |
Base Parts Warranty |
10 Years |
Base Compressor Warranty |
10 Years |
Contains Electronics |
Yes |
Contains Chemicals |
Yes |
Contains Compressed Gas |
Yes |
Net Weight (Lbs) |
105.6 |
Gross Depth (In) |
20.87 |
Gross Height (In) |
48.62 |
Gross Width (In) |
26.57 |
Gross Weight (Lbs) |
127.43 |
What our Experts Think
-
Efficient Air Distribution – 2 Ton (24,000 BTU) air handler ensures reliable heating and cooling for small-to-medium homes.
-
Energy-Efficient Operation – Optimized for use with 2nd Gen VersaPro heat pump condensers to maintain high SEER2 efficiency.
-
Ducted Design – Integrates seamlessly with existing ductwork for even, whole-home comfort.
-
Durable & Quiet – Built for long-lasting, low-noise operation.
-
Flexible Compatibility – Works with multiple VersaPro 2nd Gen systems for versatile installation.
Q&A
Q: What is included in this MRCOOL VersaPro 2nd Gen product?
A: This is a 24,000 BTU (2 ton) central ducted air handler, designed to work with compatible MRCOOL VersaPro heat pump condensers.
Q: Can it provide both heating and cooling?
A: Yes, when paired with a compatible VersaPro heat pump condenser, it delivers year-round heating and cooling.
Q: How energy efficient is the system?
A: It is optimized for high-efficiency MRCOOL condensers, providing reliable performance while minimizing energy costs.
Q: Is it compatible with existing ductwork?
A: Yes, the air handler integrates seamlessly with standard ducted HVAC systems for easy installation.
Q: What size area can it serve?
A: Suitable for small to medium homes up to approximately 900–1,200 sq. ft., depending on insulation and climate.
Q: Who should choose this air handler?
A: Homeowners seeking a compact, energy-efficient central air handler to pair with a VersaPro heat pump condenser for smaller spaces.
Maintenance Tips
-
Air Filter Care: Replace or clean filters every 1–3 months to maintain airflow and efficiency.
-
Ductwork Inspection: Seal leaks and clean ducts regularly to ensure even air distribution.
-
Condensate Drain: Check and clear condensate lines to prevent water buildup.
-
Coil Maintenance: Schedule annual cleaning of evaporator coils for peak performance.
-
Fan & Motor Check: Inspect blower fans and motors for smooth operation and dust buildup.
-
Cabinet Seals: Ensure panels are properly closed to prevent air leakage.
-
Professional Service: Schedule yearly maintenance to prolong lifespan and maintain SEER2 efficiency.
