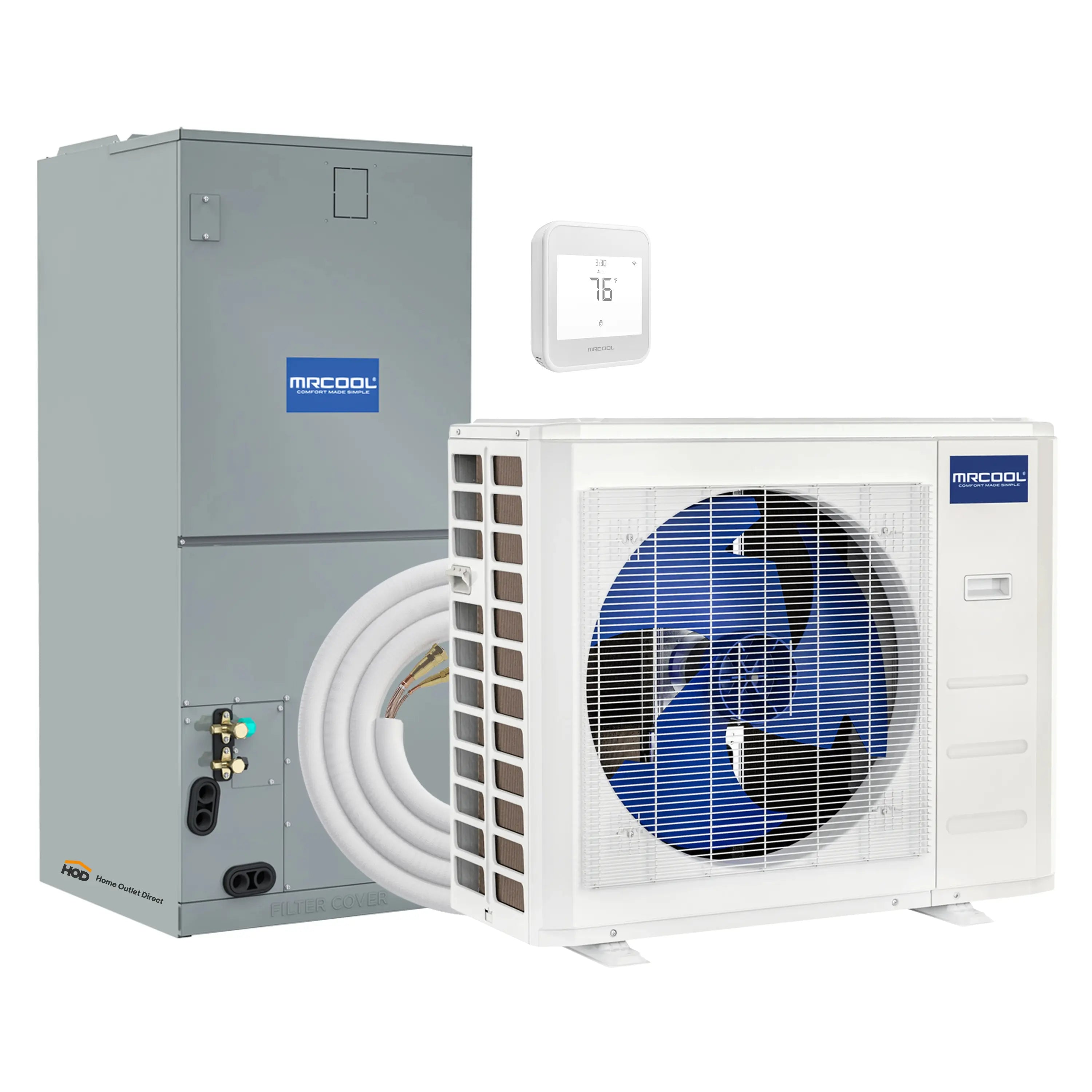

MRCOOL VersaPro 2nd Gen Central Split System with 36K BTU, 3 Ton, 16.1 SEER2, Heat Pump Condenser and Ducted Air Handler with 15 Ft. R-454B No-Vac Lineset - MVP-36-HP-230A15

MRCOOL VersaPro 2nd Gen Central Split System with 36K BTU, 3 Ton, 16.1 SEER2, Heat Pump Condenser and Ducted Air Handler with 15 Ft. R-454B No-Vac Lineset  - MVP-36-HP-230A15

The MRCOOL Central Split System Bundle is a heating and cooling system you need to stay warm in winter, cool in summer, and energy efficient all year long.

Features

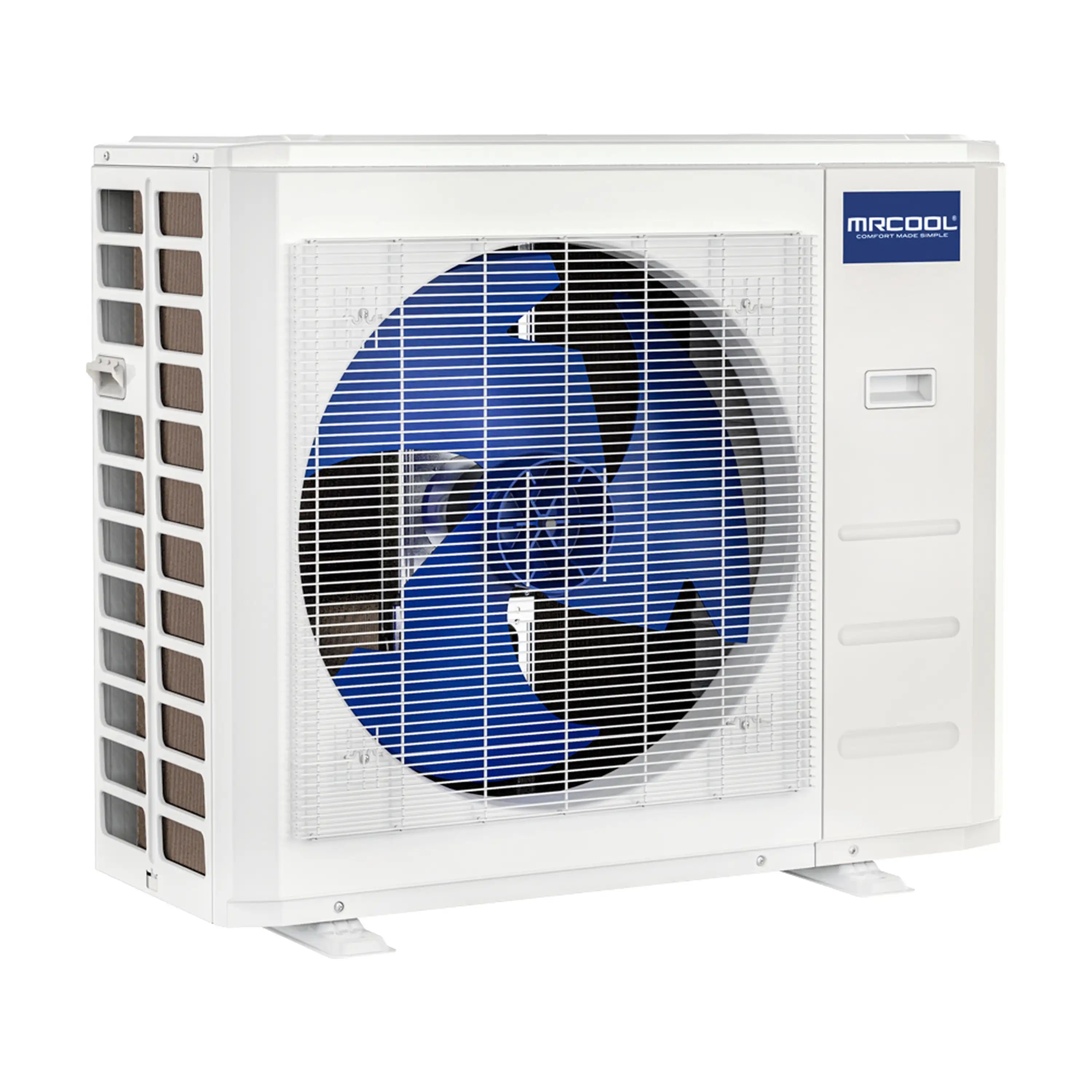

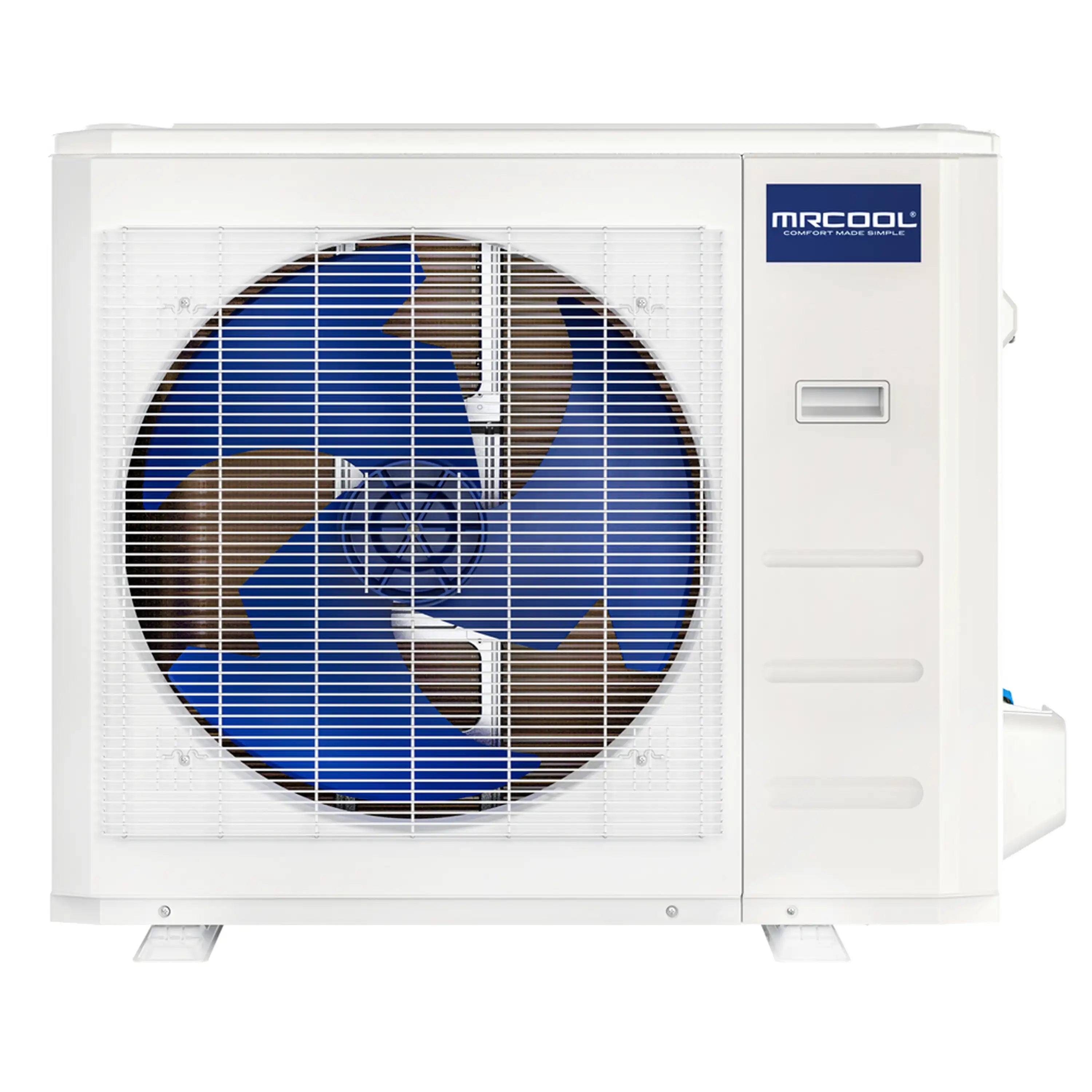

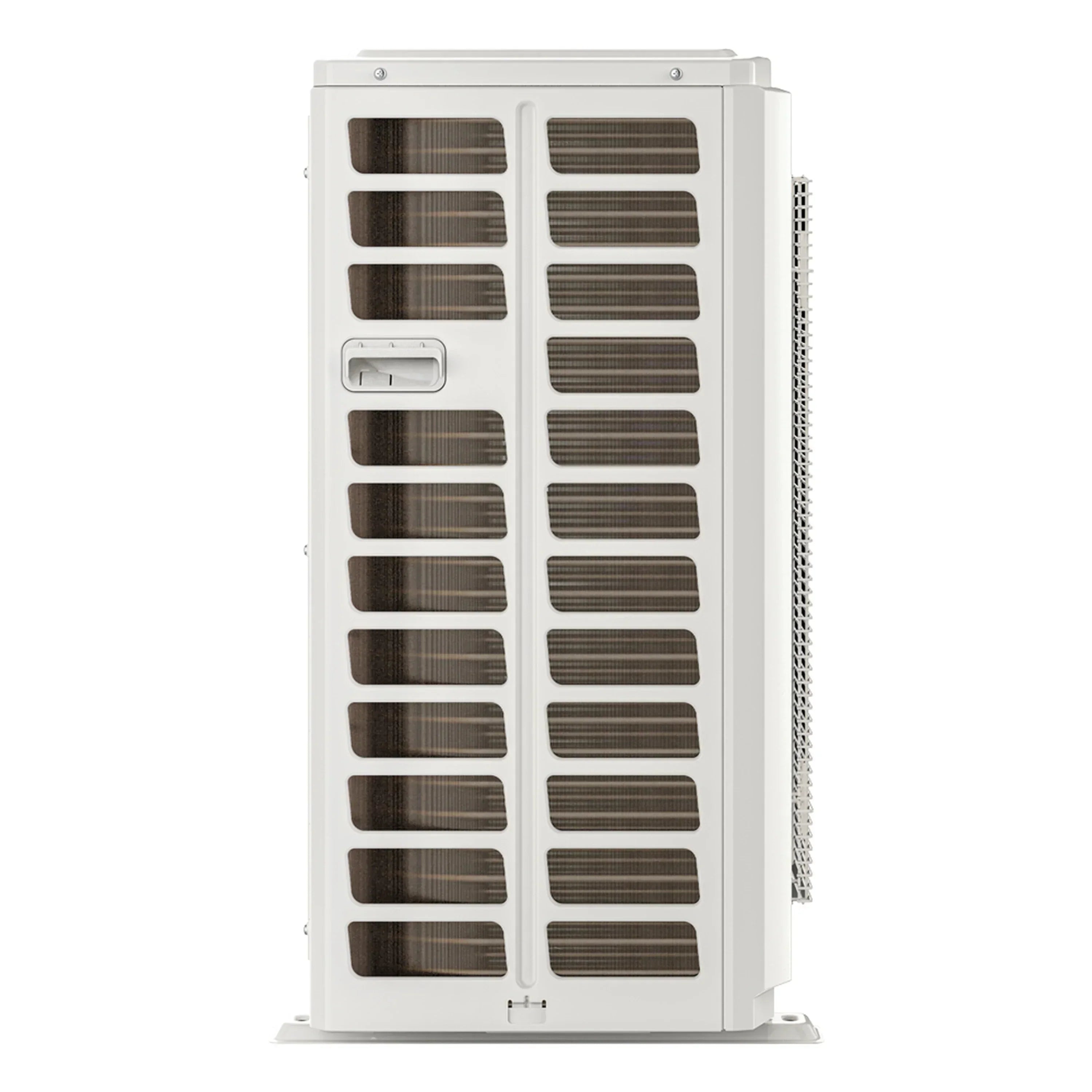

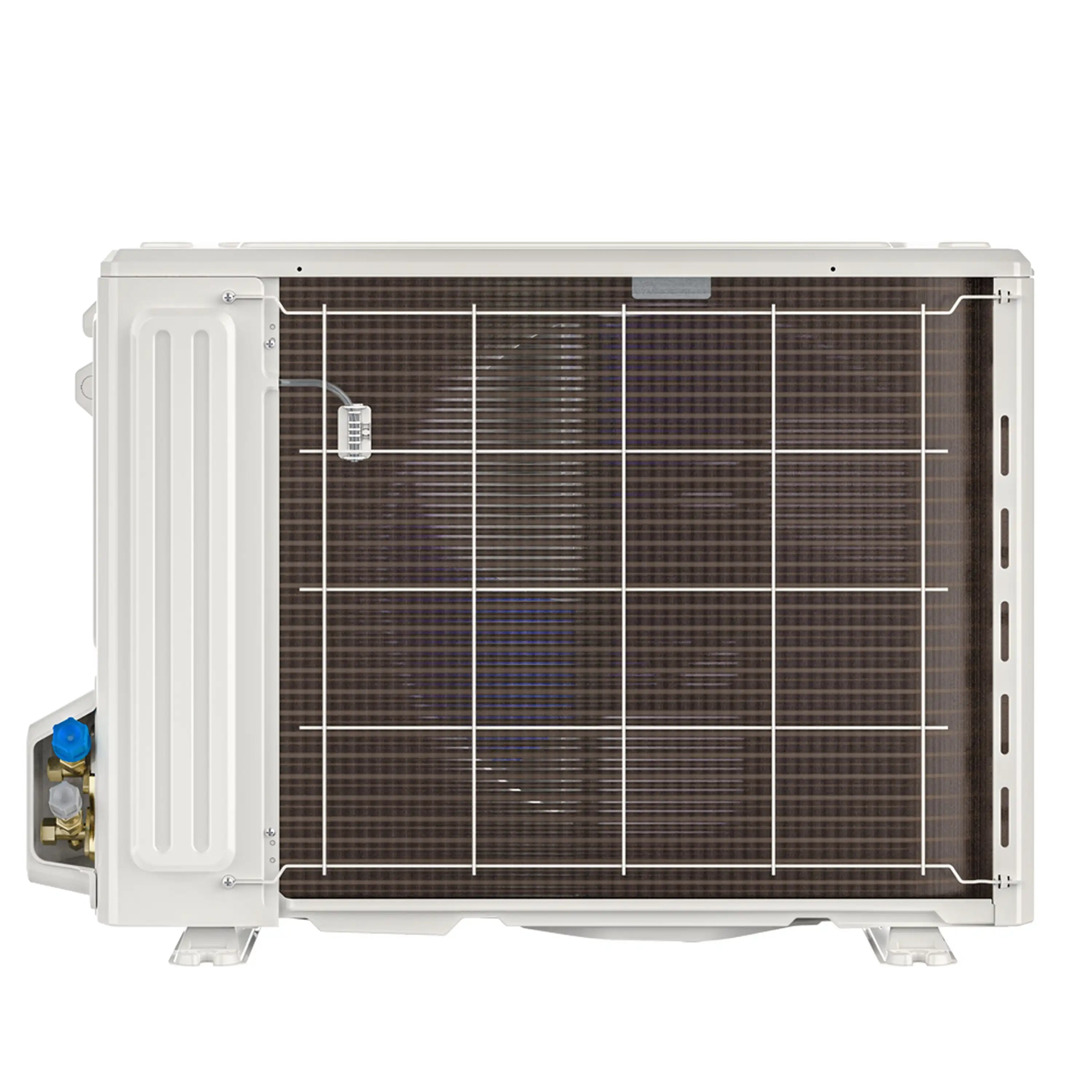

1. MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton, 16.1 SEER2 Central Ducted Heat Pump Condenser

2. MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton Central Ducted Air Handler

3. MRCOOL 15 Ft. R-454B No-Vac Lineset


4. MRCOOL Smart Thermostat

5. 1. MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton, 16.1 SEER2 Central Ducted Heat Pump Condenser (MVP-36-HP-C-230A00-O)

• 3 Ton

• 16.1 and an HSPF4 rating of 8.7.

• R-454B refrigerant

2. MRCOOL VersaPro 2nd Gen 36K BTU, 3 Ton Central Ducted Air Handler (MVP-36-HP-MUAH-230A00-O)

• 3 Ton

• SEER2 rating of up to 17.4

• R-454B refrigerant

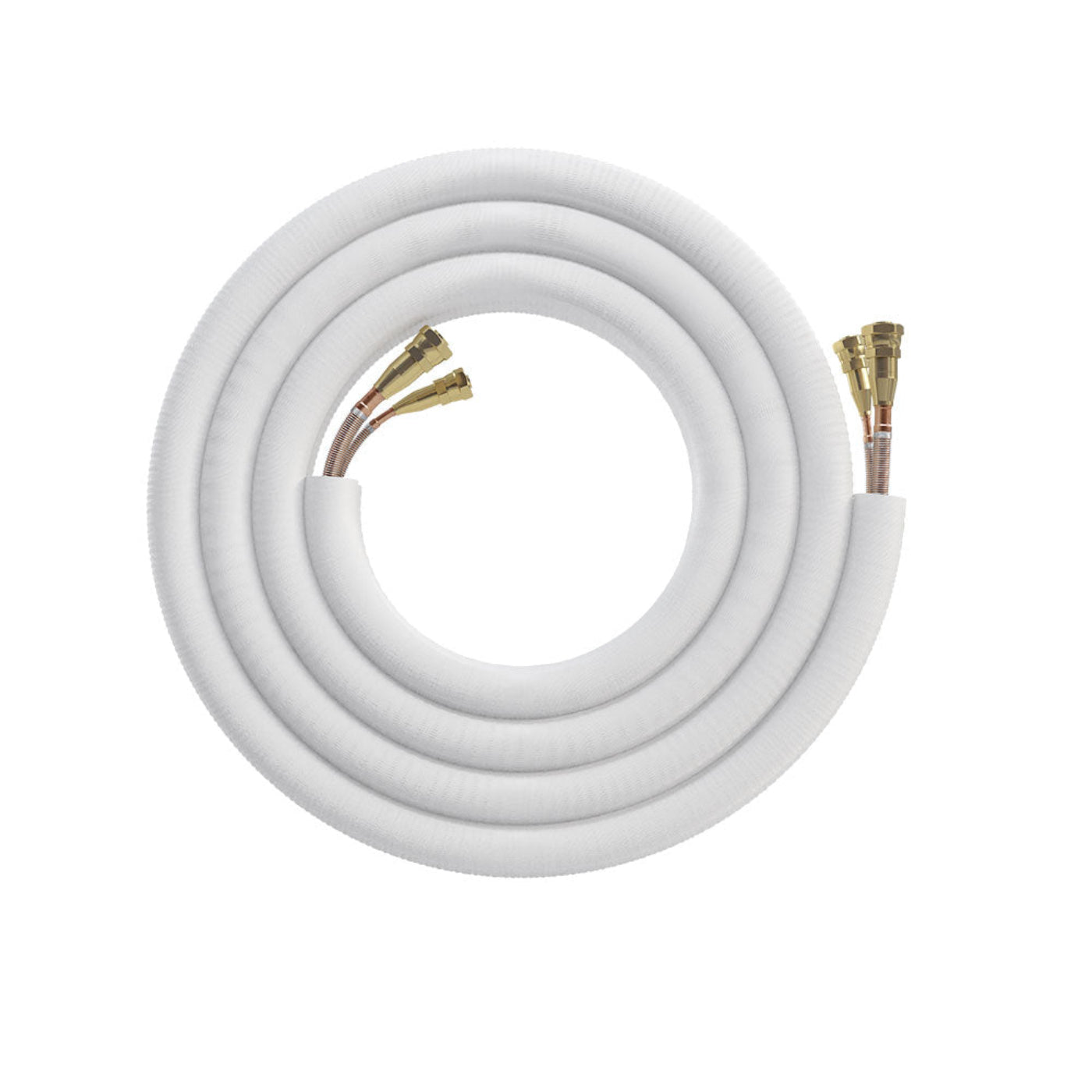

3. MRCOOL 15 Ft. R-454B No-Vac Lineset (NV15-3834-O)

• Kink Resistant - Precharged

• Simple Secure Quick Connect

• UV Protected Insulation

• Works With: VersaPro 2nd Gen - Central Ducted Hyper Heat 2nd Gen

4. MRCOOL Smart Thermostat (MST04)

• Ensure ideal temperature with presets for Home, Away, and Sleep that perfectly align to match your specific needs and preferences.

• One App for All Your HVAC Systems

• Global Control for Remote Accessibility

• Works with Alexa, Google, Siri, and MRCOOL® Link

Specifications

What our Experts Think

• Reliable Year-Round Comfort – 36,000 BTU (3 Ton) system efficiently heats and cools medium-to-large homes.

• Energy-Efficient Performance – 16.1 SEER2 rating delivers lower energy costs while maintaining comfort.

• Heat Pump Technology – Provides consistent heating and cooling throughout the year.

• 15 Ft. R-454B No-Vac Lineset – Pre-charged line set simplifies installation and reduces labor time.

• Durable & Quiet – 2nd Gen design ensures long-lasting, low-noise operation.

Q&A

Q: What is included in this MRCOOL VersaPro 2nd Gen system?
A: It includes a 36,000 BTU (3 ton) heat pump condenser, ducted air handler, and a 15 ft. pre-charged R-454B No-Vac lineset for simplified installation.

Q: How energy efficient is the system?
A: With a 16.1 SEER2 rating, it delivers efficient cooling and heating while reducing energy consumption.

Q: Can it provide both heating and cooling?
A: Yes, the heat pump condenser ensures year-round comfort with both heating and cooling capabilities.

Q: What makes the No-Vac lineset beneficial?
A: The pre-charged R-454B No-Vac lineset eliminates the need for vacuum pumps or additional refrigerant charging, simplifying installation.

Q: What size area can it cover?
A: Suitable for medium-sized homes up to approximately 1,500–2,000 sq. ft., depending on insulation and climate.

Q: Who should choose this system?
A: Homeowners looking for a mid-size, energy-efficient central HVAC system with easy installation and reliable year-round performance.

Maintenance Tips

• Air Filter Care: Replace or clean filters every 1–3 months to maintain airflow and efficiency.

• Outdoor Unit Maintenance: Keep condenser free of debris, leaves, and obstructions.

• Ductwork Inspection: Seal leaks and clean ducts regularly for consistent air distribution.

• Condensate Drain: Ensure drain lines are clear to prevent water buildup.

• Coil Cleaning: Schedule annual cleaning of evaporator and condenser coils to maintain peak performance.

• Lineset Check: Inspect the 15 ft. R-454B No-Vac lineset for proper installation and insulation.

• Professional Service: Schedule yearly maintenance to maximize SEER2 efficiency and prolong system life.
