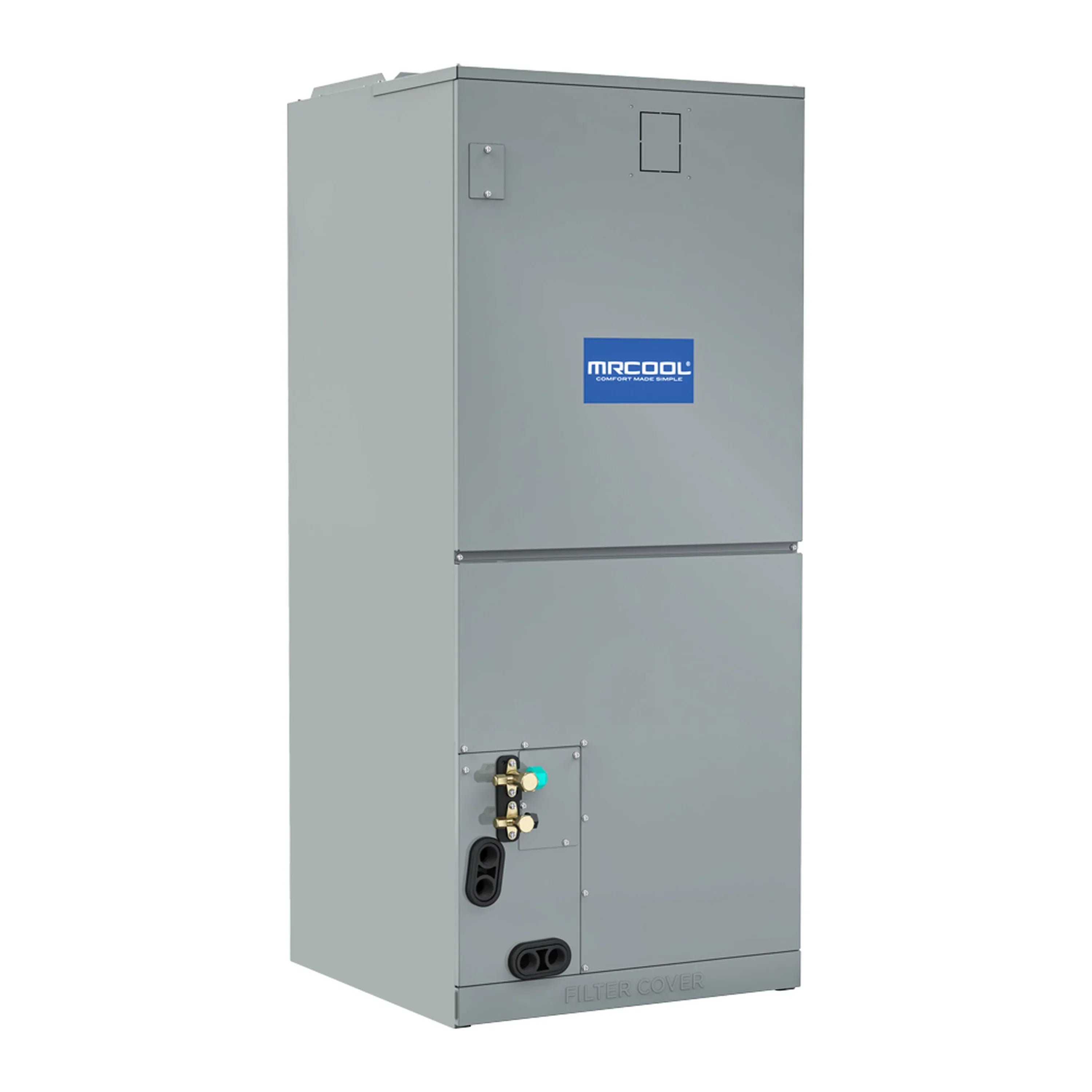

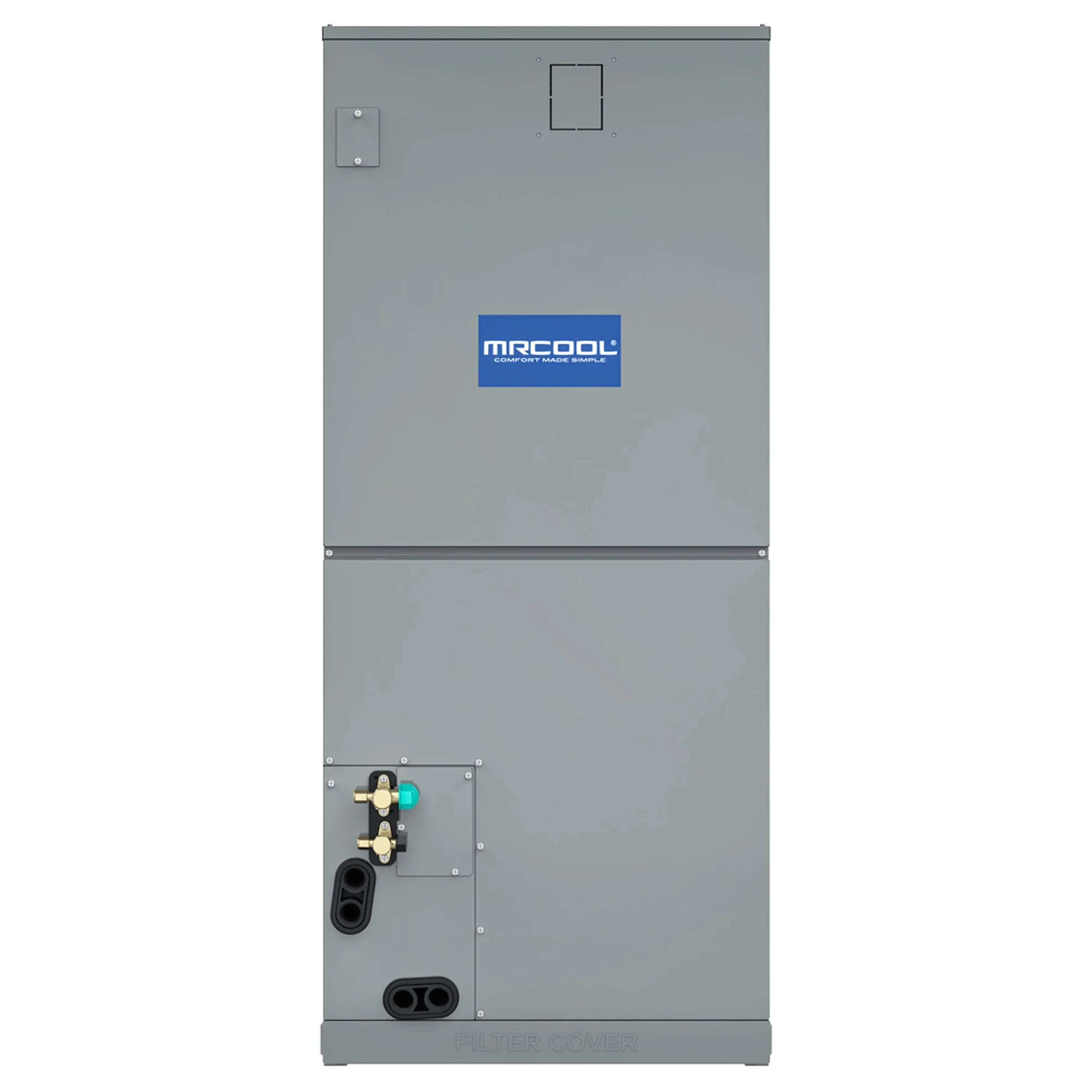

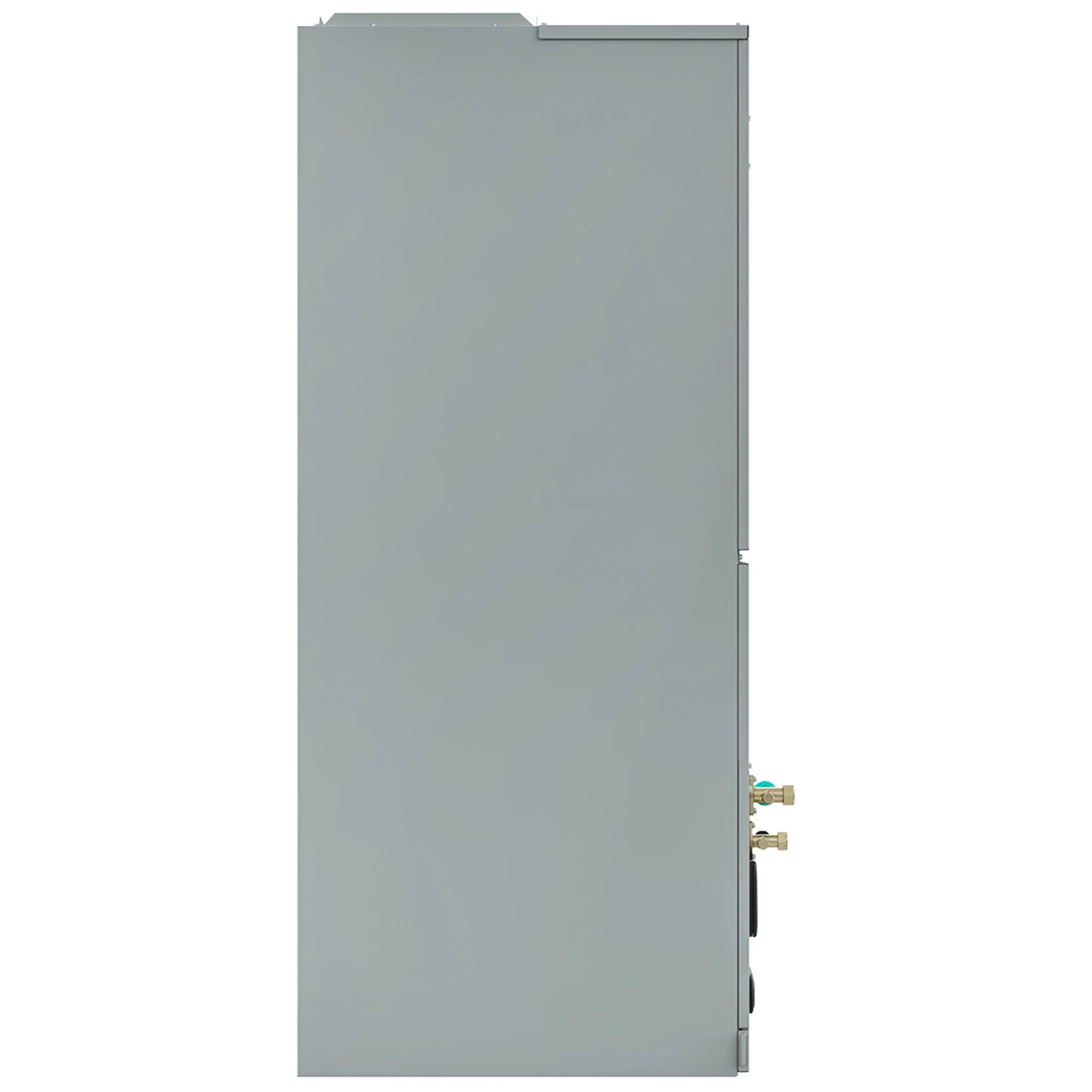

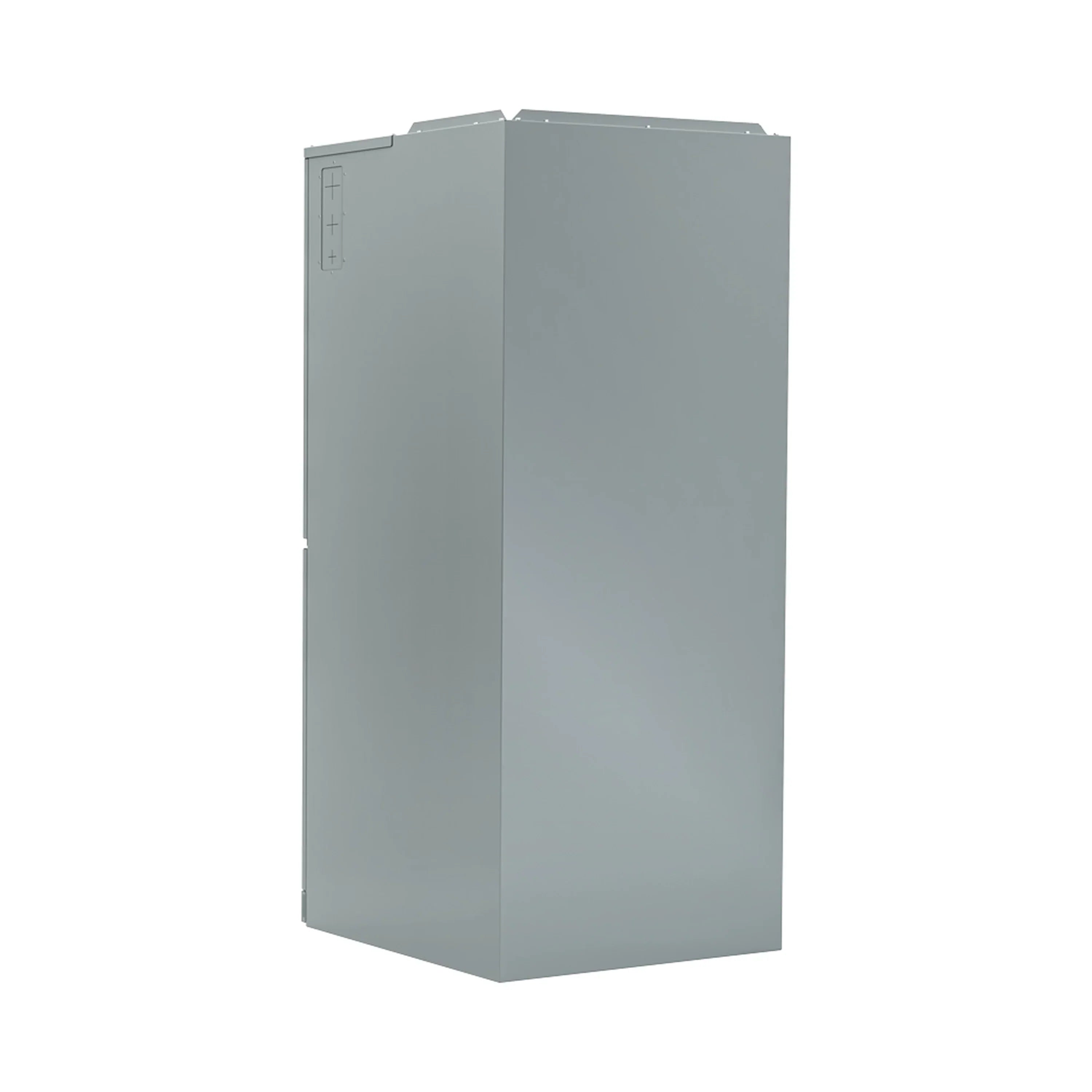

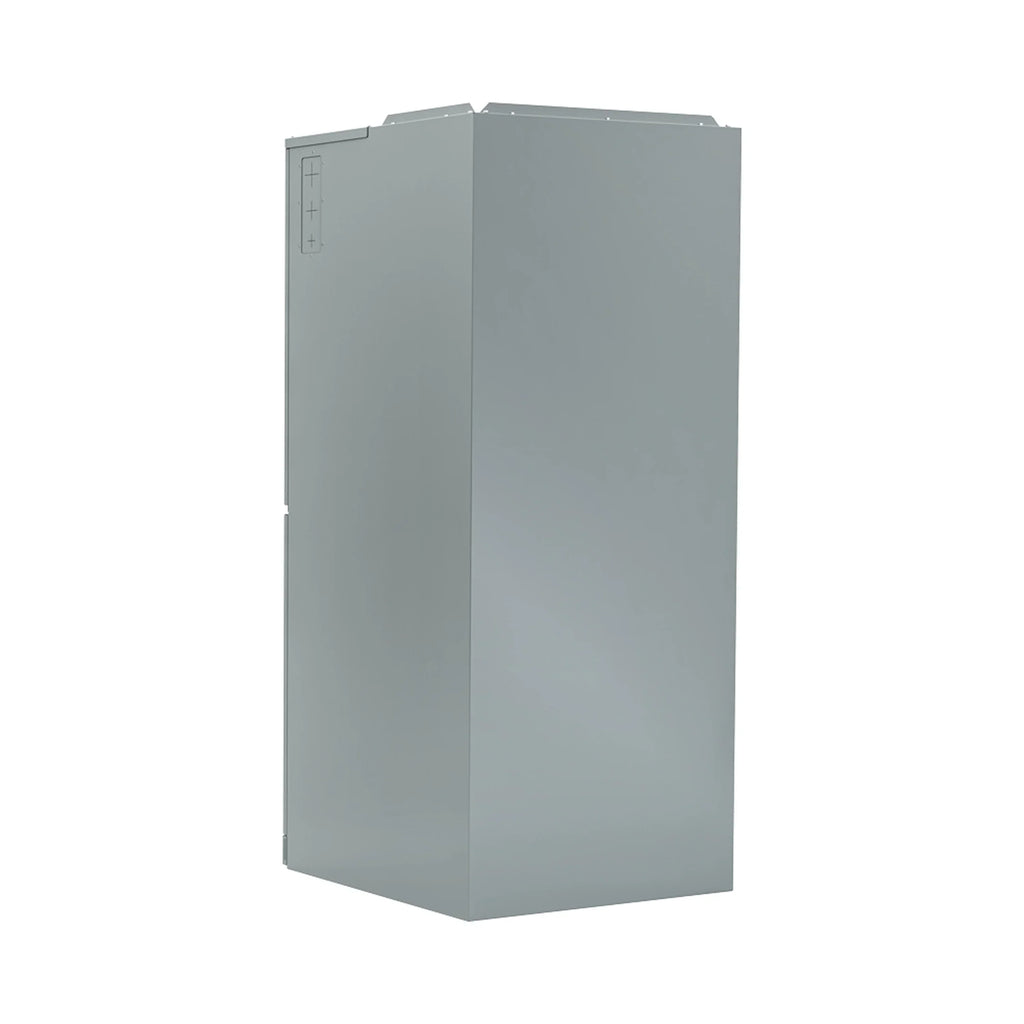

MRCOOL VersaPro 2nd Gen 30K BTU, 2.5 Ton Central Ducted Air Handler - MVP-30-HP-MUAH-230A00-O
The 2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is an efficient and reliable choice for heating and cooling spaces up to 1,250 square feet. With a SEER2 rating of up to 17, it provides year-round comfort while keeping energy costs in check. Designed for durability, this air handler features painted galvanized steel construction, ensuring it will last for years to come. Plus, its self-diagnostics panel simplifies maintenance by identifying error codes quickly, reducing downtime.

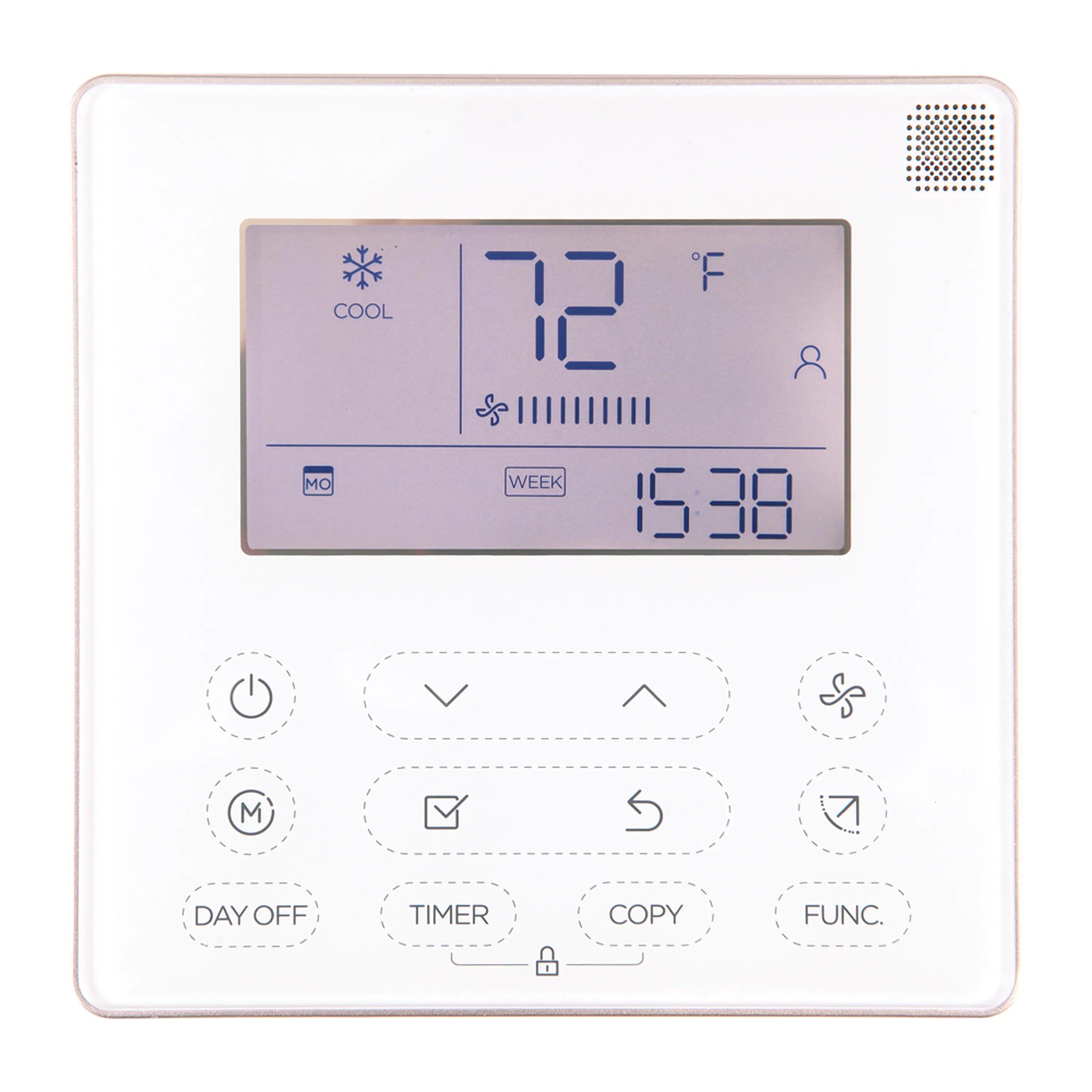

This unit is flexible when it comes to installation, with options for upflow, downflow, and horizontal left or right configurations to suit various setups. It uses R-454B refrigerant, an eco-friendly choice that helps reduce environmental impact. Additionally, this air handler is compatible with our Central Ducted Hyper Heat Condenser. For those who need additional warmth, an optional heat kit is available. The included MRCOOL® Smart Thermostat allows for precise and reliable temperature control, ensuring your home stays comfortable. Plus, it's compatible with the MRCOOL® SmartHVAC app, giving you the convenience of adjusting your system remotely from your smartphone. Backed by a 10-year warranty covering both parts and the compressor, the 2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a dependable solution for maintaining your home’s climate. It combines efficiency, flexibility, and ease of use, making it an excellent choice for upgrading your HVAC system.
Specifications
Dimensions |
21.02" D x 49.02" H x 21.02" W |
CFM |
988.85/894.67/806.38/712.21 |
Tonnage |
2.5 |
Cooling Capacity (BTU) |
30000 |
Heating Capacity (BTU) |
31000 |
Voltage (V) |
115/208-230 |
Phase |
1 |
Cycle |
60 |
Max Fuse Breaker (A) |
15 |
Min Circuit Ampacity (A) |
8.0/6.0 |
Color |
gray |
Decibel Rating Low (DBA) |
29 |
Decibel Rating High (DBA) |
46 |
Number of Speeds |
3 |
Max Lineset Length (FT) |
164 ft |
Liquid Line Size |
3/8 |
Suction Line Size |
3/4 |
Filter Type |
Replaceable |
Filter Size |
19x20x1 |
Auxiliary Heater Included |
No |
Auxiliary Heater Available |
Yes |
Auxiliary Heater Sizes |
5kW/8kW/10kW/15kW |
Adjustable Thermostat |
Yes |
WIFI Compatibility |
Yes |
APP Compatibility |
Yes |
ETL Certified |
Yes |
Energy Star Certified |
No |
AHRI Certified |
Yes |
Base Parts Warranty |
10 Years |
Base Compressor Warranty |
10 Years |
Contains Electronics |
Yes |
Contains Chemicals |
Yes |
Contains Compressed Gas |
Yes |
Net Weight (Lbs) |
128.97 |
Gross Depth (In) |
24.41 |
Gross Height (In) |
52.56 |
Gross Width (In) |
26.57 |
Gross Weight (Lbs) |
153.44 |
What our Experts Think
-
Reliable Air Distribution – 30K BTU, 2.5-ton capacity delivers consistent airflow for small to medium homes.
-
Energy Efficient – Designed to work seamlessly with 16–18 SEER2 systems for lower energy costs.
-
Durable Construction – Built to ensure long-lasting, dependable performance.
-
Flexible Installation – Multiposition design fits horizontal, upflow, or downflow duct setups.
-
Complete System Integration – Pairs perfectly with MRCOOL VersaPro 2nd Gen heat pump condensers.
Q&A
Q: What is the cooling and heating capacity?
A: The MRCOOL MVP-30-HP-MUAH-230A00-O supports 30,000 BTU (2.5 ton) capacity when paired with a compatible VersaPro condenser.
Q: What efficiency rating does it support?
A: It works with up to 17 SEER2 rated VersaPro systems for energy-efficient performance.
Q: What components are included?
A: This listing includes the central ducted air handler only, designed for use with MRCOOL VersaPro 2nd Gen ducted condensers.
Q: Can it provide both heating and cooling?
A: Yes, when connected to a VersaPro heat pump condenser, it supports year-round heating and cooling.
Q: Who is this product ideal for?
A: Perfect for homeowners and HVAC contractors seeking a high-efficiency, ducted air handler for VersaPro central split systems.
Q: Is professional installation required?
A: Yes, professional installation is recommended for proper ducted integration.
Maintenance Tips
-
Replace or clean air filters every 1–2 months to maintain proper airflow.
-
Inspect evaporator coils and wipe down dust buildup regularly.
-
Check blower motor and fan for dust or obstructions.
-
Ensure condensate drain lines are clear to prevent water damage.
-
Inspect electrical connections periodically for safety and efficiency.
-
Schedule annual professional servicing to ensure peak performance and system longevity.
