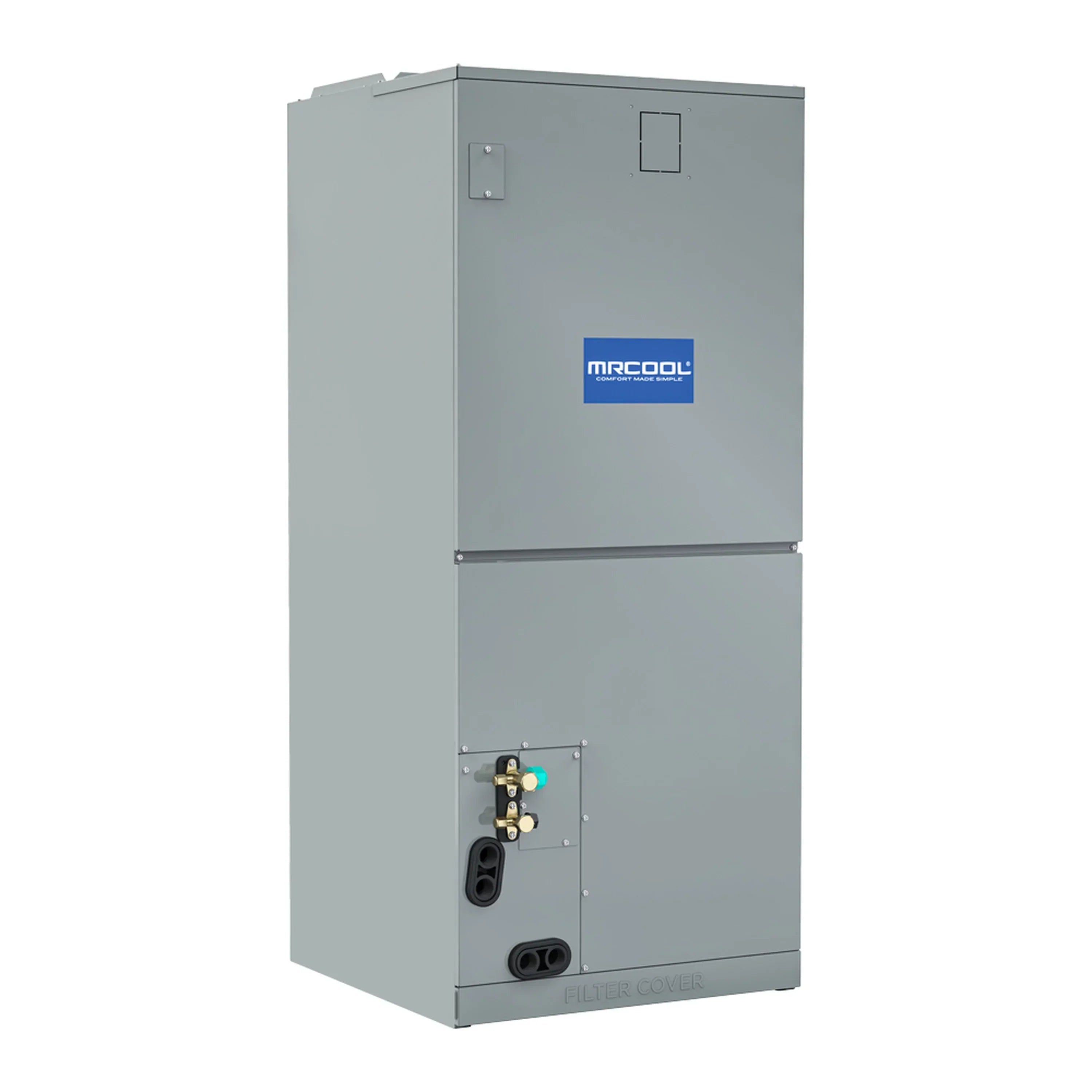

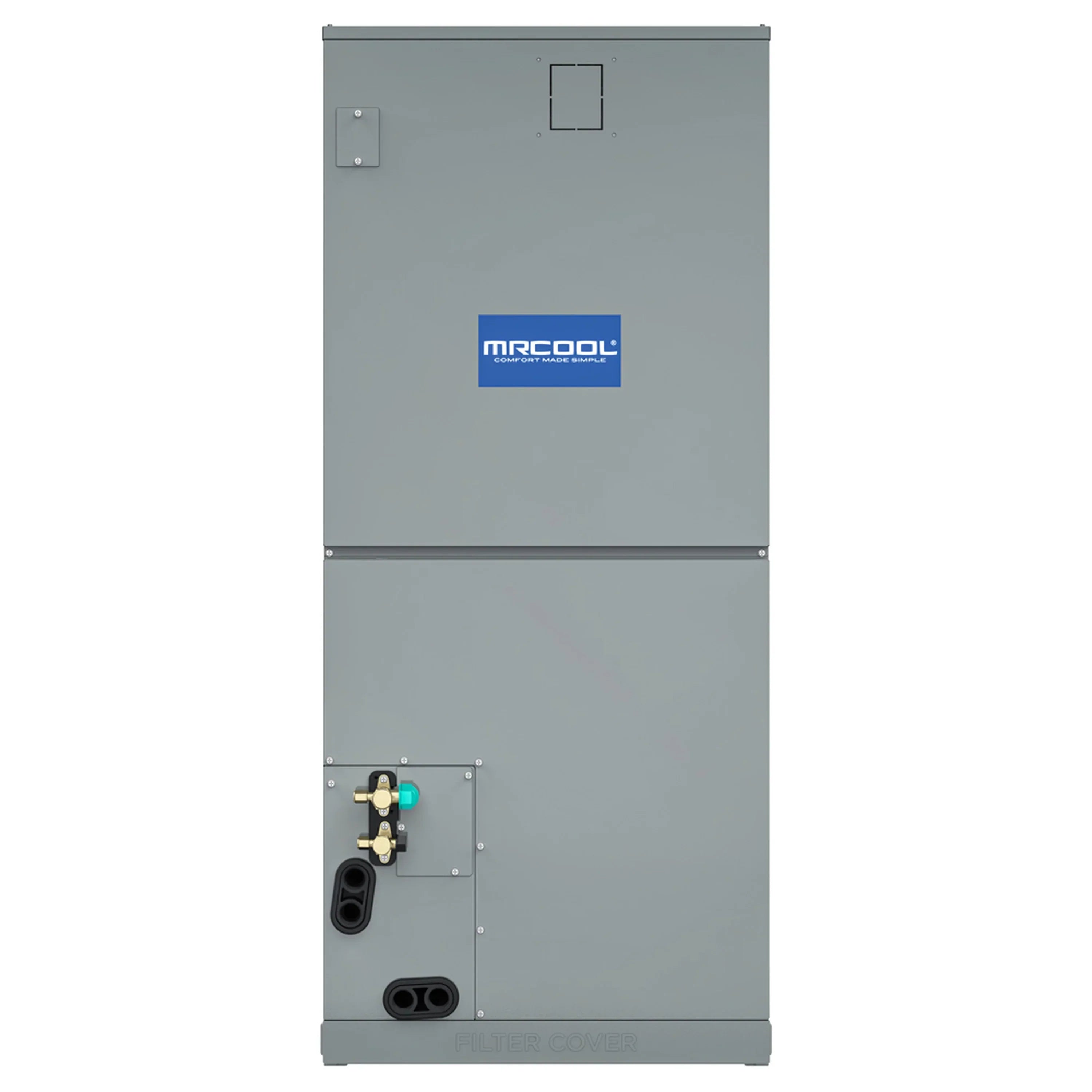

MRCOOL VersaPro 2nd Gen 54K BTU, 5 Ton Central Ducted Air Handler - MVP-60-HP-MUAH-230A00-O
The 5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient solution for year-round heating and cooling in spaces up to 2,500 square feet. With a SEER2 rating of up to 16, it offers energy-efficient climate control for your home. This air handler is designed to withstand everyday use and is built with durable, painted galvanized steel. It includes a self-diagnostics panel that helps quickly identify and resolve any issues, making maintenance straightforward. This unit provides flexible installation options, including upflow, downflow, and horizontal left or right configurations, ensuring it fits various room layouts. It uses R-454B refrigerant, which is eco-friendly and reduces environmental impact.

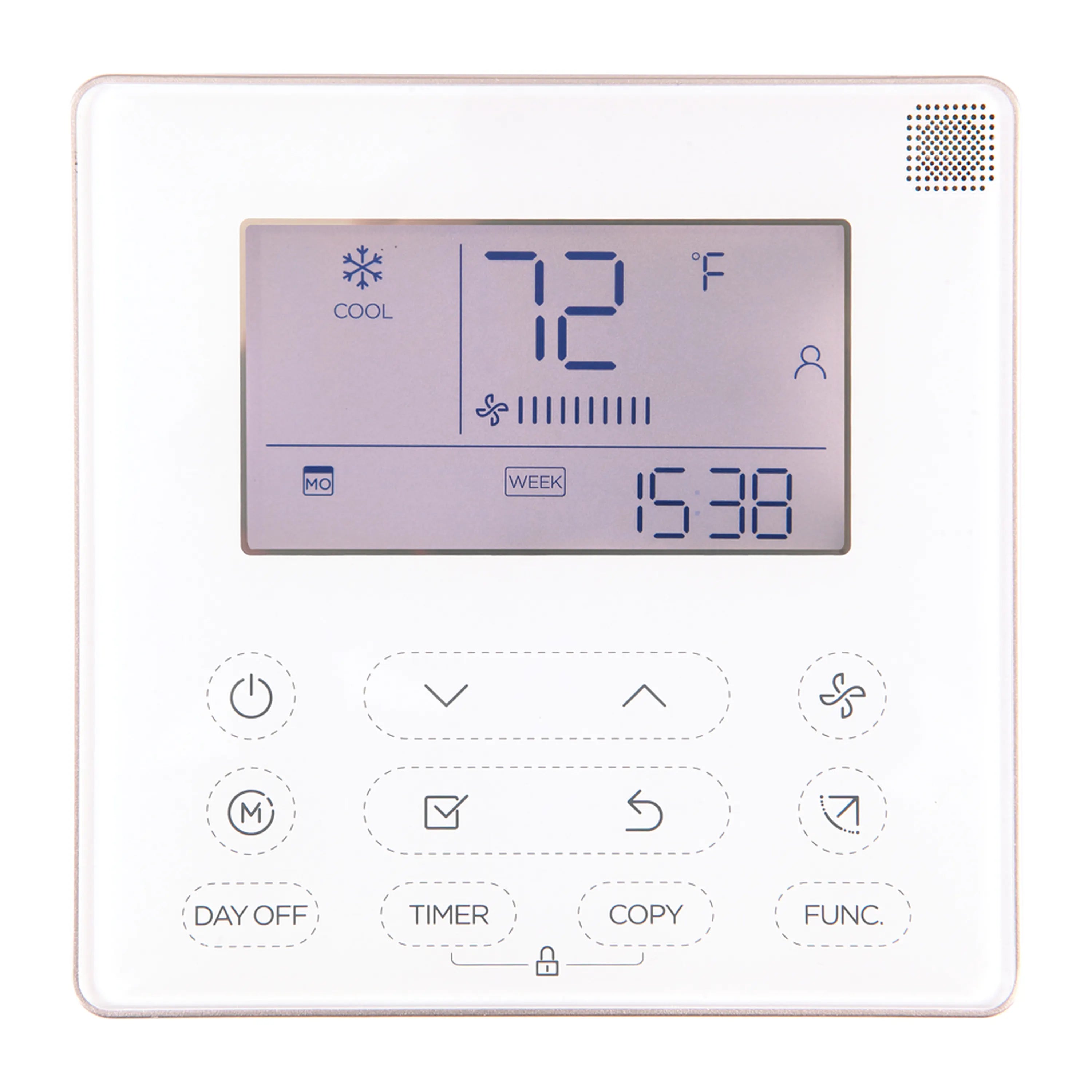

For those needing extra warmth, an optional heat kit can be added to expand the unit's capabilities. The included MRCOOL® Smart Thermostat provides accurate and dependable temperature control, ensuring optimal comfort in your home. It is also compatible with the MRCOOL® SmartHVAC app, allowing for convenient remote access and control. This air handler is fully compatible with our Central Ducted Hyper Heat Condenser. With a 10-year warranty, the 5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a dependable and efficient option to enhance your home's comfort. This user-friendly system is built to last and provides effective climate control throughout the year.
Specifications
Dimensions |
24.49" D x 52.99" H x 21.02" w |
CFM |
1807.00/1583.33/1359.67/1136.00 |
Tonnage |
5 |
Cooling Capacity (BTU) |
54000 |
Heating Capacity (BTU) |
54000 |
Voltage (V) |
115/208-230 |
Phase |
1 |
Cycle |
60 |
Ma Fuse Breaker (A) |
15 |
Min Circuit Ampacity (A) |
14.5/11.0 |
Color |
gray |
Decibel Rating Low (DBA) |
34.5 |
Decibel Rating High (DBA) |
56 |
Number of Speeds |
4 |
Max Lineset Length (FT) |
246 ft |
Liquid Line Size |
3/8 |
Suction Line Size |
3/4 |
Filter Type |
Replaceable |
Filter Size |
23x20x1 |
Auxiliary Heater Included |
No |
Auxiliary Heater AVAILABLE |
Yes |
Auxiliary Heater Sizes |
10kW/15kW/20kW |
Adjustable Thermostat |
Yes |
WIFI Compatibility |
Yes |
APP Compatibility |
Yes |
ETL Certified |
Yes |
Energy Star Certified |
Yes |
AHRI Certified |
Yes |
Base parts Warranty |
10 Years |
Base Compressor Warranty |
10 Years |
Contains Electronics |
Yes |
Contains Chemicals |
Yes |
Contains Compressed Gas |
Yes |
Net Weight (Lbs) |
162.92 |
Gross Depth (In) |
26.77 |
Gross Height (In) |
56.5 |
Gross Width (In) |
27.95 |
Gross Weight (Lbs) |
190.92 |
What our Experts Think
-
High-Capacity Airflow – 5 Ton (54,000 BTU) air handler provides efficient distribution for large homes or light commercial spaces.
-
Energy-Efficient Performance – Compatible with 2nd Gen VersaPro heat pump condensers for optimized SEER2 efficiency.
-
Ducted Design – Integrates seamlessly with existing ductwork for consistent whole-home comfort.
-
Durable & Quiet – Built for long-lasting, low-noise operation.
-
Flexible Installation – Works with multiple VersaPro 2nd Gen system configurations for professional-grade performance.
Q&A
Q: What is included in this MRCOOL VersaPro 2nd Gen product?
A: This is a 54,000 BTU (5 ton) central ducted air handler, designed for use with compatible MRCOOL VersaPro heat pump condensers.
Q: How energy efficient is the system?
A: It is engineered to work with high-efficiency MRCOOL condensers, delivering optimal performance while minimizing energy costs.
Q: Can it provide both heating and cooling?
A: Yes, when paired with a compatible VersaPro heat pump condenser, it provides year-round heating and cooling.
Q: Is it compatible with existing ductwork?
A: Yes, the air handler integrates with standard ducted systems for easy installation.
Q: What size area can it serve?
A: Suitable for large homes or commercial spaces up to approximately 2,500–3,000 sq. ft., depending on insulation and climate.
Q: Who should choose this air handler?
A: Homeowners or businesses seeking a high-capacity, reliable central air handler to pair with a VersaPro heat pump condenser.
Maintenance Tips
-
Air Filter Care: Replace or clean filters every 1–3 months to maintain airflow and system efficiency.
-
Ductwork Inspection: Seal leaks and clean ducts regularly for even air distribution.
-
Condensate Drain: Check and clear condensate lines to prevent water buildup.
-
Coil Maintenance: Schedule annual cleaning of evaporator coils for optimal performance.
-
Fan & Motor Check: Inspect blower fans and motors for smooth operation and dust buildup.
-
Cabinet Seals: Ensure panels are properly closed to prevent air leakage.
-
Professional Service: Schedule yearly maintenance to prolong lifespan and maintain 18 SEER2 efficiency.
