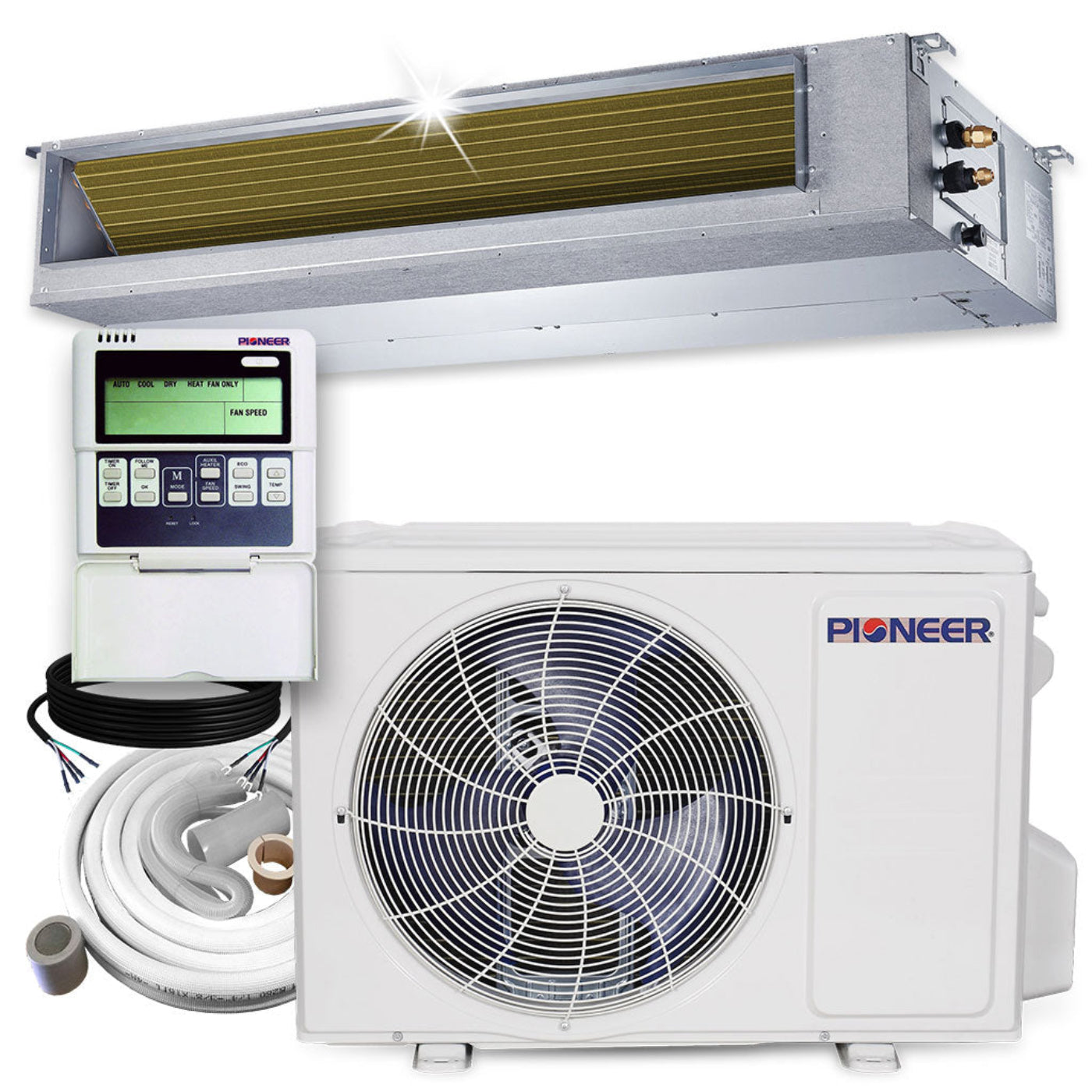

Pioneer Multi Zone 24,000 BTU Quantum Series Concealed Ducted Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V - RB024GMFILDFHD-10

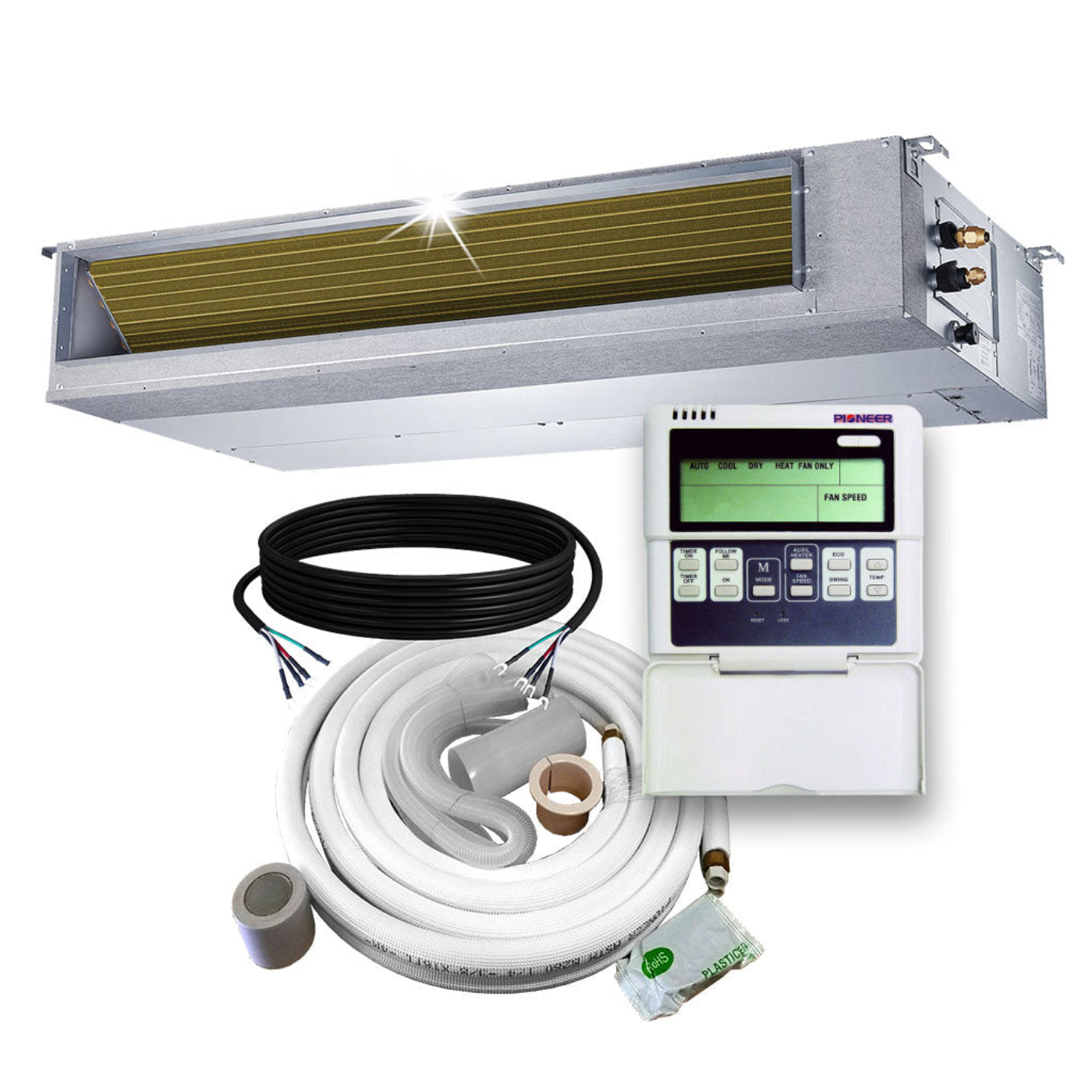

Multi Zone Split Concealed Ducted Horizontal Split Air Conditioning and Heating System (Indoor Section Only). Variable Speed DC Inverter Operation Mode: Cooling and Heating. Capacity: 24,000 BTU/Hr. (2 Ton). Total capacity of the matched indoor units may exceed the available outdoor unit capacity by up to 35% Electrical Specification: 208-230 VAC, 1 Phase, 60 Hertz. Customizable length copper line set with flare connections come with this indoor unit. Matches with Quint (5) zone Multi Split Outdoor Units Only.
Compatible Outdoor Units
Matching outdoor units need to be selected and purchased separately. To purchase a multi split system, first determine the outdoor unit required among the outdoor units we offer as follows:
Included
- Indoor Unit
- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
Manuals
What our Experts Think
-
Large‑space floor/ceiling comfort (36,000 BTU)
This floor/ceiling mini‑split full set delivers powerful cooling and heating for ≈900–1,350 sq ft spaces—ideal for large living areas, open plans, workshops, or commercial zones.
-
High seasonal efficiency (19 SEER2)
19 SEER2 efficiency helps reduce energy use compared with older HVAC units, balancing performance with operating cost savings for year‑round comfort.
-
Inverter+ DC technology for precise control
Variable‑speed DC inverter operation maintains stable temperatures with quieter cycling and faster comfort recovery than traditional fixed‑speed compressors.
-
All‑season heat pump system
Combines cooling and heating in one full‑set solution, with ~38,000 BTU heating capacity and strong HSPF2 performance for comfortable winters without separate heating.
-
Flexible floor/ceiling installation
Designed for floor or ceiling mounting, this unit fits a variety of room layouts while providing focused air delivery and unobtrusive presence.
-
Smart comfort features
Functions like “Follow Me” temperature sensing optimize comfort by adjusting output based on remote‑controller readings.
Q&A
Q: What room size is this 36,000 BTU floor/ceiling mini split ideal for?
A: Perfect for large rooms or open spaces (approx. 1,200–1,800 sq. ft.), including living areas, offices, or commercial spaces.
Q: Does it provide both cooling and heating?
A: Yes, this inverter+ heat pump delivers efficient year-round cooling and heating.
Q: How energy-efficient is the 19 SEER2 rating?
A: With 19 SEER2, it offers strong energy efficiency while lowering electricity costs.
Q: What type of indoor unit does this system use?
A: Floor/ceiling mount indoor unit provides flexible installation and even airflow throughout the space.
Q: What voltage does it require?
A: Designed for 208–230V single-phase power.
Q: What is included in the full set?
A: Includes floor/ceiling indoor unit, outdoor condenser, and pre-charged installation kit for convenient setup.
Q: Does it support Wi-Fi or smart control?
A: Wi-Fi support may be available with compatible modules for remote operation and scheduling.
Q: How quiet is the indoor unit?
A: Operates quietly, typically 35–45 dB, ideal for offices, living spaces, or commercial areas.
Q: What comfort and usability features are included?
A: Turbo mode, ECO mode, sleep mode, self-cleaning, auto restart, timer, and multi-directional airflow for optimal comfort.
Q: Is professional installation required?
A: Yes, professional installation is recommended; proper floor/ceiling mounting, refrigerant connections, and electrical setup are required.
Maintenance Tips
-
Clean washable air filters every 2–4 weeks – Maintains optimal airflow and 19 SEER2 efficiency for 1,000–1,200 sq ft areas
-
Run self-clean function regularly – Prevents mold, bacteria, and odor buildup inside the floor/ceiling unit
-
Keep indoor & outdoor units free of dust and debris – Ensures consistent airflow and peak heat exchange
-
Check and clear condensate drain line – Prevents leaks and floor/ceiling damage
-
Maintain 2–3 ft clearance around outdoor unit – Supports efficient cooling/heating performance
-
Inspect refrigerant lines annually – Ensures leak-free operation and reliable capacity
-
Use ECO, Sleep & Wi-Fi smart modes – Reduces compressor wear and lowers energy consumption
-
Schedule yearly professional servicing – Maximizes inverter efficiency and extends system lifespan
