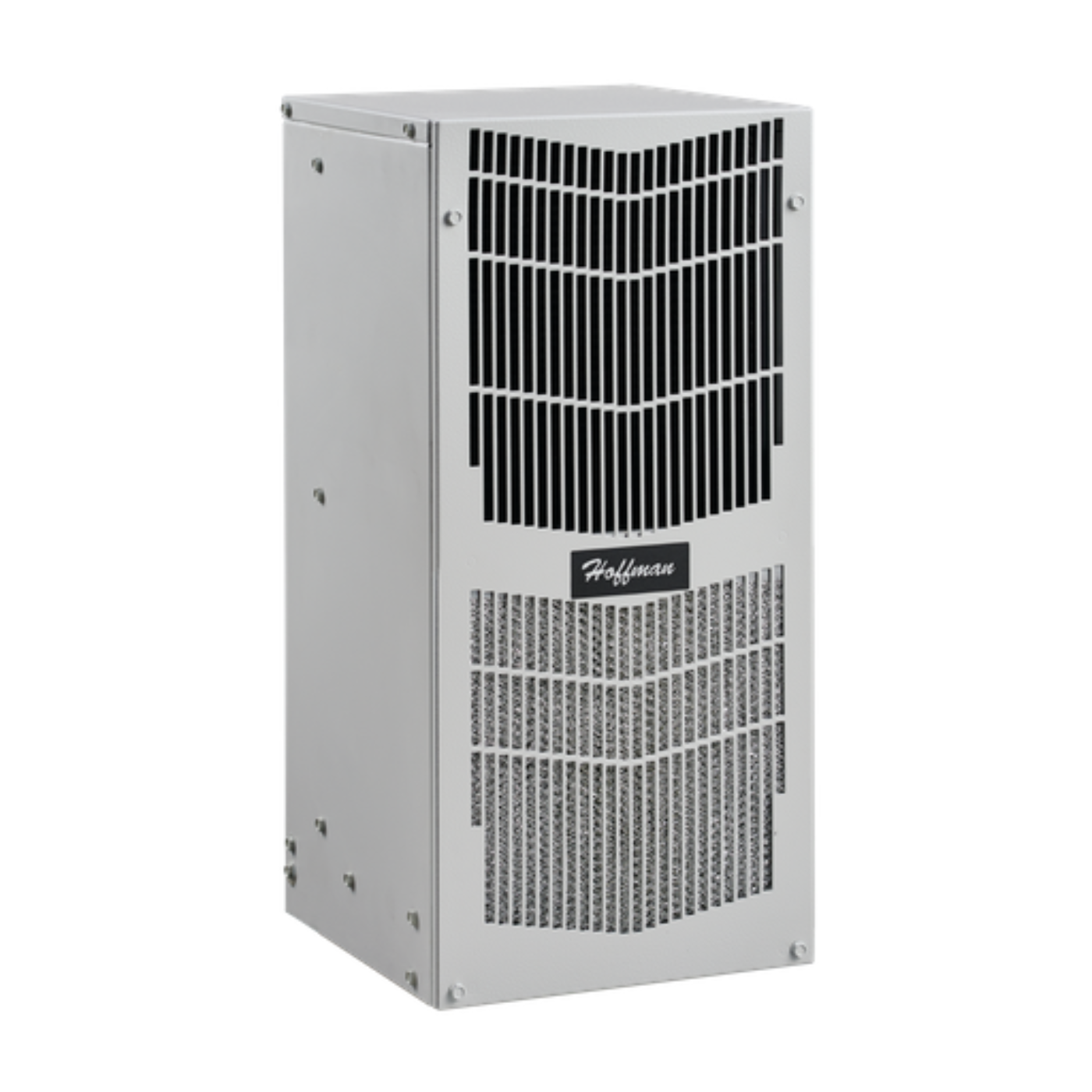

Nvent Hoffman SpectraCool Narrow Indoor/Outdoor AC, 2000BTU 460V - N210246G050
The N210246G050 by nVent Hoffman is a SpectraCool Narrow Indoor/Outdoor Air Conditioner designed to provide efficient cooling in compact spaces. With a 2000 BTU/h capacity and operating at 460V in a single-phase system, this unit is ideal for low-depth cabinet installations in both indoor and outdoor environments.
The N210246G050 is engineered to deliver reliable cooling performance in challenging environments. Designed to fit 12-inch (300mm) deep floor- and wall-mount enclosures, this space-saving solution is ideal for installations where depth constraints are a concern. Its durable mild steel construction with a powder-coated finish ensures long-term durability and corrosion resistance.
Features
- Cooling Capacity: Provides 2000 BTU/h of cooling power, suitable for compact enclosures.
- Narrow Design: Optimized for low-depth installations in 12-inch (300mm) deep enclosures.
- Voltage and Phase: Operates at 460V in a single-phase power system for industrial reliability.
- Refrigerant: Uses R513A, an eco-friendly refrigerant for improved environmental safety.
- Wide Operating Range: Functions efficiently in temperatures from −40°F to 131°F, ensuring performance in extreme conditions.
- Compact Size: Measures 25.17 in (Height) x 10 in (Width) x 9.9 in (Depth) for space-saving installations.
Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Nvent Hoffman
|
| Category |
Heating and Cooling |
| Part Number |
N210246G050 |
| Subcategory |
Air Conditioners |
| Nominal Capacity Btu/h |
2000Btu/h |
| Nominal Capacity Watts |
586W |
| Refrigerant |
R513A |
| Corrosion Resistant |
No |
| Nominal Voltage |
460V |
| Number of Phases |
1 |
| Material |
Mild Steel |
| Finish |
Powder Coated |
| Color |
Light Gray |
| Thickness |
18ga |
| Height |
25.17in |
| Width |
10in |
| Depth |
9.9in |
| Operating Temperature |
−40 to 131°F |
| Max Current |
1.9A |
| Mounting |
Side wall |
What our Experts Think
-
Space‑Saving, Powerful Cooling: Delivers around 2000 BTU/hr cooling capacity in a narrow footprint ideal for 12″ (300 mm) deep enclosures.
-
Indoor/Outdoor Ready: Built for versatile service in both indoor and outdoor environments with robust design and environmental ratings.
-
Reliable Temperature Control: Basic mechanical thermostat provides consistent performance and prevents overheating of sensitive electrical components.
-
Durable Construction: Galvanized sheet metal housing and reusable aluminum mesh filter support long life and protect cooling coils.
-
Engineered for Ease: Flanged mounting and included hardware simplify installation on floor‑ or wall‑mounted enclosures.
Q&A
Q: What is the N210246G050 SpectraCool AC?
A: A SpectraCool Narrow series indoor/outdoor air conditioner designed to cool electrical enclosures with a 2,000 BTU/hr capacity.
Q: What environments is it suited for?
A: Built for indoor and outdoor industrial use, protecting electronics in control panels and shallow‑depth cabinets.
Q: What cooling performance does it offer?
A: Provides up to 2,000 BTU/hr (~586 W) cooling with a mechanical thermostat for simple temperature control.
Q: What are the electrical and power specs?
A: Operates on 460 VAC, 1.9 A, 50/60 Hz, with terminal connection type.
Q: What protection ratings does it have?
A: NEMA/UL rated Type 3R, 4, and 12 for enclosure protection against dust and water.
Q: What are its key features?
A: Narrow design fits 12″ (300 mm) deep enclosures, galvanized sheet‑metal housing with powder‑coat finish, reusable aluminum mesh filter, and easy‑mount flanges.
Q: What are the dimensions?
A: Approx 25.17″ H × 10″ W × 9.9″ D for compact installation on enclosure walls.
Q: Why choose this unit?
A: Delivers reliable, space‑efficient cooling to protect sensitive electronics and extend equipment life in harsh environments.
Maintenance Tips
-
Regular Inspection: Check the unit for physical damage, corrosion, or loose components.
-
Filter Maintenance: Clean or replace air filters regularly to maintain airflow and efficiency.
-
Coils & Condenser: Keep evaporator and condenser coils free of dust and debris to ensure proper cooling.
-
Electrical Connections: Inspect wiring and terminals for wear, corrosion, or looseness.
-
Coolant Levels: Verify refrigerant levels and refill or service as needed.
-
Operation Check: Ensure proper cycling, temperature control, and listen for unusual noises.
-
Replacement/Repair: Replace any damaged parts immediately to maintain performance and prevent system failure.
