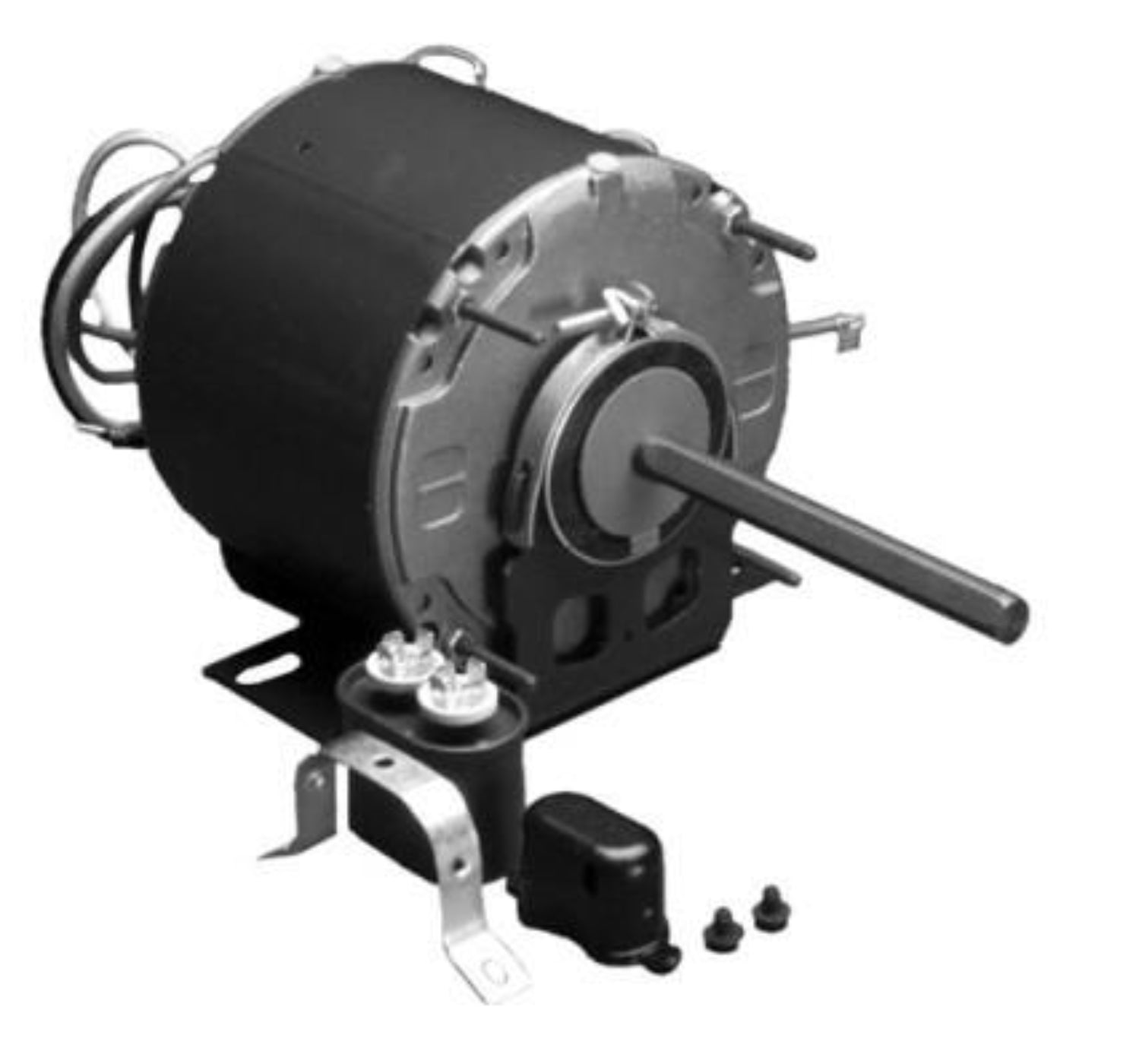

Nidec-US Motors 3847 | 1/3 HP 1075 RPM 1 PH 230V 48Y | Nidec-US Motors - 3847
Nidec-US Motors 3847 is an electric motor designed for condenser fan applications. It features a power output of 1/3 HP and operates at a speed of 1075 RPM, making it suitable for various industrial needs. This single-phase motor runs on 230 volts and is equipped with a 48Y frame. The robust design includes high-quality materials for improved durability.
Product Highlights
The Nidec-US Motors 3847 is built for reliability in condenser cooling systems. Its reversible rotation capability increases flexibility for installation.
Features
- 1/3 HP power output
- Operating speed of 1075 RPM
- Single-phase, 230V power supply
Specifications
| Brand |
Nidec-US Motors |
| Model (MPN) |
3847 |
| Voltage |
208-230V |
| Frame Size |
48Y |
| Horsepower |
1/3 HP |
| RPM |
1075 RPM |
| Rotation |
Reversible |
| Thermal Overload Protection |
Automatic Reset |
| Power Supply Type |
Single-Phase |
| Weight |
Approximately 16.065 lbs |
What our Experts Think
-
Reliable Performance
-
Delivers 1/3 horsepower at 1075 RPM, ideal for direct drive fans, blowers, and HVAC applications.
-
Operates on 230V single-phase power, compatible with standard commercial electrical systems.
-
Durable Construction
-
Features a 48Y frame with rolled steel construction, ensuring strength and longevity.
-
Equipped with sleeve bearings and Class B insulation for reliable operation.
-
Versatile Mounting
-
Designed with a ring/stud mounting configuration for easy installation.
-
Reversible rotation allows for flexible application setups.
-
Energy Efficient
-
Permanent Split Capacitor (PSC) design contributes to energy savings.
-
Automatic overload protection enhances safety and motor longevity.
-
Compact Design
-
Open Air-Over (OAO) enclosure type suitable for air-moving applications.
-
Compact size facilitates installation in space-constrained environments.
Q&A
Q: What is the Nidec-US Motors 3847 motor used for?
A: This 1/3 HP, 1075 RPM, 1-phase motor is typically used in HVAC systems, air handlers, blowers, and commercial refrigeration units.
Q: What are the key specifications of this motor?
A: It operates at 230V, features a 48Y frame, and has an Open Drip-Proof (ODP) enclosure. The motor uses a Permanent Split Capacitor (PSC) design for efficient, continuous operation.
Q: What are the mounting options for this motor?
A: The motor includes 2.25" diameter hub rings, with a 2.5" kit included, offering flexibility in installation and mounting configurations.
Q: Is this motor energy efficient?
A: Yes, the motor is designed to offer high energy efficiency, making it suitable for applications where energy savings are important.
Q: Where can I purchase the Nidec-US Motors 3847 motor?
A: This motor is available through authorized HVAC and industrial equipment suppliers.
Maintenance Tips
-
Ensure proper ventilation: Install the motor in a well-ventilated area to prevent overheating.
-
Verify electrical connections: Check that all wiring is secure and free from corrosion to ensure safe operation.
-
Monitor operating voltage: Confirm that the motor operates within its rated voltage range (208/230V) to prevent damage.
-
Inspect bearings and shaft: Regularly check for signs of wear or damage to maintain smooth operation.
-
Keep the motor clean: Remove dust and debris from the motor and surrounding area to maintain efficiency.
-
Test thermal overload protection: Ensure the motor's thermal overload protection is functioning correctly to prevent overheating.
-
Lubricate bearings as needed: Apply lubricant to bearings if specified by the manufacturer to reduce friction and wear.
-
Schedule regular inspections: Conduct periodic checks to identify and address potential issues before they lead to motor failure.
