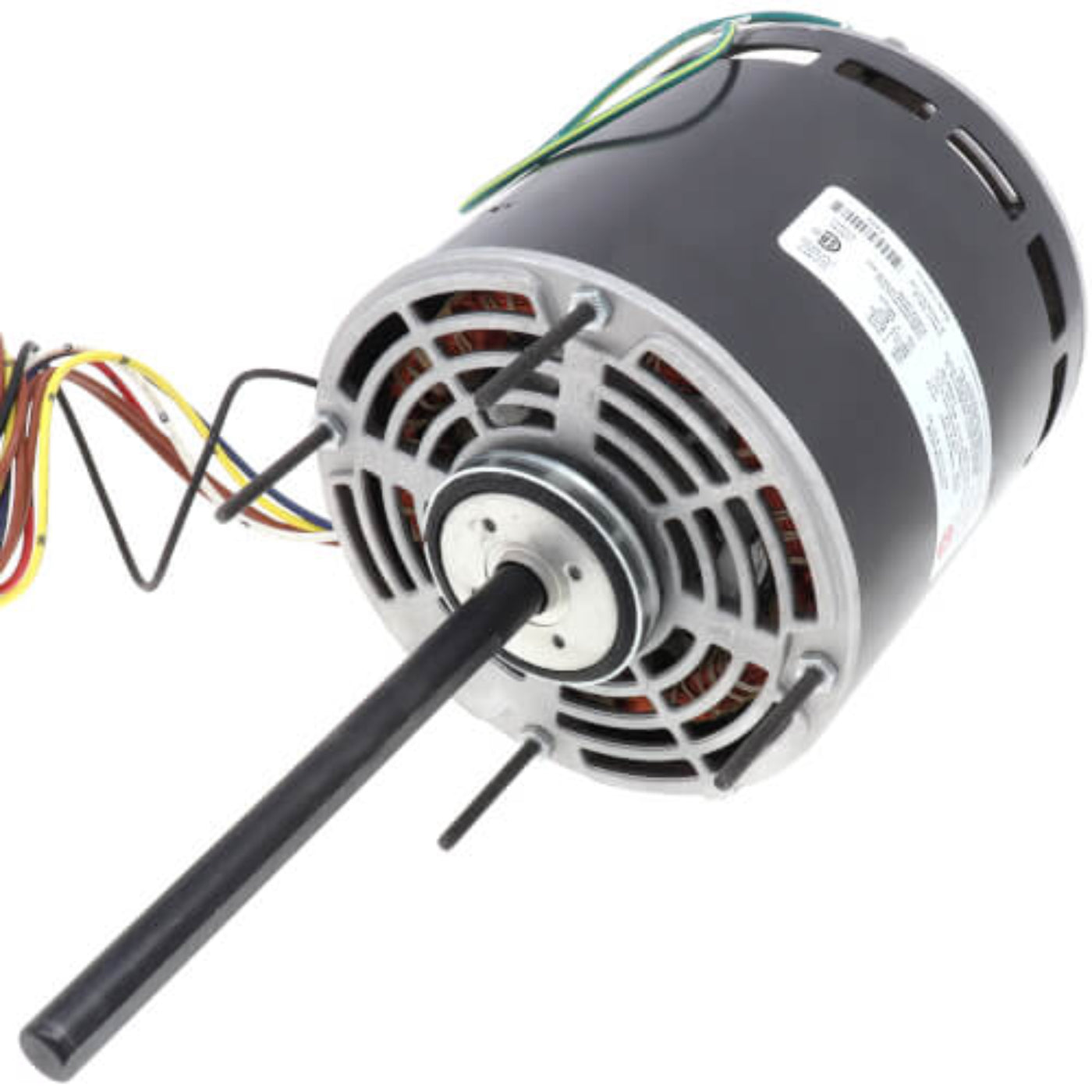

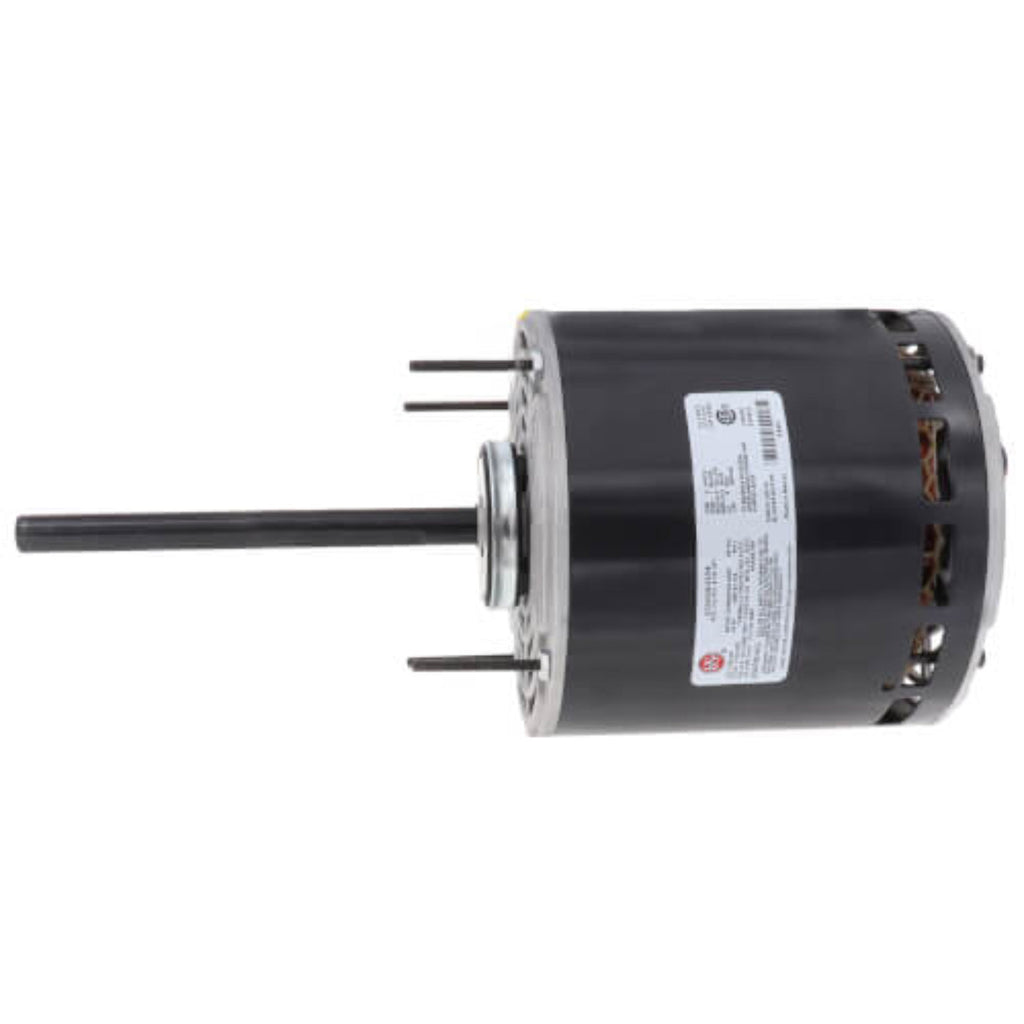

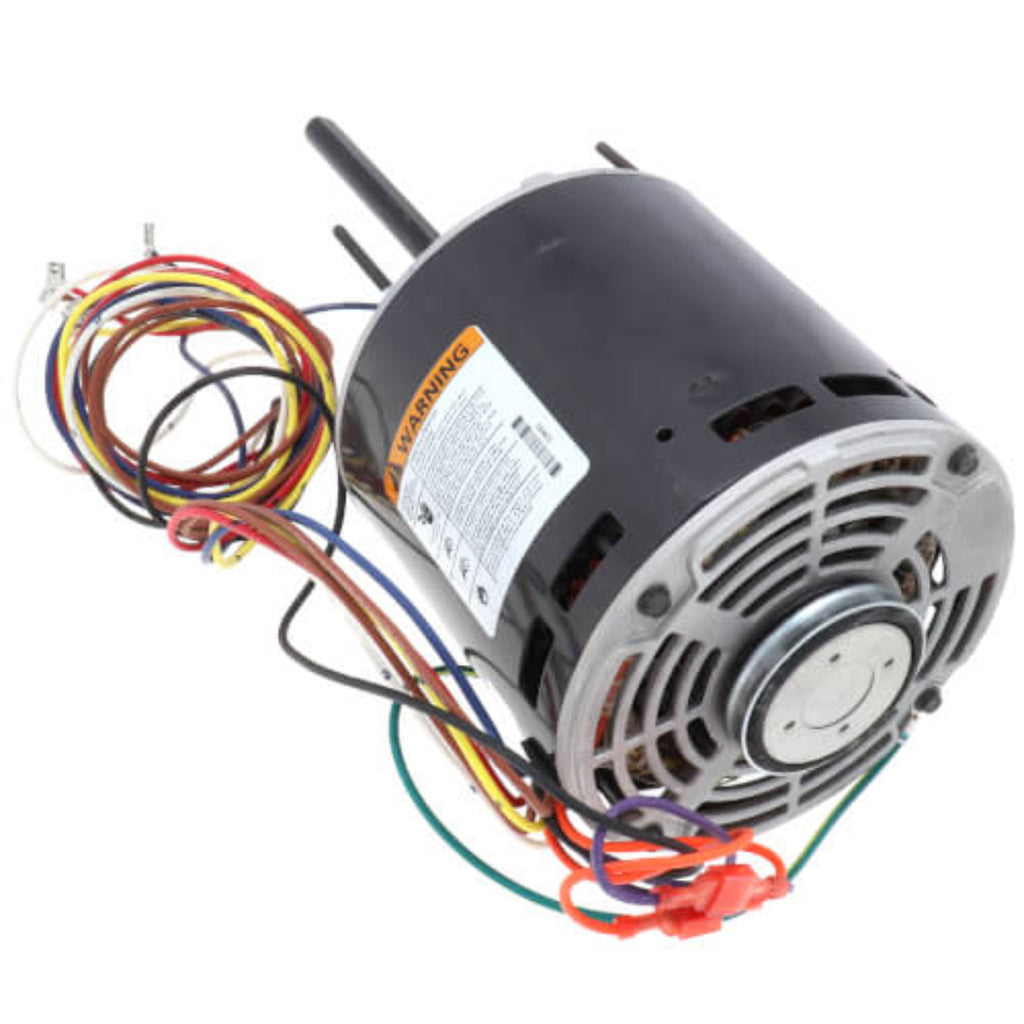

Nidec-US Motors 5846 | 3/4HP 1075RPM 1PH 208/230V 48Y | Nidec-US Motors - 5846
The Nidec-US Motors 5846 motor is designed for industrial applications. This motor features 3/4 horsepower and operates at a speed of 1075 RPM, suitable for various tasks. It is compatible with single-phase electrical systems and works at 208/230 volts.
Product Highlights
The 5846 motor is a preferred choice for those requiring durability and efficiency in industrial environments.
Features
- Durable construction with a 48Y frame
- Compact design ideally suited for limited spaces
- Reliable performance for engineers and maintenance work
Specifications
| Brand |
Nidec-US Motors |
| Horsepower (HP) |
3/4 HP |
| Frame Size |
48Y |
| Voltage |
208/230V |
| Phase |
Single Phase |
| Amperage |
6.1 – 5.8 A |
| RPM |
1075 RPM |
| Enclosure Type |
Open Air Over (OAO) |
| Weight |
20.13 lbs |
| Shipping Dimensions |
15 x 6.5 x 6 inches |
What our Experts Think
-
Powerful & Reliable
-
3/4 HP motor running at 1075 RPM, perfect for fans, blowers, and HVAC systems
-
Designed for single-phase 208/230V power supply, compatible with common commercial electrical setups
-
Durable Construction
-
Rolled steel 48Y frame enhances strength and longevity
-
Features Class B insulation for reliable performance in varying conditions
-
Versatile & Easy to Install
-
Reversible rotation and standard ring/stud mounting for flexible applications
-
Ideal for direct drive and air-moving systems in both residential and commercial settings
-
Energy Efficient & Safe
-
Permanent Split Capacitor (PSC) motor design maximizes energy efficiency
-
Built-in automatic overload protection ensures motor safety and longevity
-
Compact & Practical
-
Open Air-Over (OAO) enclosure type for effective airflow and cooling
-
Compact design fits easily into tight spaces, making installation hassle-free
Q&A
Q: What is the Nidec-US Motors 5846 motor used for?
A: This 3/4 HP, 1075 RPM, 1-phase motor is typically used in HVAC systems, air handlers, blowers, and commercial refrigeration units.
Q: What are the key specifications of this motor?
A: It operates at 208-230V, has a 48Y frame, and features an Open Air-Over (OAO) enclosure. The motor uses a Permanent Split Capacitor (PSC) design for efficient, continuous operation.
Q: What are the mounting options for this motor?
A: The motor includes 2.25" diameter hub rings, with a 2.5" kit included, offering flexibility in installation and mounting configurations.
Q: Is this motor energy efficient?
A: Yes, the motor is designed to offer high energy efficiency, making it suitable for applications where energy savings are important.
Q: Where can I purchase the Nidec-US Motors 5846 motor?
A: This motor is available through authorized HVAC and industrial equipment suppliers.
Maintenance Tips
-
Ensure proper airflow: Install the motor in a location with adequate ventilation to prevent overheating.
-
Verify electrical connections: Check that all wiring is secure and free from corrosion to ensure safe operation.
-
Monitor operating voltage: Confirm that the motor operates within its rated voltage range (208/230V) to prevent damage.
-
Inspect bearings and shaft: Regularly check for signs of wear or damage to maintain smooth operation.
-
Keep the motor clean: Remove dust and debris from the motor and surrounding area to maintain efficiency.
-
Test thermal overload protection: Ensure the motor's thermal overload protection is functioning correctly to prevent overheating.
-
Lubricate as needed: Apply lubricant to bearings if specified by the manufacturer to reduce friction and wear.
-
Schedule regular inspections: Conduct periodic checks to identify and address potential issues before they lead to motor failure.
