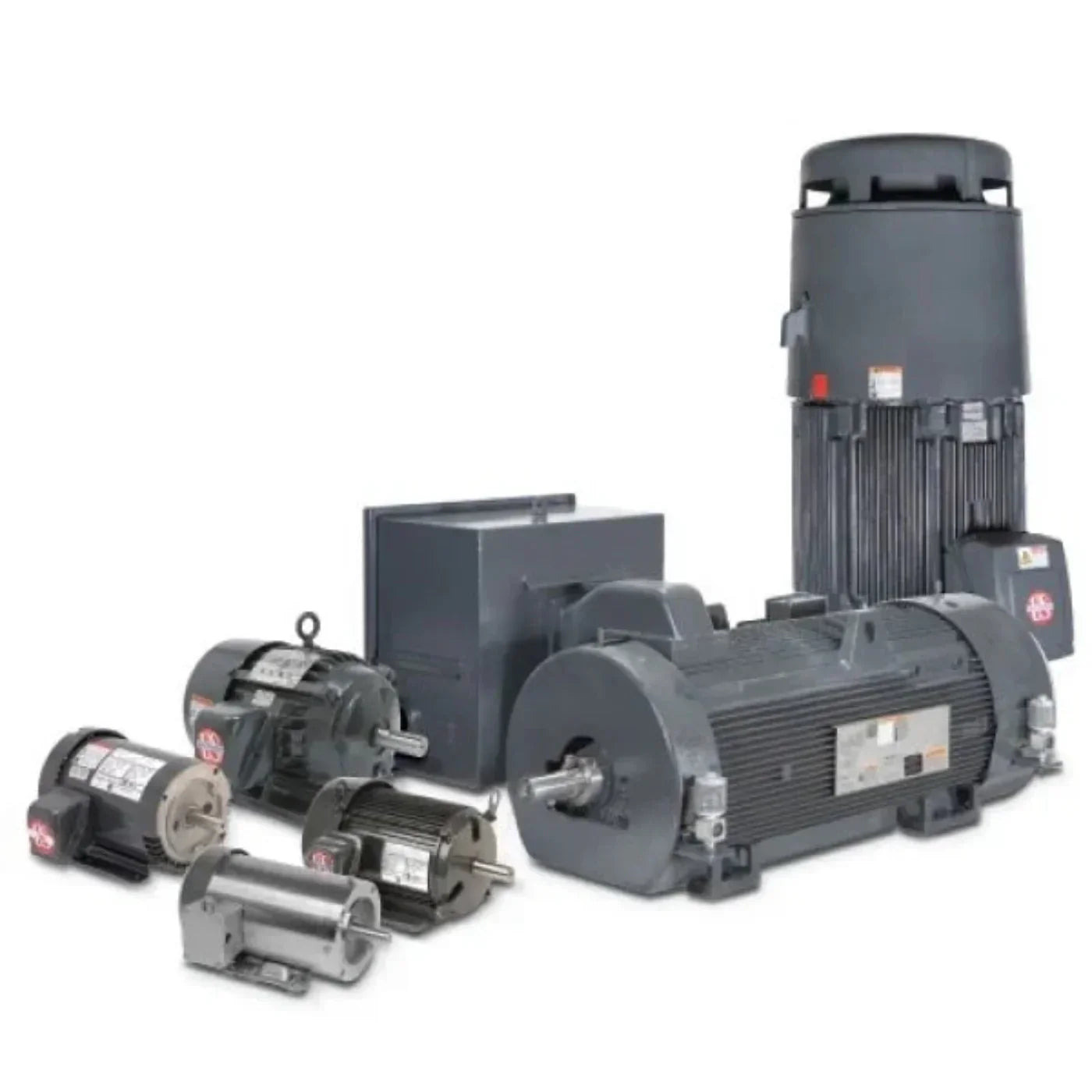

U.S. Motors 8D15P3C Severe Duty & IEEE 841 Three Phase TEFC Horizontal - Footed Motor - 8D15P3C
The U.S. Motors 8D15P3C is a severe duty and IEEE 841 rated three phase TEFC (Totally Enclosed Fan Cooled) horizontal footed motor. This motor is designed for continuous duty applications and is ideal for use in demanding environments.
Product Highlights
This motor delivers reliable performance and efficiency in severe duty applications.
Features
- Powerful 15 horsepower capacity
- Operates at 1200 RPM
- Designed for 460 voltage rating
Specifications
| Voltage Rating |
460V |
| Frequency |
60 Hz |
| Full Load Amps |
18.5 A |
| Full Load Efficiency |
91.7% |
| Phase |
Three Phase |
| Full Load RPM |
1185 RPM |
| Nominal RPM |
1200 RPM |
| Poles |
6 |
| Frame Size |
284T |
| Enclosure |
TEFC (Totally Enclosed Fan Cooled) |
| Frame Material |
Cast Iron |
| Mounting Type |
Horizontal - Footed |
| Weight |
340 lb |
| Duty |
Continuous Duty |
| Insulation Class |
F |
| Motor Application |
Severe Duty |
| Brand |
U.S. Motors |
| Part Number (MPN) |
114638196 |
What our Experts Think
-
Severe Duty Design: Built to handle the toughest industrial environments with extended durability and resistance to extreme conditions.
-
IEEE 841 Compliant: Meets high standards for reliability and performance in hazardous or demanding applications.
-
TEFC Enclosure: Totally Enclosed Fan Cooled (TEFC) design provides superior protection against contaminants, ensuring long-term performance.
-
Horizontal Footed Mounting: Easy installation with a secure, vibration-resistant base.
-
High-Performance Three-Phase Power: Delivers consistent, energy-efficient operation in a variety of heavy-duty industrial applications.
Q&A
Q: What is the U.S. Motors 8D15P3C?
A: The 8D15P3C is a severe-duty, IEEE 841 compliant three-phase motor with a TEFC (Totally Enclosed Fan Cooled) design, built for horizontal mounting and footed installation in demanding industrial applications.
Q: What are the key features?
A: Severe-duty construction, IEEE 841 standard for superior protection, TEFC enclosure for reliability in harsh environments, horizontal footed mounting for easy installation, and high-efficiency operation.
Q: Where is this motor typically used?
A: Ideal for high-demand industrial applications such as pumps, compressors, fans, and other equipment operating in severe duty conditions where reliability is crucial.
Q: Why choose the 8D15P3C model?
A: It provides outstanding performance in harsh environments, with enhanced durability and protection against dust, moisture, and contaminants, meeting the highest industrial standards.
Q: Is the 8D15P3C motor suitable for continuous operation?
A: Yes, the motor is designed for continuous-duty applications and can withstand demanding operations without sacrificing performance or reliability.
Maintenance Tips
-
Keep motor clean and free from debris to ensure proper cooling and prevent overheating in TEFC (Totally Enclosed Fan Cooled) design.
-
Lubricate bearings according to manufacturer specifications to maintain smooth operation under severe duty conditions.
-
Inspect the horizontal-footed mounting and ensure proper alignment to avoid vibration and mechanical stress.
-
Monitor voltage supply (208-230/460V) to ensure the motor is operating within its specifications.
-
Check electrical connections regularly for tightness and signs of wear to prevent faults.
-
Inspect seals and protection features to maintain the motor’s resistance against harsh environments.
-
Test insulation resistance annually to ensure continued electrical safety and motor longevity.
