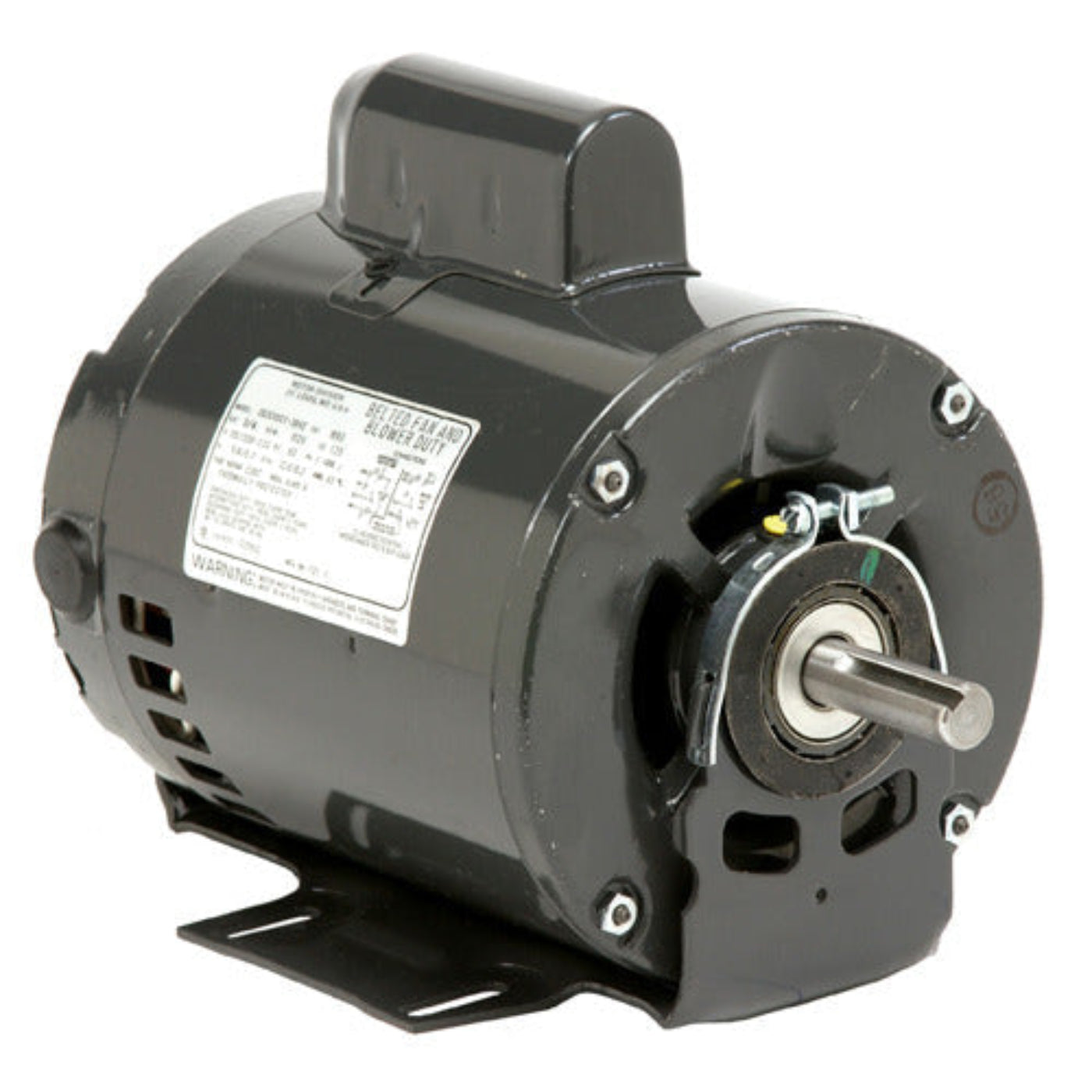

US Motors D13CP2P49 Motor 1/3HP 1725RPM 115/230V 48 - D13CP2P49
The US Motors D13CP2P49 is a 1/3 horsepower motor designed for general-purpose use. With a speed of 1725 RPM, this motor operates on a voltage of 115/230V and fits a frame size of 48. It features an open dripproof (ODP) enclosure and is made from rolled steel.
Product Highlights
This motor is ideal for various applications requiring reliable, consistent performance. Its resilient base mounting and capacitor start-run system ensure efficient operation. Key features include a robust rolled steel construction and ball bearings for durability.
Features
- 1/3HP power
- 1725 RPM speed
- 115/230V voltage
Specifications
| Power |
1/3 HP |
| KW |
0.3 |
| Speed (RPM) |
1725 |
| Electrical Type |
Cap Start / Cap Run |
| Voltage |
115 / 230 V |
| Phase |
Single |
| Frequency |
60 Hz |
| Amperage |
3.8 / 1.9 A |
| Full Load Amps |
3.8 / 1.9 A |
| Locked Rotor Amps |
24.73 A |
| Locked Rotor Torque |
72.71 oz/ft |
| Efficiency |
72.40% |
| Enclosure |
Open Drip Proof (ODP) |
| Frame |
48 |
| Diameter |
5.6 inches |
| Mounting |
Resilient Base |
| Shaft Type |
Single |
| Rotation |
REV |
| Material |
Rolled Steel |
| Bearings Type |
Ball / Ball |
| Bearings Size |
6203 / 6203 |
| Cap Run MFD |
25.00 MFD |
| Cap Run Voltage |
370 V |
| Cap Start MFD |
238.00 MFD |
| Insulation Class |
B |
| Brand |
U.S. Motors |
| MPN |
D13CP2P49 |
What our Experts Think
-
Compact Power: 1/3 HP motor delivers reliable performance for light-duty applications like fans and small machinery.
-
Dual Voltage Capability: Operates on both 115V and 230V, offering flexibility for various installations.
-
1725 RPM Speed: Provides steady, low-speed operation for consistent performance in continuous-duty tasks.
-
48 Frame Design: Standard 48-frame for easy installation and compatibility with a wide range of equipment.
-
Durable and Efficient: Designed for long-lasting operation with minimal maintenance needs.
Q&A
Q: What is the US Motors D13CP2P49?
A: The D13CP2P49 is a 1/3 HP, single-phase motor with a 1725 RPM speed, designed for general-purpose use with a 48 frame and dual voltage of 115/230V.
Q: What are the key features?
A: 1/3 horsepower, 1725 RPM, 48 frame size, dual voltage (115/230V), and reliable single-phase operation for light-duty applications.
Q: Where is this motor typically used?
A: Ideal for small equipment such as fans, blowers, compressors, and pumps in commercial or residential settings.
Q: Why choose the D13CP2P49 model?
A: Known for efficient, reliable performance and easy installation, the D13CP2P49 is perfect for moderate-duty operations that require consistent power.
Q: Is the D13CP2P49 motor energy-efficient?
A: Yes, it offers energy-efficient operation with minimal maintenance, making it a cost-effective solution for light-duty applications.
Maintenance Tips
-
Keep motor clean to prevent dust and debris buildup that can impact performance.
-
Lubricate bearings as per manufacturer recommendations for smooth, efficient operation.
-
Check voltage (115/230V) to ensure it matches the motor's requirements for optimal performance.
-
Inspect motor mounting and alignment to reduce vibration and mechanical strain.
-
Monitor operating temperature and noise to detect early signs of issues.
-
Test insulation resistance annually to ensure electrical safety and prolong motor life.
