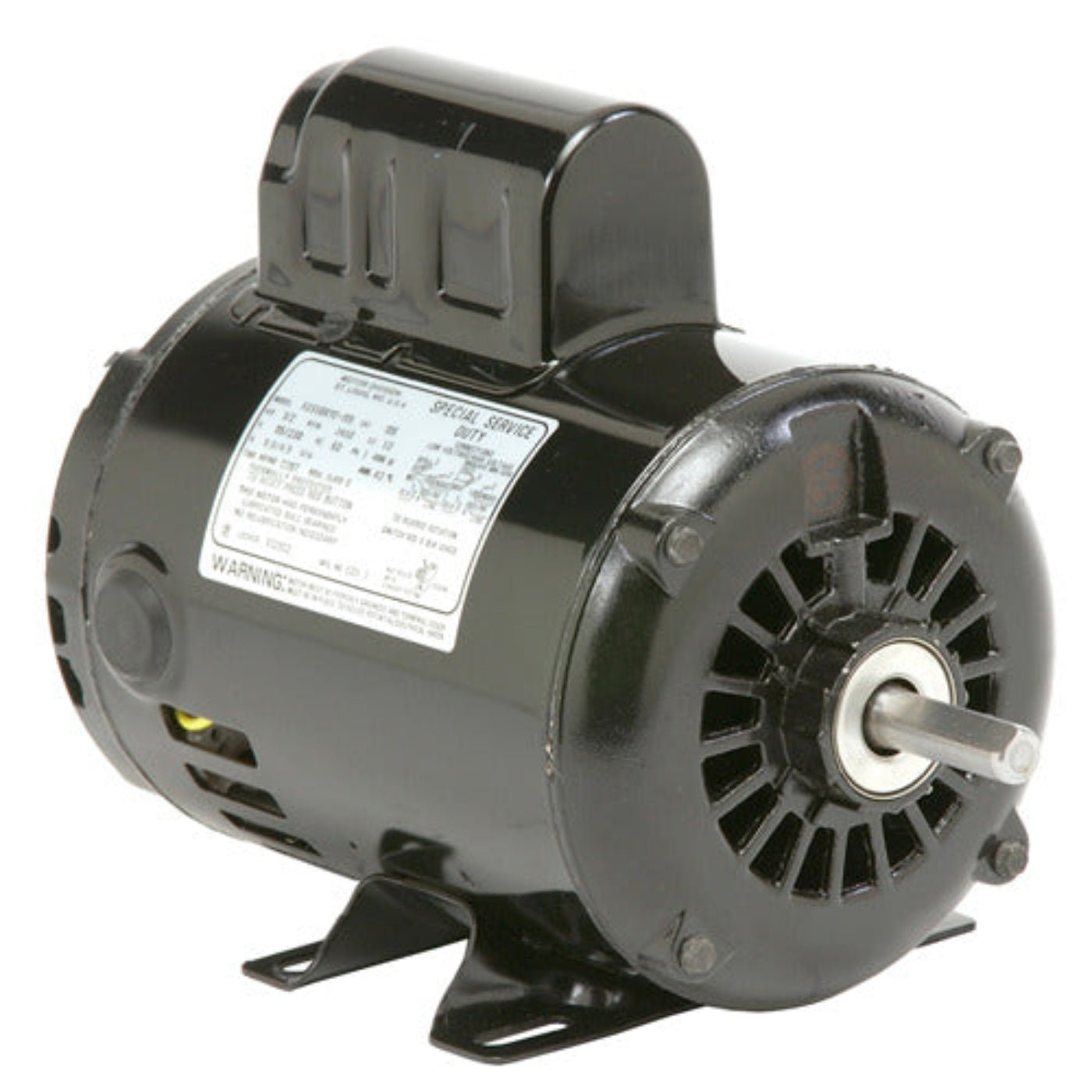

U.S. Motors D1CPM2PH General Purpose Motor 1 HP 56H Frame 115/230V AC Voltage 1,725 Nameplate RPM - D1CPM2PH
The U.S. Motors D1CPM2PH is a general-purpose motor suitable for various applications. It has a capacity of one horsepower, operates on voltages of one hundred fifteen or two hundred thirty, and delivers a nameplate speed of one thousand seven hundred twenty-five RPM. Designed with a rigid base and an open drip-proof enclosure, it is efficient for environments requiring a durable and reliable motor.
Product Highlights
This motor is ideal for a range of applications in HVAC, plumbing, and other electrical setups. With a maximum ambient temperature rating of forty degrees Celsius and an efficiency rating of eighty-two point six percent, it meets various operational requirements without compromising on performance.
Features
- Single-phase motor with capacitor start and run capability.
- Constructed from rolled steel for durability.
- Manual overload protection ensures safety during operation.
Specifications
| Horsepower |
1 HP |
| Voltage |
115/230 V |
| Speed (RPM) |
1725 RPM |
| Frame Size |
56H |
| Amperage |
8.8 / 4.4 A |
| Bearings Type |
Ball |
| Capacitor Start (MFD) |
709.00 MFD |
| Capacitor Run (MFD) |
70.00 MFD |
| Enclosure Type |
ODP (Open Drip Proof) |
| Phase |
Single Phase |
| Mounting Type |
Horizontal / Footed (Frame 56H compatible) |
| Brand |
U.S. Motors |
| MPN |
D1CPM2PH |
What our Experts Think
-
1 HP Output: Perfect balance of power and efficiency for general-purpose applications like pumps, fans, and conveyors.
-
1725 RPM Speed: Provides smooth, steady operation for equipment requiring consistent torque.
-
Dual Voltage Flexibility: Compatible with both 115V and 230V single-phase power—easy to install across a variety of systems.
-
56H Frame: Compact and standardized for easy replacement and seamless integration.
-
Durable and Reliable: Built to last in commercial and light industrial environments with minimal maintenance needs.
Q&A
Q: What is the U.S. Motors D1CPM2PH?
A: The D1CPM2PH is a 1 HP general purpose motor with a 56H frame, dual voltage (115/230V), and 1725 RPM nameplate speed—designed for dependable single-phase performance.
Q: What are the key features?
A: 1 horsepower, 1725 RPM for smooth operation, 56H frame for flexible mounting, dual voltage (115/230V), and durable construction for general-purpose use.
Q: Where is this motor typically used?
A: Ideal for light industrial and commercial equipment such as pumps, fans, compressors, and conveyors that require reliable, moderate-speed motors.
Q: Why choose the D1CPM2PH model?
A: Offers quiet, energy-efficient performance with flexible voltage options and a compact footprint—perfect for OEMs or replacements.
Q: Is this motor suitable for continuous duty?
A: Yes, it’s built for continuous-duty operation, making it ideal for long-running applications in clean, dry environments.
Maintenance Tips
-
Keep the motor exterior clean to support efficient cooling, especially for extended-duty applications.
-
Lubricate bearings as recommended to maintain quiet, reliable 1725 RPM operation.
-
Ensure secure and aligned 56H frame mounting to reduce vibration and mechanical stress.
-
Verify voltage supply (115/230V) matches the motor rating for safe, efficient performance.
-
Check for unusual noise, heat, or vibration which may signal wear or misalignment.
-
Tighten electrical connections regularly to avoid overheating or arcing.
-
Perform annual insulation resistance tests to ensure continued motor reliability and electrical safety.
