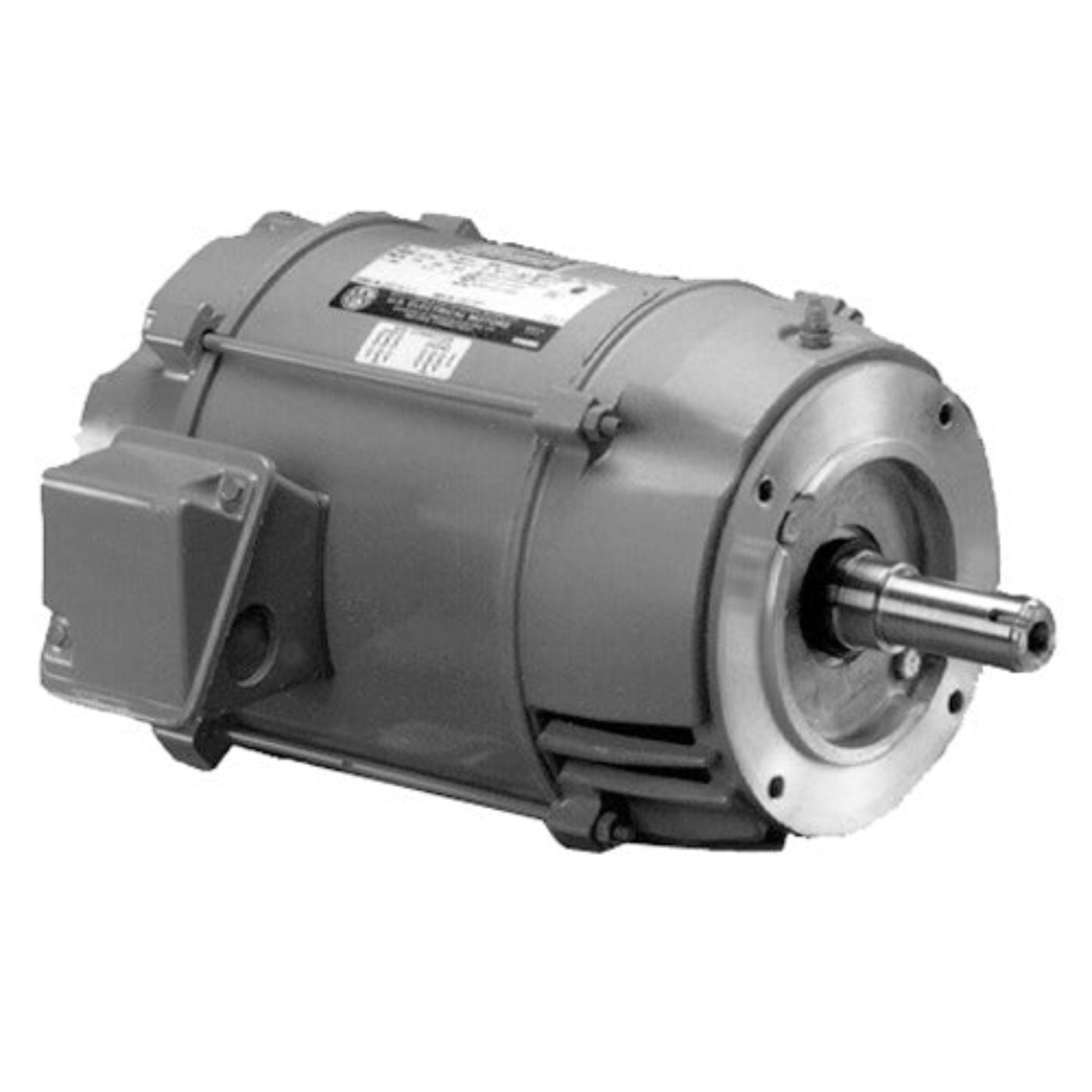

US-Nidec D32P1ACR General Purpose Motor 1 1/2 HP ODP - D32P1ACR
The US-Nidec D32P1ACR is a general purpose motor designed for three-phase applications. This motor operates at one and one-half horsepower and is built for reliability and efficiency. It features an open dripproof (ODP) enclosure and is suitable for various industrial settings.
Product Highlights
This motor provides a service factor of 1.15 and is made from rolled steel, ensuring durability for continuous operation.
Features
- Electrical Type: Three Phase
- Voltage: 208-230/460
- Amperage: 4.7-4.4/2.2
Specifications
| Horsepower |
1 1/2 HP |
| Kilowatts (KW) |
1.1 KW |
| Frame Size |
56C |
| Diameter |
6.5 inches |
| Stack Height |
1.75 inches |
| Enclosure |
ODP (Open Drip Proof) |
| Rotation |
REV (Reversible) |
| Material |
Rolled Steel |
| Bearings Type |
Ball / Ball |
| Bearings Size |
6203 / 6203 |
| Motor Type |
General Purpose |
| Model |
D32P1ACR |
What our Experts Think
-
Reliable Power: The US-Nidec D32P1ACR provides 1.5 HP at 3450 RPM, making it ideal for heavy-duty applications that require consistent and reliable performance.
-
Energy Efficient: Operating at 208-230/460V, it offers energy-efficient performance with a service factor of 1.15, ensuring optimal power under varying conditions.
-
Durable Build: Built with a 56C frame, C-Face mount, and Class B insulation, it is designed to withstand demanding environments and provide long-lasting service.
-
Versatile Use: Perfect for general-purpose industrial applications such as HVAC systems, conveyors, and other machinery.
-
Easy Installation: The motor’s design allows for quick and easy replacement and installation in existing systems, minimizing downtime.
Q&A
Q: What applications is the US-Nidec D32P1ACR motor suitable for?
A: This motor is ideal for general-purpose industrial applications such as pumps, compressors, conveyors, and other machinery requiring a reliable three-phase motor.
Q: What are the key specifications of this motor?
A: It delivers 1.5 horsepower at 3450 RPM, operates on 208-230/460V three-phase power, and features a 56C frame with a keyed shaft measuring 5/8" in diameter by 1 7/8" in length.
Q: What are the electrical characteristics of this motor?
A: The motor operates at 4.7/4.4/2.2 amps, has a service factor of 1.15, and utilizes Class B insulation for thermal protection.
Q: What are the mounting and shaft details?
A: It includes a C-face flange mount without a base, allowing for easy integration into existing systems.
Q: What are its construction and protection features?
A: Built with a rolled steel frame, the motor includes ball bearings and is designed for continuous duty in ambient temperatures up to 40°C.
Q: Why choose the D32P1ACR model?
A: This motor offers reliable performance, robust construction, and is designed for demanding industrial applications, ensuring longevity and efficiency.
Maintenance Tips
-
Regular Inspection: Check the motor for any signs of wear, unusual vibrations, or overheating. Ensure it’s running smoothly without any irregularities.
-
Keep Clean: Clean the motor regularly to remove dust and debris. Ensure the motor vents remain clear to maintain proper airflow and cooling.
-
Lubricate Bearings: Follow the manufacturer’s guidelines to lubricate the motor bearings. This helps ensure smooth operation and reduces wear over time.
-
Check Electrical Connections: Inspect wiring and electrical connections for signs of corrosion or looseness. Tighten connections if necessary to ensure optimal performance.
-
Monitor Load & Voltage: Avoid overloading the motor. Verify that the operating voltage is within the recommended range to prevent potential damage.
-
Proper Storage: If the motor is not in use, store it in a dry, clean, and well-ventilated area to prevent moisture damage and other environmental factors.
