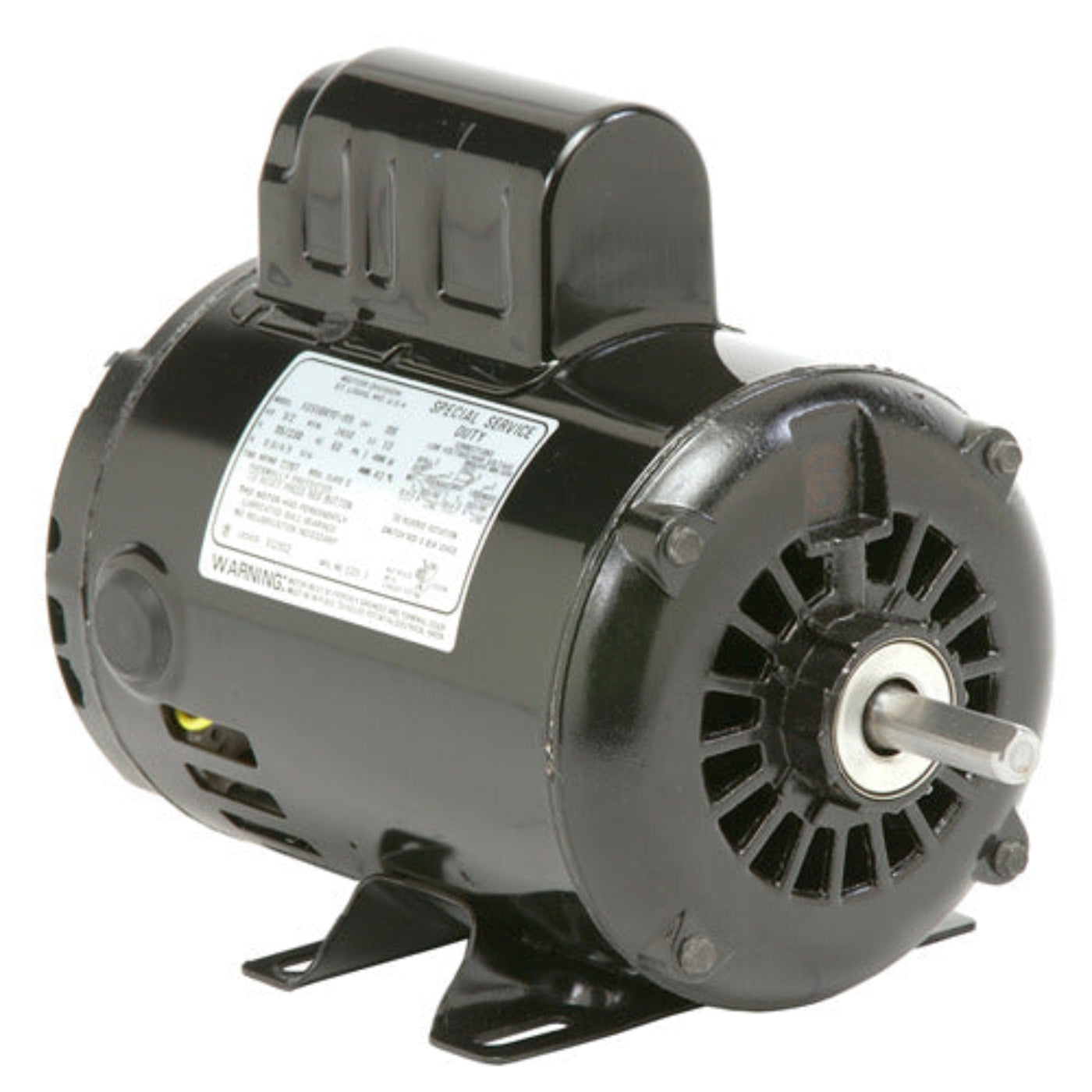

U. S. Motors Nidec D5C1K18 General Purpose Motor 5 HP 3600 RPM 230V 184T - D5C1K18
The Nidec US Motors D5C1K18 is a rigid motor designed for a variety of applications requiring a reliable power source. With a power output of five horsepower and a rotational speed of three thousand six hundred RPM, this motor operates efficiently at two hundred thirty volts. It features a robust 184T frame that provides durable support for demanding tasks.
Product Highlights
This motor is suited for HVAC systems, commercial fans, and other applications where dependable performance is crucial.
Features
- Belt drive motor type
- Capacitor start motor for easy starting
- Open dripproof enclosure for added protection
Specifications
| Brand |
Nidec |
| Model / MPN |
D5C1K18 |
| Motor Type |
Capacitor-Start |
| Horsepower |
5 HP |
| Voltage Rating |
230V |
| Full Load Amps |
19.6 A |
| Full Load RPM |
3600 RPM |
| Frame Size |
184T |
| Phase |
Single Phase |
| Enclosure Type |
Open Dripproof (ODP) |
| Mounting Type |
Rigid Base |
| Material |
Rolled Steel |
| Bearings Type |
Ball / Ball |
| Service Factor |
1.15 |
What our Experts Think
-
High-Speed Performance: Delivers 5 HP at 3600 RPM, perfect for applications that require consistent, high-speed operation.
-
Compact & Durable: Features a 184T frame and open drip-proof (ODP) enclosure, providing durability and efficient cooling.
-
Energy Efficient: Operates at 230V, 60 Hz, with a service factor of 1.15, ensuring reliable performance while maintaining energy efficiency.
-
Versatile Applications: Ideal for HVAC systems, compressors, and other general-purpose industrial needs.
-
Easy Maintenance: Equipped with ball bearings and a rigid base for straightforward installation and minimal maintenance.
Q&A
Q: What are typical applications for the D5C1K18 motor?
A: This motor is commonly used in pumps, fans, compressors, conveyors, and other general industrial machinery where high-speed operation is required.
Q: What is the advantage of the ODP (Open Drip Proof) enclosure?
A: The ODP enclosure offers effective cooling by allowing air to flow through the motor, while providing protection against dust and moisture. It’s ideal for use in dry, indoor environments.
Q: Is the D5C1K18 motor reversible?
A: Yes, the motor supports reversible rotation, allowing flexibility in installation and operation for various applications.
Q: What is the duty rating of the D5C1K18 motor?
A: The motor is rated for continuous duty, providing reliable performance for extended periods of time in industrial settings.
Q: Does the D5C1K18 motor include thermal protection?
A: No, the motor does not have built-in thermal protection. External overload protection is recommended to ensure safe operation.
Maintenance Tips
-
Regular Cleaning: Clean dust and debris from the motor to ensure optimal cooling and prevent overheating.
-
Inspect Bearings: Check ball bearings for wear and lubricate regularly to prevent failure.
-
Check Shaft Alignment: Ensure that the motor shaft is aligned with the driven load to minimize vibration and wear.
-
Monitor Electrical Connections: Ensure all electrical connections are tight and free from corrosion.
-
Check for Overheating: Monitor motor temperature regularly to avoid damage due to overheating. Ensure the motor is in a well-ventilated area to maintain cooling efficiency.
-
Check for Proper Voltage: Ensure the motor is receiving the correct voltage as specified (230V) to avoid overloading or underperformance.
