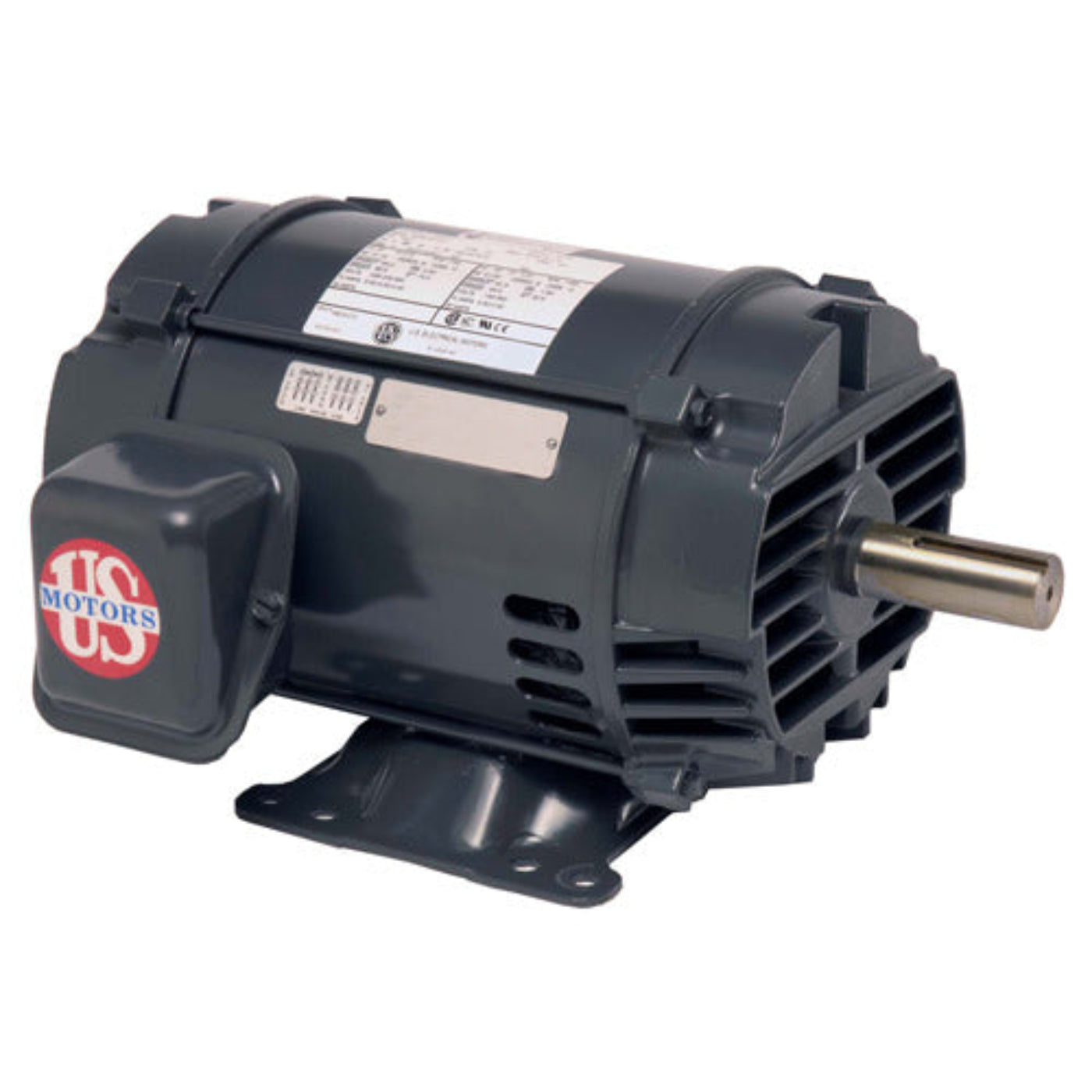

U.S. Motors D75P2E General Purpose Three Phase ODP Horizontal - Footed Motor - D75P2E
The U.S. Motors D75P2E is a general-purpose three-phase motor designed for various applications. This motor has a power rating of seventy-five horsepower and operates at one thousand eight hundred revolutions per minute. It features a horizontal footed mount and is suitable for use in demanding environments.
Product Highlights
This motor is ideal for industrial applications requiring reliable and efficient performance. With a continuous duty rating and robust construction, it can operate efficiently under various load conditions.
Features
- Power: 75 hp
- Frame: 365T
- Enclosure: ODP (Open Drip Proof)
Specifications
| RPM |
1800 RPM |
| Poles |
4 |
| Voltage Rating |
230/460 & 190/380 V |
| Phase |
Three Phase |
| Full Load Amps |
172 / 86 A |
| Mounting Type |
Horizontal - Footed |
| Frame Material |
Cast Iron |
| Insulation Class |
F |
| Full Load Efficiency |
95% |
| Duty Rating |
Continuous Duty |
What our Experts Think
-
75 HP Output:
Delivers robust power at 1800 RPM, suitable for demanding industrial applications.
-
Three-Phase Operation:
Compatible with 230/460V, 50/60 Hz power systems, offering flexibility for various setups.
-
Open Drip Proof (ODP) Enclosure:
Allows air circulation for cooling while providing protection against falling dirt and moisture, ideal for indoor use.
-
Rigid Base Mounting:
Ensures stable and secure installation, facilitating reliable operation.
-
Frame Size 365T:
Standard frame size for compatibility with a wide range of equipment.
-
Premium Efficiency (95%):
Meets NEMA Premium standards, ensuring high energy efficiency and reduced operating costs over time.
-
Service Factor of 1.15:
Allows the motor to handle occasional overloads, enhancing its resilience and longevity.
-
Class F Insulation:
Ensures the motor can operate at higher temperatures, contributing to its durability.
-
Reversible Rotation:
Provides flexibility in installation and operation.
-
Ball Bearings:
Ensures smooth and reliable performance over time.
-
Approximate Weight:
735 lbs, indicating a robust and durable construction.
Q&A
Q: What is this motor used for?
A: Ideal for fans, blowers, pumps, and other general industrial machinery in clean, dry environments.
Q: What are the benefits of an ODP motor?
A: ODP motors allow efficient air circulation for cooling, making them well-suited for indoor use where dust and moisture exposure is minimal.
Q: Is the D75P2E motor reversible?
A: Yes, the motor supports reversible rotation, offering flexibility for various installation needs.
Q: What is the motor’s duty rating and temperature range?
A: Rated for continuous duty and designed to operate in ambient temperatures up to 40°C.
Q: Does the D75P2E motor have built-in thermal protection?
A: No, it does not include internal thermal protection. External overload protection is recommended.
Maintenance Tips
-
Regular Inspection: Check for signs of wear, overheating, or unusual vibrations.
-
Lubrication: Ensure bearings are properly lubricated according to the manufacturer's schedule.
-
Cleanliness: Keep the motor and surrounding area free from dust and debris to maintain optimal cooling.
-
Electrical Connections: Periodically inspect and tighten all electrical connections.
-
Load Monitoring: Ensure the motor operates within its rated load to prevent overloading.
