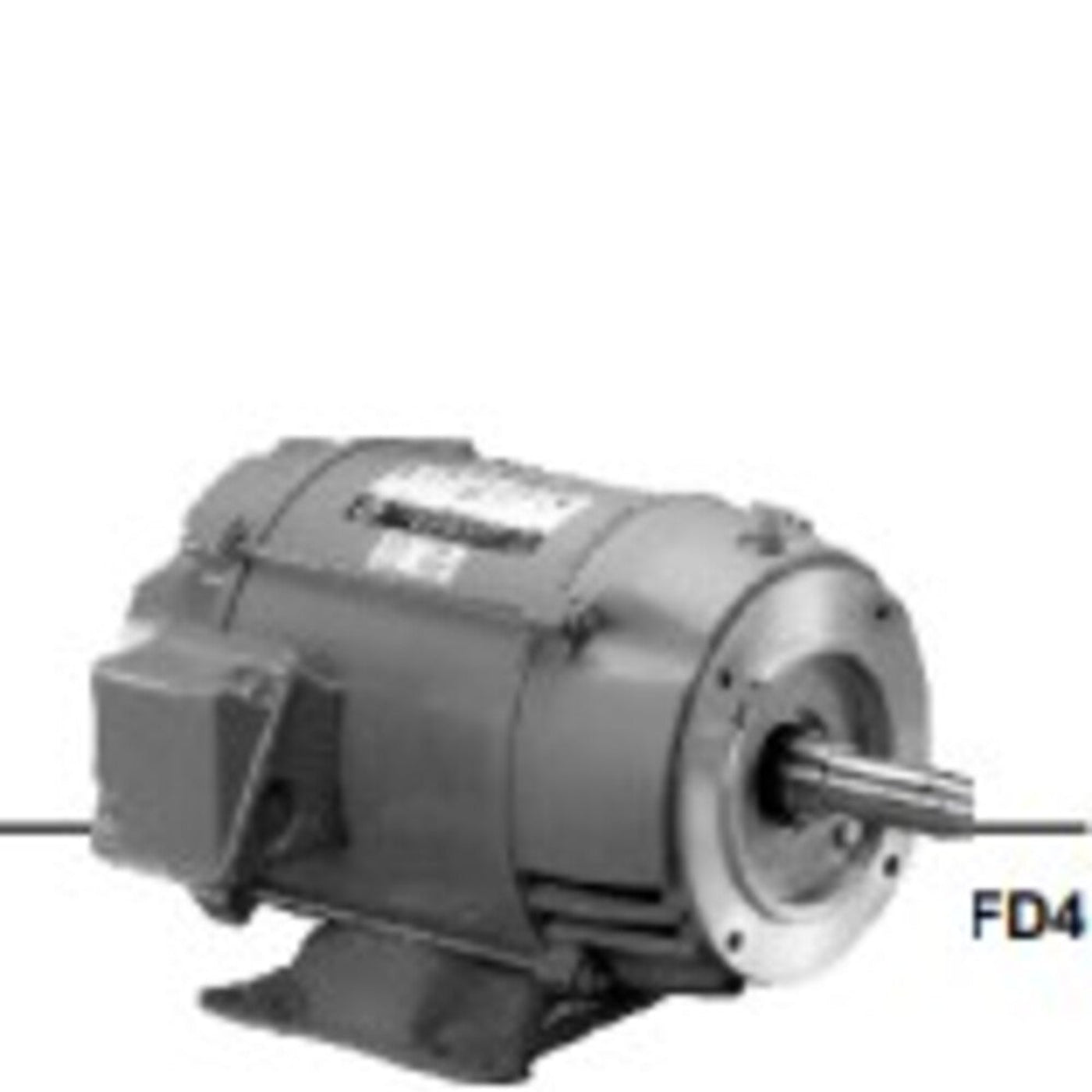

US-Nidec DJ20P2EM Close Coupled Pump Motor 20 HP -DJ20P2EM
The US-Nidec DJ20P2EM is a close coupled pump motor with a rating of twenty horsepower. This model operates on a three-phase electrical system and is designed for efficiency and reliability in various applications.
Product Highlights
This motor is ideal for industrial and commercial use. It supports a C-face and footed mounting style, allowing for easy installation.
Features
- Voltage: Two hundred thirty to four hundred sixty volts
- Amperage: Forty-seven to twenty-three point six
- Material: Rolled steel construction for durability
Specifications
| Electrical Type |
Three Phase |
| Frame Size |
256JM |
| Enclosure |
ODP (Open Drip Proof) |
| Rotation |
REV (Reversible) |
| Overload Protection |
None |
| Mounting Type |
C-Face / Footed |
| Shaft Type |
Single |
| Efficiency |
93.00% |
| Brand |
US-Nidec |
| MPN |
DJ20P2EM |
What our Experts Think
-
Powerful Output: The US-Nidec DJ20P2EM provides 20 HP at 1775 RPM, delivering robust performance ideal for demanding pump applications.
-
Energy Efficient: With a service factor of 1.15 and Class F insulation, it operates efficiently even under varying load conditions, ensuring long-term reliability.
-
Durable Construction: Built with a 256JM frame and cast aluminum end shields, this motor is engineered for durability and resistance to environmental challenges.
-
Versatile Voltage: Supports 230/460V 3-phase power, making it suitable for a variety of industrial environments and setups.
-
Reliable Protection: Featuring an Open Drip Proof (ODP) design, it is suitable for use in damp, dusty, or dirty environments, adding to its longevity.
Q&A
Q: What is the construction quality of the DJ20P2EM motor?
A: The DJ20P2EM motor is constructed with a high-quality rolled steel frame that offers durability and resistance to harsh environments. The motor includes cast aluminum end shields for strength and weight reduction. Its shaft is made of stainless steel for increased corrosion resistance. The design includes oversized ball bearings that ensure long-lasting and smooth operation.
Q: Does this motor offer any protection features?
A: Yes, the motor is equipped with auto overload thermal protection, which helps prevent overheating. This feature ensures that the motor operates within safe temperature limits, providing reliability and durability in demanding applications.
Q: What is the service factor of this motor?
A: The DJ20P2EM has a service factor of 1.15, meaning it can handle occasional overloads up to 15% above its rated horsepower, offering greater flexibility in high-demand situations.
Q: What type of environment is the DJ20P2EM motor suitable for?
A: This motor is ideal for use in environments where there is exposure to dust, dirt, and moisture but not direct submersion. Its Open Drip Proof (ODP) design protects the motor from water and other particles falling vertically from above, making it suitable for industrial and commercial pump systems.
Q: Is this motor energy efficient?
A: While the DJ20P2EM is not specifically labeled as premium efficiency, it is designed for reliable and continuous-duty operation. Its robust construction and thermal protection help maintain efficient performance over time, even under load.
Q: What are the installation and maintenance requirements for the DJ20P2EM motor?
A: This motor is designed for easy installation with its C-Face mounting. It should be installed by professionals who are familiar with electrical systems, as the motor requires proper voltage supply (230/460V) and a stable environment. Regular maintenance includes checking the motor for proper operation, cleaning, and ensuring that the bearings are lubricated as needed.
Maintenance Tips
-
Regular Inspection: Check for unusual vibrations, overheating, or noise. Ensure the motor operates smoothly without any irregularities.
-
Keep Clean: Maintain the motor's cleanliness by removing dust and debris. Ensure ventilation openings are unobstructed to facilitate proper airflow.
-
Lubricate Bearings: Apply the recommended lubricant to the bearings as per the manufacturer's instructions to ensure smooth operation and reduce wear.
-
Check Electrical Connections: Inspect all wiring and connections for signs of wear or corrosion. Tighten and clean connections as necessary to maintain optimal electrical performance.
-
Monitor Load & Voltage: Ensure the motor is not subjected to loads exceeding its 20 HP capacity. Verify that the voltage is within the specified range (230/460V) to prevent potential damage.
-
Proper Storage: If the motor is not in use, store it in a dry, clean, and well-ventilated area to prevent moisture-related damage.
