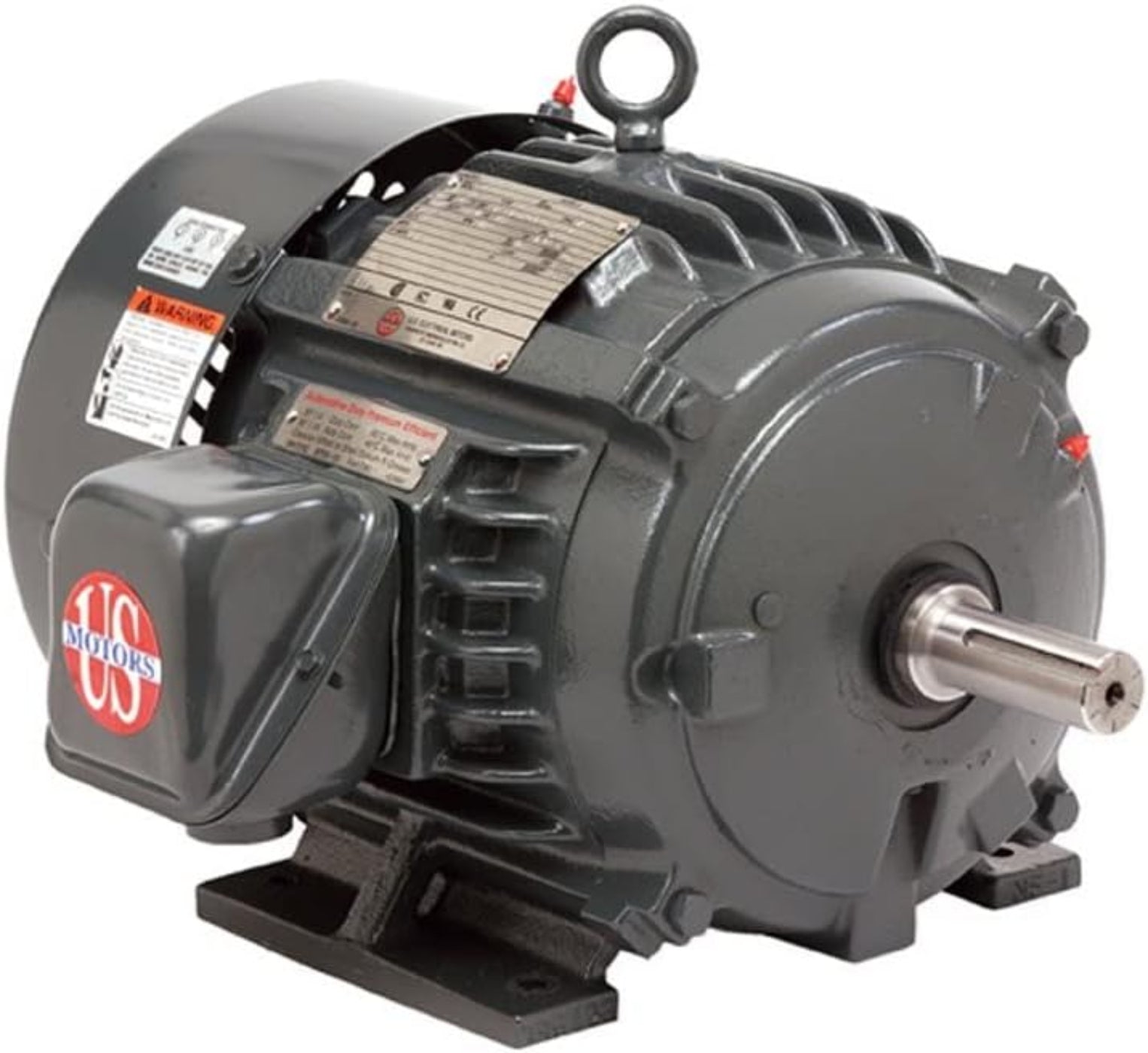

U. S. Motors Nidec HD1P3E 1 hp 1200 RPM 145T Frame 230/460V TEFC - HD1P3E
The Nidec HD1P3E is a one horsepower, 1200 RPM electric motor designed for demanding applications. It operates on a dual voltage of two hundred thirty or four hundred sixty volts and features a Totally Enclosed Fan Cooled (TEFC) design. This motor is suitable for various industrial uses including pulp and paper plants, saw mills, and foundries.
Product Highlights
This motor is designed for continuous duty and features a rugged build. Its efficient operation makes it ideal for various industrial settings. The corrosion-resistant features add to its longevity.
Features
- 1 hp power output at 1200 RPM
- TEFC design for durability in harsh conditions
- Three-phase operation with low amperage
Specifications
| Horsepower |
1 HP |
| Speed |
1200 RPM |
| Voltage |
230/460 Volts |
| Amperage |
3.7 / 1.8 A |
| Frame Size |
145T |
| Insulation Class |
F |
| Service Factor |
1.15 |
| Weight |
70 lbs |
| Brand |
Nidec |
| MPN |
HD1P3E |
What our Experts Think
-
Dependable Power: The U.S. Motors HD1P3E provides 1 HP at 1200 RPM, making it a solid choice for applications requiring steady, reliable performance.
-
Versatile Voltage: It operates on 230/460V three-phase power, offering flexibility for different industrial electrical setups.
-
Durable Build: Designed with a Totally Enclosed Fan Cooled (TEFC) enclosure and a robust cast iron frame, it ensures protection against moisture, dust, and other contaminants.
-
Efficient Operation: With Class F insulation and a service factor of 1.15, it delivers reliable and efficient performance in demanding conditions.
-
Easy Installation: The motor comes with a rigid base mount and a keyed shaft, ensuring straightforward and secure installation.
Q&A
Q: What is the U.S. Motors Nidec HD1P3E motor used for?
A: The U.S. Motors Nidec HD1P3E is a high-efficiency electric motor ideal for industrial applications requiring 1 horsepower, 1200 RPM, and a 145T frame size.
Q: What are the electrical specifications of the HD1P3E motor?
A: It operates at 230/460V, designed for both single-phase and three-phase systems, and is enclosed in a Totally Enclosed Fan Cooled (TEFC) housing for durability.
Q: What makes the HD1P3E motor reliable?
A: With a robust design, high torque, and low maintenance, the HD1P3E is engineered for efficiency and long-lasting performance in demanding environments.
Q: Is the motor suitable for variable-speed applications?
A: Yes, the motor is compatible with variable-frequency drives (VFDs) for applications requiring speed control.
Q: What are the key benefits of the HD1P3E motor?
A: It offers energy efficiency, reliable performance, and reduced downtime, making it a cost-effective choice for industrial machinery and equipment.
Maintenance Tips
-
Regular Inspection: Periodically check for unusual vibrations, overheating, or noise. Ensure the motor operates smoothly without any irregularities.
-
Keep Clean: Maintain the motor's cleanliness by removing dust and debris. Ensure ventilation openings are unobstructed to facilitate proper airflow.
-
Lubricate Bearings: Apply the recommended lubricant to the bearings as per the manufacturer's instructions to ensure smooth operation and reduce wear.
-
Check Electrical Connections: Inspect all wiring and connections for signs of wear or corrosion. Tighten and clean connections as necessary to maintain optimal electrical performance.
-
Monitor Load & Voltage: Ensure the motor is not subjected to loads exceeding its 1 HP capacity. Verify that the voltage is within the specified range (230/460V) to prevent potential damage.
-
Proper Storage: If the motor is not in use, store it in a dry, clean, and well-ventilated area to prevent moisture-related damage.
