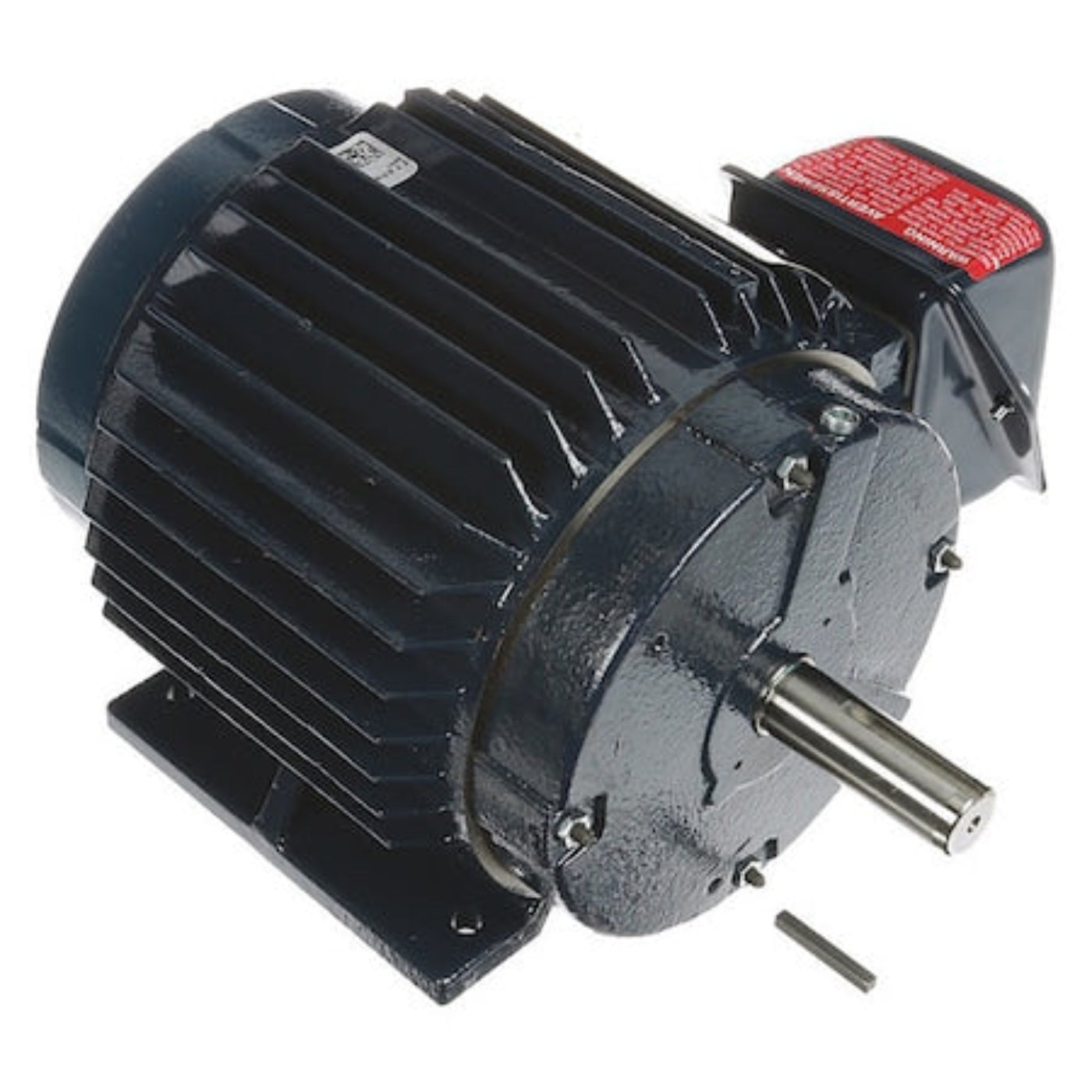

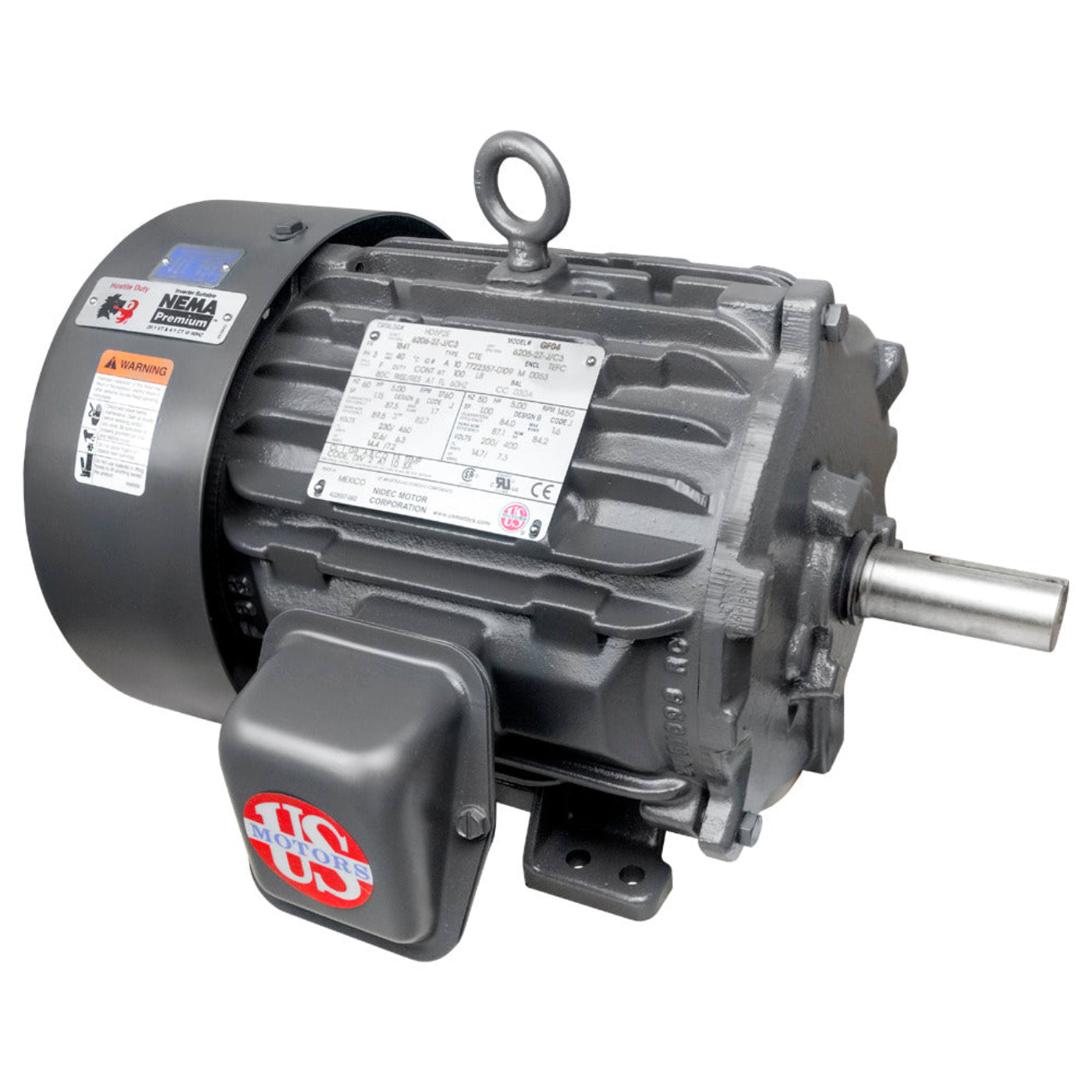

US-Nidec HD2P2H General Purpose Motor 2 HP 200V 145T - HD2P2H
The US-Nidec HD2P2H General Purpose Motor is a robust solution for industrial applications. This 2 HP motor is designed for use in harsh conditions, such as pulp and paper plants, saw mills, mines, and chemical plants.
Product Highlights
This motor offers efficient performance and durability. It features a cast iron frame and a totally enclosed fan-cooled design. It is rated for continuous duty and operates at 1800 RPM.
Features
- 2 HP power output
- 200 volts, 145T frame
- Suitable for a variety of industrial settings
Specifications
| Horsepower (HP) |
2 HP |
| RPM |
1800 RPM |
| Voltage |
200V |
| Frame Size |
145T |
| Amperage |
6.2 / 6.1 A |
| Phase |
Three Phase |
| Enclosure |
TEFC (Totally Enclosed Fan Cooled) |
| Material |
Cast Iron |
| Bearing Type |
Ball |
| Bearing Size |
6203-2Z-J/C3 / 6205-2Z-J/C3 |
| Mounting Type |
Horizontal / Footed |
| Shaft Type |
Single |
| Service Factor |
1.15 |
| Insulation Class |
F |
| Efficiency |
86.50% |
| Brand |
US-Nidec |
| MPN |
HD2P2H |
| Motor Type |
General Purpose |
What our Experts Think
-
Reliable Industrial Performance: The US-Nidec HD2P2H 2 HP General Purpose Motor is engineered to perform consistently in demanding industrial environments.
-
Energy Efficient: With a high efficiency rating, it reduces energy consumption, helping to lower operational costs.
-
Durable Build: The motor features a rugged cast iron frame and end brackets, ensuring long-lasting durability and resistance to tough conditions.
-
Versatile Use: Perfect for a wide range of industrial applications, providing reliable performance in various settings.
-
Trusted Quality: Manufactured by Nidec, a leader in motor technology, known for high-quality, reliable products.
Q&A
Q: What applications is the US-Nidec HD2P2H motor suitable for?
A: This motor is ideal for industrial applications such as pulp and paper mills, sawmills, chemical plants, and heavy-duty machinery.
Q: What are the key specifications of this motor?
A: The motor provides 2 horsepower at 1755 RPM, operates on 200-208V three-phase power, and has a 145T frame with a Totally Enclosed Fan Cooled (TEFC) enclosure.
Q: What are the electrical characteristics of this motor?
A: The motor operates at 6.2/6.1 amps, features a service factor of 1.15, and uses Class F insulation.
Q: What are the mounting and shaft details?
A: It includes a rigid base mount with a keyed shaft that measures 7/8" in diameter by 2 1/4" in length.
Q: What are its construction and protection features?
A: Built with a cast iron frame and end brackets, the motor includes ball bearings and is designed for continuous duty in ambient temperatures up to 40°C.
Q: Why choose the HD2P2H model?
A: It delivers reliable performance, has a robust construction, and is designed to handle demanding industrial applications, ensuring long-lasting and efficient operation.
Maintenance Tips
-
Regular Inspection: Before each use, check for signs of wear, unusual vibrations, or overheating.
-
Keep Clean: Remove dust and debris from the motor housing and vents to maintain proper ventilation and cooling.
-
Lubricate Bearings: Apply the recommended lubricant to the bearings as per the manufacturer's instructions to ensure smooth operation.
-
Check Electrical Connections: Ensure all wiring and connections are secure and free from corrosion to guarantee safe operation.
-
Monitor Load & Voltage: Avoid overloading the motor and verify that the voltage is within the recommended range to prevent potential damage.
-
Proper Storage: If not in use, store the motor in a dry, clean, and well-ventilated area to avoid moisture-related damage.
