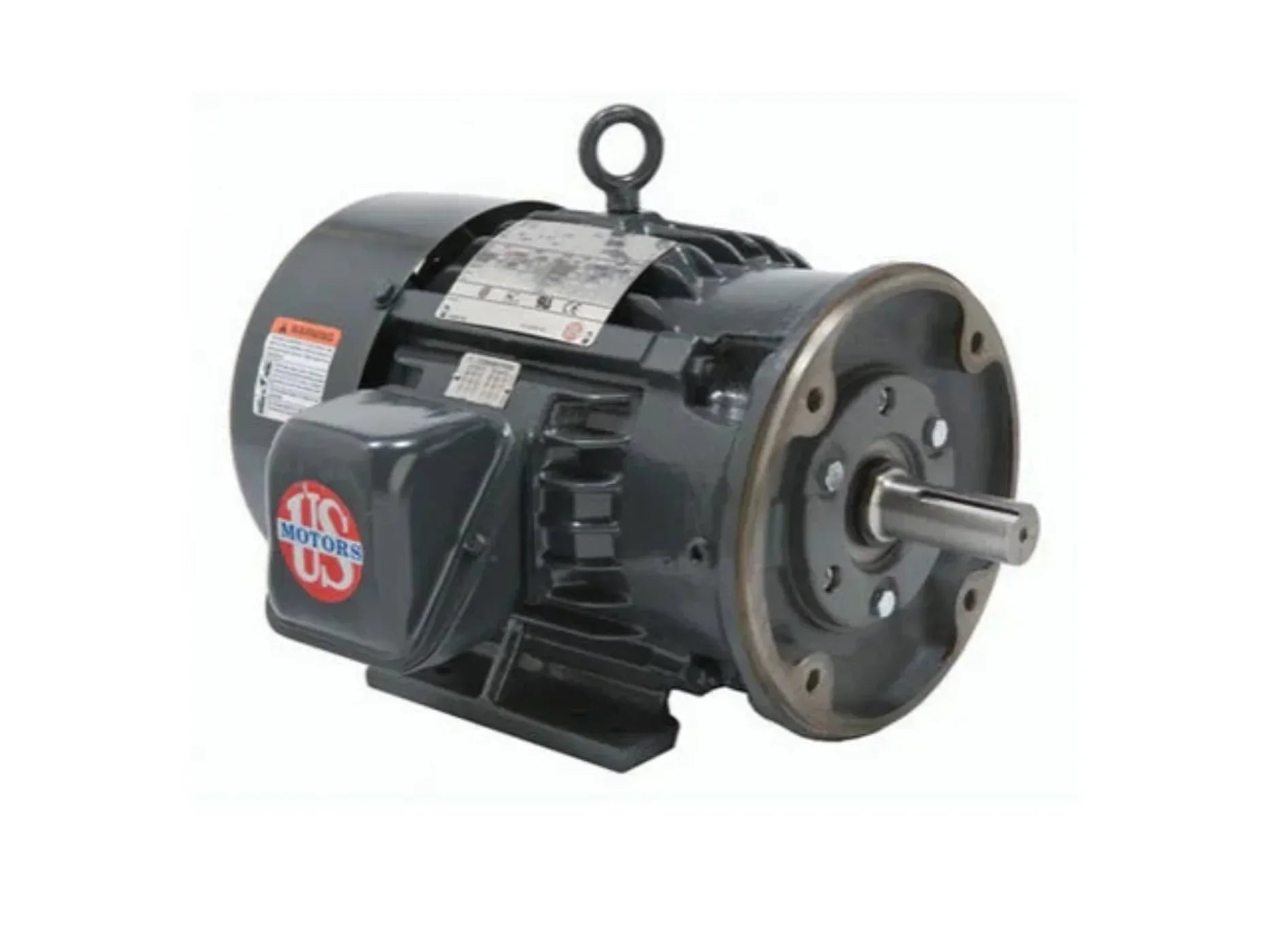

U.S. Motors HD30P1ESC Hostile Duty Three Phase TEFC Horizontal - Footed Motor - HD30P1ESC
The U.S. Motors HD30P1ESC is a three-phase, horizontal footed motor designed for hostile duty applications. This motor operates at thirty horsepower and features a TEFC enclosure, making it suitable for a variety of demanding environments.
Product Highlights
This motor is ideal for heavy-duty tasks requiring reliable performance under challenging conditions.
Features
- Power: 30 horsepower
- Efficiency: Full load efficiency of 91.7%
- Voltage: Operates at 230/460 & 200/400 voltage ratings
Specifications
| Brand |
U.S. Motors |
| Model / MPN |
HD30P1ESC |
| Horsepower |
30 HP |
| Voltage Rating |
230/460 & 200/400 V |
| Full Load Amps |
69 / 35 A |
| Full Load RPM |
3600 RPM |
| Poles |
2 |
| Phase |
Three Phase |
| Duty Type |
Continuous Duty |
| Mounting |
Horizontal - Footed |
| Enclosure |
TEFC – Totally Enclosed Fan Cooled |
| Efficiency |
91.7% |
| Service Factor |
1.15 |
| Insulation Class |
F |
| Frame Size |
286TSC |
| C Dimension |
26.1 in |
| Weight |
320 lb |
What our Experts Think
-
Built for Harsh Environments: Ideal for demanding industries like pulp & paper, foundries, chemical plants, and waste management.
-
Robust Construction: Features a durable cast iron frame and end brackets, with a corrosion-resistant mill and chemical-duty paint for long-term protection.
-
Reliable Performance: Delivers 30 HP at 3560 RPM, designed with a 1.15 service factor for optimal power under heavy load conditions.
-
Dual Voltage Compatibility: Operates efficiently on both 230/460V and 200/400V systems, adaptable for 50/60 Hz applications.
-
Enhanced Protection: Equipped with a Totally Enclosed Fan Cooled (TEFC) enclosure and IP54 rating, offering superior protection against dust and moisture.
-
Maintenance-Friendly: Includes regreasable ball bearings, condensation drains, and plastic plugs for easier maintenance and extended motor life.
Q&A
Q: What does “hostile-duty” mean for this motor?
A: Hostile-duty means the motor is specifically engineered to operate in harsh environments where exposure to extreme temperatures, moisture, dirt, and corrosive materials is common. This motor’s robust TEFC construction protects internal components from these conditions.
Q: Why is the TEFC design important for this motor?
A: The TEFC (Totally Enclosed Fan Cooled) design prevents contaminants such as dust, moisture, and chemicals from entering the motor while still allowing for efficient cooling through the fan. This makes the HD30P1ESC ideal for demanding industrial environments, including manufacturing plants, water treatment facilities, and other heavy-duty operations.
Q: Is the HD30P1ESC motor reversible?
A: Yes, the motor supports reversible rotation, which provides installation flexibility and is beneficial for equipment that requires direction control, like certain pumps and conveyors.
Q: What is the service factor, and why is it important?
A: The HD30P1ESC motor has a service factor of 1.15, meaning it can handle loads 15% above its rated horsepower without damaging the motor. This provides extra durability and reliability in demanding applications.
Q: What is the duty rating of the HD30P1ESC motor?
A: The motor is rated for continuous duty, meaning it is designed to run continuously without overheating or degrading under normal operating conditions, ensuring reliable and consistent performance over time.
Q: Does the motor have thermal protection?
A: No, the HD30P1ESC motor does not come with built-in thermal overload protection. It is recommended to use external overload protection to safeguard against motor overheating.
Q: How does the horizontal footed mounting benefit the HD30P1ESC motor?
A: The horizontal footed base provides a stable mounting option, ensuring proper alignment and easy installation in industrial setups. This design also reduces vibration and contributes to a longer motor life.
Q: What environmental conditions can the HD30P1ESC motor withstand?
A: The motor is designed to operate in hostile environments with exposure to dust, moisture, and chemicals, making it ideal for facilities such as manufacturing plants, water treatment facilities, and agricultural applications.
Maintenance Tips
-
Regular Inspections: Monitor for unusual vibrations or sounds, check for overheating.
-
Lubrication: Keep bearings lubricated to prevent premature wear.
-
Cleanliness: Keep the motor and its surrounding area clean to maintain cooling efficiency.
-
Electrical Check: Tighten electrical connections regularly to avoid potential issues.
-
Monitoring Load: Ensure that the motor operates within its rated load to avoid overloading.
