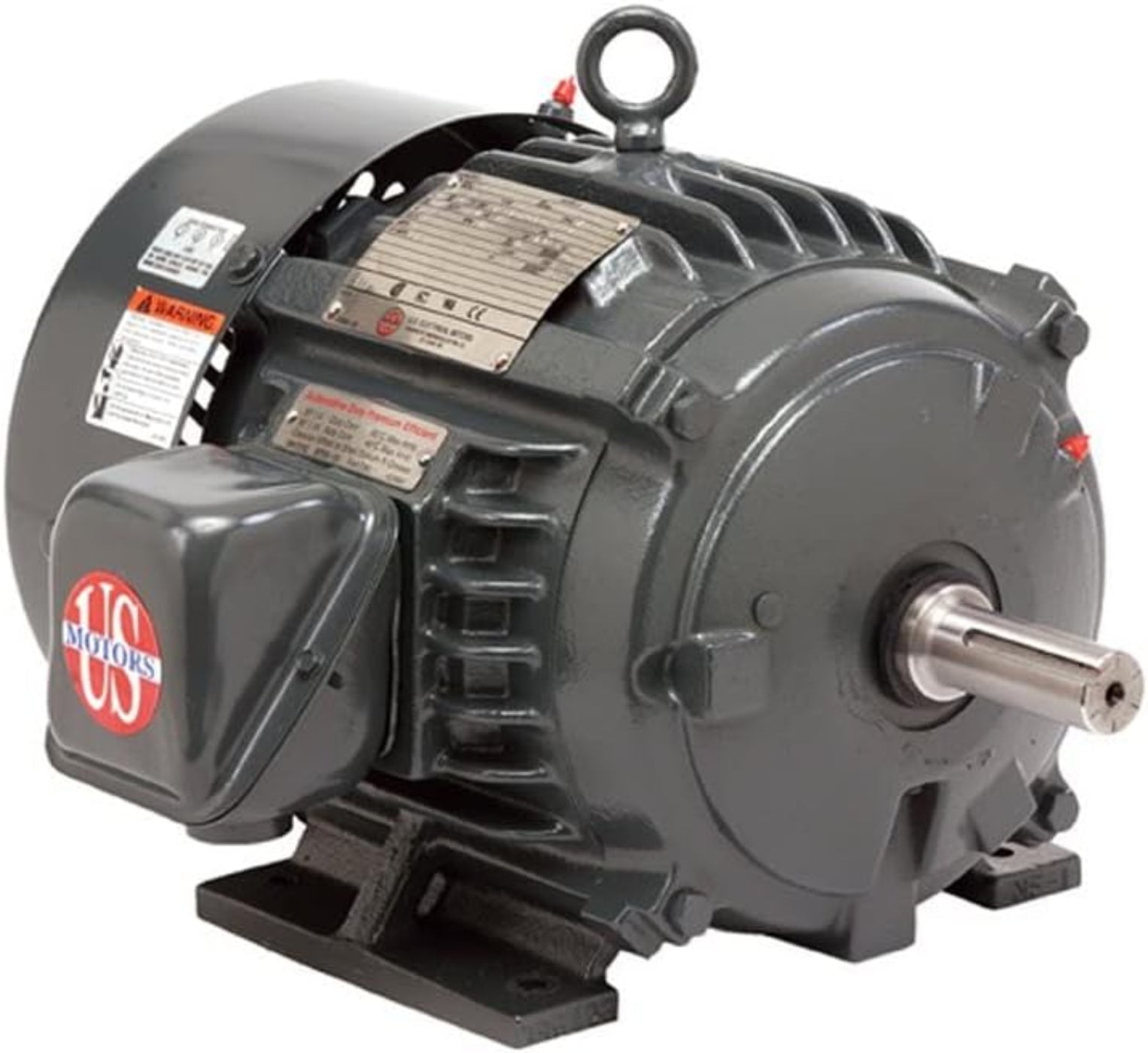

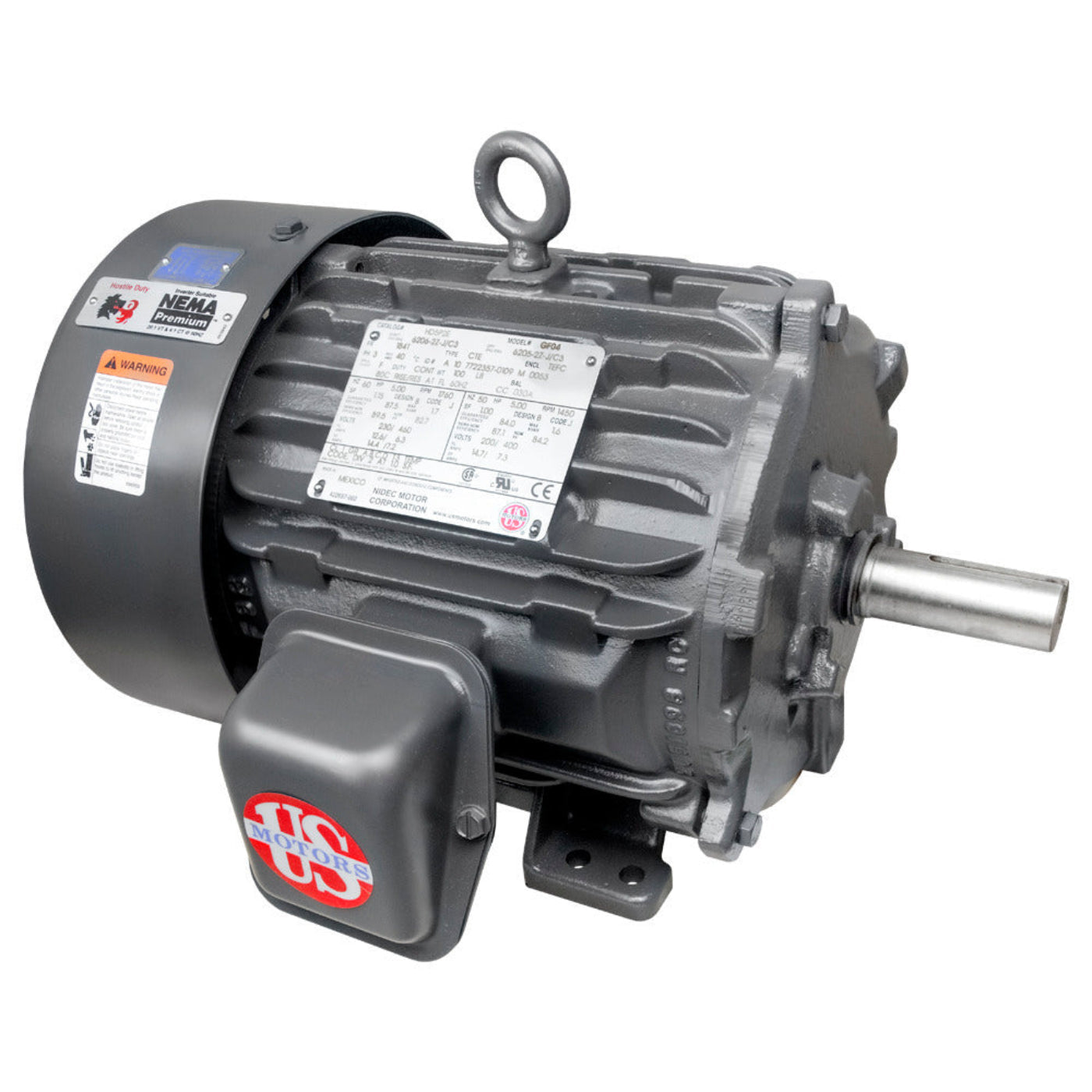

U. S. Motors Nidec HD7P2E Electric Motor 7.5 hp 213T Frame 230/460 Volts - HD7P2E
The Nidec HD7P2E is a 7.5 horsepower electric motor designed for demanding applications. This motor features a Totally Enclosed Fan Cooled (TEFC) enclosure, providing reliable protection from dust and moisture. It operates at 1800 RPM and is versatile with its 230/460 volts capability.
Product Highlights
Ideal for use in industrial applications such as manufacturing and material handling industries, offering durability and efficiency.
Features
- 7.5 horsepower motor
- 213T frame size
- Three-phase power
Specifications
| Brand |
Nidec |
| Model |
HD7P2E |
| Power |
7.5 HP |
| Speed |
1800 RPM |
| Voltage |
230/460V AC |
| Phase |
Three Phase |
| Frame Size |
213T |
| Enclosure |
TEFC (Totally Enclosed Fan Cooled) |
| Material |
Cast Iron |
| Amperage |
19.1 / 9.6 A |
| Mounting Type |
Horizontal / Footed |
| Insulation Class |
Class F |
| Service Factor |
1.15 |
What our Experts Think
-
High-Efficiency Performance
-
Delivers 7.5 horsepower at 1800 RPM, perfect for industrial equipment requiring consistent power
-
Operates on 230/460V three-phase power for balanced and reliable performance
-
Achieves a full-load efficiency of 91.7%, reducing overall energy consumption
-
Durable Construction
-
Built with a 213T frame and rugged cast iron housing for durability in demanding conditions
-
Totally Enclosed Fan Cooled (TEFC) enclosure offers protection from dust, dirt, and moisture
-
Corrosion-resistant paint and zinc-plated hardware ensure the motor’s longevity
-
Versatile & Easy Installation
-
Rigid base mounting with a keyed shaft ensures secure installation
-
Reversible rotation provides flexibility for different setups
-
Class F insulation and Class B temperature rise ensures safe, reliable operation
Q&A
Q: What is the Nidec HD7P2E motor used for?
A: This motor is designed for general-purpose industrial applications, such as driving pumps, compressors, and conveyors in commercial or manufacturing settings.
Q: What are the key specifications of the HD7P2E motor?
A: The motor delivers 7.5 horsepower at 1800 RPM, operates on 230/460V three-phase power, and has a 213T frame size. It features a Totally Enclosed Fan Cooled (TEFC) enclosure for protection against dust and moisture.
Q: What is the service factor of this motor?
A: The HD7P2E motor has a service factor of 1.15, which means it can handle occasional overloads up to 15% beyond its rated capacity.
Q: What are the construction features of the motor?
A: The motor includes a rigid base mount, a keyed shaft (1-3/8" x 3-3/8"), and ball bearings for smooth operation. It uses Class F insulation, suitable for continuous duty in ambient temperatures up to 40°C.
Q: Is the motor compatible with variable frequency drives (VFD)?
A: Yes, the HD7P2E motor is compatible with VFDs, with a 20:1 variable torque and 5:1 constant torque range, allowing for versatile speed control.
Maintenance Tips
-
Regular inspections: Conduct periodic visual and operational inspections to check for any signs of wear or damage.
-
Lubrication: Ensure that the motor bearings are properly lubricated according to the manufacturer's specifications to reduce friction and wear.
-
Cleaning: Keep the motor clean and free from dust, debris, and other contaminants that could impair its performance.
-
Electrical checks: Regularly inspect electrical connections and insulation to prevent faults or damage.
-
Cooling system: Ensure the motor's cooling system is functioning properly to maintain appropriate operating temperatures.
-
Alignment: Verify that the motor and connected equipment are properly aligned to prevent undue stress or damage.
