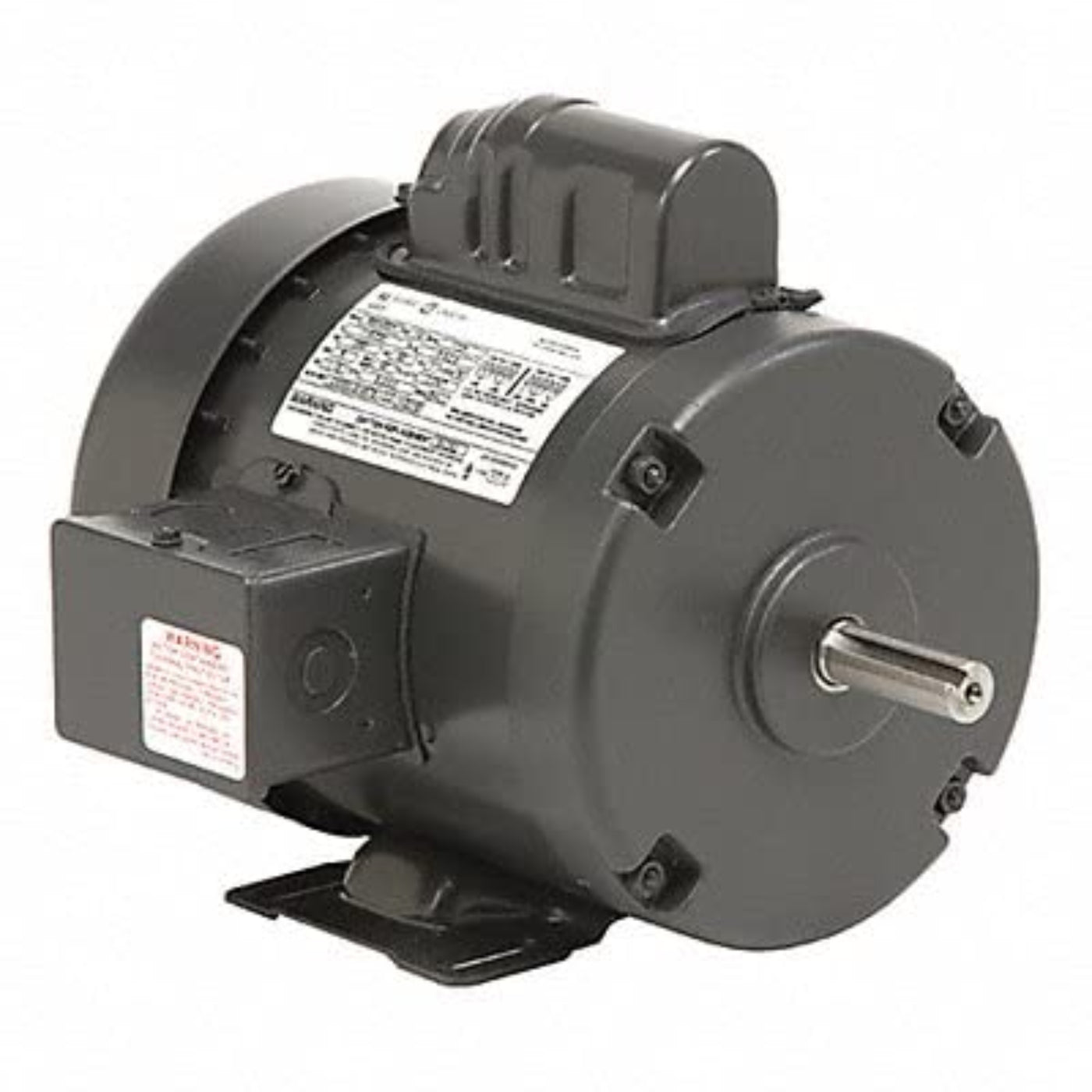

U.S. Motors T13C2J Motor, 1/3HP, 1725RPM, 115/208-230V, 56, TEFC - T13C2J
The U.S. Motors T13C2J is a general purpose motor designed for various applications. This single phase motor operates at one third horsepower and features a design suited for capacitor-start operation. With a nameplate speed of one thousand seven hundred twenty-five RPM, it is capable of functioning at voltages of one hundred fifteen, two hundred eight, or two hundred thirty volts AC.
Product Highlights
This electric motor is durable, equipped with a rigid base for mounting in horizontal positions. It features a totally enclosed fan-cooled design which protects the inner components while allowing for efficient cooling.
Features
- Type: General Purpose Motor
- Frame Size: 56
- Duty Cycle: Continuous
Specifications
| Brand |
Nidec |
| Model / MPN |
D5C1K18 |
| Motor Type |
Capacitor-Start |
| Horsepower |
5 HP |
| Voltage Rating |
230V |
| Full Load Amps |
19.6 A |
| Full Load RPM |
3600 RPM |
| Frame Size |
184T |
| Phase |
Single Phase |
| Enclosure Type |
Open Dripproof (ODP) |
| Mounting Type |
Rigid Base |
| Material |
Rolled Steel |
| Bearings Type |
Ball / Ball |
| Service Factor |
1.15Horsepower |
| Nameplate RPM |
1725 RPM |
| Voltage |
115/208-230 V AC |
| Full Load Amps |
6.6 / 3.3 - 2.9 A |
| Max. Ambient Temperature |
40°C |
| Insulation Class |
Class B |
| Motor Bearings |
Ball Bearings |
| Mounting Type |
Rigid Base |
| Motor Type |
Capacitor-Start |
| Phase |
Single Phase |
What our Experts Think
-
Compact 1/3 HP Power: Perfect for light-duty applications such as small pumps, fans, and conveyors.
-
Dual Voltage Capability: Operates on 115/208-230V for flexible installation across various electrical systems.
-
1725 RPM Speed: Provides smooth, consistent speed for reliable operation in continuous-duty tasks.
-
TEFC Design: Totally Enclosed Fan Cooled construction protects against dust, moisture, and other contaminants, ensuring durability.
-
56 Frame: Standard 56-frame for easy installation and compatibility with most equipment.
Q&A
Q: What is the U.S. Motors T13C2J?
A: The T13C2J is a 1/3 HP, single-phase motor with 1725 RPM speed, 115/208-230V voltage options, a 56 frame size, and a Totally Enclosed Fan Cooled (TEFC) design for protection in general-purpose applications.
Q: What are the key features?
A: 1/3 horsepower, 1725 RPM, 115/208-230V dual voltage, 56 frame size, and TEFC design to prevent dust, moisture, and contaminants from entering the motor.
Q: Where is this motor typically used?
A: Ideal for light-duty industrial applications like fans, blowers, conveyors, and small pumps that require reliable single-phase power.
Q: Why choose the T13C2J model?
A: This motor offers excellent durability, energy efficiency, and versatile voltage options, making it a cost-effective solution for moderate-duty machinery.
Q: Is the T13C2J motor suitable for harsh environments?
A: Yes, the TEFC enclosure provides added protection, ensuring the motor performs well in environments with dust or moisture.
Maintenance Tips
-
Keep motor clean to prevent dust and debris buildup, ensuring proper cooling for the TEFC (Totally Enclosed Fan Cooled) design.
-
Lubricate bearings regularly as per manufacturer recommendations to maintain smooth and quiet operation.
-
Check voltage supply (115/208-230V) to ensure it aligns with the motor’s requirements for safe and efficient performance.
-
Inspect motor mounting and alignment to minimize vibration and mechanical stress.
-
Monitor motor temperature, noise, and vibration to detect any irregularities or signs of wear.
-
Test insulation resistance annually to maintain electrical safety and prolong motor life.
-
Tighten electrical connections to prevent overheating or faults.
