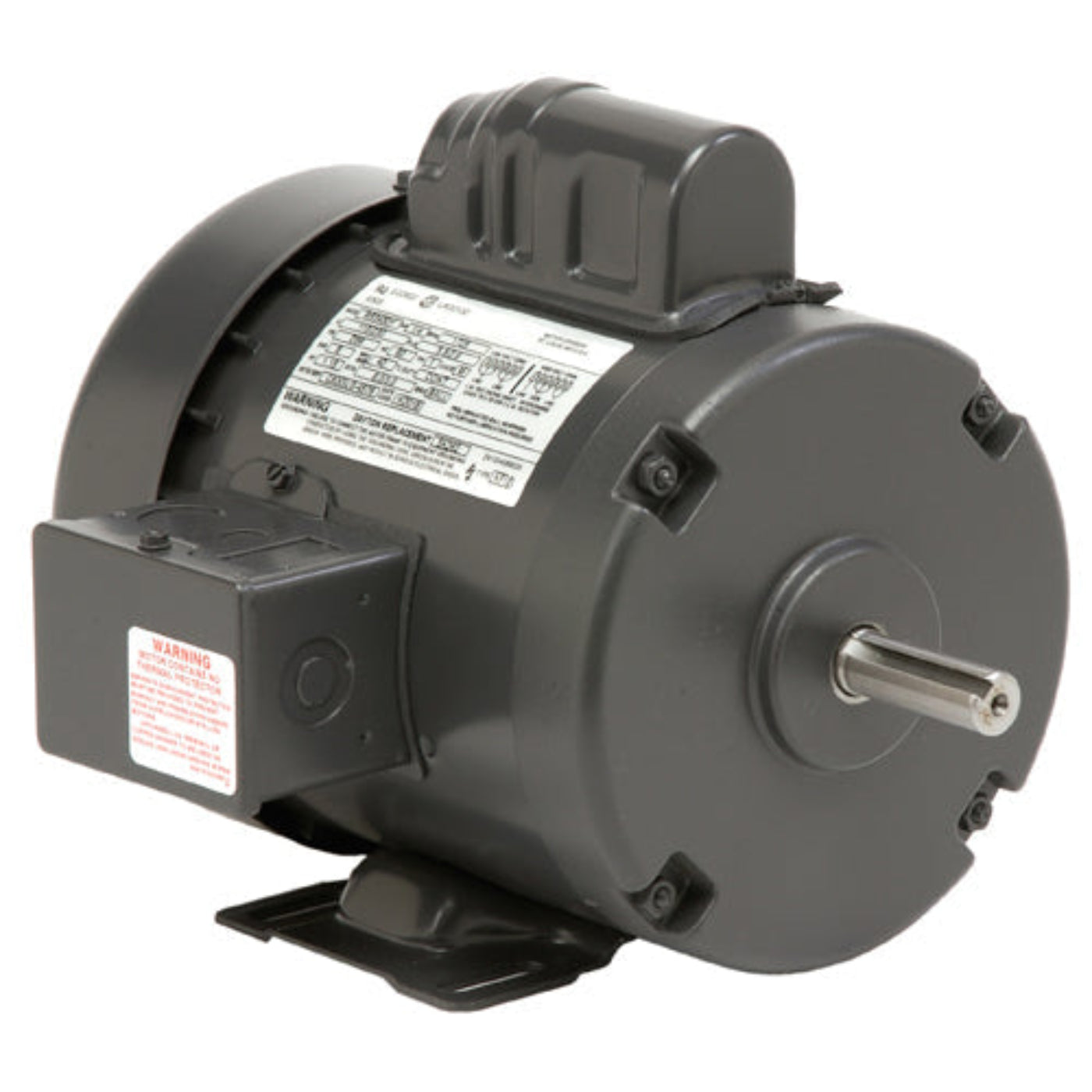

U.S. Motors Nidec Motor Corporation T14C2P4ZS AC Motor, 1/4 HP, 1800 RPM, 115/230 V - T14C2P4ZS
US Motors (Nidec), AC Motor, T14C2P4ZS, 0.25 HP, 1800 RPM, Single Phase, 115/230 V, 60 Hz, 48YZ
Specifications
| Brand |
US Motors (Nidec) |
| Model |
General Purpose |
| Horsepower |
0.25 HP / 1/4 HP |
| Rated RPM |
1725 RPM |
| Synchronous RPM |
1800 RPM |
| Voltage |
115V / 230V |
| Phase |
Single Phase |
| Insulation Class |
B |
| Rated Input Frequency |
60 Hz |
| Motor Enclosure |
Totally Enclosed Fan Cooled (TEFC) |
| Duty Cycle |
Continuous |
| Service Factor |
1.15 |
| Full Load Torque |
12.22 |
| Bearing Type |
Ball |
| Motor Full Load Amps |
5.3 A (115V), 2.7 A (230V) |
| Product Condition |
New |
What our Experts Think
-
Compact Power: Provides 1/4 HP at 1800 RPM, ideal for low to medium-duty applications like small pumps, fans, or HVAC systems.
-
Dual Voltage Flexibility: Operates on 115/230V, allowing it to be used in a variety of residential or light commercial settings.
-
Reliable & Efficient: Engineered for continuous operation, delivering consistent performance while minimizing energy consumption.
-
Durable Construction: Built with high-quality materials by Nidec, ensuring long-lasting reliability and minimal maintenance needs.
-
Versatile Applications: Perfect for small equipment such as air handlers, exhaust fans, or light-duty machines that require dependable, consistent motor power.
-
Simple Installation: Designed for easy integration into most standard systems, offering flexibility for different mounting configurations.
Q&A
Q: What is the U.S. Motors Nidec T14C2P4ZS used for?
A: The T14C2P4ZS is an AC motor designed for general-purpose applications, including small machinery, fans, and pumps in residential and light commercial settings.
Q: What is the power and speed rating of the T14C2P4ZS motor?
A: It delivers 1/4 HP and operates at 1800 RPM, providing efficient performance for low-power applications.
Q: What voltage does the T14C2P4ZS support?
A: This motor is compatible with both 115V and 230V, single-phase electrical systems, offering flexibility for various installation environments.
Q: What type of motor is the T14C2P4ZS?
A: It is an AC, capacitor-start motor with an Open Drip Proof (ODP) design, suitable for dry, clean, and well-ventilated environments.
Q: Where is the T14C2P4ZS best suited?
A: Ideal for residential and light commercial applications such as air handlers, small pumps, and fan systems that require moderate power and reliable performance.
Maintenance Tips
-
Keep the Motor Clean:
Regularly clean the motor to prevent dust and debris buildup, particularly around air vents and cooling fins, to ensure proper airflow and prevent overheating.
-
Inspect Electrical Connections:
Check for secure and corrosion-free electrical connections. Loose or oxidized terminals can cause voltage drops, overheating, or motor failure.
-
Lubricate Bearings as Needed:
If the motor has lubrication points, ensure that the bearings are properly lubricated according to the manufacturer's instructions. Avoid over-lubricating to prevent seal damage.
-
Monitor Motor Temperature:
Check the motor's temperature regularly. If the motor becomes unusually hot, check for airflow blockages, excessive load, or voltage issues.
-
Inspect and Secure the Mounting:
Ensure the motor is securely mounted, as loose mounting can lead to vibration and misalignment, which may cause premature wear or failure.
-
Check Voltage and Amperage:
Verify the motor is operating within the rated voltage (115/230V) and amperage. Overloading or incorrect voltage can lead to poor performance or damage.
-
Listen for Unusual Sounds:
If you hear grinding or humming sounds, it could indicate issues with the bearings, internal components, or alignment. Address these promptly to avoid further damage.
-
Examine the Shaft and Pulley Alignment:
Check that the motor shaft is aligned with the load, and that any pulleys are correctly positioned. Misalignment can increase wear and reduce efficiency.
-
Protect from Moisture and Contaminants:
Since this is an open motor, avoid exposure to moisture and chemicals. Keep the motor in a dry and clean environment to prolong its life.
-
Schedule Regular Inspections:
Perform periodic maintenance checks, including bearing inspections, voltage testing, and insulation resistance testing, to ensure the motor remains in good working condition.
