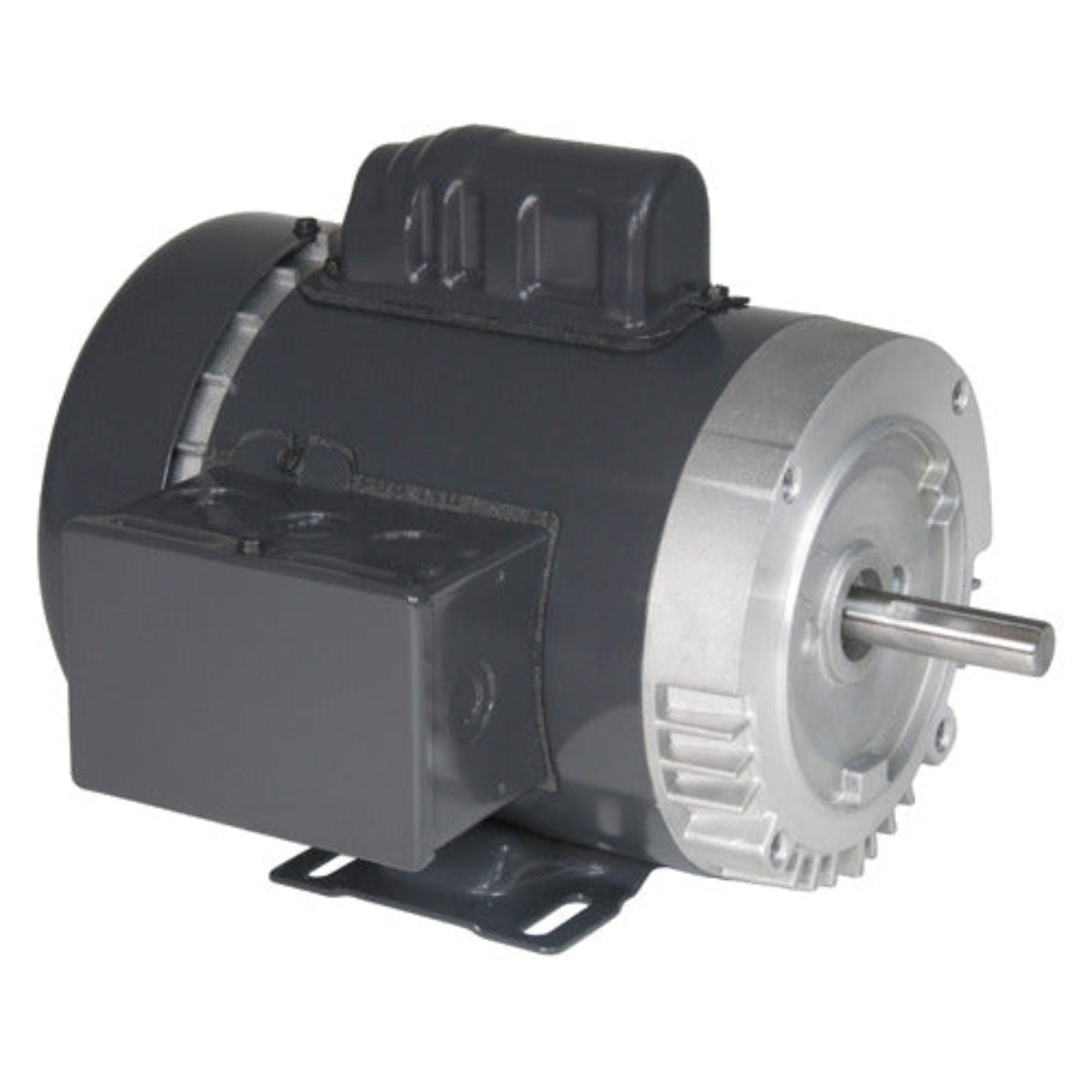

US-Nidec T1C2JHC General Purpose Motor 1 HP 56HC TEFC - T1C2JHC
The US-Nidec T1C2JHC is a general purpose motor designed for various applications. This motor features a one-horsepower capacity and a 56HC frame size. It operates on a voltage range of 115/208-230 volts. The motor is built with a rolled steel material and is housed in a totally enclosed fan cooled (TEFC) enclosure for protection against dust and moisture.
Product Highlights
This motor is suitable for applications requiring robust performance and reliability. The single-phase design ensures compatibility with common electrical systems.
Features
- Voltage: 115/208-230
- Amperage: 14.0/6.9-7.0
- Bearings: Ball / Ball type with size 6203
Specifications
| Power |
1 HP |
| Rotation |
REV (Reversible) |
| Overload Protection |
None |
| Mounting Type |
C-Face |
| Phase |
Single |
| Efficiency |
70.00% |
| Insulation Class |
B |
| Service Factor |
1.15 |
| Frame Size |
56HC |
| Diameter |
6.5 inches |
What our Experts Think
-
1 HP Power Output: Delivers reliable performance for a wide range of general-purpose applications.
-
56HC Frame Size: Compact and commonly used in OEM replacements and new installations.
-
TEFC Enclosure: Ideal for dusty or damp environments—protects internal components and ensures longevity.
-
Durable Build: Manufactured by US-Nidec, known for dependable industrial motors.
-
Application Versatility: Suitable for compressors, pumps, conveyors, fans, and more.
Q&A
Q: What is the US-Nidec T1C2JHC General Purpose Motor?
A: It’s a 1 HP, 56HC frame, Totally Enclosed Fan Cooled (TEFC) motor designed for versatile, general-purpose industrial and commercial applications.
Q: What is this motor used for?
A: Ideal for conveyors, pumps, compressors, fans, and other machinery requiring reliable single-speed motor performance.
Q: Why choose the T1C2JHC model?
A: Built by US-Nidec, it offers long service life, robust construction, and energy efficiency—meeting NEMA standards.
Q: Is it easy to install?
A: Yes, the 56HC frame size ensures compatibility with most standard mountings and applications.
Maintenance Tips
-
Keep motor housing clean to ensure optimal heat dissipation in TEFC (Totally Enclosed Fan Cooled) design.
-
Inspect and lubricate bearings per manufacturer’s guidelines for smooth operation.
-
Verify tightness of mounting and electrical connections to prevent vibration and faults.
-
Monitor operating temperature and noise for signs of internal wear or imbalance.
-
Check voltage and current regularly to ensure they match the motor’s 1 HP specs.
-
Test insulation resistance annually to maintain motor reliability and safety.
