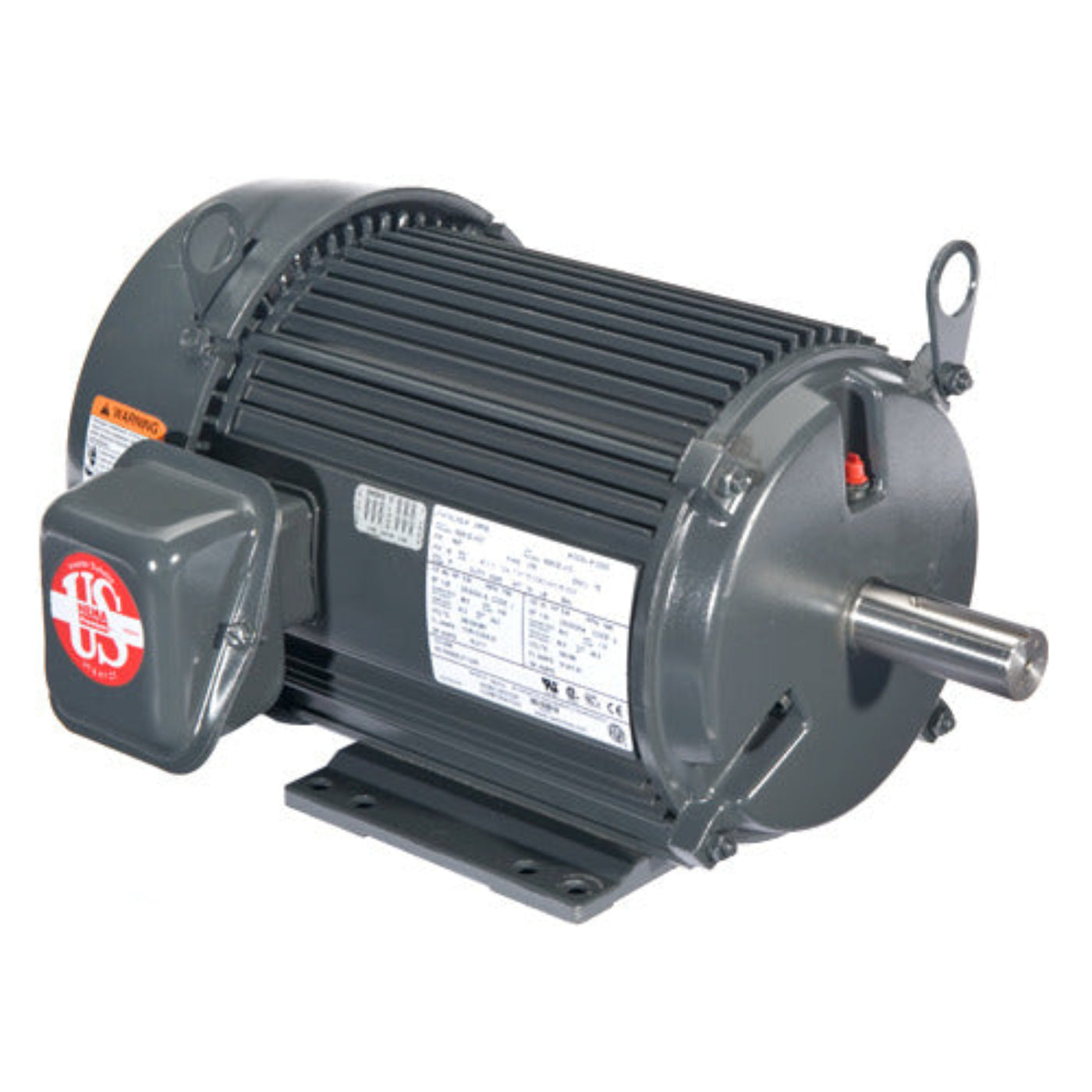

US-Nidec U20P1D General Purpose Motor 20 HP 3600 RPM 208-230/460V - U20P1D
The US-Nidec U20P1D General Purpose Motor is a versatile motor designed for various industrial applications. It offers a power of 20 HP and operates at 3600 RPM with a voltage of 208-230/460V.
Product Highlights
This motor is ideal for use in general industrial equipment such as fans, blowers, compressors, pumps, and direct connected equipment. It features NEMA Premium Efficiency and a totally enclosed fan-cooled design.
- 20 HP motor power
- 3600 RPM speed
- 208-230/460V voltage
Specifications
| Horsepower |
20 HP |
| Speed (RPM) |
3600 |
| Voltage |
208-230/460V |
| Frame Size |
256T |
| Amperage |
53–46 / 23.1 A |
| Enclosure Type |
TEFC (Totally Enclosed Fan Cooled) |
| Phase |
Three |
| Material |
Aluminum |
| Bearings Type |
Ball |
| Insulation Class |
F |
| Efficiency |
91.00% |
| Service Factor |
1.25 |
| Rotation |
REV (Reversible) |
| Mounting Type |
Horizontal / Footed |
| Ambient Temperature |
Up to 40°C |
| Shaft Type |
Single |
| Shaft Diameter |
1 5/8 in |
| Shaft Length |
4 in |
| Overall Length |
26 1/8 in |
| Length Less Shaft |
21 5/8 in |
| Brand |
US-Nidec |
| Model |
U20P1D |
What our Experts Think
-
High Power Output: 20 HP motor provides ample power for demanding industrial applications like pumps and compressors.
-
Dual Voltage Capability: Operates at both 208-230V and 460V for versatile installation across various systems.
-
Optimal Speed: 3600 RPM ensures fast, efficient performance for high-speed machinery.
-
Durable Design: Built to last with a robust construction that handles continuous-duty operations.
-
Energy Efficient: Designed for minimal energy consumption while delivering maximum power.
Q&A
Q: What is the US-Nidec U20P1D Motor?
A: The U20P1D is a 20 HP general-purpose motor with a 3600 RPM speed, designed for high-performance applications in industrial settings.
Q: What are the key specifications?
A: 20 HP power, 3600 RPM, 208-230/460V voltage range, rugged construction, and high-efficiency operation.
Q: Where can the U20P1D motor be used?
A: Ideal for heavy-duty equipment such as pumps, conveyors, compressors, and fans in industrial environments.
Q: Why choose the U20P1D model?
A: Manufactured by US-Nidec, it delivers reliable performance, energy efficiency, and durability for demanding operations.
Q: Is this motor suitable for variable-speed applications?
A: While it operates at a fixed speed of 3600 RPM, it is compatible with systems that require reliable, consistent power.
Maintenance Tips
-
Keep motor clean to prevent dust and debris buildup, ensuring proper airflow and cooling.
-
Lubricate bearings as per manufacturer recommendations to reduce wear and ensure smooth operation.
-
Check alignment and secure mounting to prevent vibration and mechanical stress.
-
Monitor voltage and current (208-230/460V) to ensure the motor operates within specifications.
-
Inspect electrical connections for tightness to prevent overheating or electrical faults.
-
Monitor temperature and noise regularly for early signs of malfunction.
-
Test insulation resistance annually to maintain motor safety and extend its lifespan.
