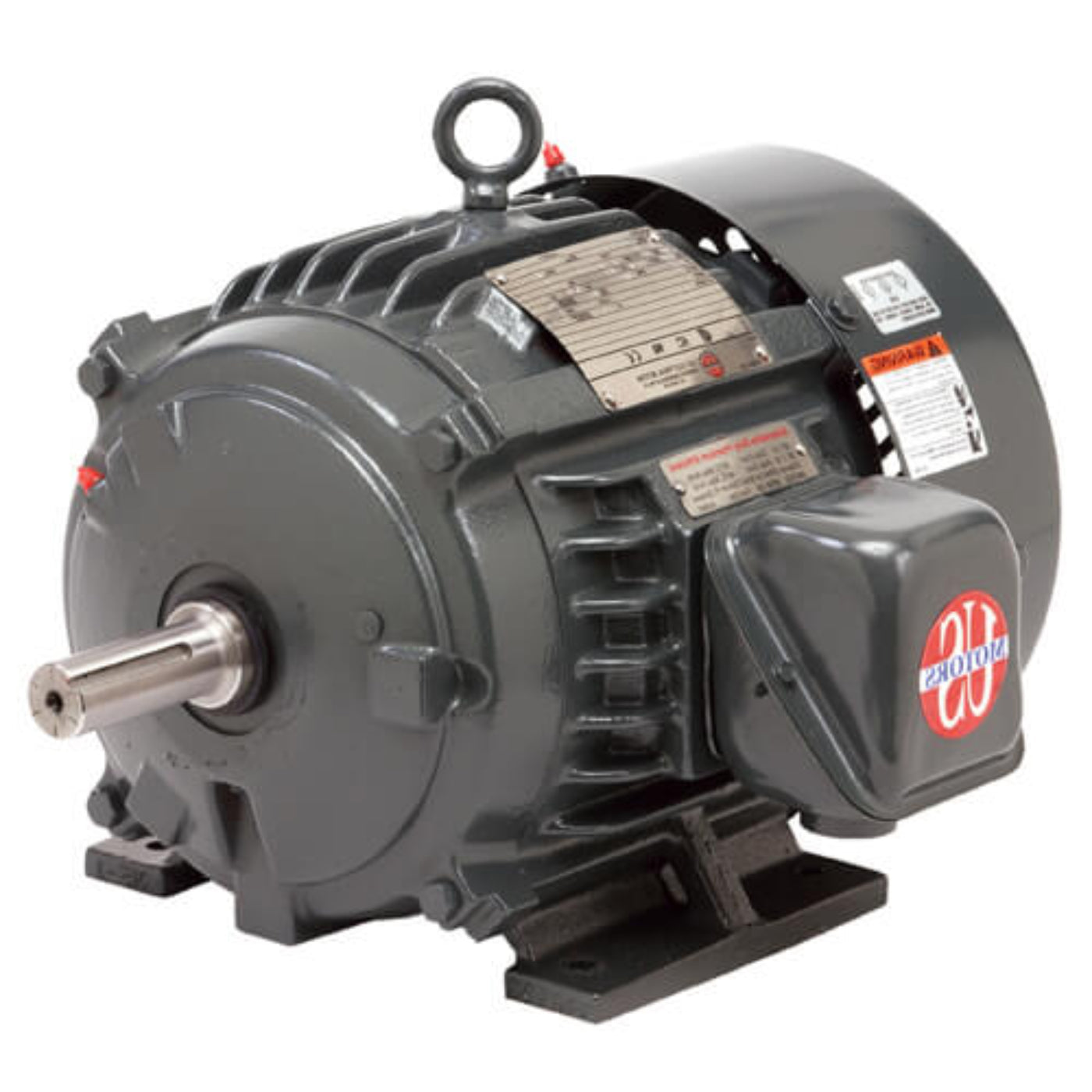

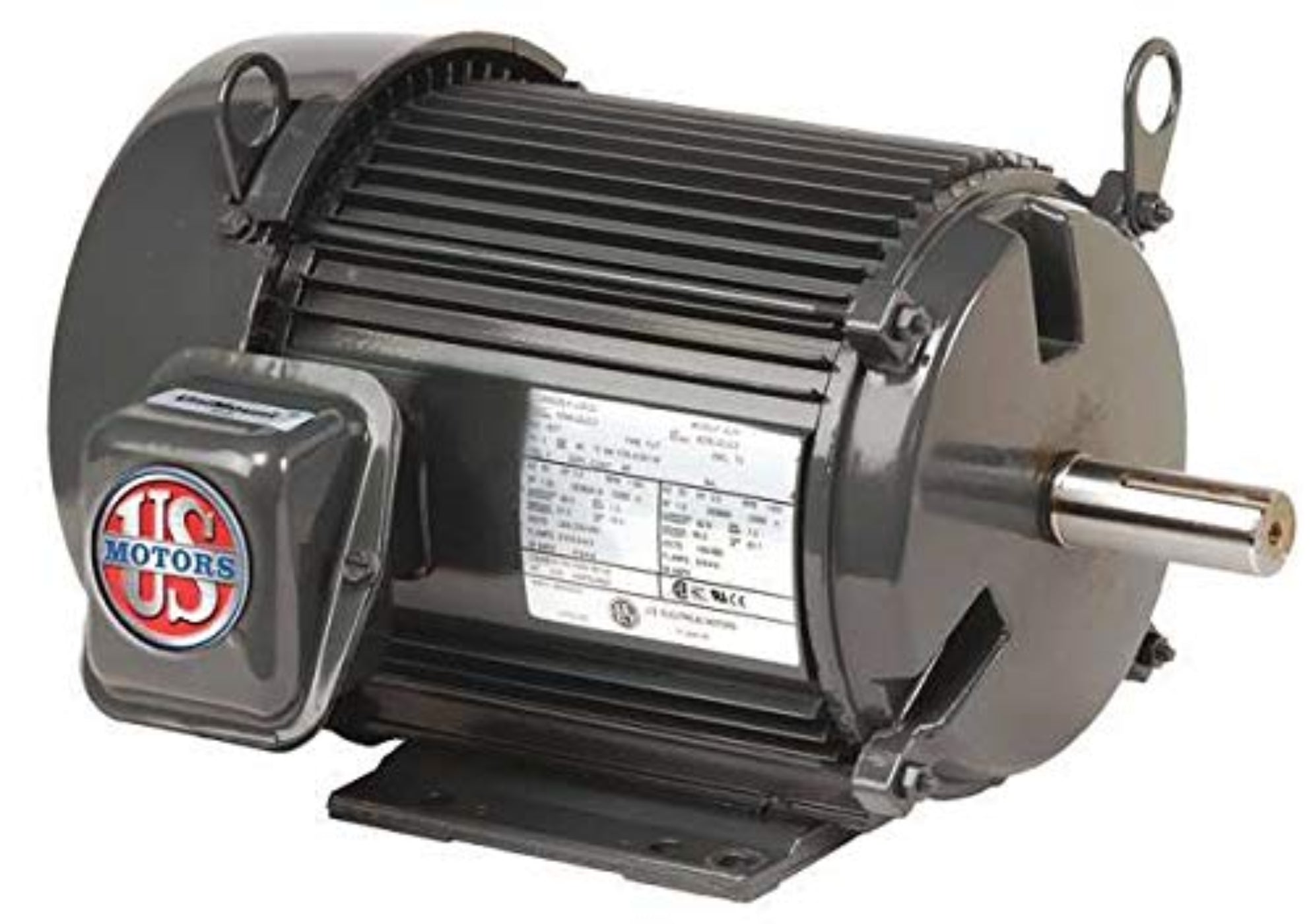

US Motors U30P2D General Purpose Motor 30 HP 1800 RPM 208-230/460V - U30P2D
The US Motors U30P2D General Purpose Motor is designed for industrial applications. It offers a reliable solution for various equipment including fans, blowers, compressors, and pumps.
Product Highlights
This motor ensures efficient performance with its NEMA Premium Rated efficiency and totally enclosed fan-cooled design. It is suitable for both horizontal and vertical shaft down mounting positions.
Features
- 30 HP power
- 1800 RPM speed
- 208-230/460V voltage
Specifications
| Horsepower |
30 HP |
| Speed (RPM) |
1800 RPM |
| Voltage |
208-230/460 V |
| Phase |
Three Phase |
| Enclosure |
Totally Enclosed Fan-Cooled (TEFC) |
| Frame Size |
286T |
| Insulation Class |
Class F |
| Service Factor |
1.25 |
| Full Load Amperage |
70.0 / 35.0 A |
| Material |
Cast Aluminum |
| Maximum Ambient Temp. |
40°C |
| Mounting Type |
Rigid Base |
| Motor Length |
27 5/16 inches |
| Shaft Diameter |
1 7/8 inches |
| Shaft Length |
4 5/8 inches |
| Nominal Efficiency |
93.6% |
| Certifications |
UL, CSA, CE |
| Brand |
US Motors |
| Model / MPN |
U30P2D |
What our Experts Think
-
High-Efficiency Power: 30 HP output delivers strong, reliable performance for heavy-duty industrial applications.
-
Standard 1800 RPM Speed: Ideal for equipment requiring consistent speed and torque, such as pumps, fans, and conveyors.
-
Versatile Voltage Options: Operates on 208-230/460V three-phase systems—easy to adapt to various installations.
-
Built to Last: Designed for continuous-duty operation with robust construction and minimal maintenance.
-
General Purpose Flexibility: Suitable for a wide range of industrial and commercial uses.
Q&A
Q: What is the US Motors U30P2D?
A: The U30P2D is a 30 HP, three-phase general-purpose motor operating at 1800 RPM, with dual voltage support for 208-230/460V systems.
Q: What are the key features?
A: 30 horsepower, 1800 RPM, dual voltage (208-230/460V), TEFC enclosure for protection, and robust performance in industrial environments.
Q: Where is this motor used?
A: Ideal for use in pumps, compressors, conveyors, and other heavy-duty industrial machinery requiring consistent and reliable power.
Q: Why choose the U30P2D model?
A: It delivers dependable operation, energy efficiency, and durable construction, making it a top choice for continuous-duty industrial applications.
Q: Is the U30P2D suitable for harsh environments?
A: Yes, its TEFC enclosure protects against dust, dirt, and moisture, extending the motor’s lifespan in rugged conditions.
Maintenance Tips
-
Clean motor exterior routinely to prevent debris buildup and maintain cooling efficiency.
-
Lubricate bearings per manufacturer schedule to ensure smooth, reliable operation.
-
Verify voltage supply (208-230/460V) and check for phase balance to avoid performance issues.
-
Inspect mounting and alignment to prevent vibration and mechanical stress.
-
Monitor temperature, noise, and vibration for early detection of wear or faults.
-
Check and tighten electrical connections to prevent overheating or arcing.
