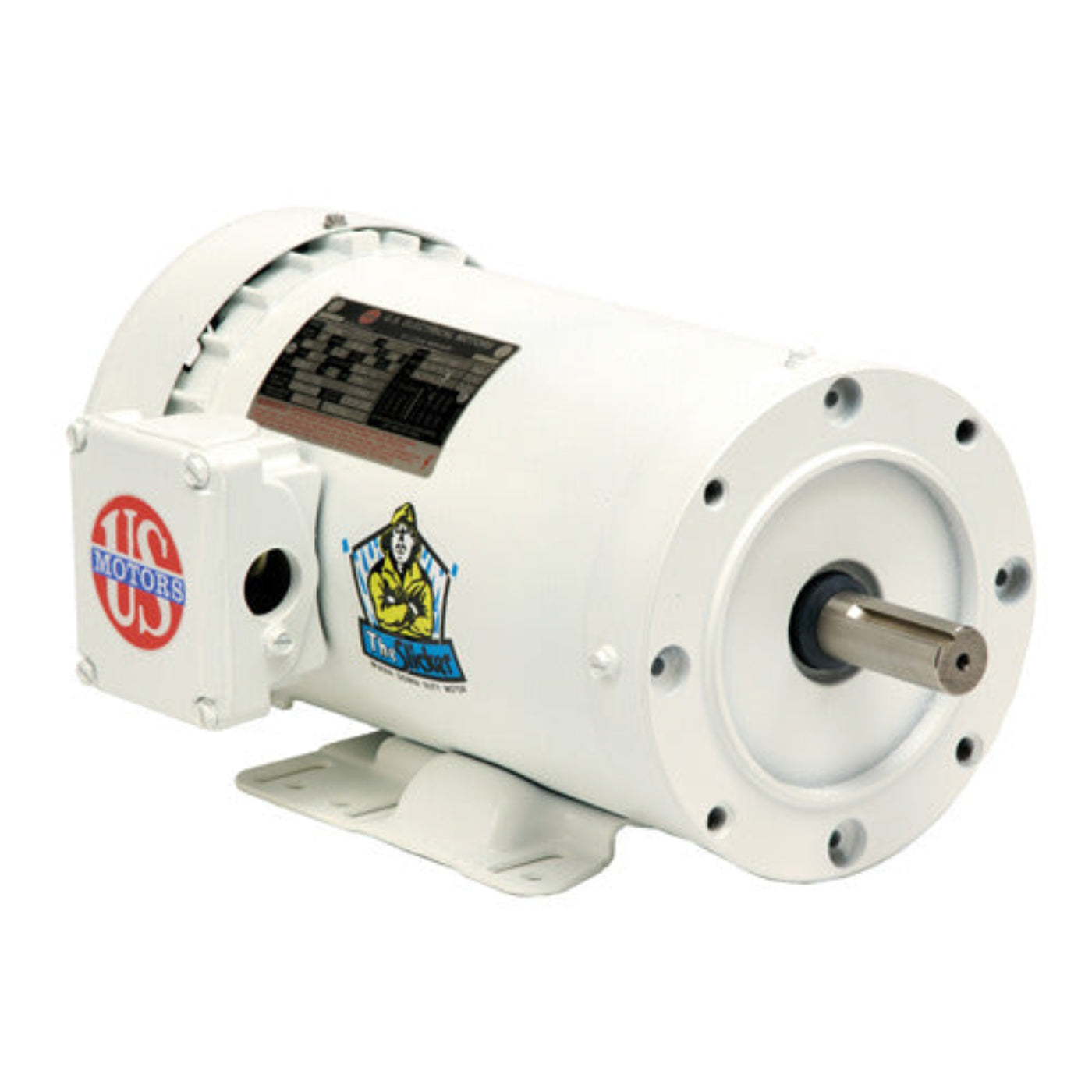

US-Nidec WD1C1JC White Epoxy Washdown Motor 1HP 115/208-230V - WD1C1JC
The US-Nidec WD1C1JC White Epoxy Washdown Motor is a robust and reliable motor designed for demanding environments. Featuring a capacitor-start design, this motor operates at 1 HP with a maximum speed of 3600 RPM.
Product Highlights
This motor is ideal for use in bakeries, food processors, and other washdown environments, providing durability with its rolled steel construction and white epoxy paint finish.
Features
- Single-phase, 115/208-230 volts
- Totally enclosed fan-cooled enclosure
- Ball bearings for smooth operation
Specifications
| Brand |
US-Nidec |
| Model |
WD1C1JC |
| Electrical Type |
Capacitor Start |
| Horsepower (HP) |
1 HP |
| Speed (RPM) |
3600 RPM |
| Frame |
56 |
| Diameter |
6.5 inches |
| Enclosure |
TEFC (Totally Enclosed Fan Cooled) |
| Phase |
Single Phase |
| Voltage |
115 / 208–230 V |
| Rotation |
Reverse (REV) |
| Overload Protection |
None |
| Material |
Rolled Steel |
| Bearings Type |
Ball / Ball |
| Bearings Size |
6203 / 6203 |
| Mounting |
C-Face / Footed |
| Amperage |
13.6 / 6.9–6.8 A |
| Shaft Type |
Single |
What our Experts Think
-
1 HP Power: Delivers solid performance for small to medium-duty washdown applications like pumps, fans, and conveyors.
-
Washdown Ready: Features a white epoxy coating that resists corrosion, making it perfect for wet and harsh environments.
-
Dual Voltage: Operates at 115V/208-230V, providing flexibility for various electrical setups.
-
Compact & Reliable: The motor is designed for efficient, continuous operation while being easy to maintain.
-
Durable Construction: Ideal for food processing, beverage, and pharmaceutical industries where cleanliness and durability are critical.
Q&A
Q: What is the US-Nidec WD1C1JC motor used for?
A: The WD1C1JC is a white epoxy washdown motor designed for applications in food processing, beverage, and other washdown environments that require a durable motor resistant to moisture, dirt, and chemicals.
Q: What are the motor's specifications?
A: It provides 1 HP and operates on 115/208-230V single-phase power, making it versatile for various commercial and light industrial applications.
Q: What type of enclosure does this motor have?
A: This motor features a white epoxy-coated housing, providing enhanced corrosion resistance and ensuring it meets the demands of washdown environments where cleanliness and durability are essential.
Q: Why choose the WD1C1JC motor?
A: With its epoxy coating, moisture resistance, and reliable performance, the WD1C1JC motor is ideal for applications requiring frequent cleaning and protection against water, chemicals, and grime.
Maintenance Tips
-
Keep motor clean and dry, especially after washdown procedures to prevent rust.
-
Inspect epoxy coating for signs of wear or damage to maintain washdown protection.
-
Lubricate bearings as per the recommended schedule to ensure smooth operation.
-
Check for secure electrical and mechanical connections to avoid faults.
-
Monitor for excessive heat, noise, or vibration, which may indicate wear.
-
Test insulation resistance regularly to ensure electrical safety.
-
Ensure proper drainage and ventilation to prevent water accumulation and overheating.
