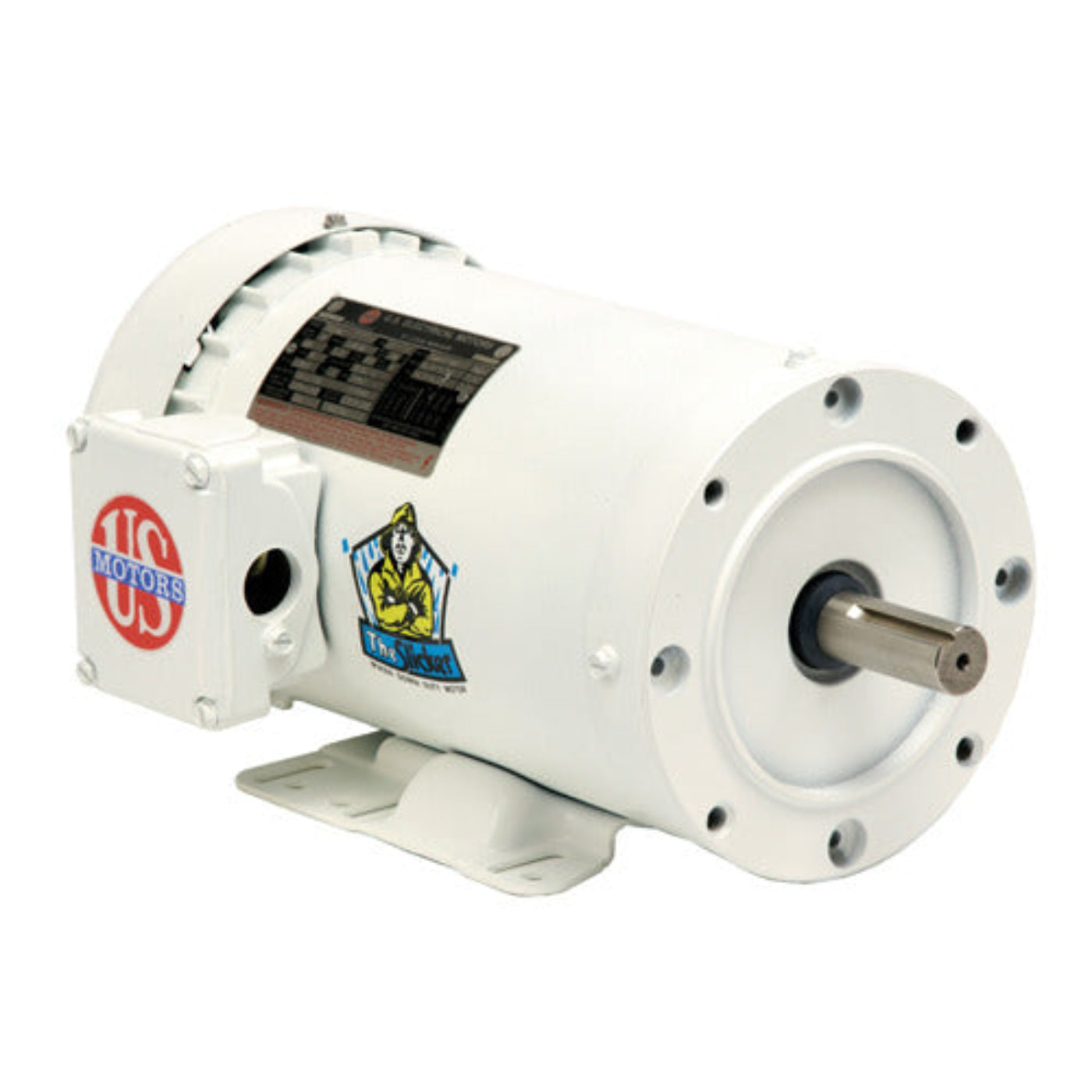

US-Nidec WD1P2AC White Epoxy Washdown Motor 1 HP 208-230/460V - WD1P2AC
The US-Nidec WD1P2AC is a three-phase washdown motor with a power rating of one horsepower. This motor is designed for durability and efficiency, making it suitable for various applications in demanding environments. The motor operates on voltages of 208-230/460 and has a speed of 1,725 RPM, providing reliable performance in industrial settings.
Product Highlights
This motor is ideal for use in applications such as food processing, bakeries, and dairies. It features a service factor of 1.2 and an efficiency rating of eighty-five point five percent, ensuring effective operation even under heavy loads.
Features
- Three-phase design for consistent power output
- Totally enclosed non-ventilated construction
- High corrosion resistance with rolled steel housing
Specifications
| Power |
1 HP |
| Phase |
Three |
| Frame Size |
56C |
| Diameter |
6.5 inches |
| RPM |
1,725 |
| Amperage |
3.4–3.3 / 1.8 A |
| Mounting Type |
C-Face / Footed |
| Material |
Rolled Steel |
| Voltage |
208-230/460V AC |
| Enclosure |
Totally Enclosed Nonventilated (TENV) |
What our Experts Think
-
Washdown-Ready: Features a white epoxy coating designed to resist water, chemicals, and corrosion—perfect for food processing, beverage, and cleanroom environments.
-
1 HP, Multi-Voltage: Delivers reliable 1 horsepower and supports 208-230/460V, giving it flexibility for a variety of three-phase setups.
-
TENV Enclosure: Totally Enclosed Non-Ventilated (TENV) design protects internal components, ideal for wet or humid conditions where ventilation could cause issues.
-
Sanitary & Durable: Built to meet hygiene standards while maintaining strong performance in demanding industrial washdown areas.
-
Trusted Nidec Quality: Engineered by Nidec/US Motors, a name known for efficiency, quality, and motor longevity.
Q&A
Q: What is the US-Nidec WD1P2AC motor designed for?
A: The WD1P2AC is a 1 HP white epoxy-coated washdown motor ideal for food processing, beverage, dairy, and pharmaceutical environments where sanitation and corrosion resistance are critical.
Q: What makes the WD1P2AC suitable for washdown applications?
A: It features a white epoxy finish, sealed bearings, and a TEFC (Totally Enclosed Fan Cooled) enclosure that resists water, chemicals, and contaminants—perfect for high-moisture or cleaning-intensive settings.
Q: What are the voltage specs of the WD1P2AC?
A: It operates on 208-230/460V three-phase power, providing versatility and energy efficiency across different power systems.
Q: Is the WD1P2AC motor energy efficient?
A: Yes, it’s built for efficient, continuous-duty operation, helping reduce energy costs while delivering consistent torque and performance.
Q: Where is the WD1P2AC best used?
A: It's best for washdown environments like meat and poultry processing plants, dairies, food packaging lines, and cleanroom manufacturing.
Maintenance Tips
-
Rinse with Care:
Built for washdown environments, this motor’s white epoxy coating resists moisture and corrosion. Still, avoid high-pressure spray near seals or junctions.
-
Inspect Seals & Gaskets:
Regularly check seals for integrity to maintain IP protection and prevent water ingress during cleaning.
-
Keep Vent Openings Clear:
Even with TENV or TEFC designs, ensure any cooling or drain points remain unobstructed for proper performance.
-
Check for Corrosion:
Though corrosion-resistant, inspect terminals and mounting areas for any signs of oxidation or wear, especially in high-saline or chemical areas.
-
Monitor Performance:
Listen for abnormal noise or vibration. Consistent operation signals proper alignment and internal health.
-
Test Electrical Continuity:
Periodically confirm voltage stability and tight, clean terminal connections for consistent power delivery.
-
Lubricate Bearings as Needed:
Follow the OEM schedule and use food-grade or specified lubricant if applicable to maintain motor smoothness and hygiene standards.
